      ICEpower 200AS1 Amplifier Module with Integrated Universal Mains Power Supply

      € 123,93€ 149,95 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 142,45 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The 200AS1 is a single-channel, Class D amplifier with a fully integrated switch-mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.



      Highlights

      • Fully integrated module, no need for additional circuits
      • Minimum load of 2.7 Ω
      • Extended monitor and status interface
      • 8 +Vdc and 17 +/- Vdc auxiliary outputs



      Product details

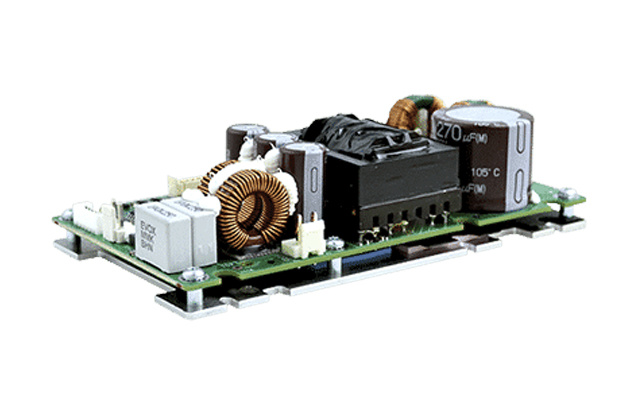

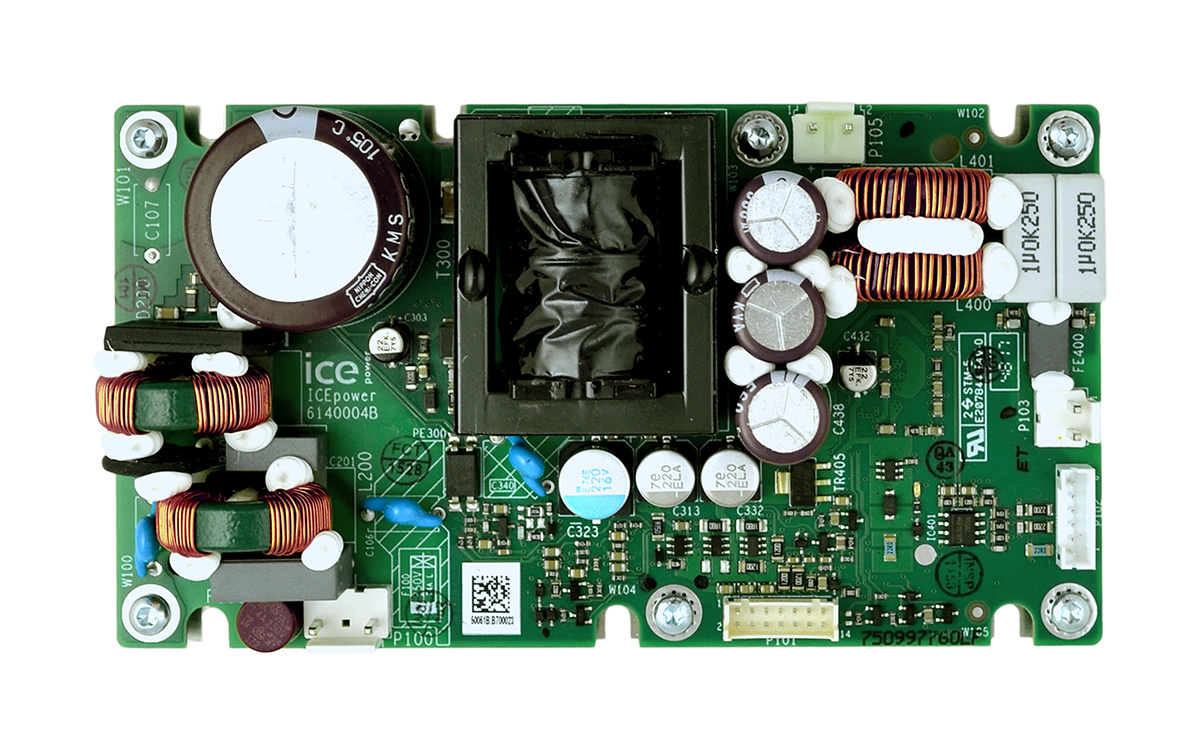

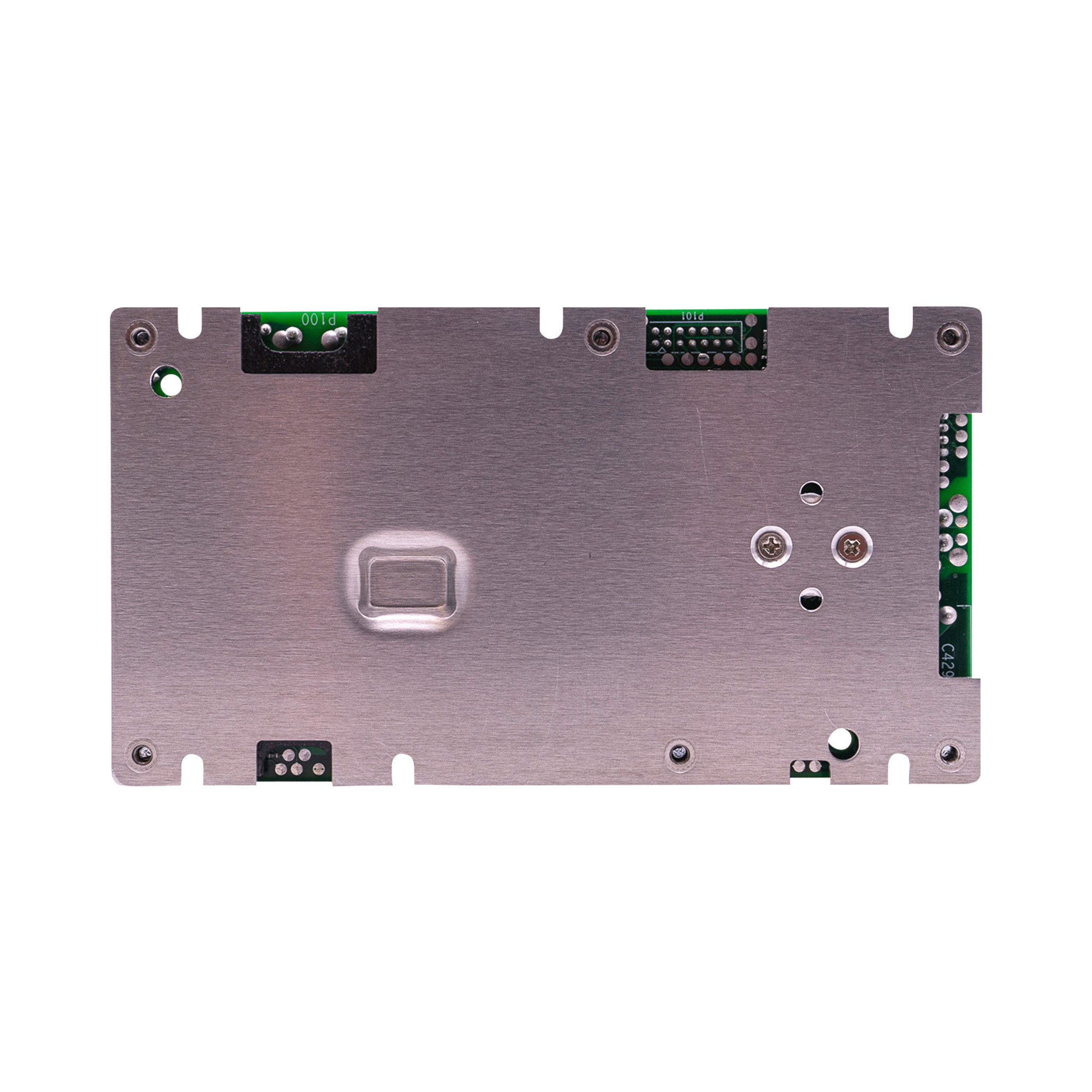

      ICEpower 200AS1 Amplifier Module with Integrated Universal Mains Power Supply



      This 200-watt high-performance, reliable and self-contained amplifier module from the AS-series. The integrated power supply, ruggedness, and easy-to-use control features make it a great competitor from the amplifier module category for a wide range of applications.



      The AS-series from ICEpower offers excellent audio performance thanks to the patented modulation and control techniques. The capable integrated SMPS can continuously output up the 300 watts. The ruggedness is further improved with protection circuits, brand-name components and extensive test and burn-in during production.



      This module has a user-friendly control interface, that features stand-by control, auxiliary power outputs and various status control in- and outputs. Thinking that is too complicated? We haven’t mentioned the plug-n-play compatibility yet; Just connect the mains, signal and speakers and you are ready to play some music!



      Check out the 200AS2 for a stereo version or the 700AS1 for one of the more powerful members of the AS series. Don’t need this much power, but tight on space; check out the ultra-compact 50ASX(BTL).



      What’s In The Box?

      • 1 x 200AS1 amplifier module with integrated SMPS

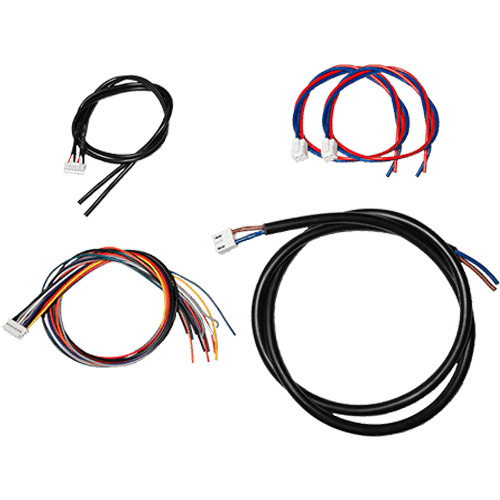

      • Cable set
        • 1 x (NA) Audio input 2 channel
        • 1 x (K) Mains without Earth
        • 1 x (F) 2pole Universal Speaker
        • 1 x (NC) Signal Sence & Trigger

      Specifications

      Article number
      200AS1
      Rated power output
      200 watts at 4 ohms
      Minimum load
      3 Ohm
      Efficiency
      78%
      Distortion
      0.006 % THD+N
      Gain
      24 dB
      Input sensitivity
      2.5 Vp
      Input impedance
      3.0 kOhm
      Amplifier Classification
      Class D
      Speaker output channels
      1
      Power Requirements
      85-264 VAC
      Current limit
      24 A

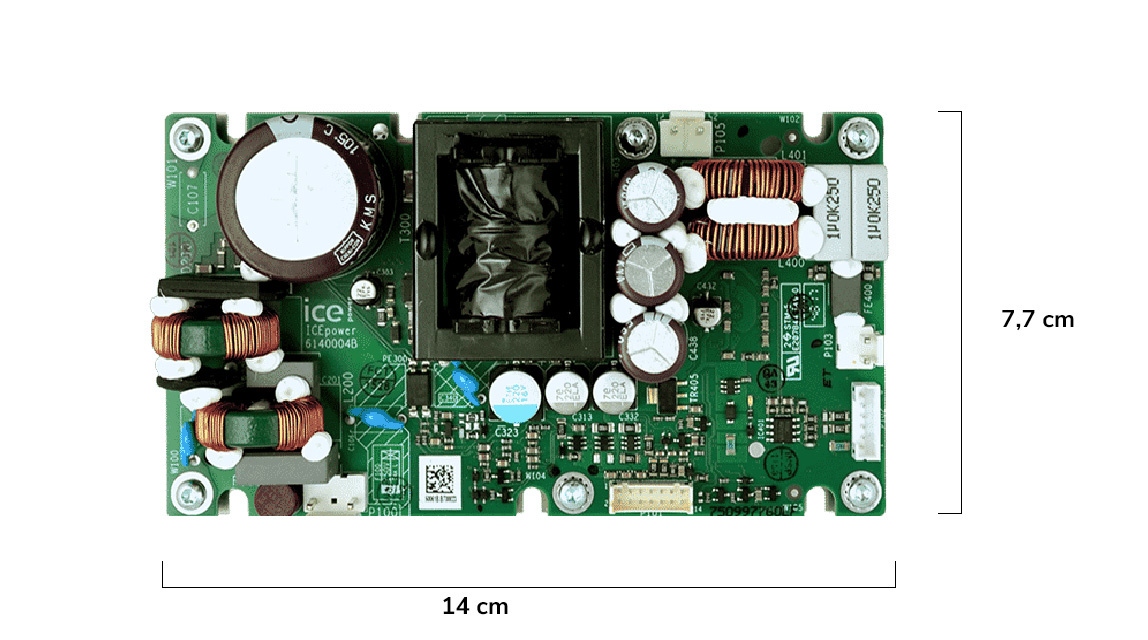

      Dimensions (L x W x H)
      140 x 77 x 36.5 mm
      Mounting hole diameter
      3.5 mm
