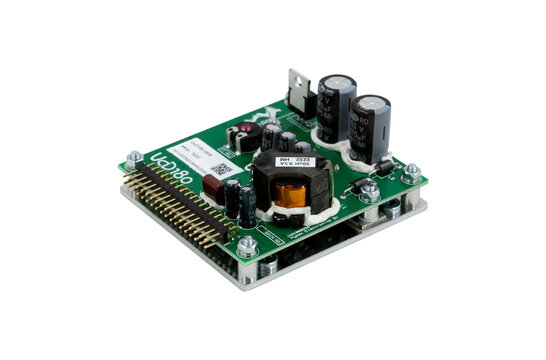

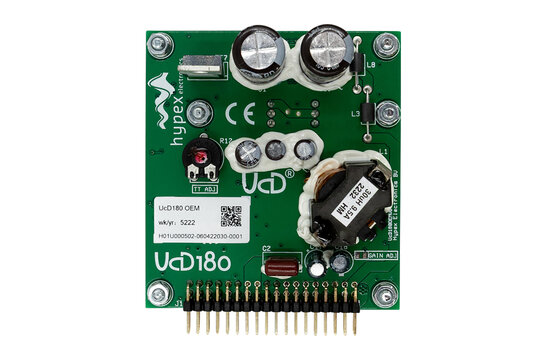

        UcD180 1x180W UcD® Class D Amplifier Module

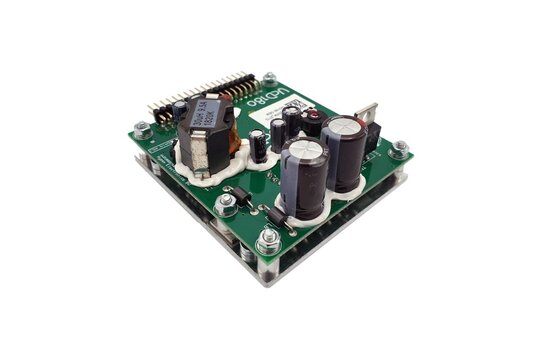

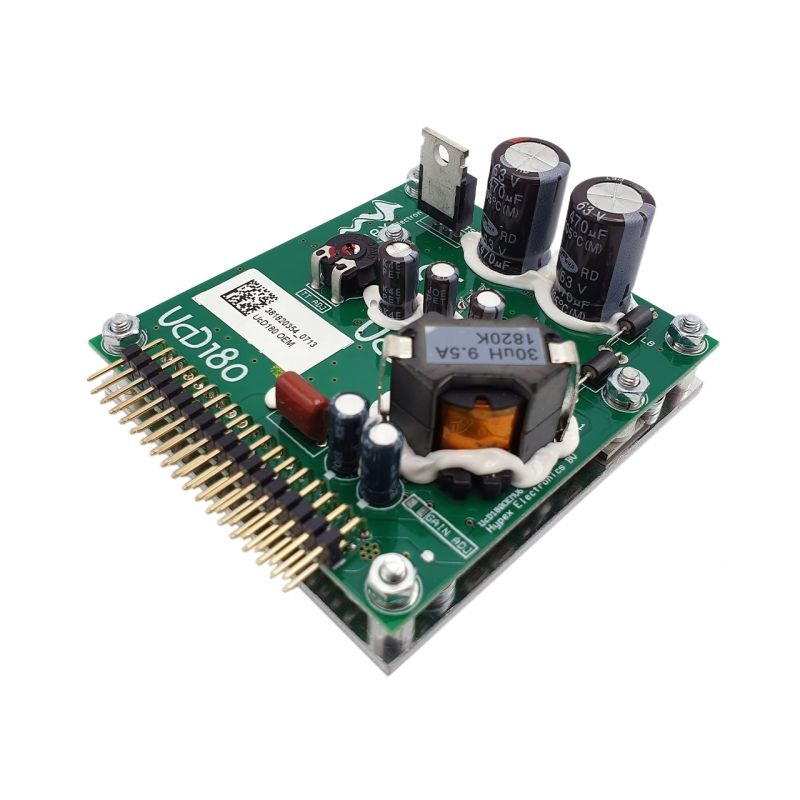

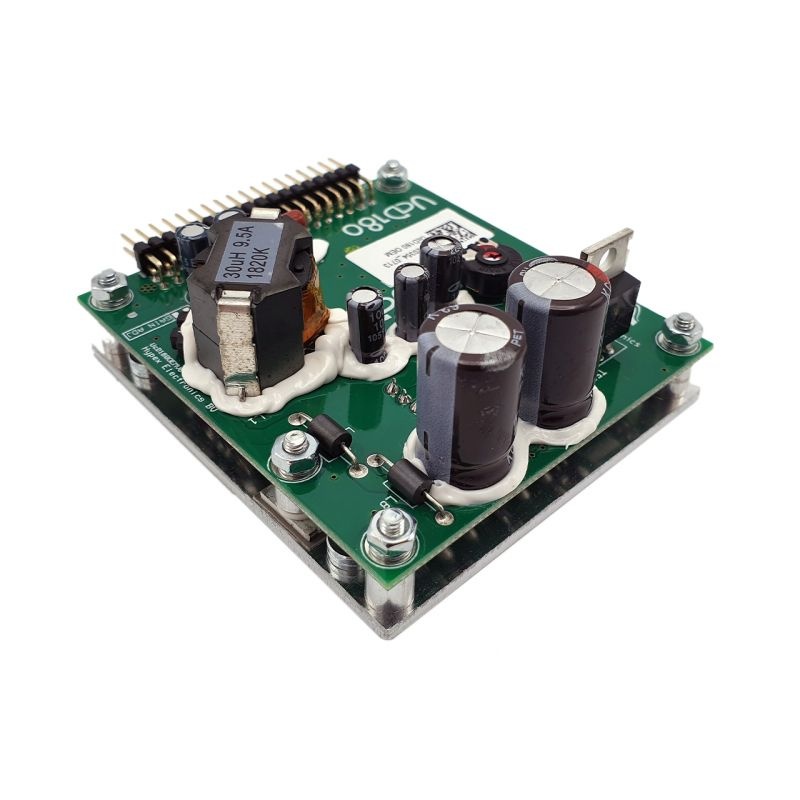

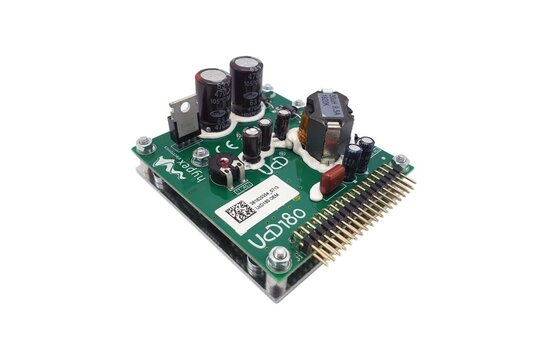

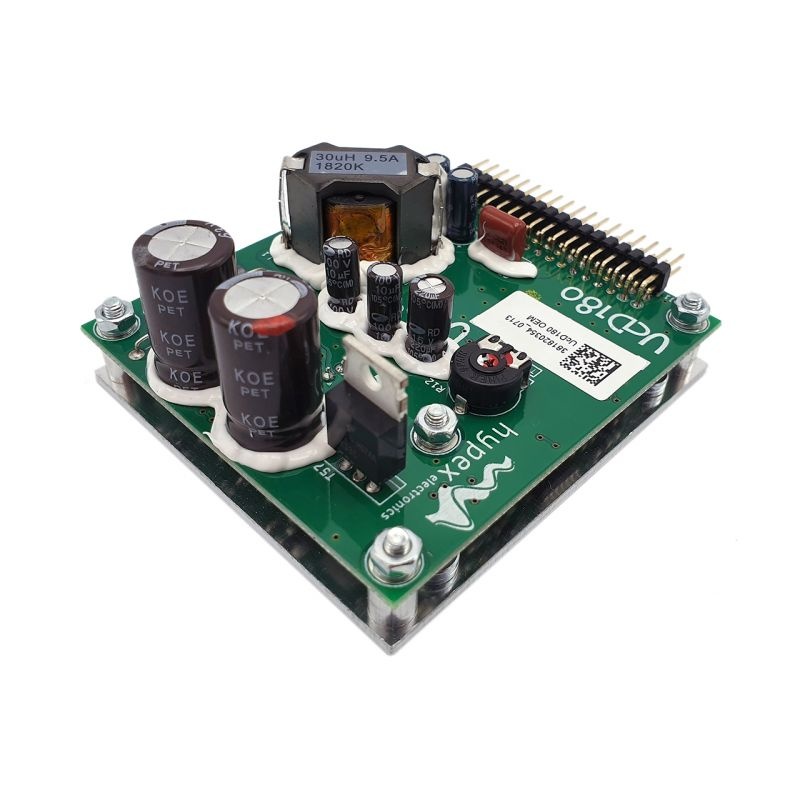

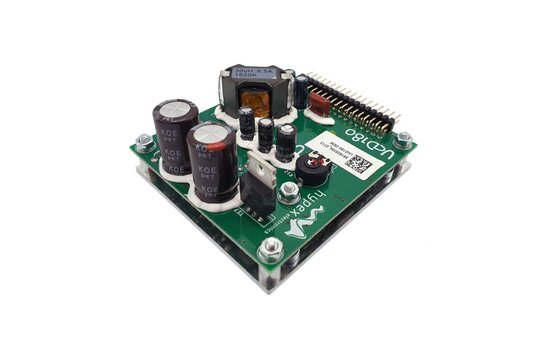

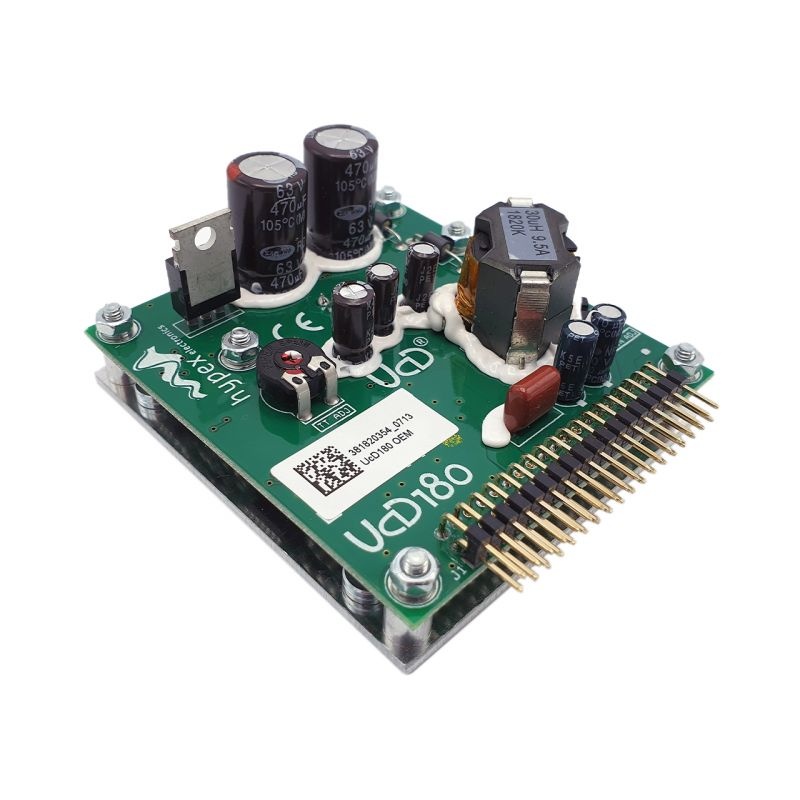

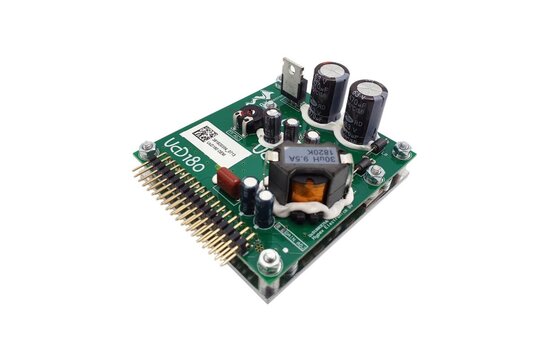

        Hypex UcD180 1x180W UcD® Class D Amplifier Module

        €199,95

        2 In stock

        Add to cart

        Hypex UcD180 1x180W UcD® Class D Amplifier Module

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Hypex
        Show all New products
        1 x 180 W
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        € 165,25€ 199,95 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module
        UcD180 1x180W UcD® Class D Amplifier Module

        Product description Hypex UcD180 UcD® Amplifier Module

        The Hypex UcD180 is a compact 1-channel UcD® Class D amplifier module delivering up to 180 watts into 4 ohms, with load-independent frequency response, low output impedance, flexible input routing and extensive onboard protection for professional and home audio integration.



        Highlights of the Hypex UcD180

        • 1 x 180 W output power into 4 ohms, 1 x 120 W into 8 ohms and 1 x 100 W into 2 ohms
        • Flat, load-independent frequency response from 10 Hz to 50 kHz
        • Very low output impedance, distortion and noise
        • Differential input with buffered and optional unbuffered routing
        • Fully passive UcD® loop control with up to 92% efficiency
        • Comprehensive onboard protection and system status signalling



        Product details Hypex UcD180

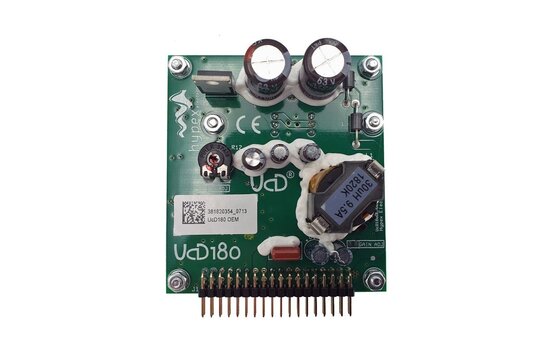

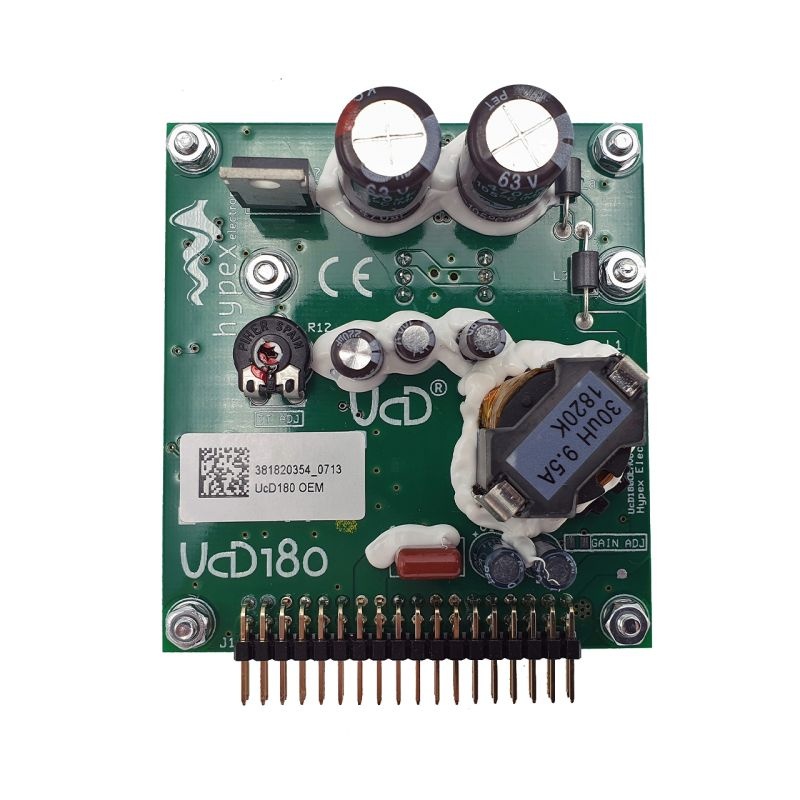

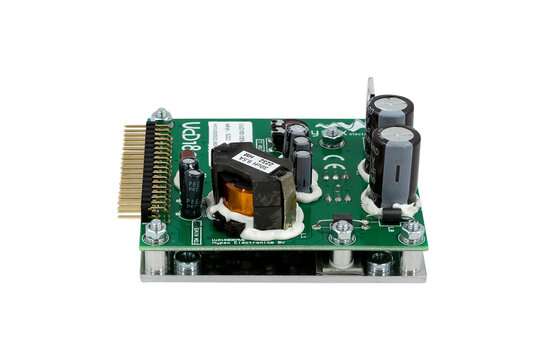

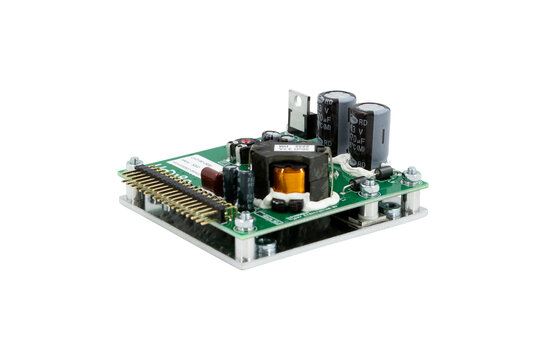

        Hypex UcD180 1x180W UcD® Class D Amplifier Module

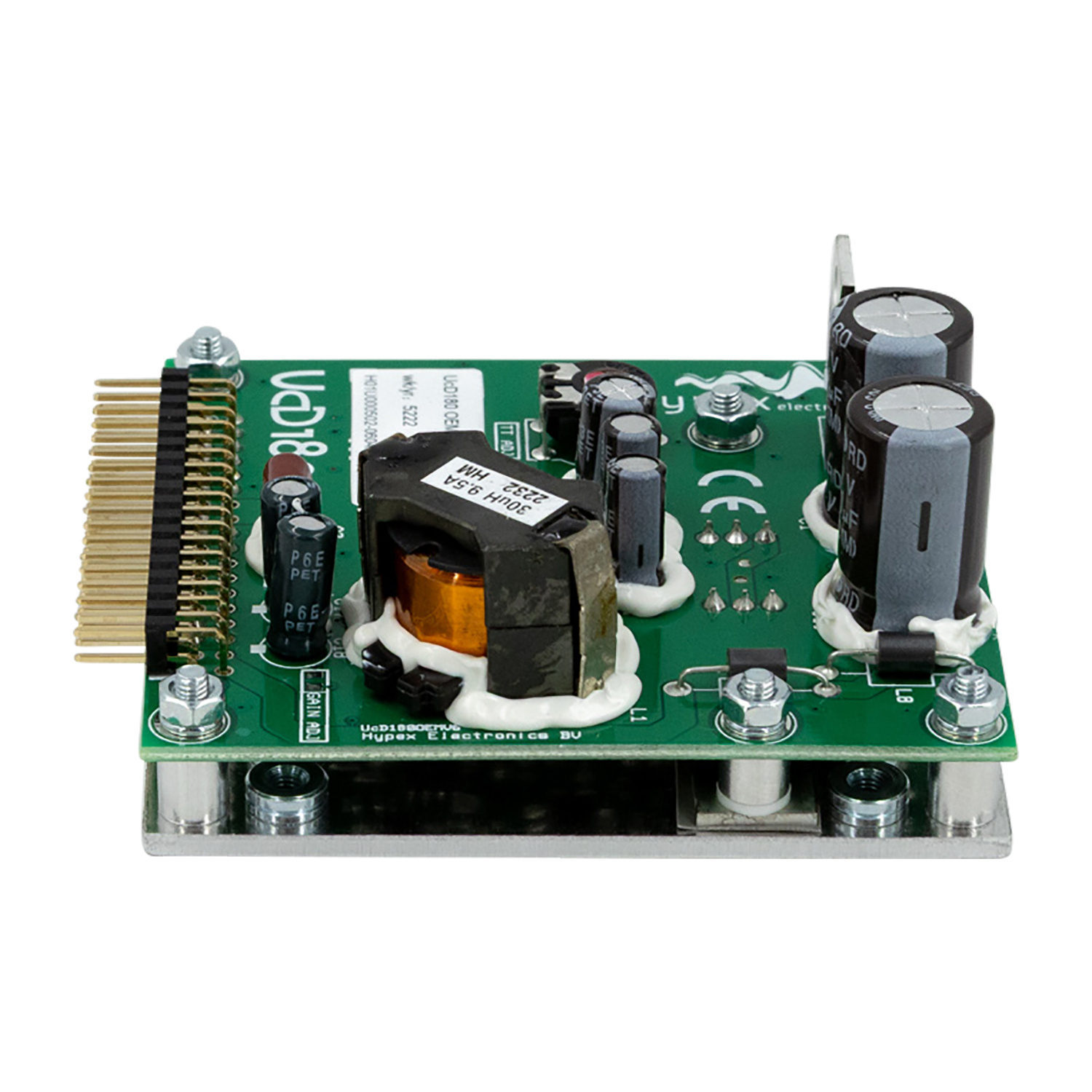

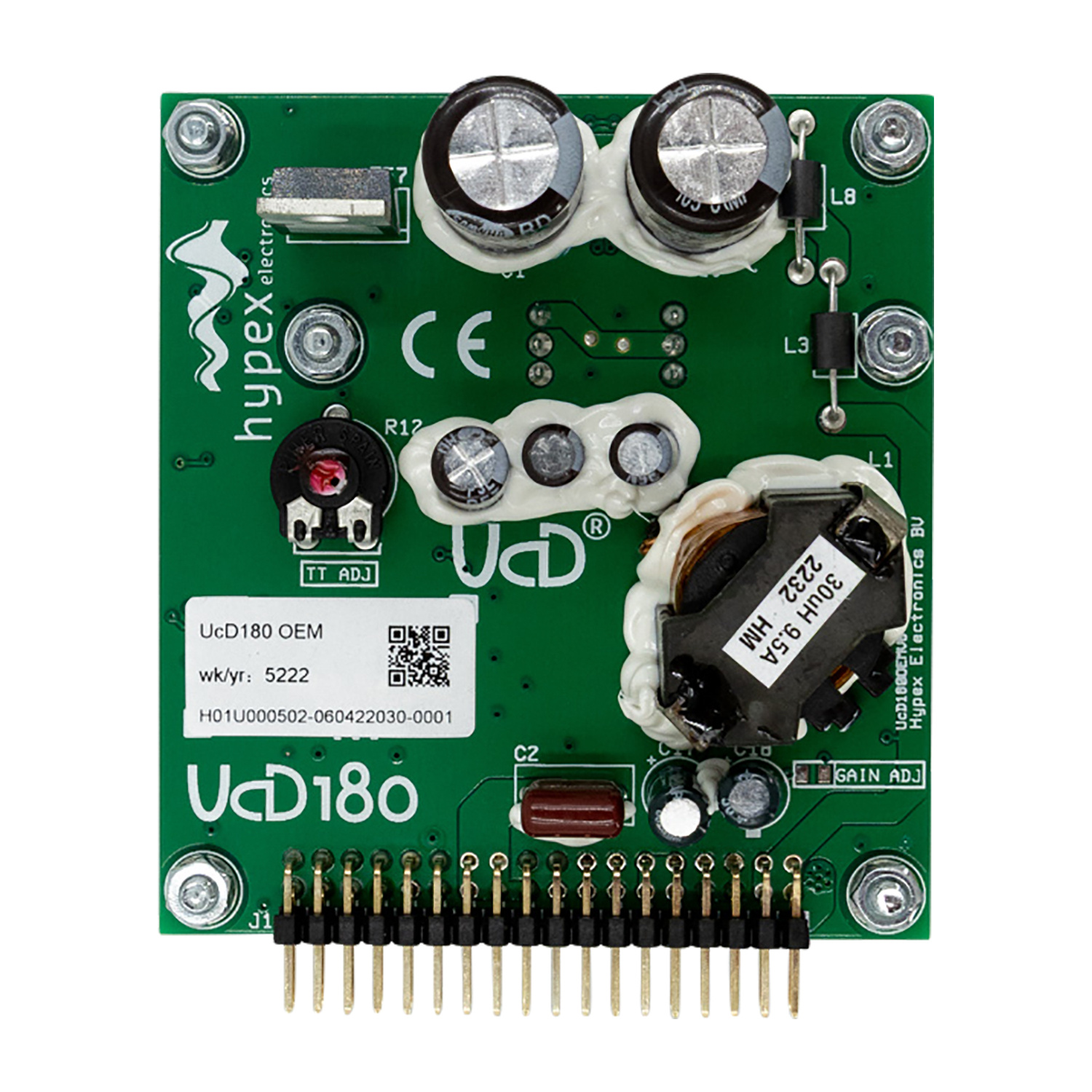

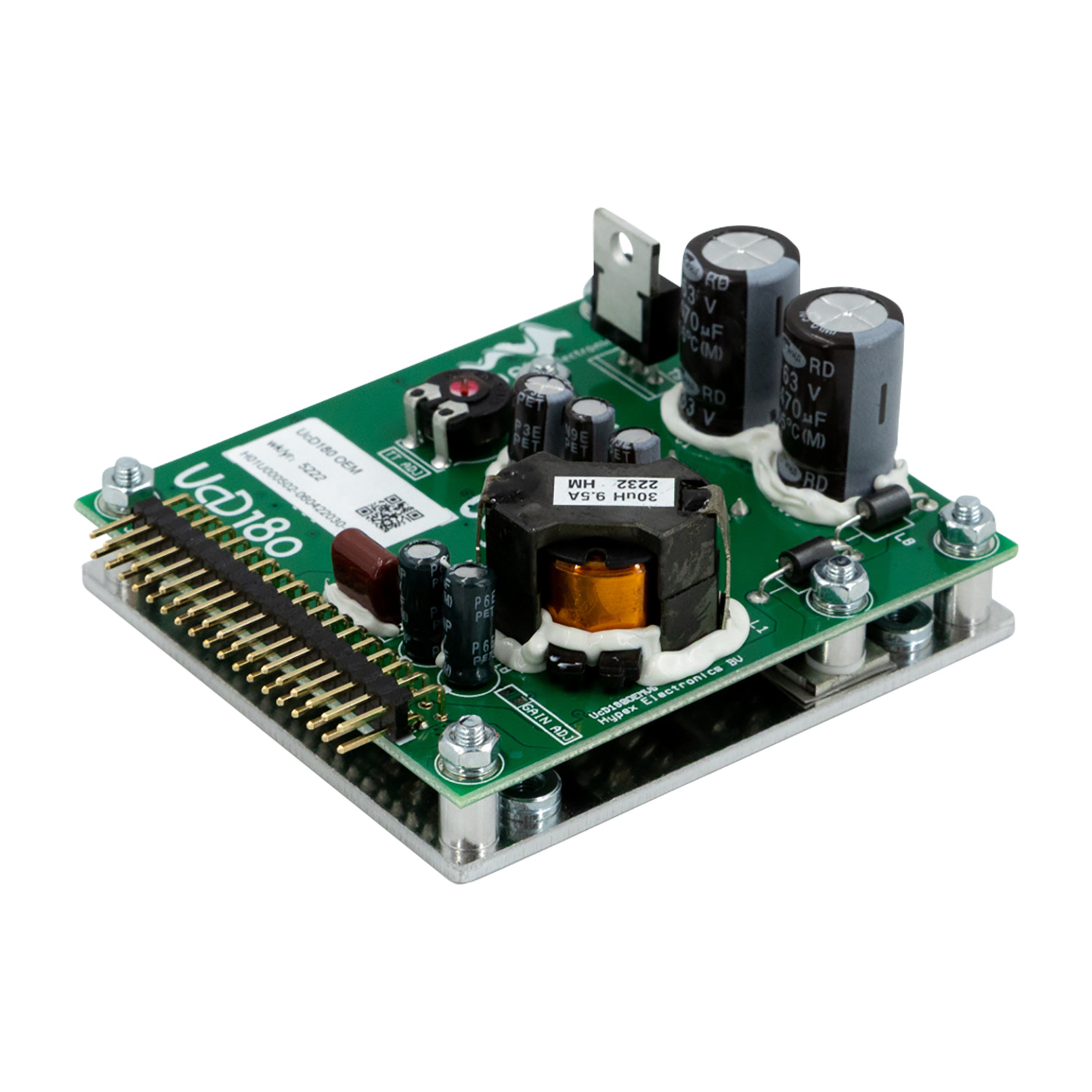

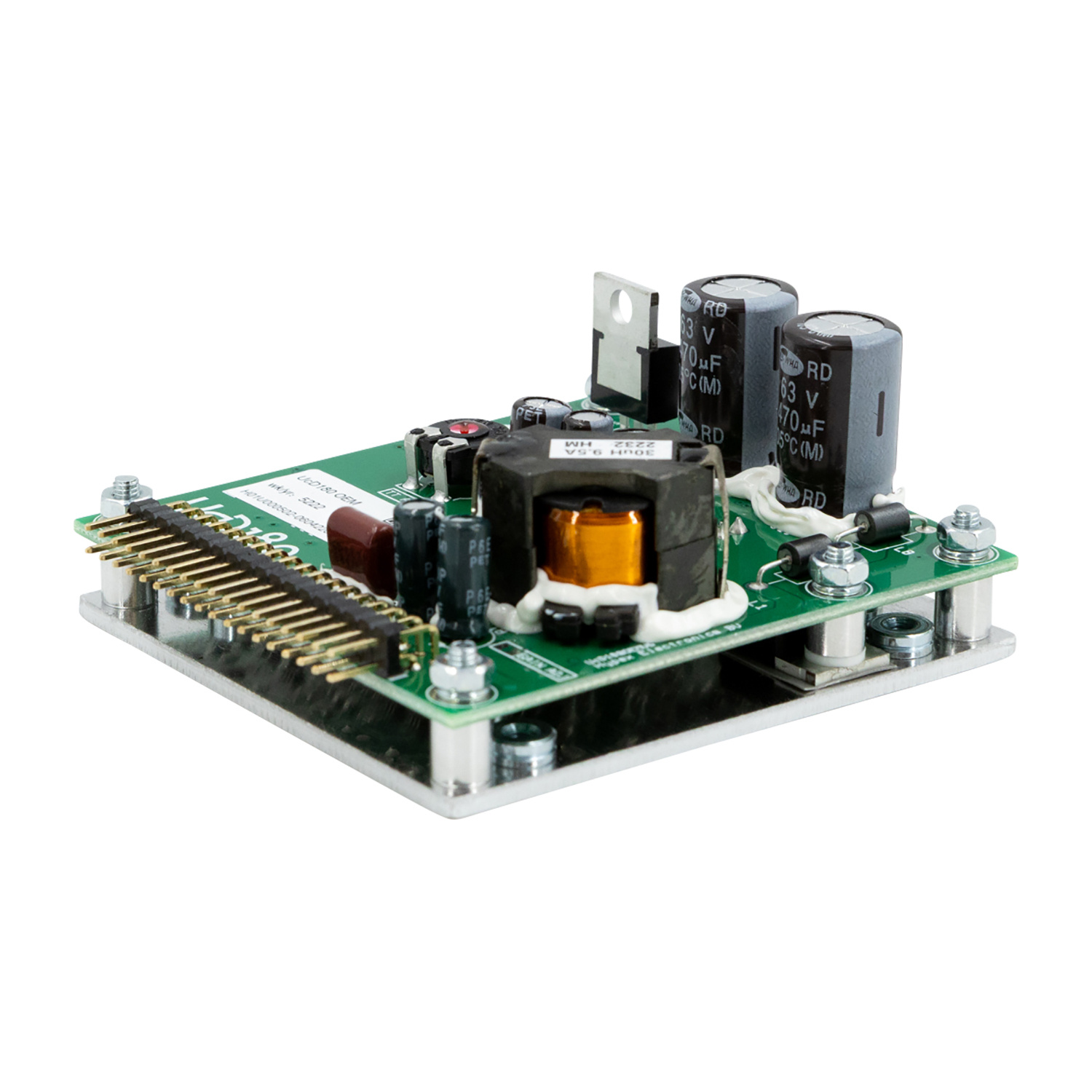

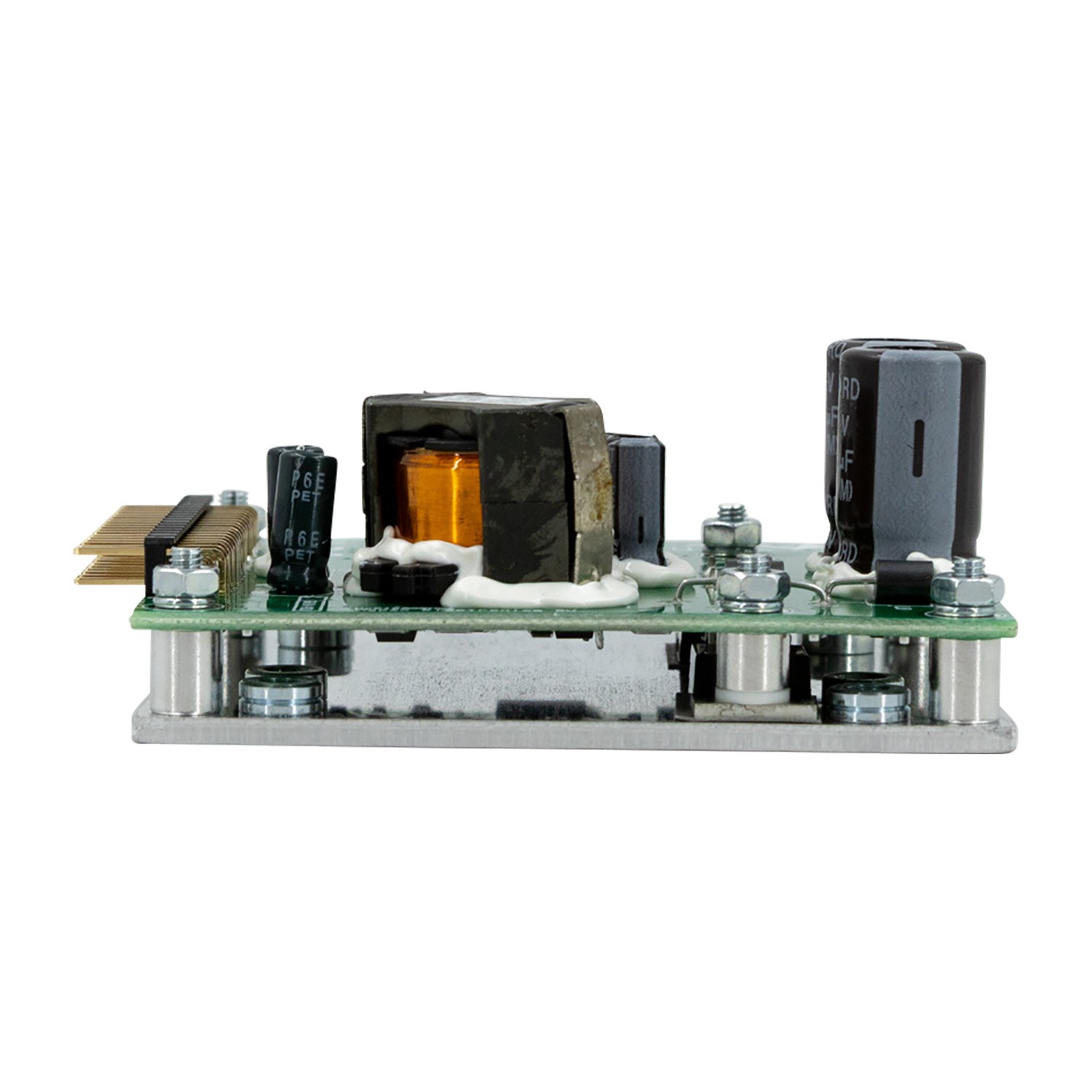

        The Hypex UcD180 is a self-contained high-performance Class D module for demanding audio builds where predictable behaviour, efficient operation and proven sound quality are essential. As one of Hypex’s established amplifier modules, it is suitable for applications ranging from public address systems to ultra-high-fidelity replay systems for studio and home use. Its UcD® topology uses a phase-shift controlled self-oscillating loop with feedback taken at the speaker output, fully passive loop control and very low radiated and conducted EMI.



        The module delivers 180 W into 4 ohms at 1% THD, 120 W into 8 ohms and 100 W into 2 ohms, with a 20 Hz to 35 kHz power bandwidth and a 10 Hz to 50 kHz frequency response. Performance remains stable across different loudspeaker loads, supported by low output impedance, frequency-independent distortion behaviour and low noise. Additional key figures include 26 dB total voltage gain, 65 dB supply ripple rejection, 4 W idle losses, 10 mA standby current and up to 92% efficiency at full power.



        For signal integration, the UcD180 offers a differential audio input with an onboard TL072 buffer stage, plus the option to bypass the buffer when external input circuitry is preferred. The buffered input provides 100 kΩ input impedance, while the unbuffered UcD input is 1.8 kΩ, and common-mode rejection is 75 dB across all frequencies. The input buffer gain can also be adjusted via the onboard gain-adjust footprint, making the module flexible for active speakers, monitor loudspeakers, home theatre systems, multichannel power amplifiers and professional audio equipment.

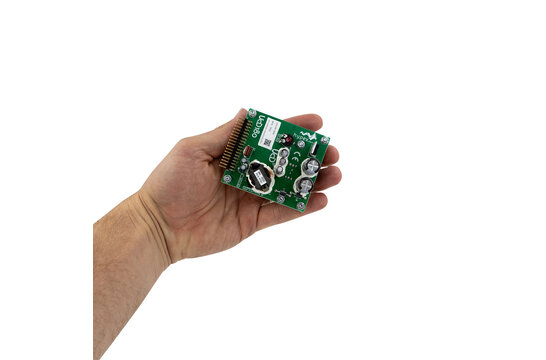

        System supervision is built in, including clipping detection, DC-error output, amplifier ready signalling, overcurrent protection, overvoltage protection and short circuit protection. The amplifier runs on unregulated +/- rails with a typical +/-45 V supply voltage and supports pop-free start and stop control, including an initial power-up delay of approximately 1.5 seconds. Optional remote Kelvin loudspeaker feedback can include the loudspeaker cables in the control loop for maximum loudspeaker control, while the compact 100 g module also supports bridgable operation and compatibility with SMPS400A180 and SMPS1200A180 power supplies.



        What’s in the box – Hypex UcD180

        • 1x Hypex UcD180 versterkermodule
        • 1x Manual

        Show more

        Specifications

        Article number
        UcD180
        EAN
        9503299551549
