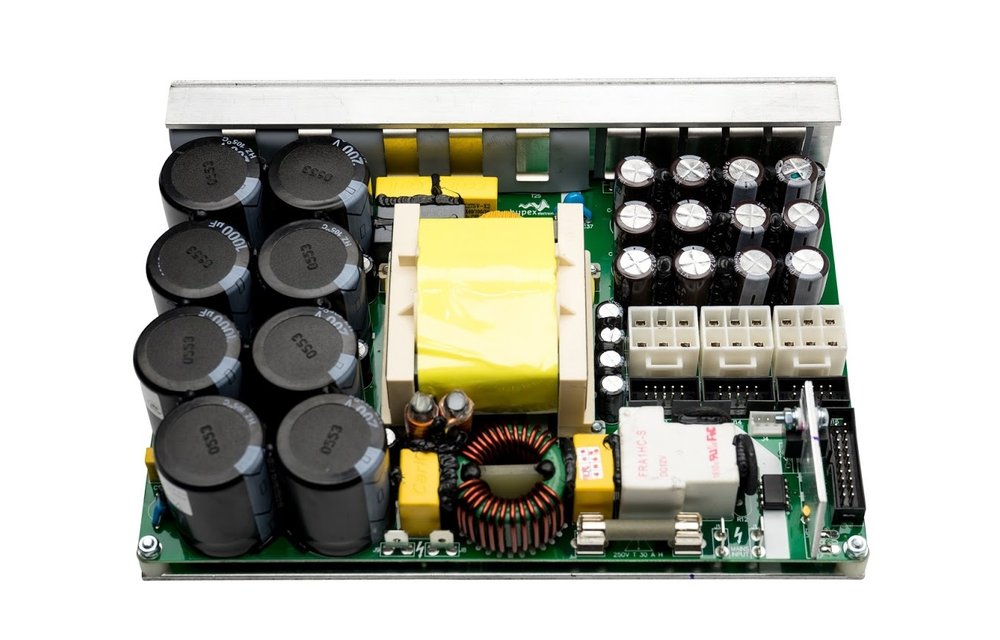

    Hypex SMPS3kA400 2 x 65 VDC 3000 Watt Switch Mode Power Supply

    € 292,45 6 In stock: delivery time 1-4 business days
    SMPS3kA400 2 x 65 VDC 3000 Watt Switch Mode Power Supply is specifically designed for use the Ncore and UcD amplifier modules. This SMPS comes with the required Hypex Cable Set SMPS3k.... Show more
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    SMPS3kA400 2 x 65 VDC 3000 Watt Switch Mode Power Supply is specifically designed for use the Ncore and UcD amplifier modules. This SMPS comes with the required Hypex Cable Set SMPS3k.



    Highlights

    • High efficiency
    • Selectable input voltage range
    • Extremely small form factor
    • Low EMI



    Product details

    Hypex SMPS3kA400 2 x 65 VDC 3000 Watt Switch Mode Power Supply



    Key features are high efficiency over the entire load range, extremely small form factor, low weight and very low radiated and conducted EMI. The SMPS also features an advanced over current protection which in case of temporary overload limits the output current, only when the overload condition remains for a longer time the supply will enter hiccup mode until the overload condition disappears. This feature combined with large primary electrolytic buffer capacitors leads to the capability of delivering high dynamic headroom power to the connected amplifier.



    The SMPS also includes an auxiliary isolated supply and a control circuit directly interfacing with the UcD amplifier modules. The supply is triggered for normal operation or latched off in case of critical fault via in built-in actuators. The SMPS is optimized from the first phase of design to final implementation to realize the lowest possible EMI signature required of the most demanding audio applications.



    note: This power supply does not feature the 2-quadrant operation as other Hypex power supplies do. Therefor it is not recommended to use it with the half-bridge modules (like the UcD400) for frequencies below 100 Hz.



    Features

    • Advanced over current protection
    • Remote controlled operation
    • Low weight
    • Overcurrent protection
    • Compact design



    What's In The Box

    • SMPS3kA400 power supply
    • Cable Set SMPS3k

    Specifications

    Article number
    SMPS3kA400
