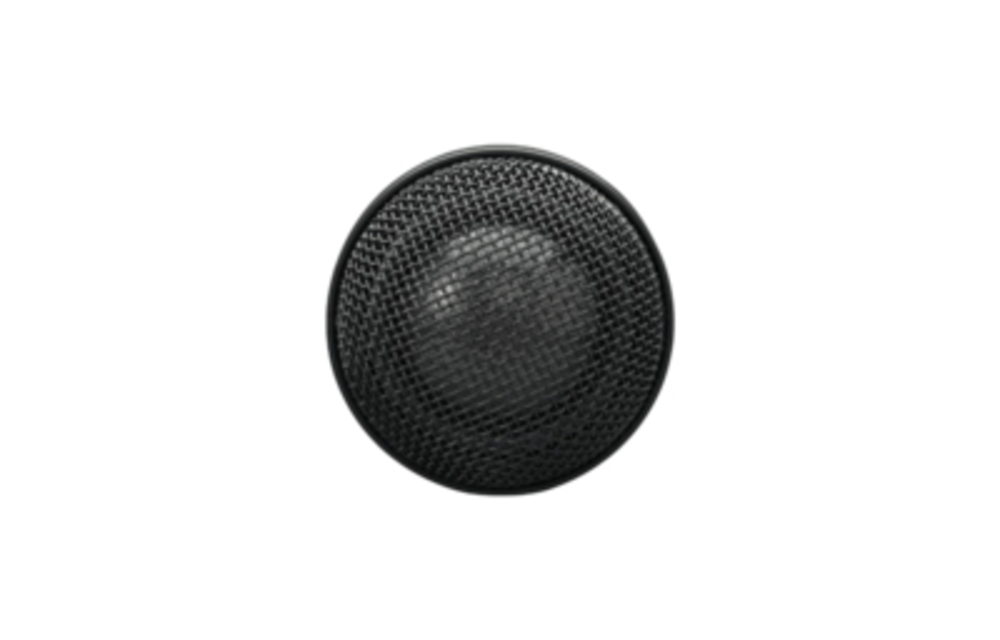

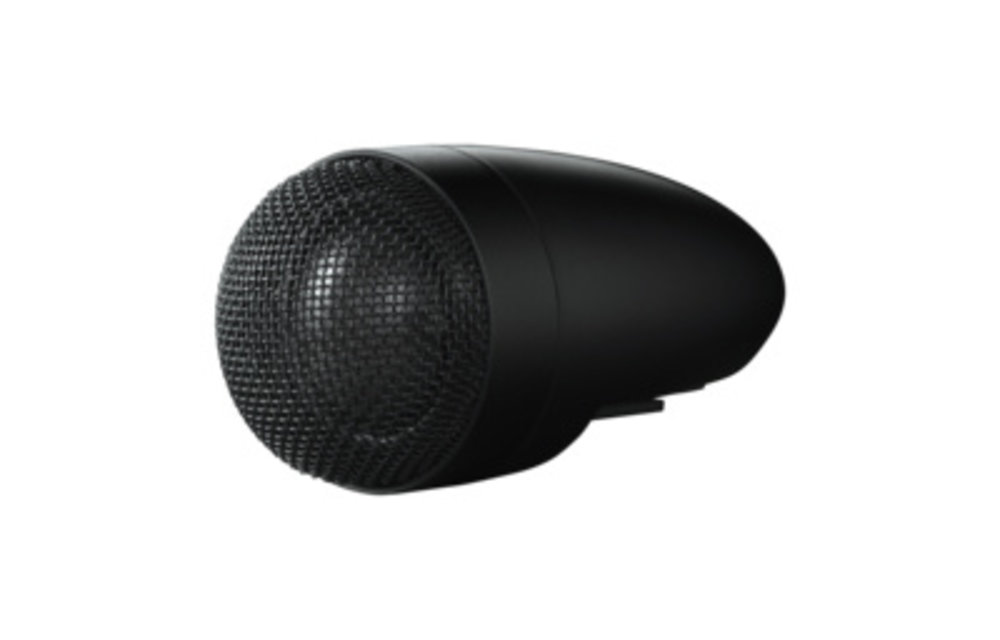

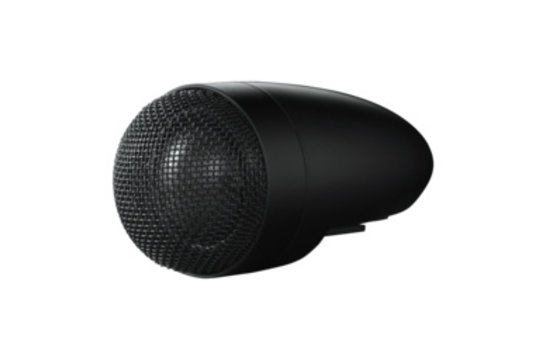

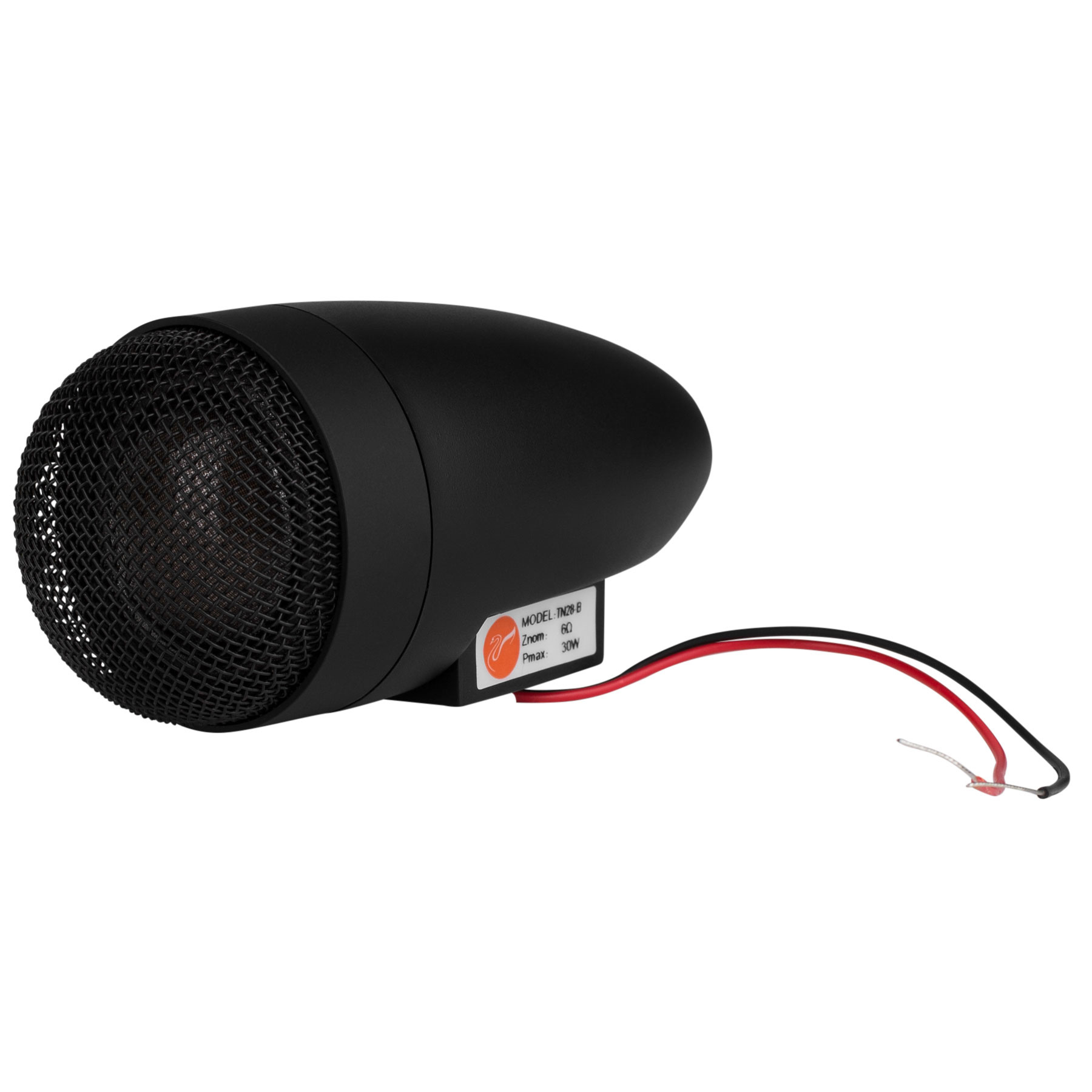

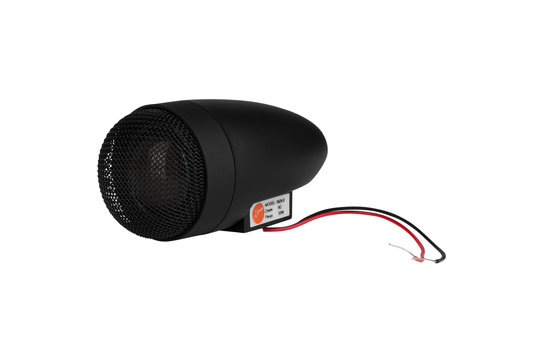

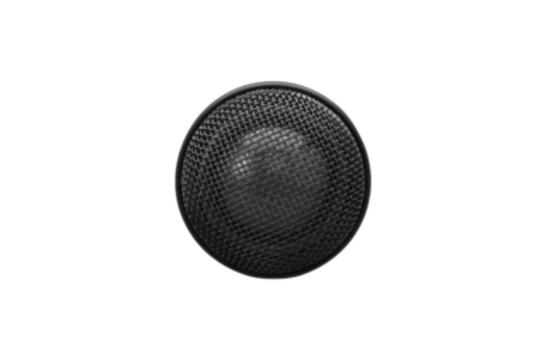

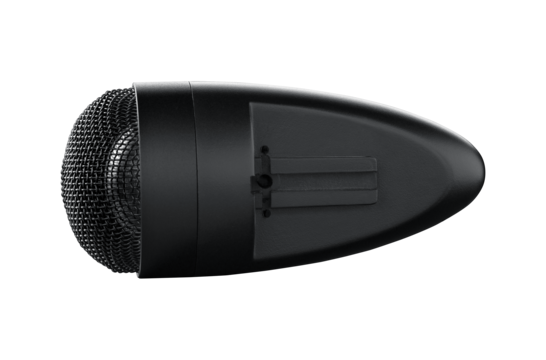

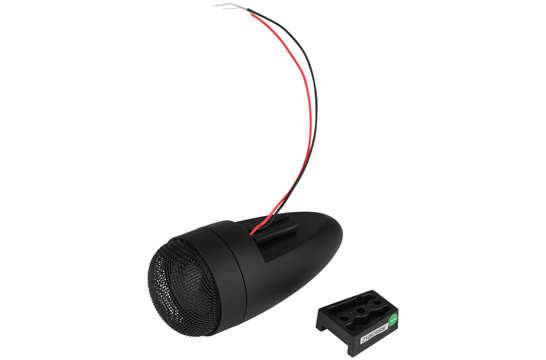

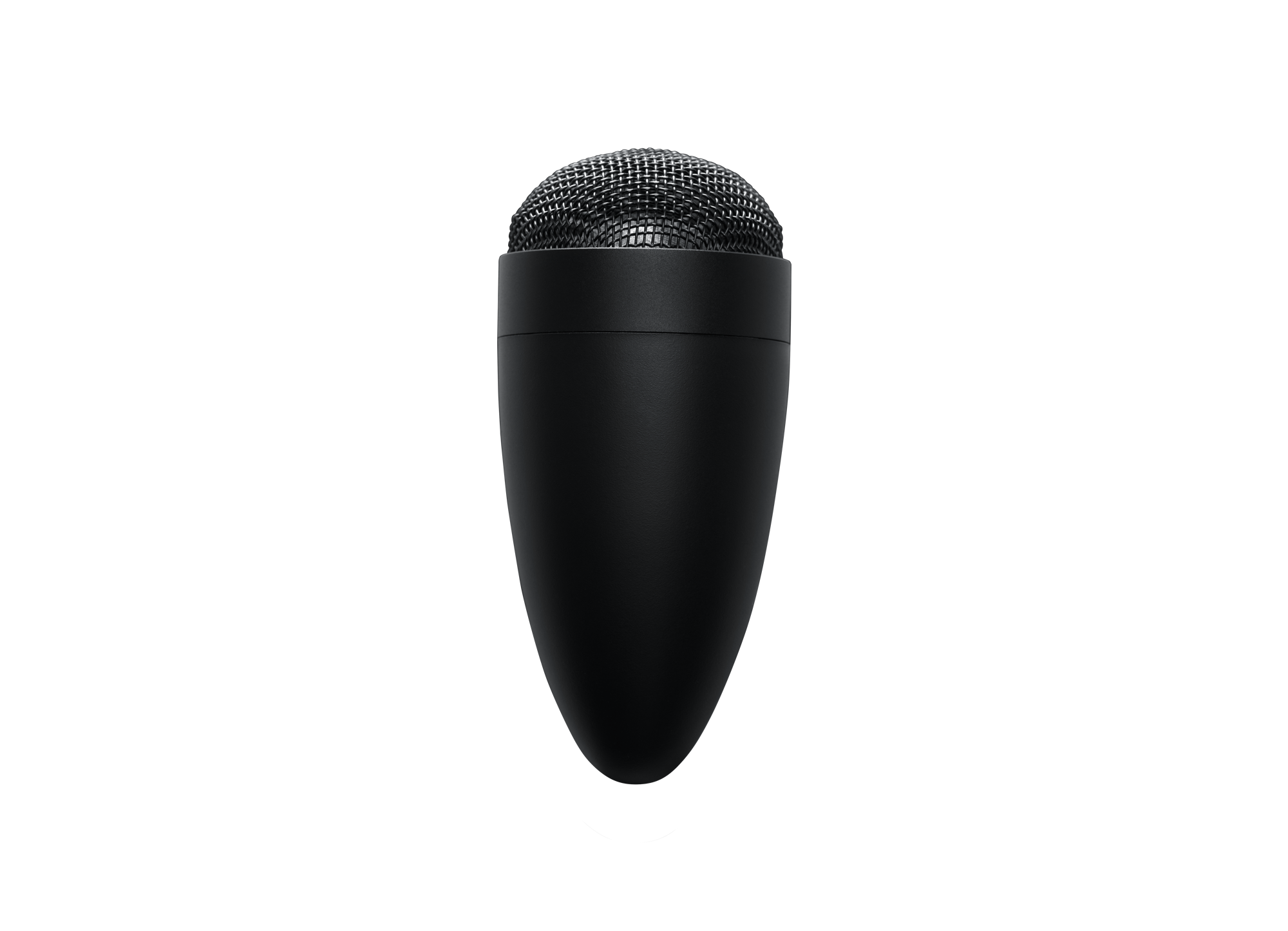

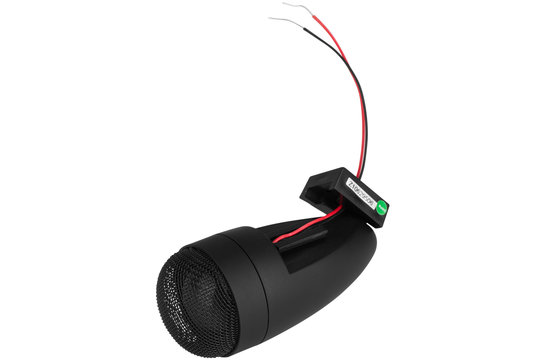

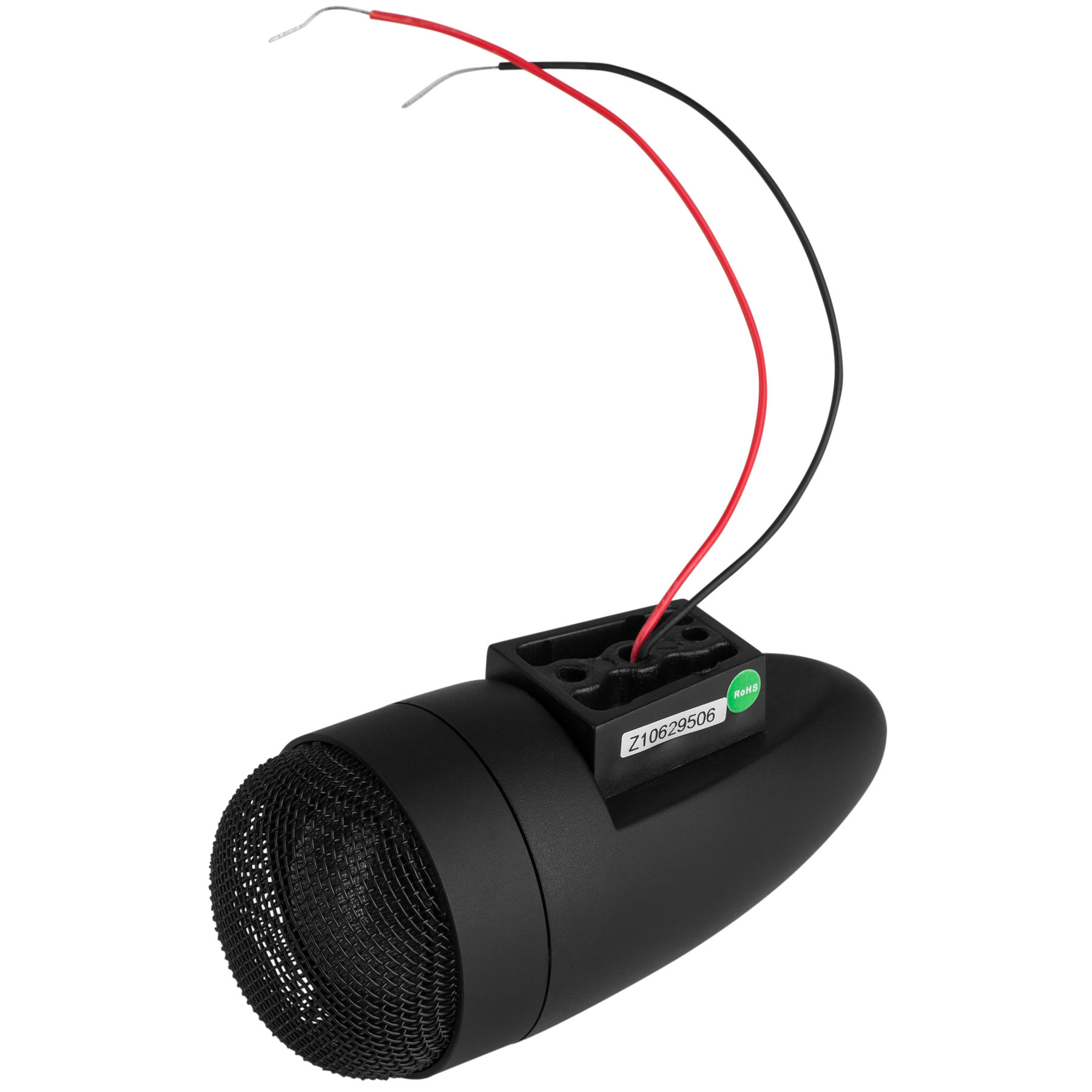

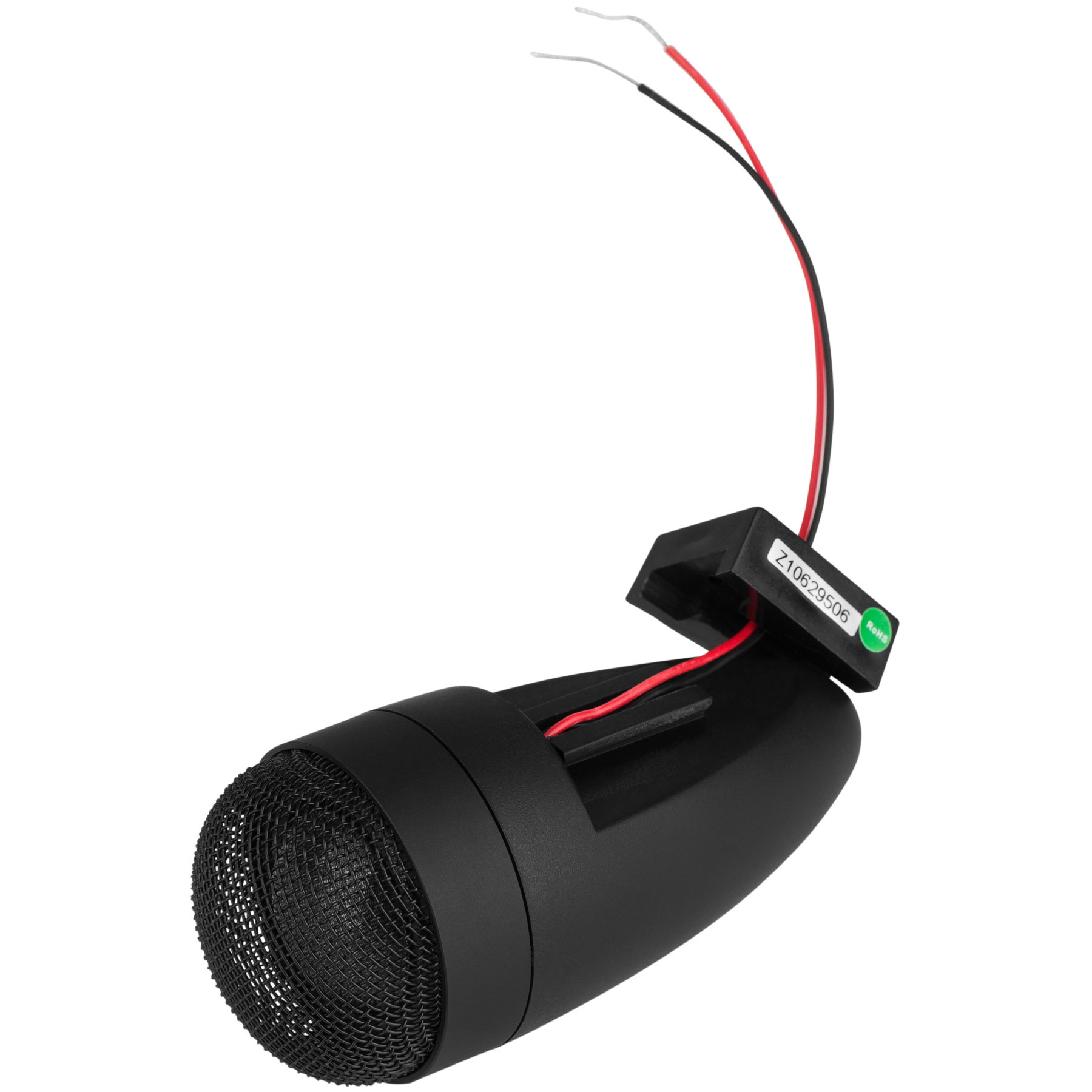

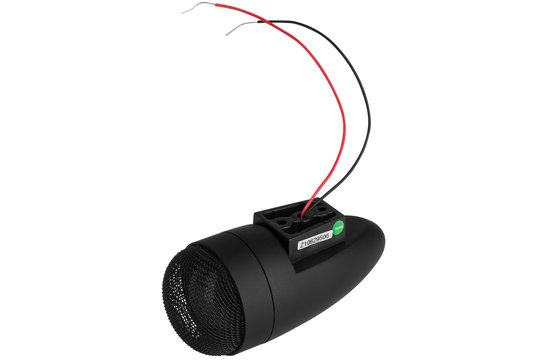

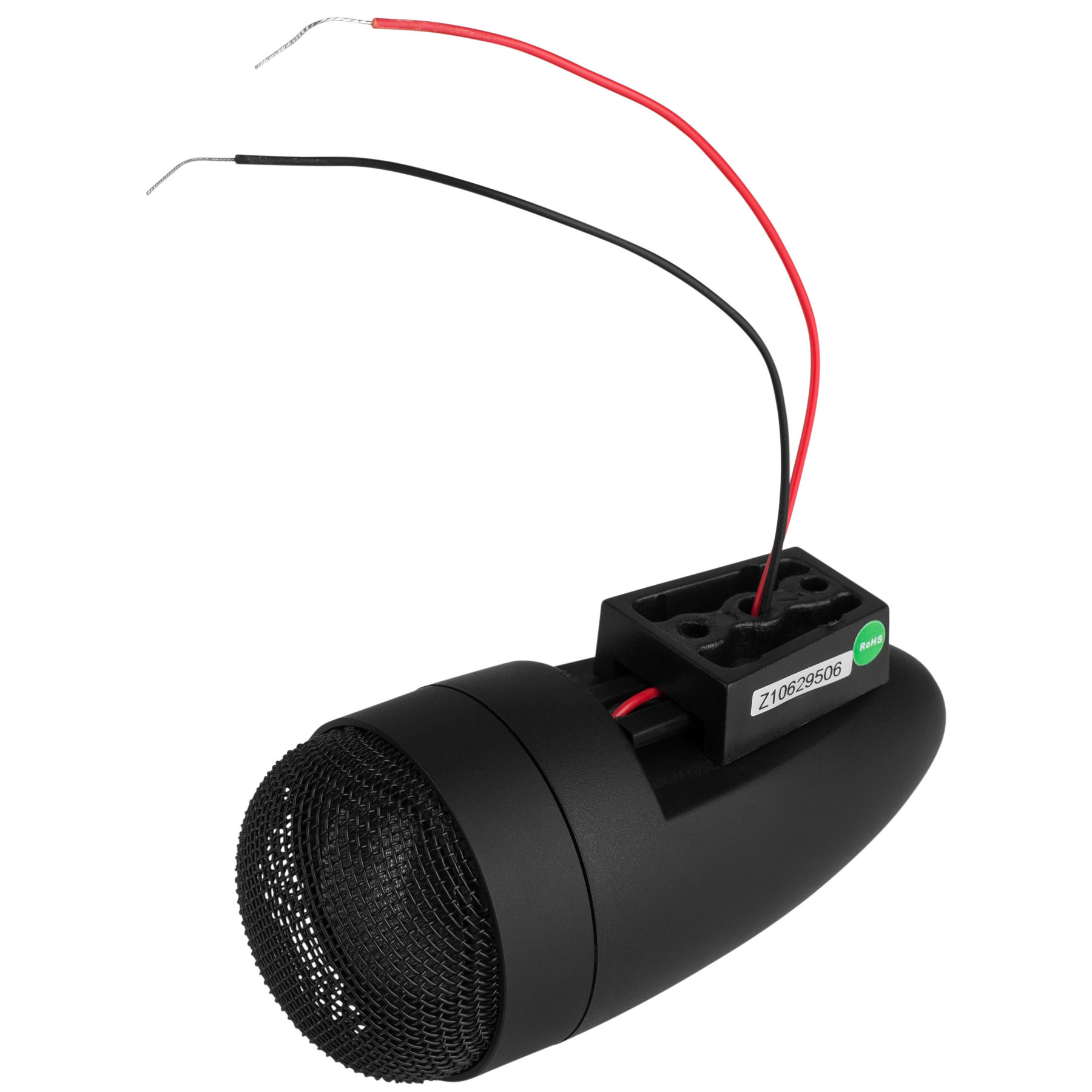

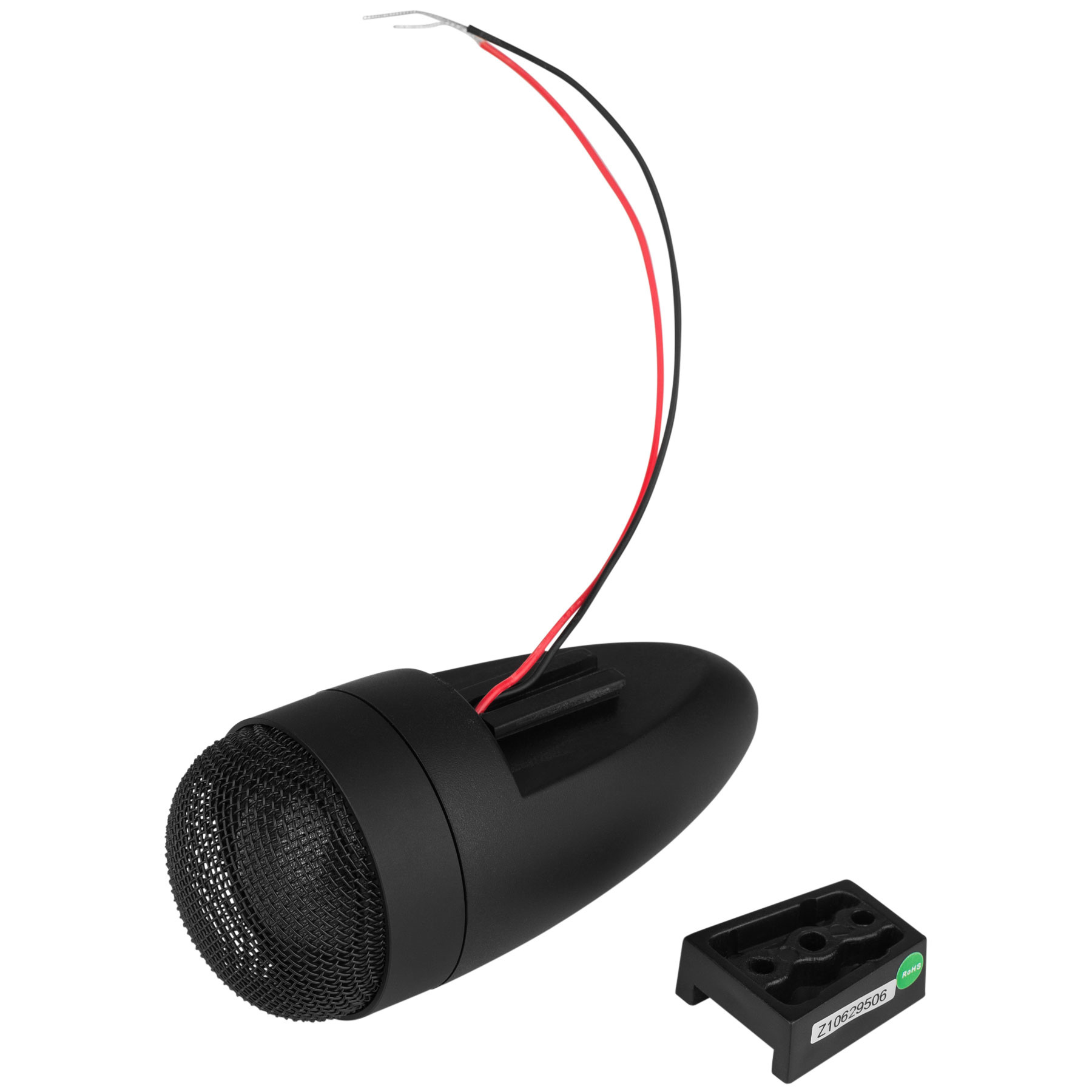

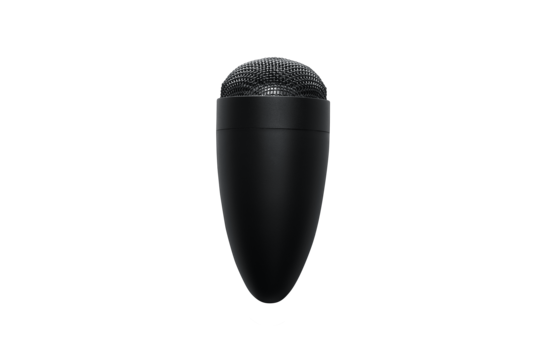

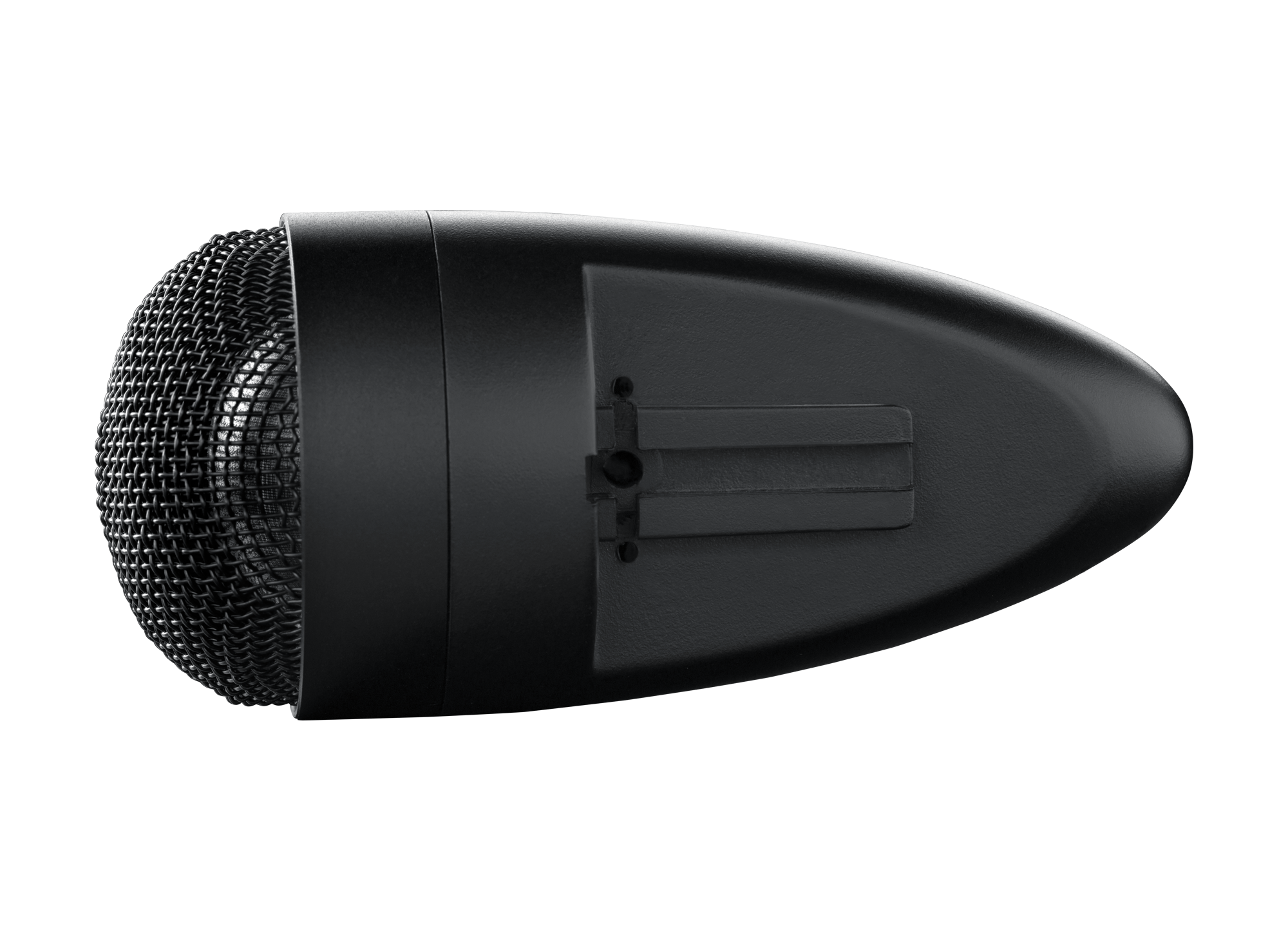

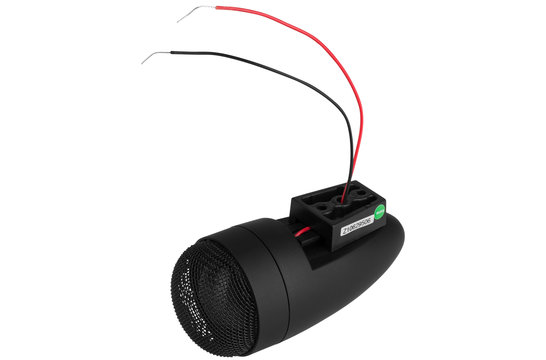

HiVi TN28-B 1" Top Mount Soft Dome Tweeter with Mounting Plate

Delivery time: 1-4 business days

  • Article code: TN28-B
  • Stock: 2 In stock

This HiVi TN28-B 1" Fabric Dome Tweeter has very smooth on and off axis frequency response while delivering excellent dispersion. Its versatile-mounting design minimizes diffraction making it easy to create speakers with a unique look.

€ 29,95 Incl. 21% VAT

  • Buy 4 for €28,45 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

HiVi TN28-B 1" Top Mount Soft Dome Tweeter with Mounting Plate

This HiVi TN28-B 1" Fabric Dome Tweeter has very smooth on and off axis frequency response while delivering excellent dispersion. Its versatile-mounting design minimizes diffraction making it easy to create speakers with a unique look.



Highlights

  • Top mount design for a unique and clean look
  • Sleek styling minimizes diffraction and provides smooth off axis response
  • Large rear chamber lowers Fs and reduces resonant peaks
  • Hand treated soft dome delivers natural response



Product Details

Hivi TN28-B 1" Top Mount Soft Dome Tweeter with Mounting Plate



HiVi's minimum diffraction versatile-mounting design and hand treated fabric dome gives this tweeter very smooth on and off axis frequency response delivering excellent dispersion. A Ferrofluid cooled 28 mm voice coil keeps it running cool when you are really giving it a workout. Shielded, vented double magnet system with two Neodymium rings and large non-resonant rear acoustic chamber give this dome tweeter its famous looks and acoustic qualities. Thanks to the unique top mount system, this tweeter can easily be used for car audio systems as well as home audio designs.

Specifications

Specifications for: TN28-B 1" Top Mount Soft Dome Tweeter with Mounting Plate

  • Tweeter Type Driver type for example: soft domes piezo, ribbon, AMT or bullet tweeter etc. Soft Dome
  • Tweeter Series Specific tweeter production line of the manufacturer.
  • Cone / Dome Diameter Nominal diameter of the dome/cone, measured in inches. 1-1/8"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 15 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Impedance 6 ohms
  • Sensitivity 90 dB 2.83V/1m
  • Frequency Response 2,500 to 20,000 Hz
  • Resonant Frequency (Fs) 1,300 Hz
  • DC Resistance (Re) 5.1 ohms
  • Voice Coil Inductance (Le)
  • Mechanical Q (Qms)
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Overall Outside Diameter 1.875"
  • Cutout Diameter
  • Depth 3.91"
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency
