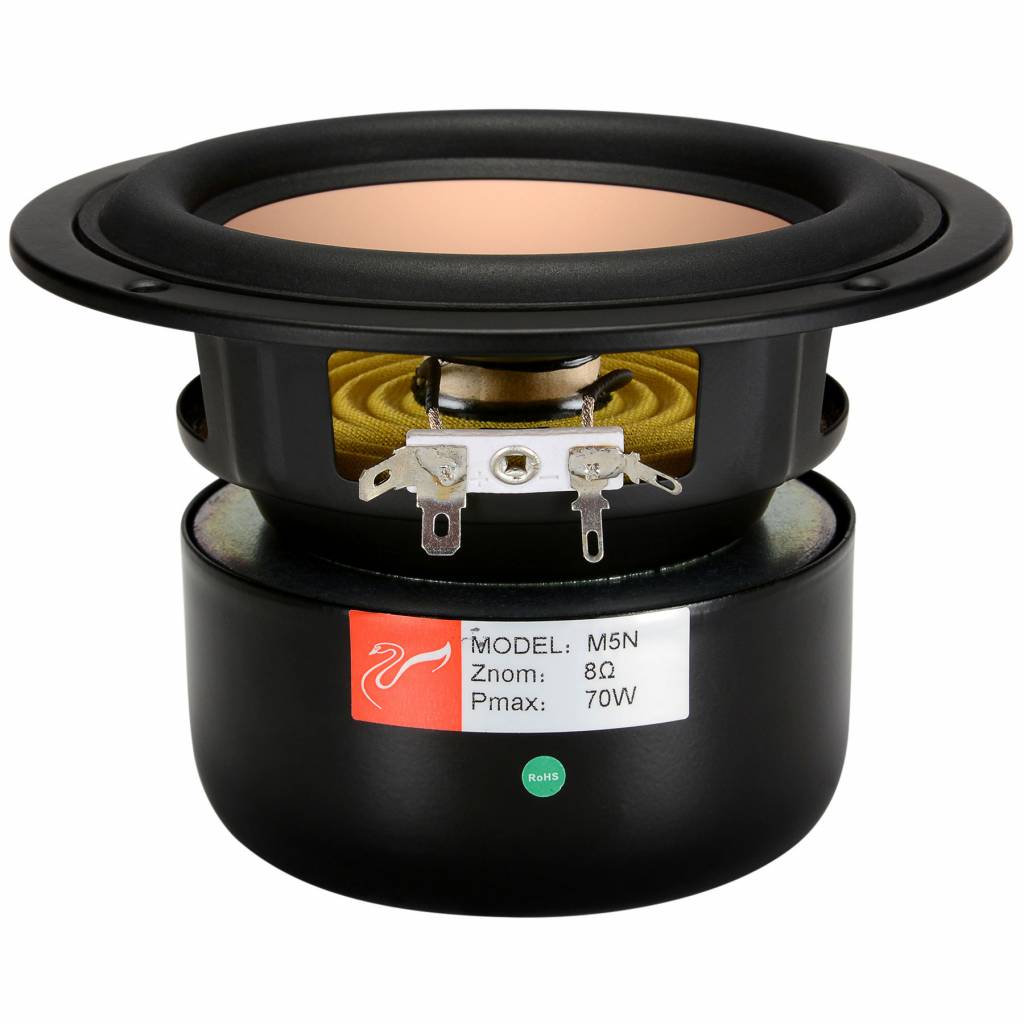

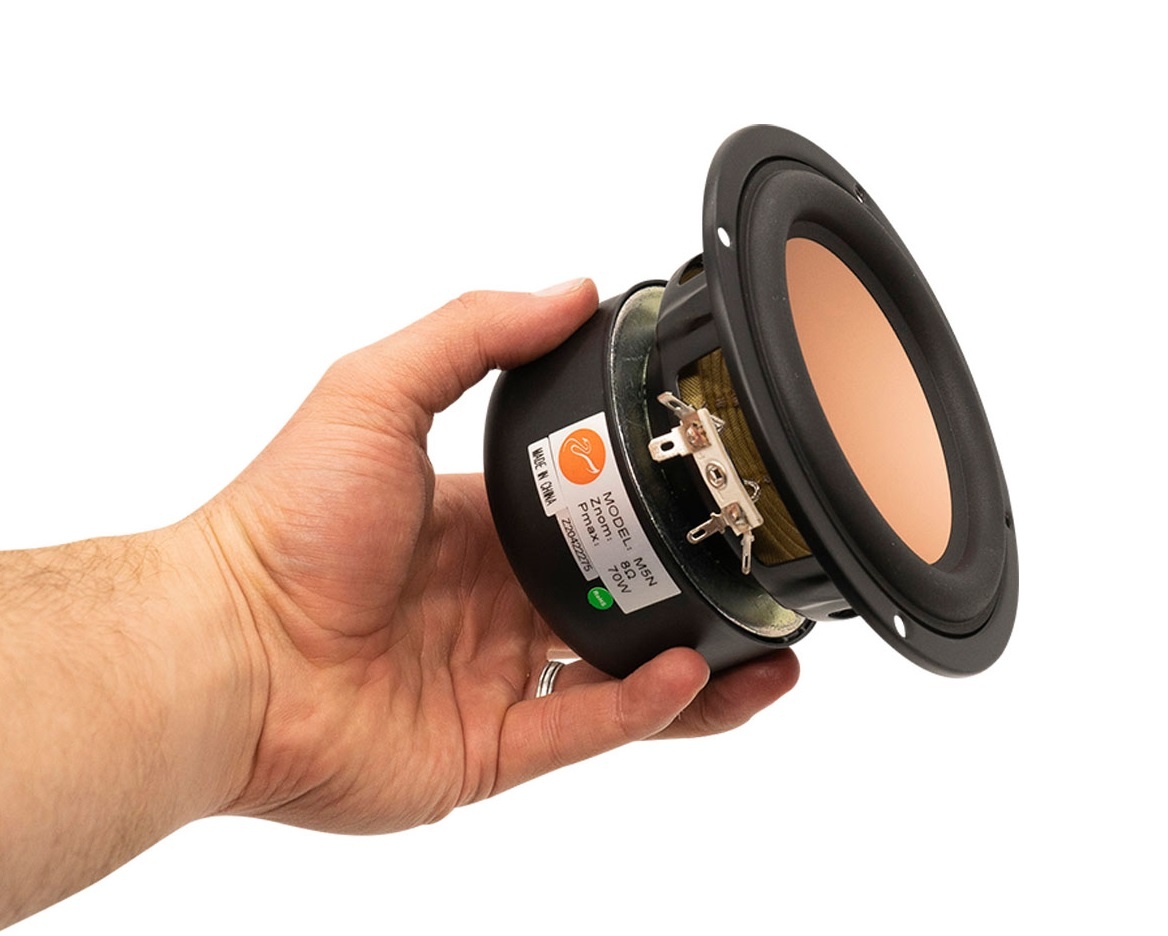

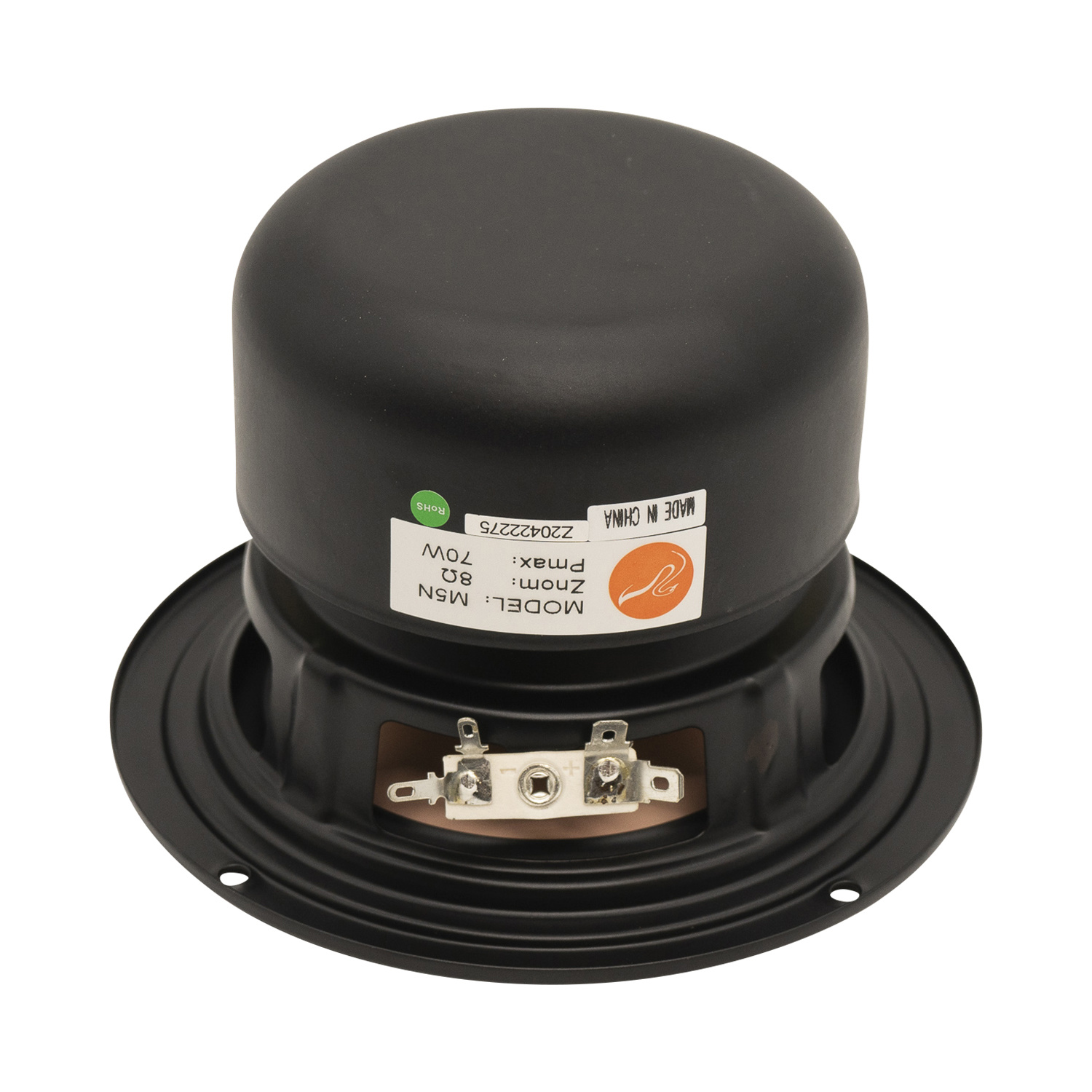

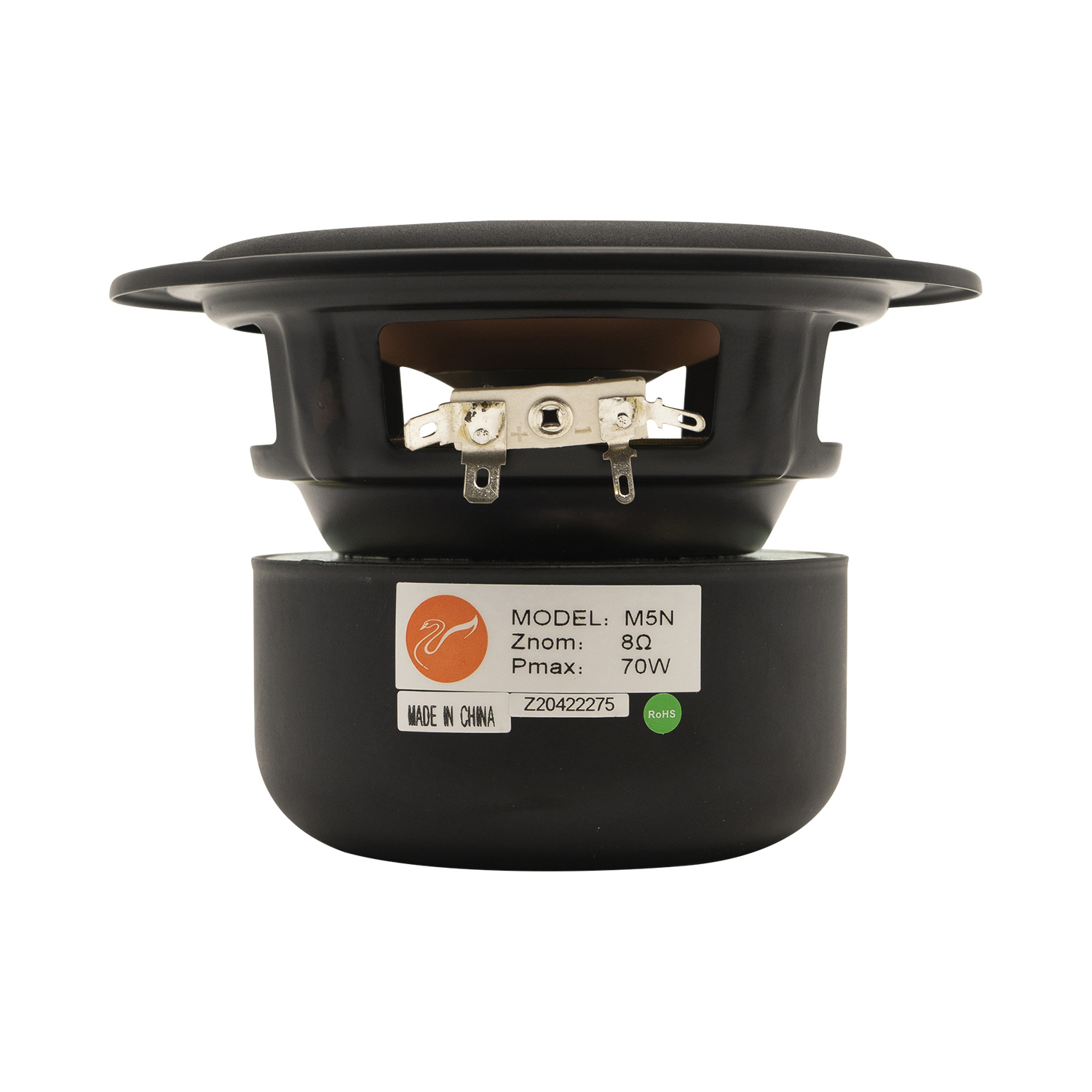

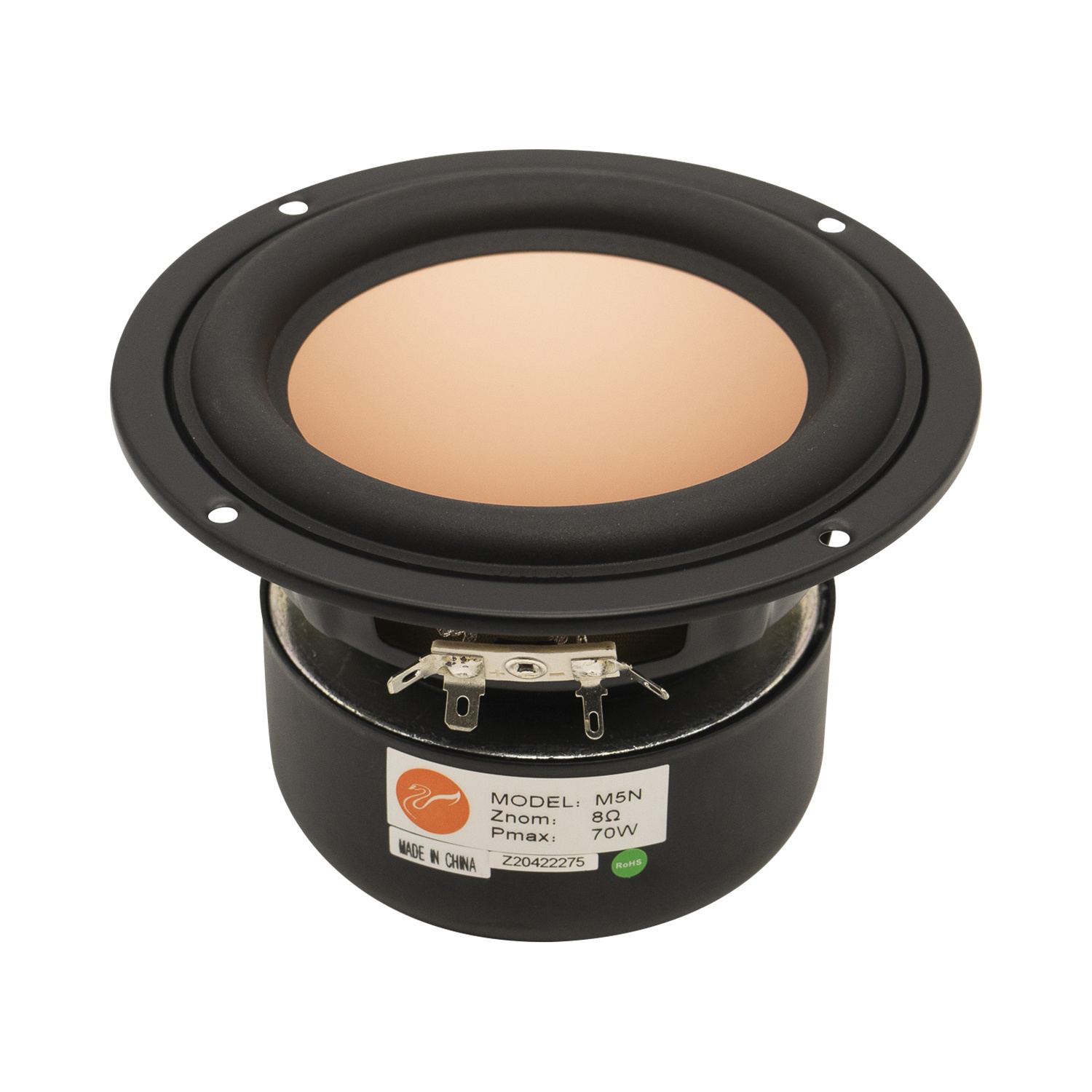

    HiVi M5N 5" Aluminum / Magnesium Midbass

    € 24,75€ 29,95 >10 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €28,45 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    A shielded magnet structure allows the HiVi M5N to be incorporated easily into audio/video speaker applications.



    Highlights

    • Advanced magnesium/aluminum alloy cone
    • Symmetric Motor Drive (SMD) technology improves controllability and lowers distortion
    • Reinforced steel basket
    • Magnetically shielded
    • Smooth, extended response



    Product details

    HiVi M5N 5" Aluminum / Magnesium Midbass



    A shielded magnet structure allows the HiVi M5N to be incorporated easily into audio/video speaker applications. The driver may be used in a small closed box as a midrange unit in a three-way system, and good extension (50 Hz) in a vented enclosure guarantees great performance in a two-way two-driver or MTM configured system. Recommended crossover frequency region for a two-way system design is 2-5 kHz.

    Specifications

    Article number
    M5N
    Woofer Type
    Midwoofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    35 Watts
    Power Handling (max)
    70 Watts
    Impedance (Z)
    8 ohms
    Sensitivity
    87 dB 2.83V/1m
    Frequency Response
    50 to 6,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    6.5 ohms
    Resonant Frequency (Fs)
    50 Hz
    Mechanical Q (Qms)
    6.51
    Electromagnetic Q (Qes)
    0.37
    Total Q (Qts)
    0.35
    Diaphragm Mass Inc. Airload (Mms)
    10.7g
    Mechanical Compliance of Suspension (Cms)
    1.1 mm/N
    Surface Area of Cone (Sd)
    87 cm²
    Compliance Equivalent Volume (Vas)
    0.4 ft.³
    Maximum Linear Excursion (Xmax)
    2.7 mm
    Cone / Diaphragm Material
    Aluminum / Magnesium
    Voice Coil Former
    Kapton® / Polyimide
    Dual Voice Coil
    No
    Magnet Material
    Ferrite
    Shielded
    Yes
    Overall Outside Diameter
    5.63"
    Overall Depth
    4"
    Baffle Cutout Diameter
    4.94"
    # Mounting Holes
    4
    Sealed Volume
    0.1 ft.³
    Sealed F3
    102 Hz
    Vented Volume
    0.31 ft.³
    Vented F3
    55 Hz
