      HiVi M3N 3" Aluminum / Magnesium Midbass

      € 13,60€ 16,45 Out of stock: please contact us for accurate delivery times

      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €15,63 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

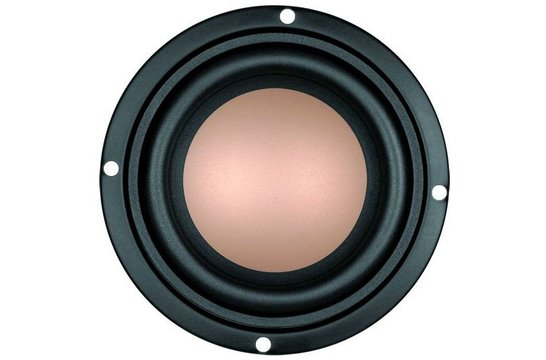

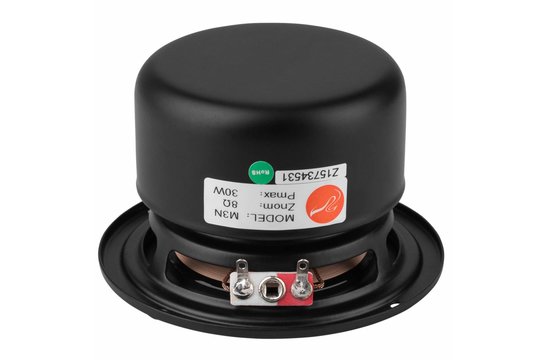

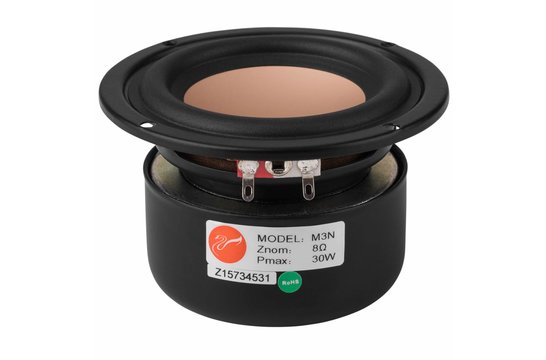

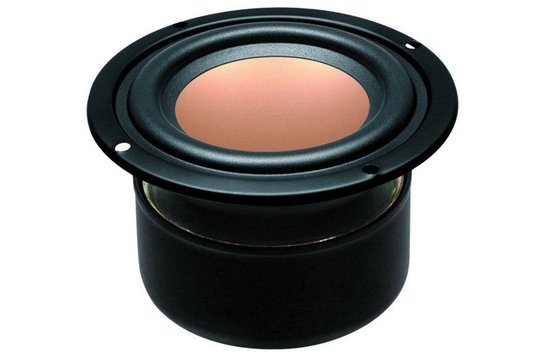

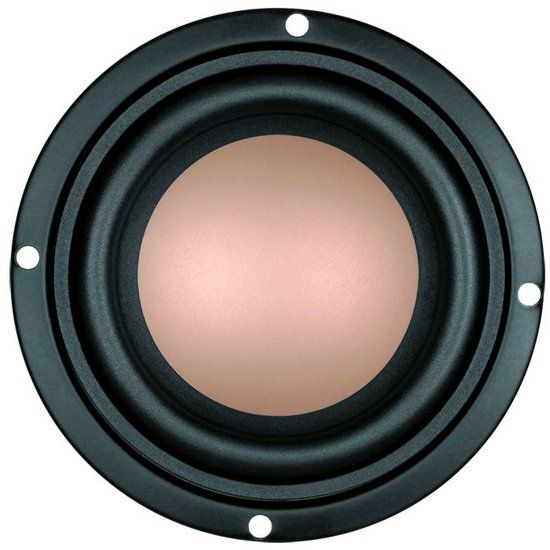

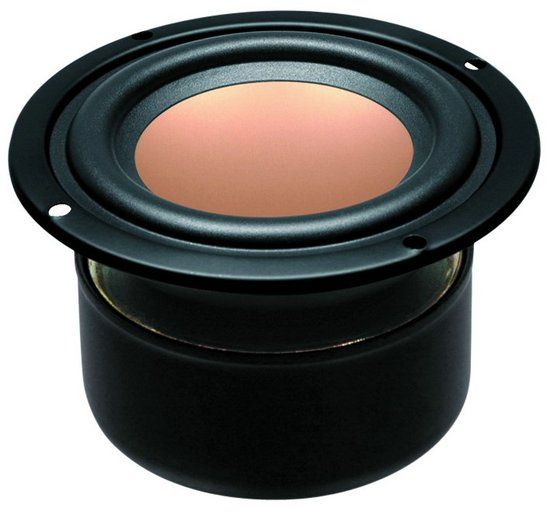

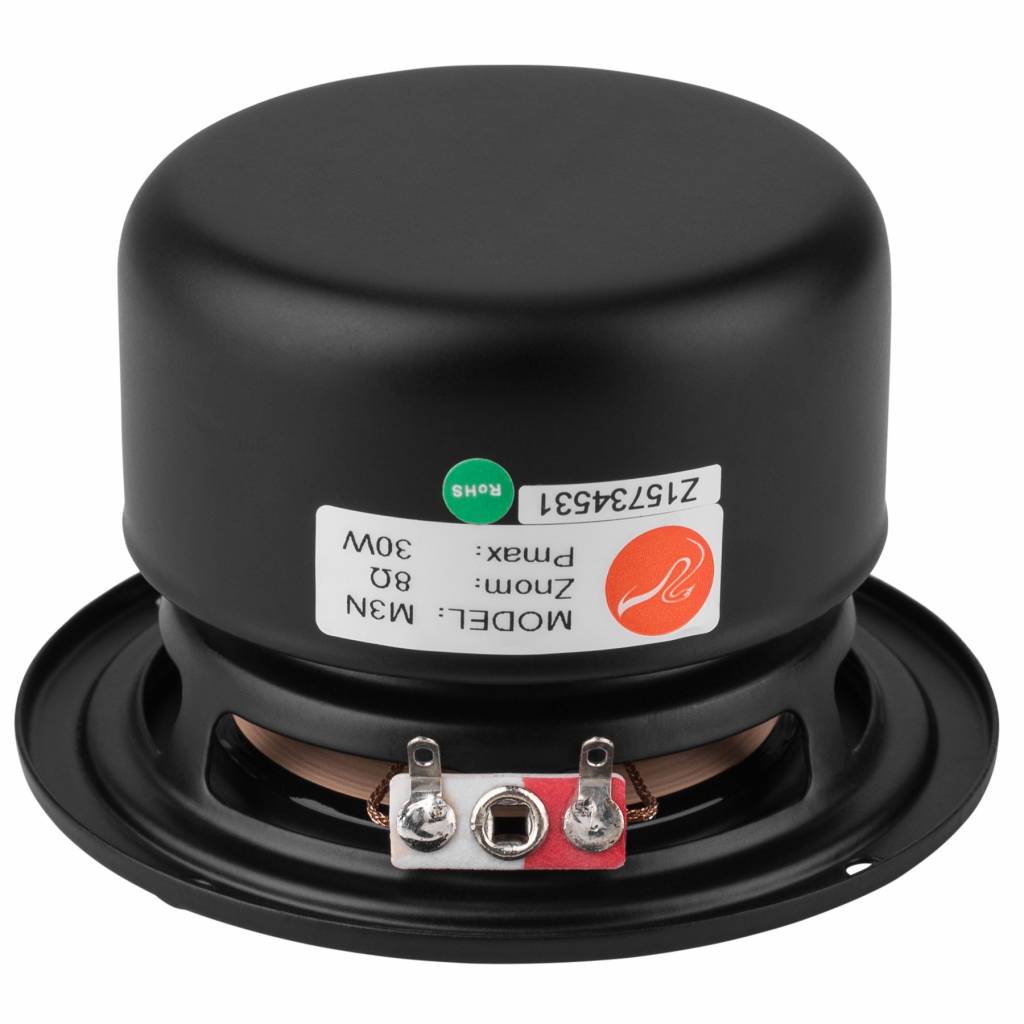

      The HiVi M3N 3" full-range speaker features a magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.



      Highlights

      • Shielded magnet structure
      • Advanced alloy (magnesium/aluminum) cone, coated with special damping material
      • High power handling
      • Optimum recovery CONEX supporting system



      Product details

      HiVi M3N 3" Aluminum / Magnesium Midbass



      A shielded magnet structure allows the HiVi M3N 3" full-range speaker to be incorporated easily into audio/video and multimedia applications. The driver may be used in a small closed box as a midrange unit in a three-way system and the good extension (97 Hz) in a vented enclosure allows for use in a 2-way two-driver or MTM configured system. The M3N also features a magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.

      Specifications

      Article number
      M3N
      Woofer Type
      Full-range
      Nominal Diameter
      3"
      Power Handling (RMS)
      15 Watts
      Power Handling (max)
      30 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      82 dB 2.83V/1m
      Frequency Response
      100 to 8,000 Hz
      Voice Coil Diameter
      0.875"
      DC Resistance (Re)
      6.5 ohms
      Resonant Frequency (Fs)
      100 Hz
      Mechanical Q (Qms)
      4.2
      Electromagnetic Q (Qes)
      1.2
      Total Q (Qts)
      0.92
      Diaphragm Mass Inc. Airload (Mms)
      2.6g
      Mechanical Compliance of Suspension (Cms)
      0.82 mm/N
      Surface Area of Cone (Sd)
      30 cm²
      Compliance Equivalent Volume (Vas)
      0.05 ft.³
      Maximum Linear Excursion (Xmax)
      3 mm
      Cone / Diaphragm Material
      Aluminum / Magnesium
      Voice Coil Wire Material
      CCA
      Voice Coil Former
      Kapton® / Polyimide
      Dual Voice Coil
      No
      Magnet Material
      Ferrite
      Shielded
      Yes
      Overall Outside Diameter
      3.5"
      Overall Depth
      2.625"
      Baffle Cutout Diameter
      3"
      # Mounting Holes
      4
      Sealed Volume
      0.12 ft.³
      Sealed F3
      95 Hz
      Vented Volume
      0.27 ft.³
      Vented F3
      57 Hz

      Show more
