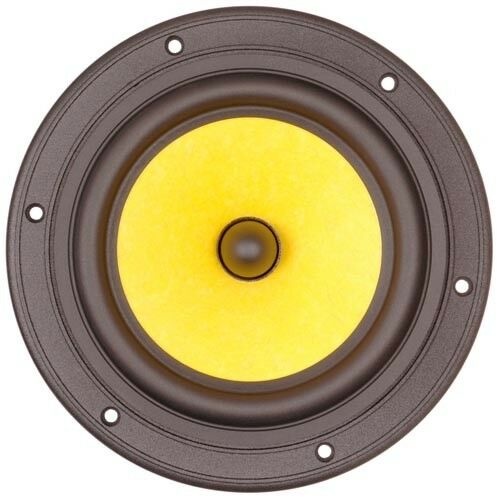

      HiVi F6 6-1/2" Bass/Midrange

      € 41,28€ 49,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €47,45 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The HiVi F6 has been optimized for dynamic bass reproduction in small or medium vented systems. Midrange clarity and tonal balance are remarkable.



      Highlights

      • Kevlar and paper fiber cone
      • Phase plug improves frequency response and dispersion
      • Magnetically shielded
      • Remarkable midrange clarity and tonal balance



      Product details

      HiVi F6 6-1/2" Bass/Midrange



      The HiVi F6 has been optimized for dynamic bass reproduction in small or medium vented systems. Midrange clarity and tonal balance are remarkable. The F6 utilizes a newly developed matrix of Kevlar and paper fibers, and the cone weighs less, is more rigid, and has an improved damping factor. The back of the cone is hand coated with a special damping compound to further maximize performance stability and control of structural resonances. The driver features a central phase plug to avoid air compression and internal air volume resonance, and the plug improves frequency response and dispersion as well. An aluminum former voice coil and spider contribute to the driver's linear operation at high power levels. The massive aluminum die-cast basket has been developed to minimize structural resonances, and the shielded magnet structure allows the F6 to be incorporated into audio/video applications. It may be used in a small vented or closed box when a subwoofer is employed.

      Specifications

      Article number
      F6
      Woofer Type
      Midwoofer
      Nominal Diameter
      6-1/2"
      Power Handling (RMS)
      45 Watts
      Power Handling (max)
      90 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      88 dB 2.83V/1m
      Frequency Response
      42 to 4,000 Hz
      Voice Coil Diameter
      1"
      DC Resistance (Re)
      6.5 ohms
      Resonant Frequency (Fs)
      45 Hz
      Mechanical Q (Qms)
      3.91
      Electromagnetic Q (Qes)
      0.38
      Total Q (Qts)
      0.35
      Diaphragm Mass Inc. Airload (Mms)
      18.3g
      Mechanical Compliance of Suspension (Cms)
      0.07 mm/N
      Surface Area of Cone (Sd)
      139 cm²
      Compliance Equivalent Volume (Vas)
      0.58 ft.³
      Maximum Linear Excursion (Xmax)
      4.3 mm
      Cone / Diaphragm Material
      Paper / Kevlar
      Surround Material
      Rubber
      Voice Coil Former
      Kapton® / Polyimide
      Dual Voice Coil
      No
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Shielded
      Yes
      Overall Outside Diameter
      7.75"
      Overall Depth
      3.75"
      Baffle Cutout Diameter
      5.875"
      # Mounting Holes
      6
      Sealed Volume
      0.19 ft.³
      Sealed F3
      94 Hz
      Vented Volume
      0.53 ft.³
      Vented F3
      53 Hz

      Show more

      Reviews

      5 from 5Based on 1 reviews
      Review this product
      5 of 5
      nice woofer in a 3way system. unexpected felt pressure, precision and low range in a 20l cabinet. also i never had placement issues with systems using this woofer. if you have high expectations, you'd rather skip thinking of a 2way system with it, at least compared to the f5 the midrange isn't as musical and present. you might still like it for rock music in a 2way system, when trying to keep the xover at 2k or lower.
      By Martin Z. on 28 May 2020
