        Swan F5 5" Bass/Midrange

        HiVi Swan F5 5" Bass/Midrange

        €39,95

        1 In stock

        Add to cart

        HiVi Swan F5 5" Bass/Midrange

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: HiVi
        5" | 8 Ω
        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange
        € 33,02€ 39,95 1 In stock
        • -5% Purchase 4 for only € 37,95 per piece
        € 39,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange
        Swan F5 5" Bass/Midrange

        Product description HiVi Swan F5 Bass-midwoofer

        The design of the HiVi F5 has been optimized for dynamic bass reproduction in small vented systems as well as for midrange clarity and accuracy.



        Highlights

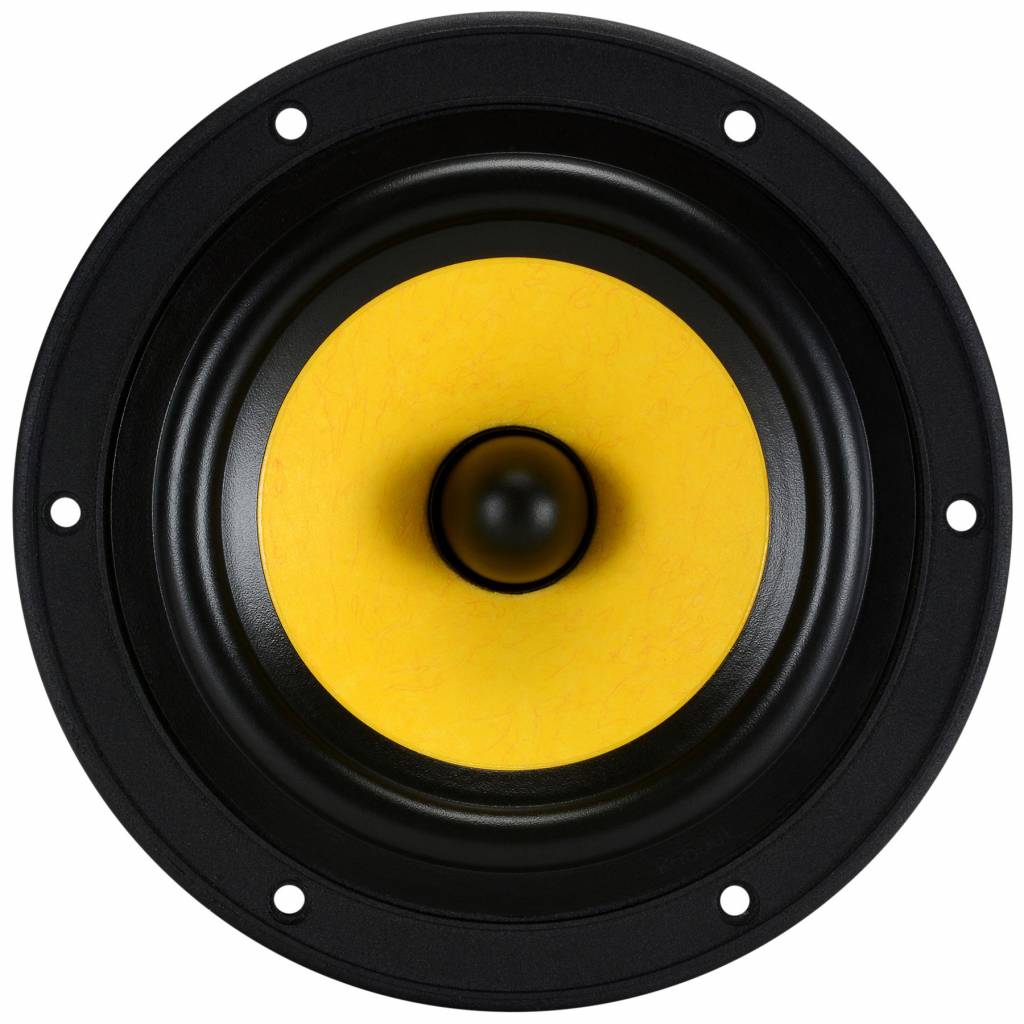

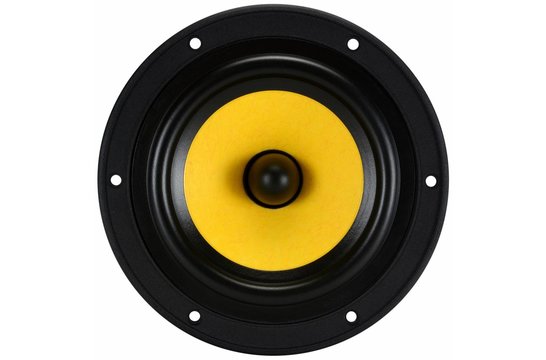

        • Light and extremely rigid cone made from Kevlar/paper composite
        • High loss rubber surround

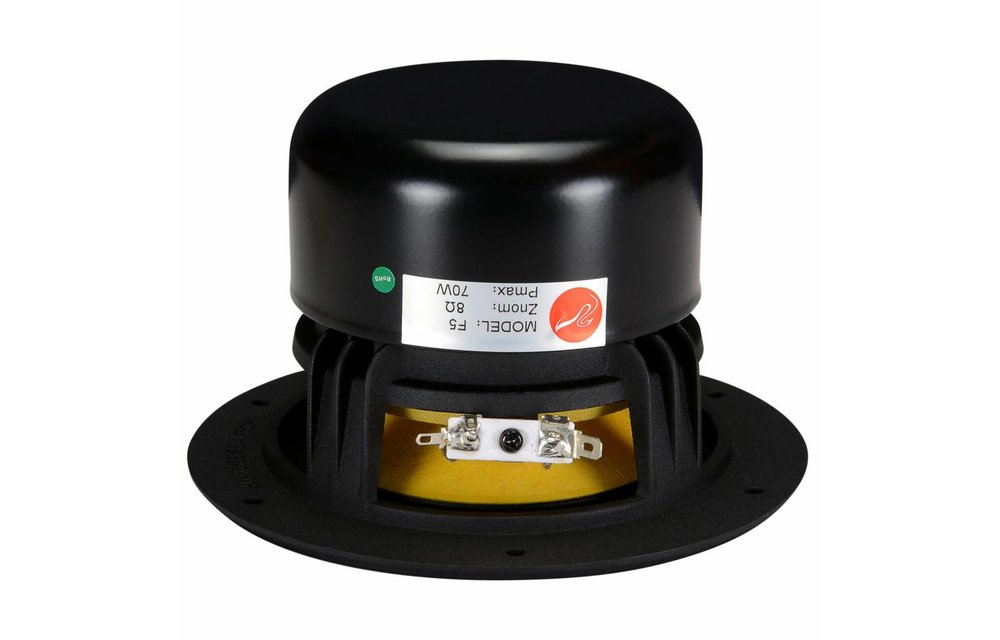

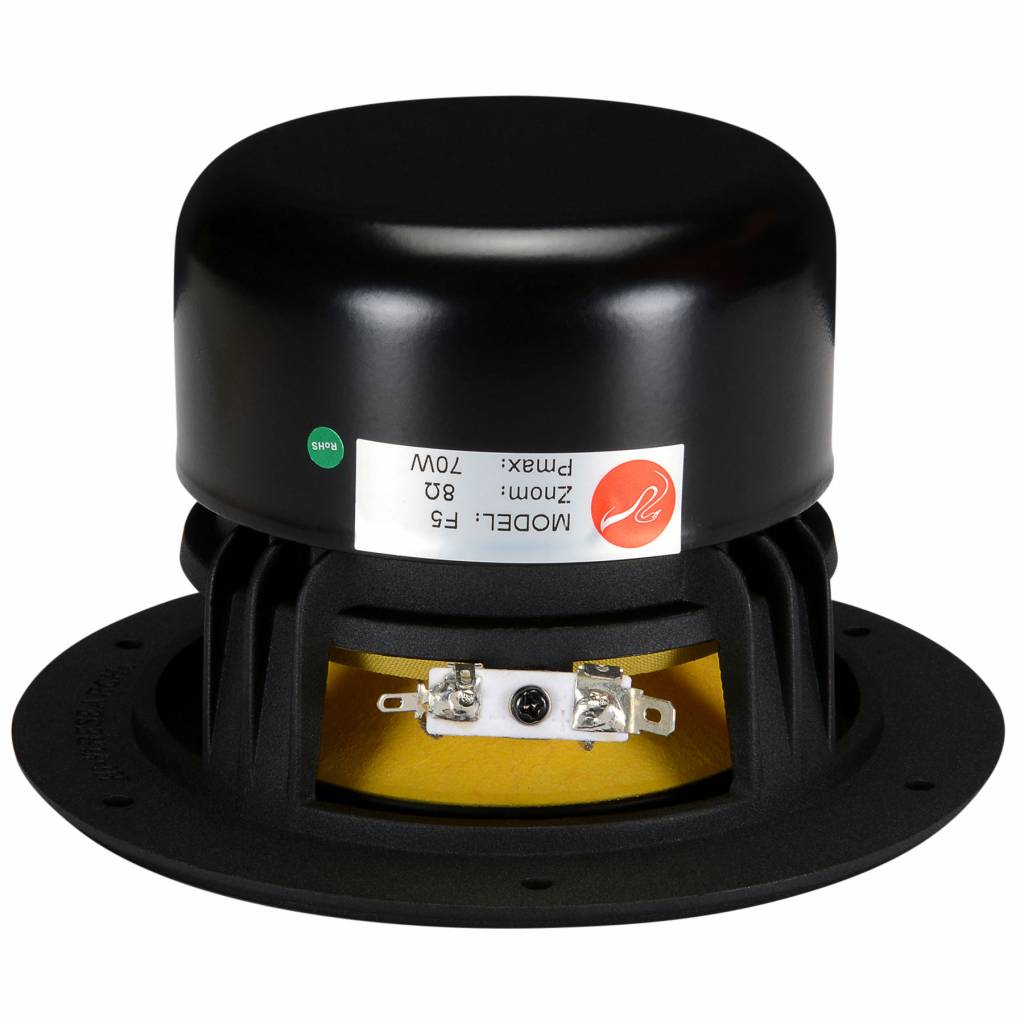

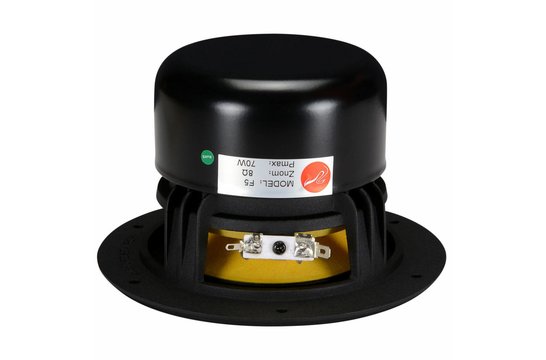

        • Shielded double magnet motor structure
        • High power handling aluminum former voice coil
        • High-density aluminum die-cast basket
        • Central phase plug



        Product details

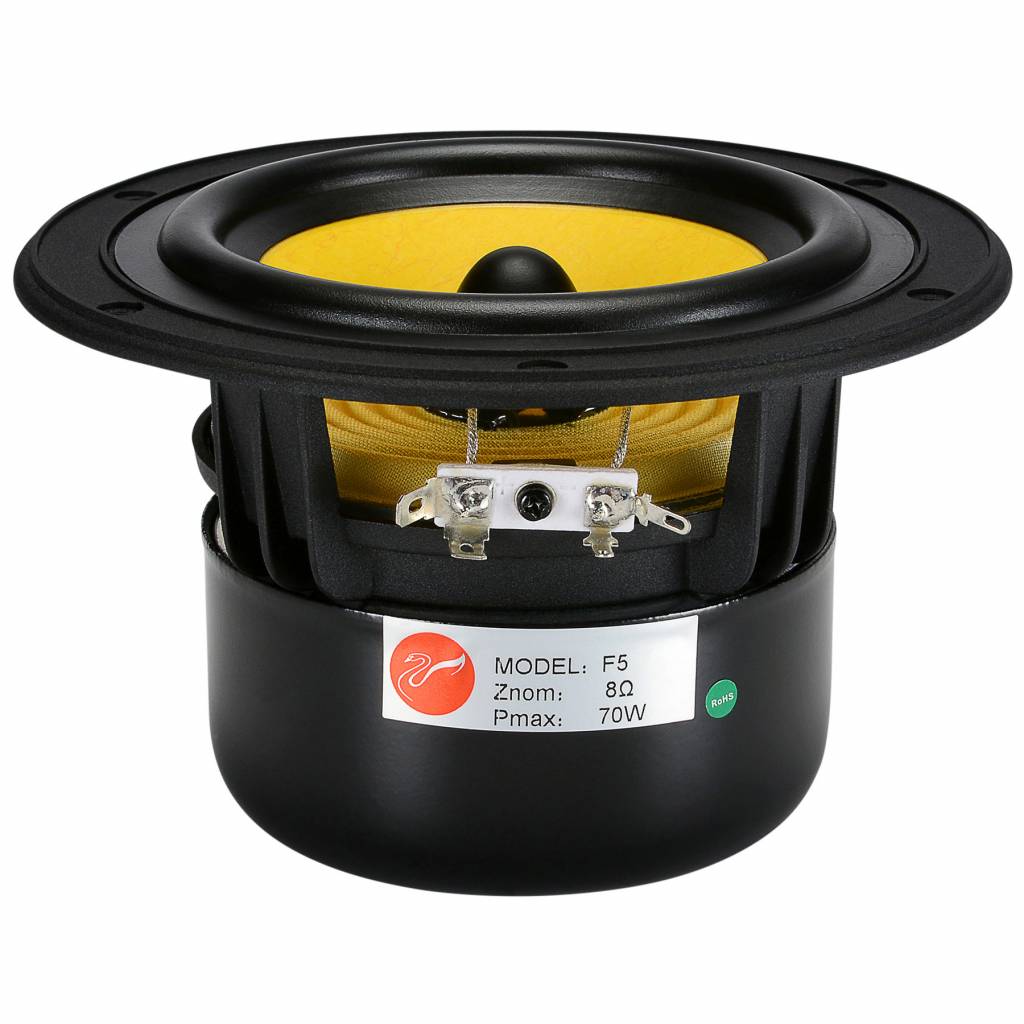

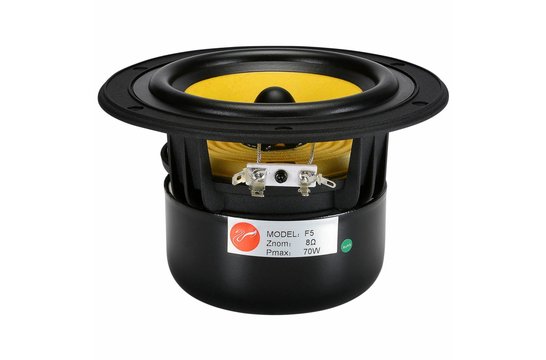

        HiVi F5 5" Bass/Midrange



        The design of the HiVi F5 has been optimized for dynamic bass reproduction in small vented systems as well as for midrange clarity and accuracy. Its cone weighs less, is more rigid, and has an improved damping factor. The driver utilizes a central phase plug to avoid air compression and internal air volume resonance, as well as improving frequency response and dispersion. The Kapton former voice coil and highly compliant spider contribute to the linear operation of the driver at high power levels. A massive aluminum die-cast basket has been developed to minimize structural resonances, and the shielded magnet structure allows the F5 to be incorporated easily into audio/video applications. The driver will perform superbly in a small box as a bass-midrange unit, especially when a subwoofer is employed. Recommended crossover frequency region for a two-way system design is 2-4 kHz.

        Show more

        Specifications

        Article number
        F5
        EAN
        0844632021299
        Woofer Type
        Midwoofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        35 Watt
        Power Handling (max)
        70 Watt
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        86 dB
        Frequency Response
        45 - 5000 Hz
        Voice Coil Diameter
        25 mm
        DC Resistance (Re)
        6.5 Ω
        Voice Coil Inductance (Le)
        0.49 mH
        Resonant Frequency (Fs)
        52 Hz
        Mechanical Q (Qms)
        4.31
        Electromagnetic Q (Qes)
        0.36
        Total Q (Qts)
        0.33
        Diaphragm Mass Inc. Airload (Mms)
        11.5 g
        Mechanical Compliance of Suspension (Cms)
        0.83 mm/N
        Surface Area of Cone (Sd)
        79 cm²
        Compliance Equivalent Volume (Vas)
        9.06 L
        Maximum Linear Excursion (Xmax)
        2.7 mm
        Cone / Diaphragm Material
        Paper / Kevlar
        Surround Material
        Rubber
        Voice Coil Former
        Kapton® / Polyimide
        Dual Voice Coil
        No
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Shielded
        Yes
        Overall Outside Diameter
        153.92 mm
        Overall Depth
        76.2 mm
        Baffle Cutout Diameter
        114.3 mm
        # Mounting Holes
        6
        Sealed Volume
        2.55 L
        Sealed F3
        108 Hz
        Vented Volume
        7.65 L
        Vented F3
        59 Hz
