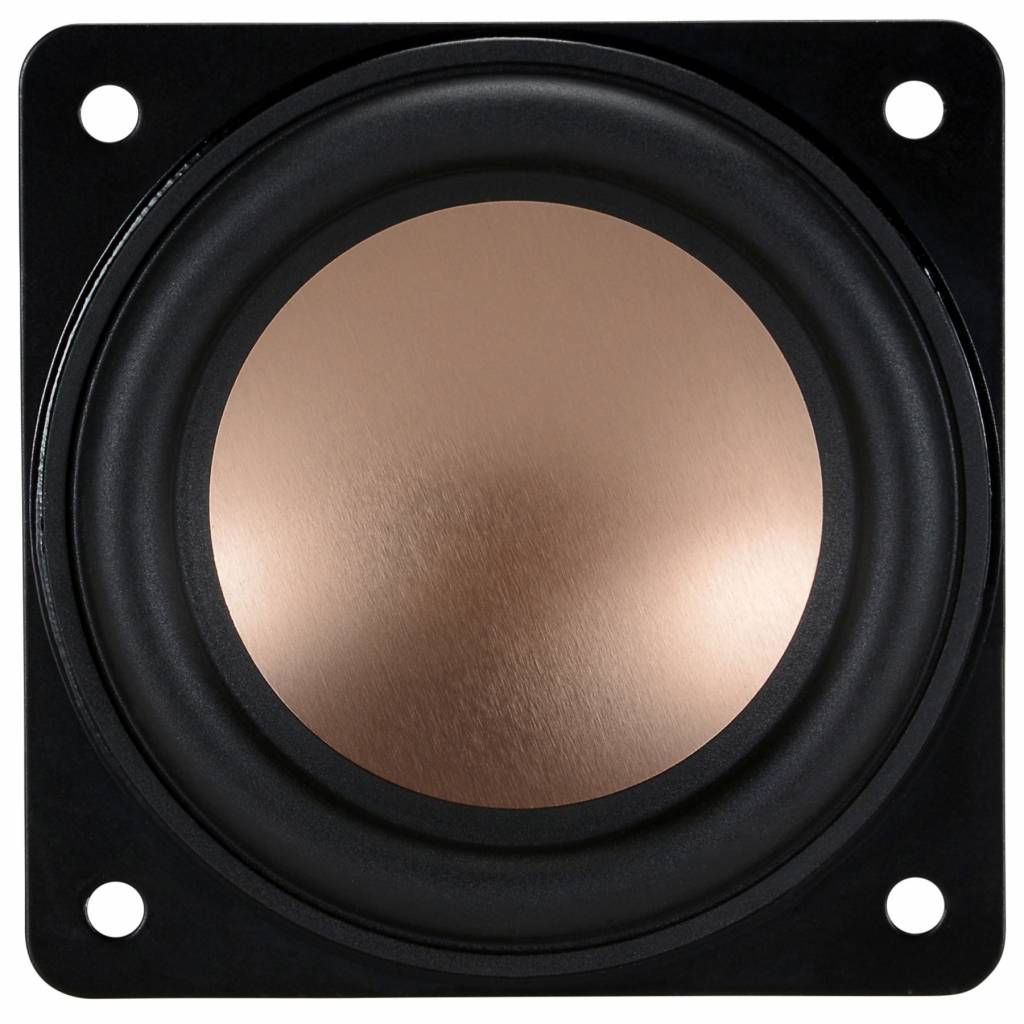

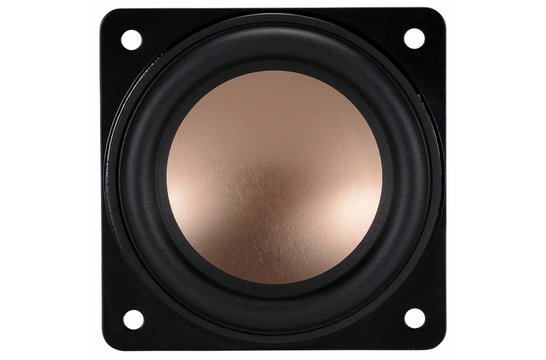

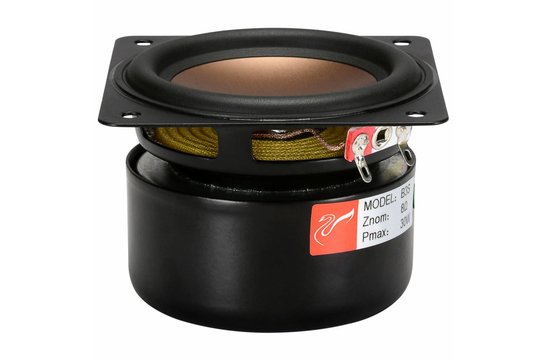

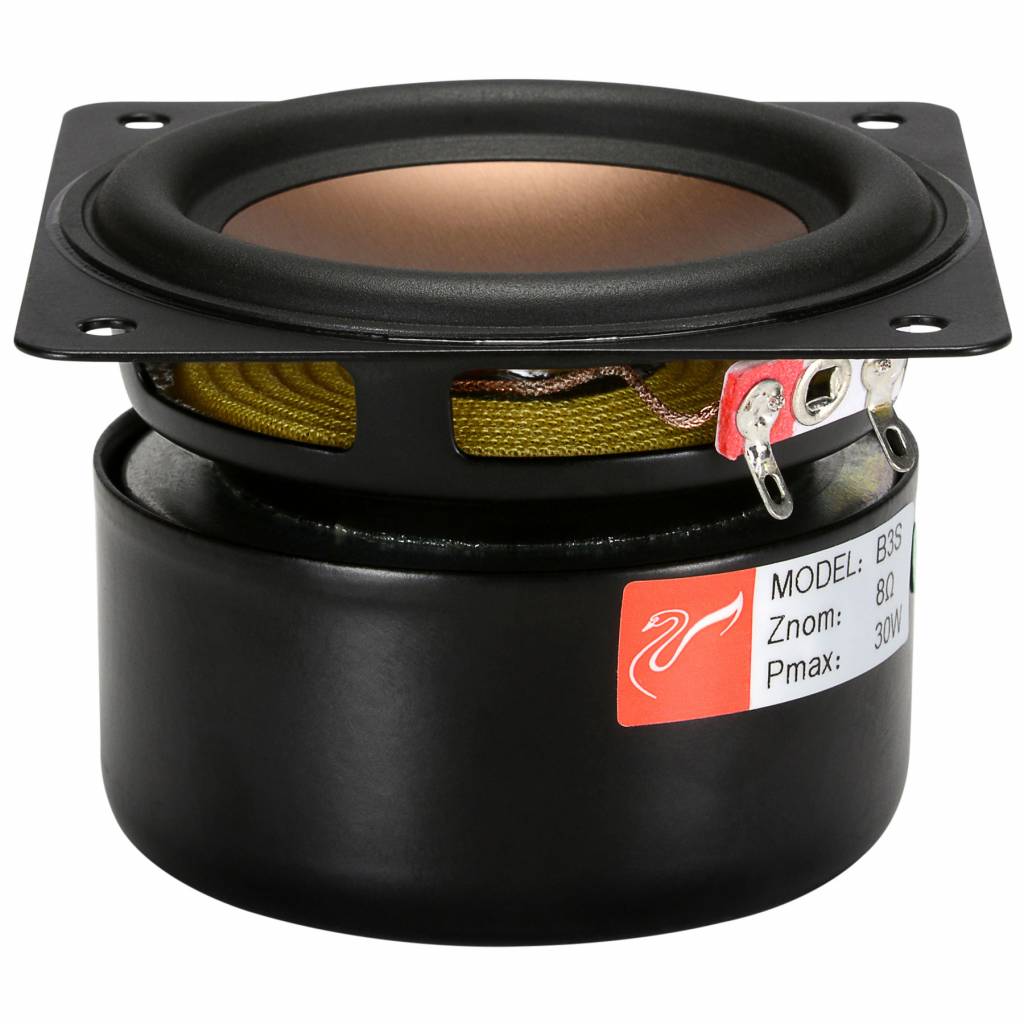

HiVi B3S 3" Shielded Aluminum Driver Square Frame

Brand: HiVi

Show all Bass-mid woofer

Compare

3" | 8 Ω

B3S 3" Shielded Aluminum Driver Square Frame

B3S 3" Shielded Aluminum Driver Square Frame

B3S 3" Shielded Aluminum Driver Square Frame

B3S 3" Shielded Aluminum Driver Square Frame

B3S 3" Shielded Aluminum Driver Square Frame

B3S 3" Shielded Aluminum Driver Square Frame

€ 15,25€ 18,45 10+ In stock

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Magnesium/aluminum alloy concave cones and square frames are the distinguishing features of the BS series. The B3S 3" full-range speaker's magnetically shielded design allows use in center channel and other multimedia applications.

Highlights

Magnesium/aluminum alloy concave cones and square frames
Magnetically shielded design allows use in center channel and other multimedia applications
Symmetric Motor Drive (SMD) technology
Impressive low distortion

Product details

HiVi B3S 3" Shielded Aluminum Driver Square Frame

Magnesium/aluminum alloy concave cones and square frames are the distinguishing features of the BS series. The B3S 3" full-range speaker's magnetically shielded design allows use in center channel and other multimedia applications. HiVi's Symmetric Motor Drive (SMD) technology reduces the voice coil's inductance modulation and back EMF, thereby improving the speaker's controllability and achieving impressively low distortion. Stamped steel frame and rubber surround. These drivers are capable of covering a wide portion of the audio spectrum and are easy to install without the need for cutting complicated driver recesses.

Show more

Specifications

Article number: B3S
Woofer Type: Midwoofer
Nominal Diameter: 3"
Power Handling (RMS): 15 Watts
Power Handling (max): 30 Watts
Impedance (Z): 8 ohms
Sensitivity: 82 dB 2.83V/1m
Frequency Response: 100 to 10,000 Hz
Voice Coil Diameter: 0.75"
DC Resistance (Re): 6.5 ohms
Resonant Frequency (Fs): 100 Hz
Mechanical Q (Qms): 3.75
Electromagnetic Q (Qes): 1.15
Total Q (Qts): 0.88
Diaphragm Mass Inc. Airload (Mms): 2.6g
Mechanical Compliance of Suspension (Cms): 0.99 mm/N
Surface Area of Cone (Sd): 30 cm²
BL Product (BL): 3.06 Tm
Compliance Equivalent Volume (Vas): 0.04 ft.³
Maximum Linear Excursion (Xmax): 3 mm
Cone / Diaphragm Material: Aluminum / Magnesium
Voice Coil Wire Material: CCA
Voice Coil Former: Kapton® / Polyimide
Dual Voice Coil: No
Magnet Material: Ferrite
Shielded: Yes
Overall Outside Diameter: 3"
Overall Depth: 2.13"
Baffle Cutout Diameter: 2.75"
# Mounting Holes: 4
Sealed F3: 0.1 ft.³
Vented Volume: 0.19 ft.³
Vented F3: 57 Hz
