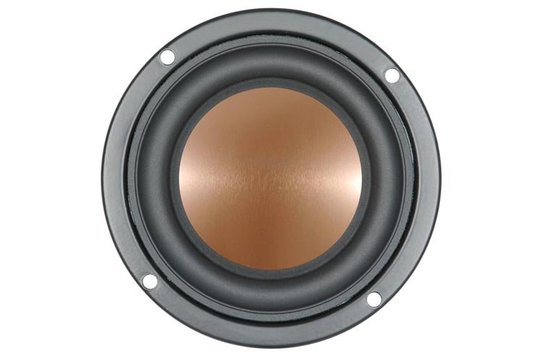

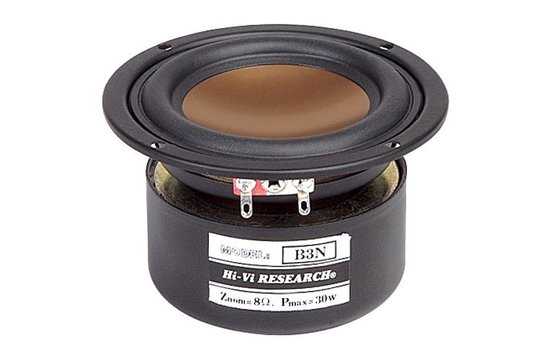

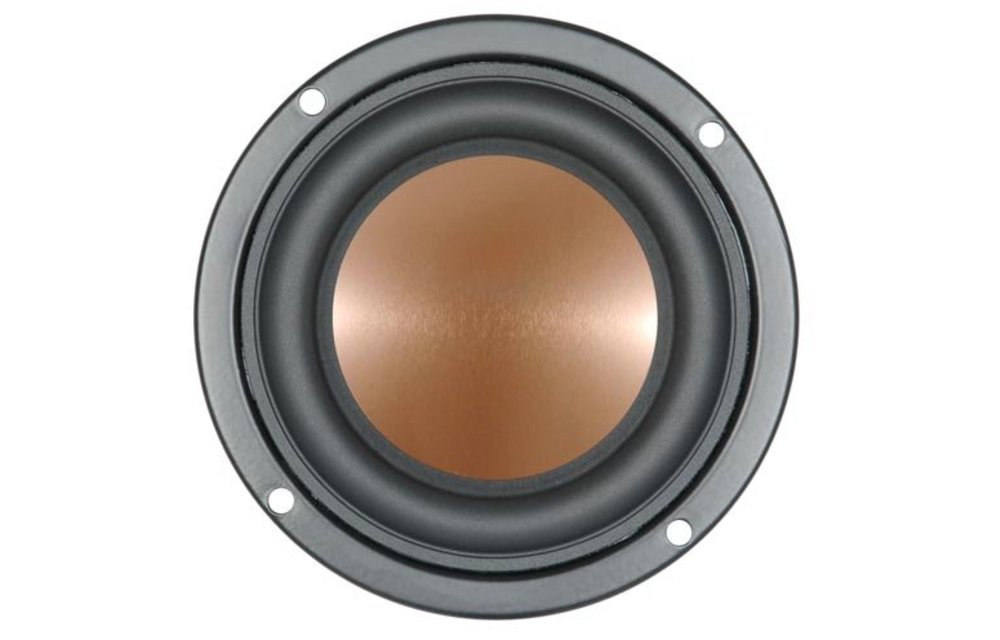

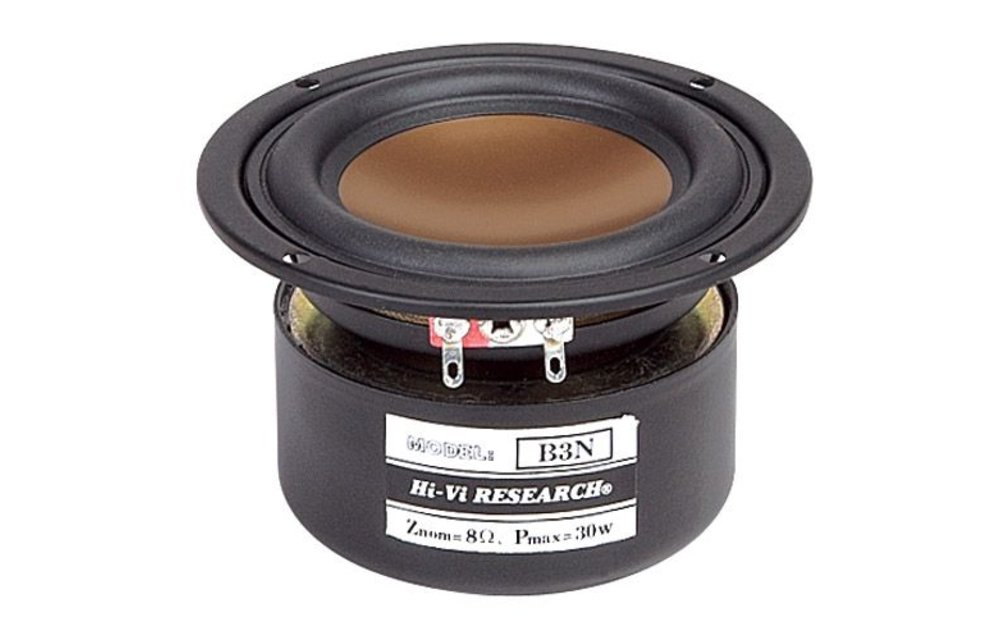

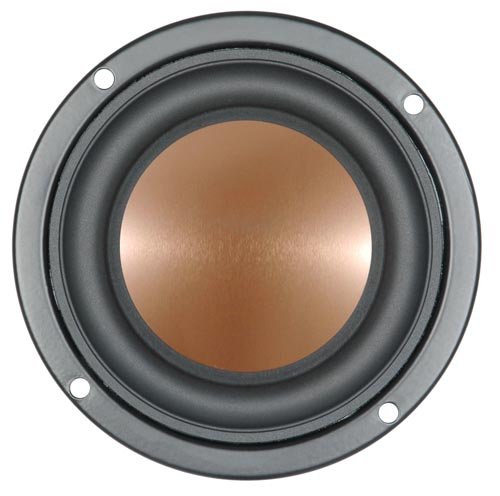

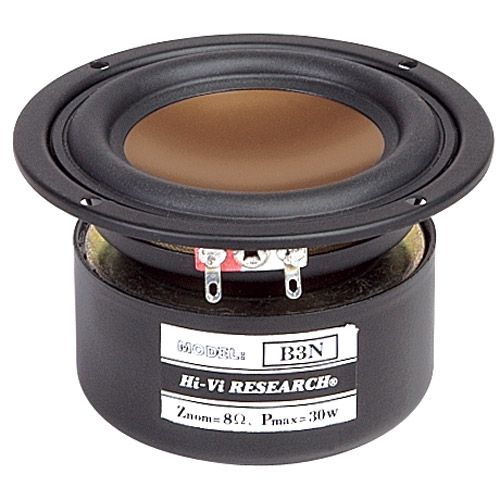

      HiVi B3N 3" Aluminum Driver Round Frame

      € 15,25€ 18,45 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 17,53 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Bronze/aluminum alloy cones, rubber surrounds, cosmetic steel frames, and shielded motor structures are the distinguishing features of the HiVi B Series full-range speakers.



      Highlights

      • Advanced alloy (magnesium/aluminum) cone
      • High power handling
      • Hi-Vi Symmetric Motor Drive (SMD) technology
      • Suitable for midrange, surround speakers a in home theatre system



      Product details

      HiVi B3N 3" Aluminum Driver Round Frame



      Bronze/aluminum alloy cones, rubber surrounds, cosmetic steel frames, and shielded motor structures are the distinguishing features of the HiVi B Series full-range speakers. These drivers are capable of covering a wide portion of the audio spectrum, and the magnetically shielded design allows use in center channel and other multimedia applications.

      Specifications

      Article number
      B3N
      Woofer Type
      Midwoofer
      Nominal Diameter
      3"
      Power Handling (RMS)
      10 Watts
      Power Handling (max)
      30 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      81 dB 2.83V/1m
      Frequency Response
      80 to 12,000 Hz
      Voice Coil Diameter
      0.75"
      DC Resistance (Re)
      6.5 ohms
      Resonant Frequency (Fs)
      77 Hz
      Mechanical Q (Qms)
      4.48
      Electromagnetic Q (Qes)
      1.07
      Total Q (Qts)
      0.86
      Diaphragm Mass Inc. Airload (Mms)
      3.2g
      Mechanical Compliance of Suspension (Cms)
      1.32 mm/N
      Surface Area of Cone (Sd)
      30 cm²
      BL Product (BL)
      3.1 Tm
      Compliance Equivalent Volume (Vas)
      0.06 ft.³
      Maximum Linear Excursion (Xmax)
      3 mm
      Cone / Diaphragm Material
      Aluminum
      Voice Coil Wire Material
      CCA
      Voice Coil Former
      Kapton® / Polyimide
      Dual Voice Coil
      No
      Magnet Material
      Ferrite
      Shielded
      Yes
      Overall Outside Diameter
      3.5"
      Overall Depth
      2.125"
      Baffle Cutout Diameter
      2.875"
      # Mounting Holes
      4
      Sealed Volume
      0.16 ft.³
      Sealed F3
      76 Hz
      Vented Volume
      0.28 ft.³
      Vented F3
      44 Hz

      Show more
