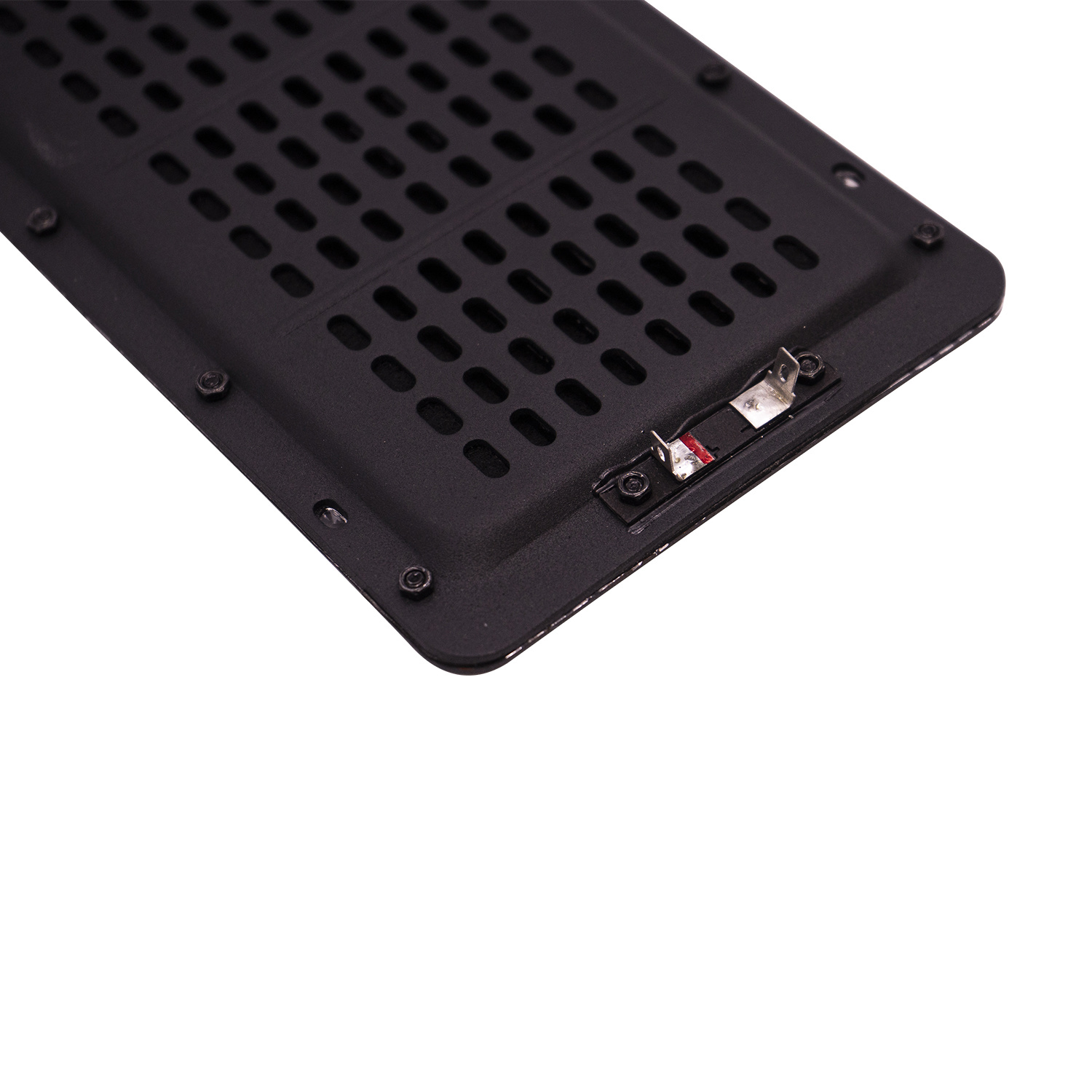

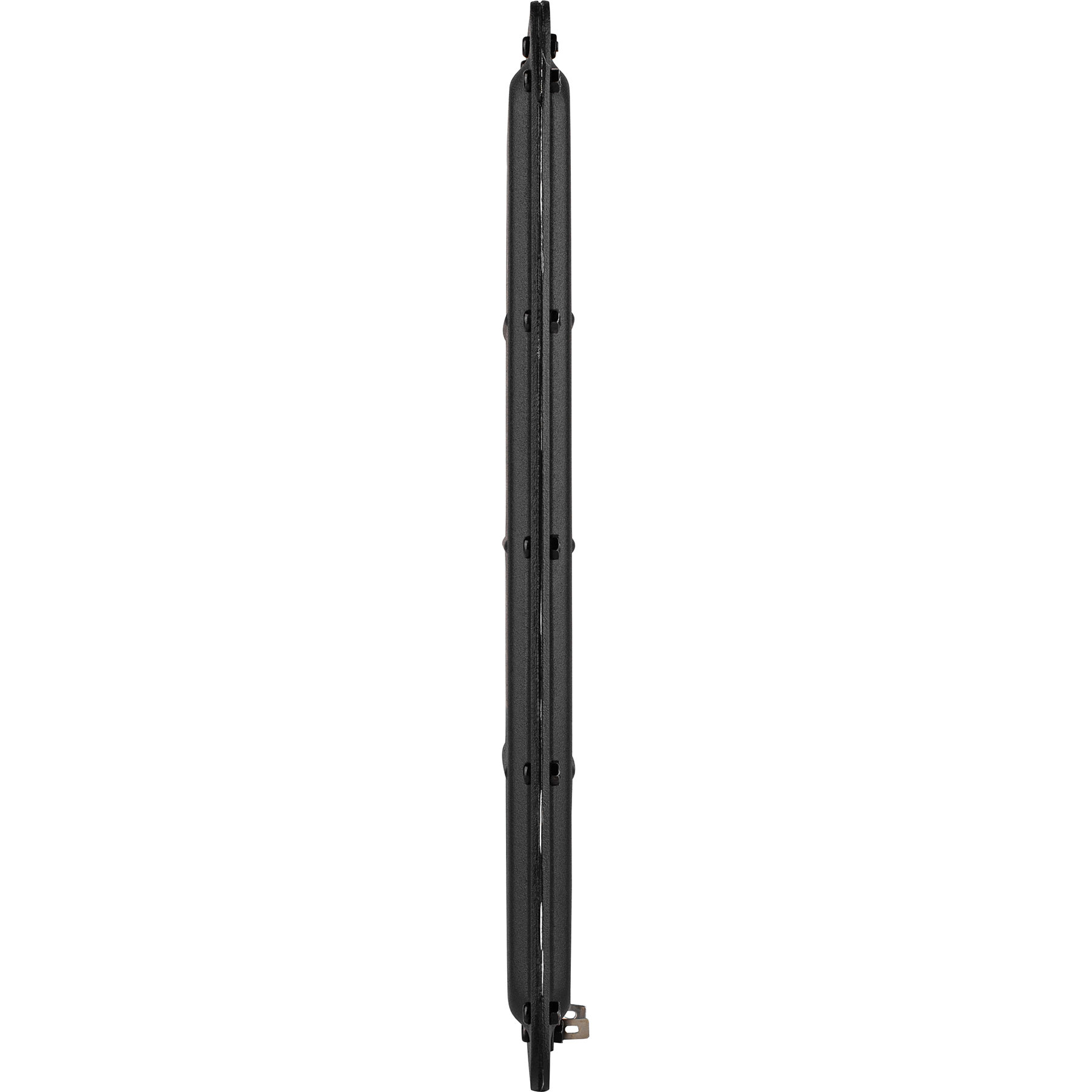

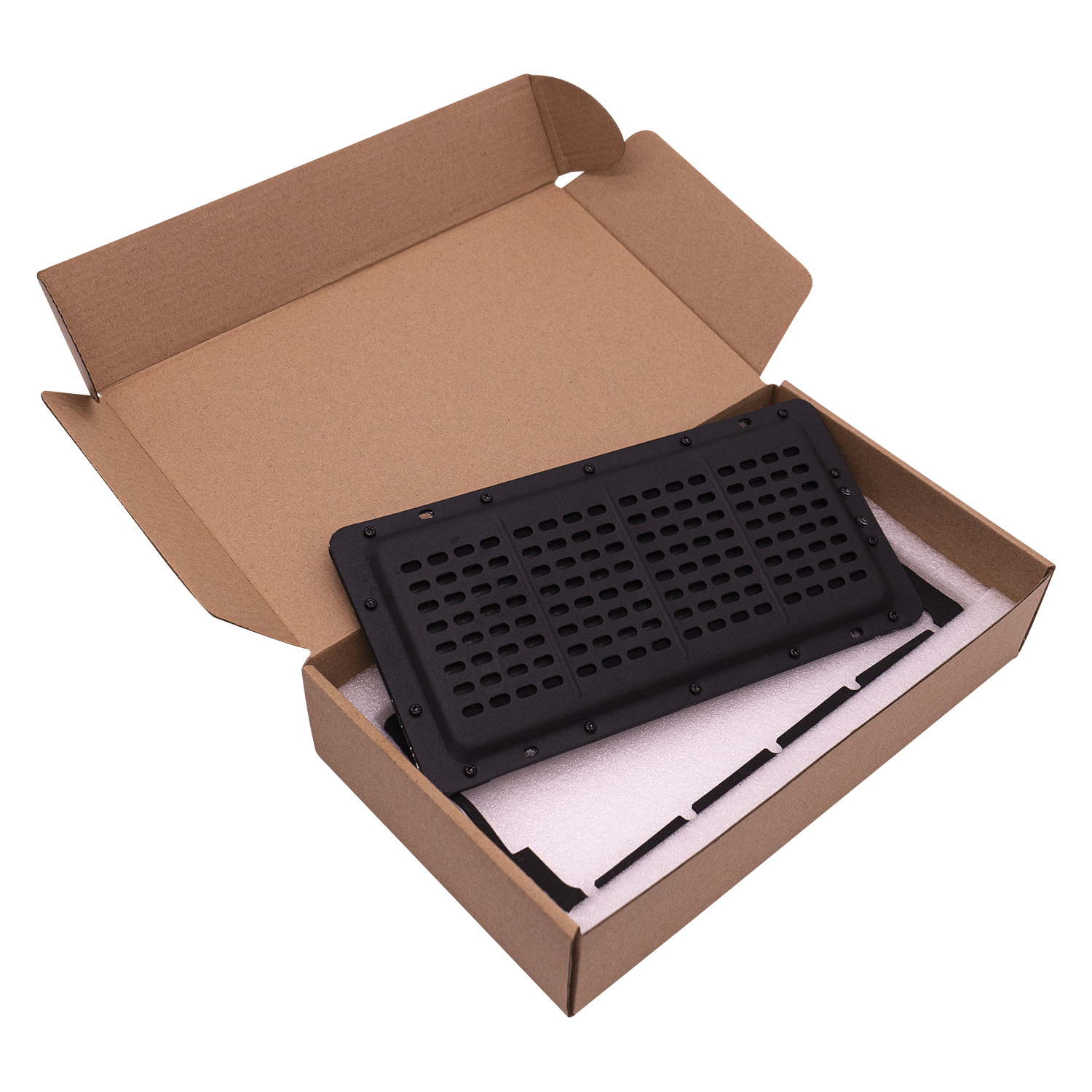

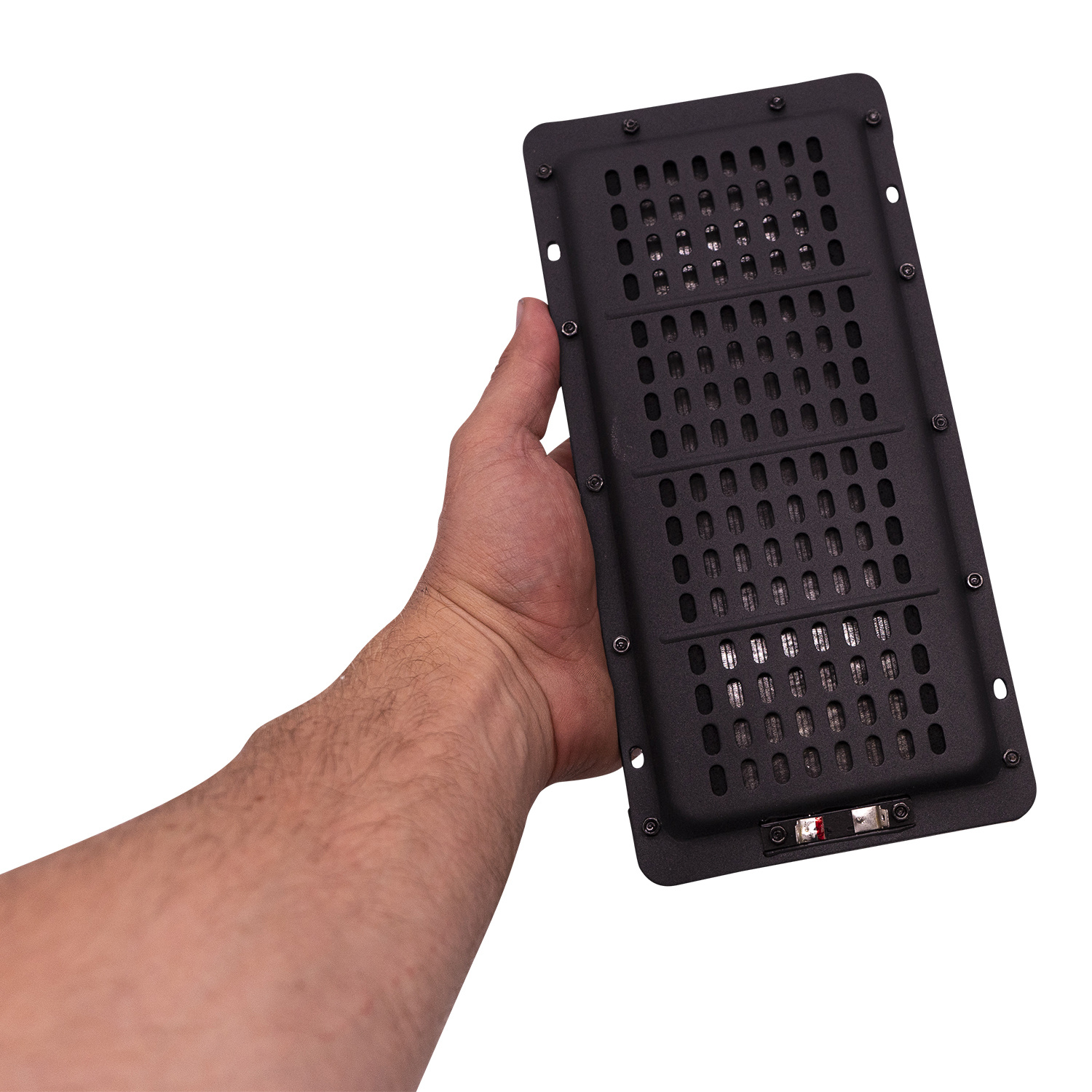

        PT5010-8 Planar Mid/Tweeter

        PT5010-8 Planar Mid/Tweeter

        €209,95

        GRS PT5010-8 Planar Mid/Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: GRS
        € 173,51€ 209,95 10+ In stock
        • -5% Purchase 4 for only € 199,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Capable of delivering extremely wide bandwidth with low distortion, the GRS PT5010-8 open back planar driver is designed to deliver natural midrange response while remaining accurate to the highest frequencies. With an extremely lightweight diaphragm and a neodymium motor system, this driver is capable of excellent transient response with amazing dynamics. The open back construction produces true dipole radiation which is ideal for use in open baffle designs.



        Highlights

        • Extremely low mass diaphragm provides excellent transient response and accuracy
        • Large diaphragm produces high efficiency with incredible dynamics
        • Remarkably wide bandwidth for predictable transition to woofer and tweeter drivers
        • Open back delivers true dipole radiation for use in open baffle designs
        • Linear impedance simplifies crossover design
        • Shallow mounting depth for use in low profile designs



        Product Details

        GRS PT5010-8 10" Planar Mid/Tweeter 8 Ohm



        With the ability to provide low distortion output from 300-8,000 Hz, the GRS PT5010-8 open back midrange/tweeter is an excellent choice for use in 2-way designs or even as a drop in replacement for many existing systems. Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm driven by 56 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and detail. With a nearly linear 6.8 ohm impedance keeps crossover design simple with predictable final results. In addition, the open back design gives this midrange/tweeter true dipole radiation making it the perfect choice for use in high end open baffle speaker designs.

        Show more

        Specifications

        Article number
        PT5010-8
        Tweeter Type
        Planar
        Power Handling (RMS)
        70 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        200 to 8,000 Hz
        DC Resistance (Re)
        6.8 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        2.14
        Total Q (Qts)
        1.96
        Overall Outside Diameter
        10.04" x 4.92"
        Cutout Diameter
        9.05" x 4.20"
        Depth
        0.6"

        Show more

        5 of 5
        Sehr guter Mittelhochtöner. Perfekt für Open Baffle Anwendungen. Ab 600 Hz sinnvoll einsetzbar!
        By Bernhard W. on 20 January 2021
