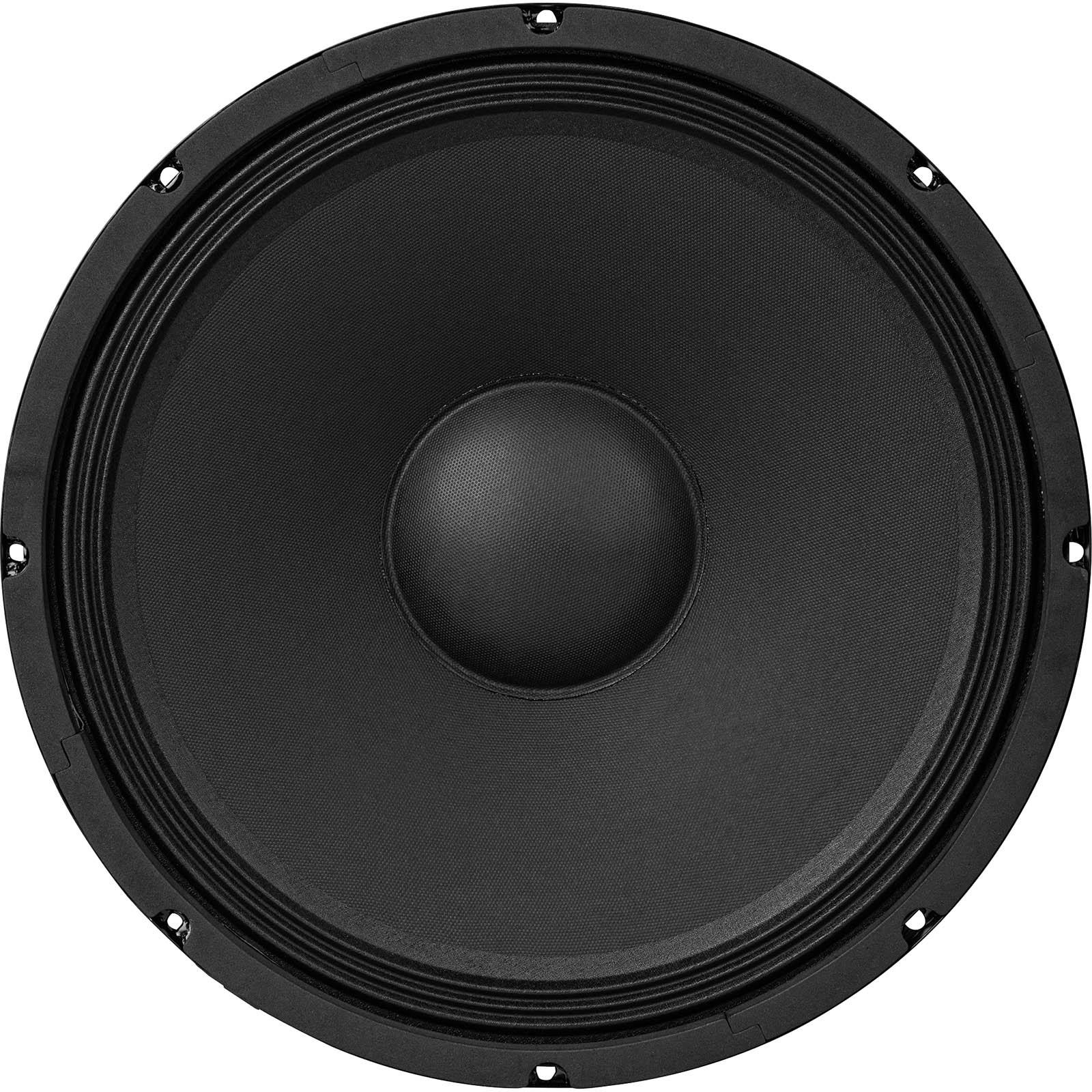

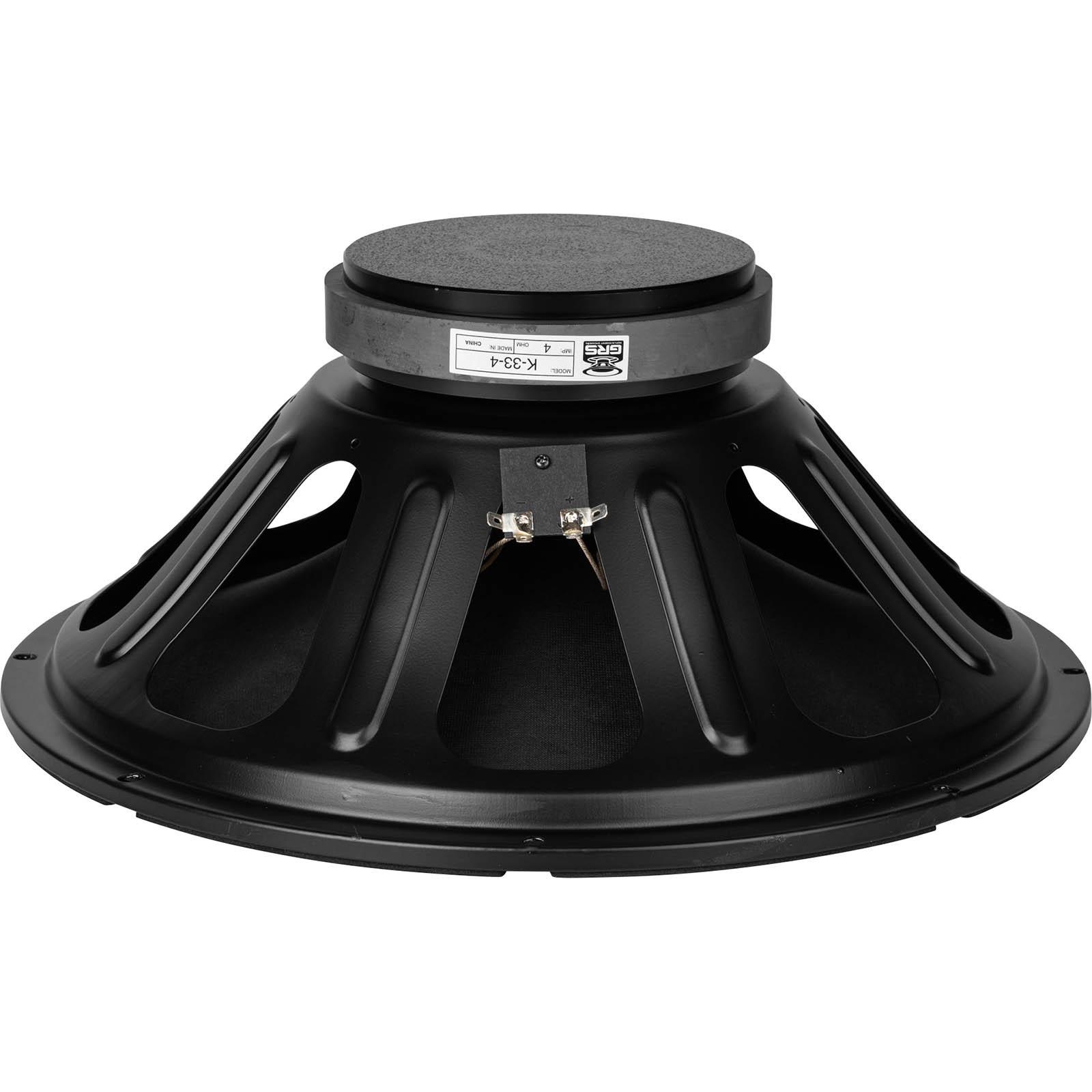

K-33-4 Replacement 15" Woofer for Klipsch Speakers

€139,95

Add to cart

GRS K-33-4 Replacement 15" Woofer for Klipsch Speakers

2 reviews

Brand: GRS

Show all Subwoofer

15" | 4 Ω

K-33-4 Replacement 15" Woofer for Klipsch Speakers

€ 115,66€ 139,95 10+ In stock

We ship to
Ordered now, shipped today
At least two years warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

The GRS K33 is a 1:1 drop-in replacement for the Klipsch K-33 woofer designed to bring your old Klipsch heritage cabinets back to life! With the same suspension and cone characteristics as the original K-33, this driver performs and will retain the same crossover point, tone, and quality when used with the Klipsch crossover networks in a variety of cabinets.

Highlights

Drop-in 4 Ohm replacement woofer for the popular Klipsch K33
Fits popular Klipsch Heritage Cabinets: Klipschorn, Belle Klipsch, Cornwall, Lascala
Perfect visual match for restored Klipsch cabinets
Triple-roll surround and paper cone provide a perfect tonal match
Replacement for K-43-E, K-33-B, K-33-J, K-33-K and more

Product details

GRS K-33-4 Replacement 15" Woofer for Klipsch Speakers

The GRS K-33 was designed to have the same performance in free-air as the original in order to have the same performance in-cabinet for worry-free replacement.

The engineers at GRS understand that while performance is important when selecting replacement drivers for a restoration project, aesthetic is close behind in what dictates an appropriate replacement. Using the same materials and colors for paper cone, dustcap, and triple-roll surround, down to the design of the stamped frame, GRS guarantees mis-matched components won't get in the way of enjoying your favorite Klipsch heritage cabinets.

DIY-ers who do not own any of the classic cabinets will appreciate the high-sensitivity and subdued midrange for easy crossover and cabinet design.

Specifications

Article number: K-33-4
Woofer Type: Subwoofer
Nominal Diameter: 15"
Power Handling (RMS): 200 Watts
Power Handling (max): 400 Watts
Impedance (Z): 4Ω
Sensitivity (SPL at 1m / 2.83V): 97 dB
Frequency Response: 33-5500Hz
Voice Coil Diameter: 2"
Magnet Weight: 59oz.
DC Resistance (Re): 3.52Ω
Voice Coil Inductance (Le): 1.129mH
Resonant Frequency (Fs): 32.2 Hz
Mechanical Q (Qms): 12.61
Electromagnetic Q (Qes): 0.5458
Total Q (Qts): 0.52
Diaphragm Mass Inc. Airload (Mms): 91.55g
Mechanical Compliance of Suspension (Cms): 0.267mm/N
Surface Area of Cone (Sd): 855.3cm²
BL Product (BL): 10.93T·m
Compliance Equivalent Volume (Vas): 9.68ft³
Maximum Linear Excursion (Xmax): 8.25 mm
Cone / Diaphragm Material: Paper
Surround Material: Paper
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 15.11"
Overall Depth: 5.82"
Baffle Cutout Diameter: 13.85"
Bolt Circle Diameter: 14.65
# Mounting Holes: 8

Reviews

2 reviews

Review this product

5 of 5

Ersatz für Fostex PA38, eingebaut in ACR Klipschhorn. Jetzt haben die Boxen richtigen Tiefbass. Bin super begeistert. Sehr schnelle Lieferung auch in die Schweiz

By Walter on 25 September 2023

5 of 5

-

By Ingo on 20 September 2023
