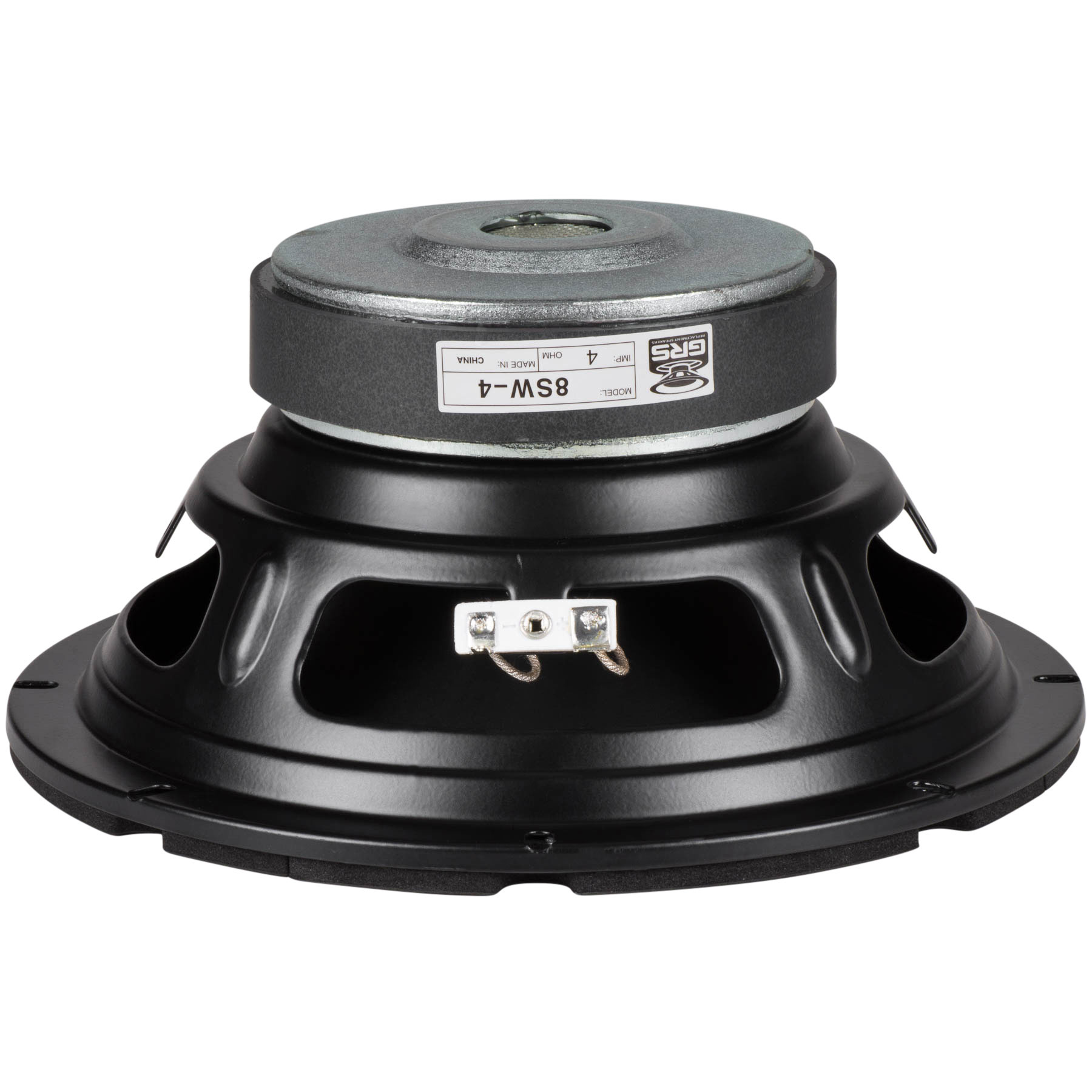

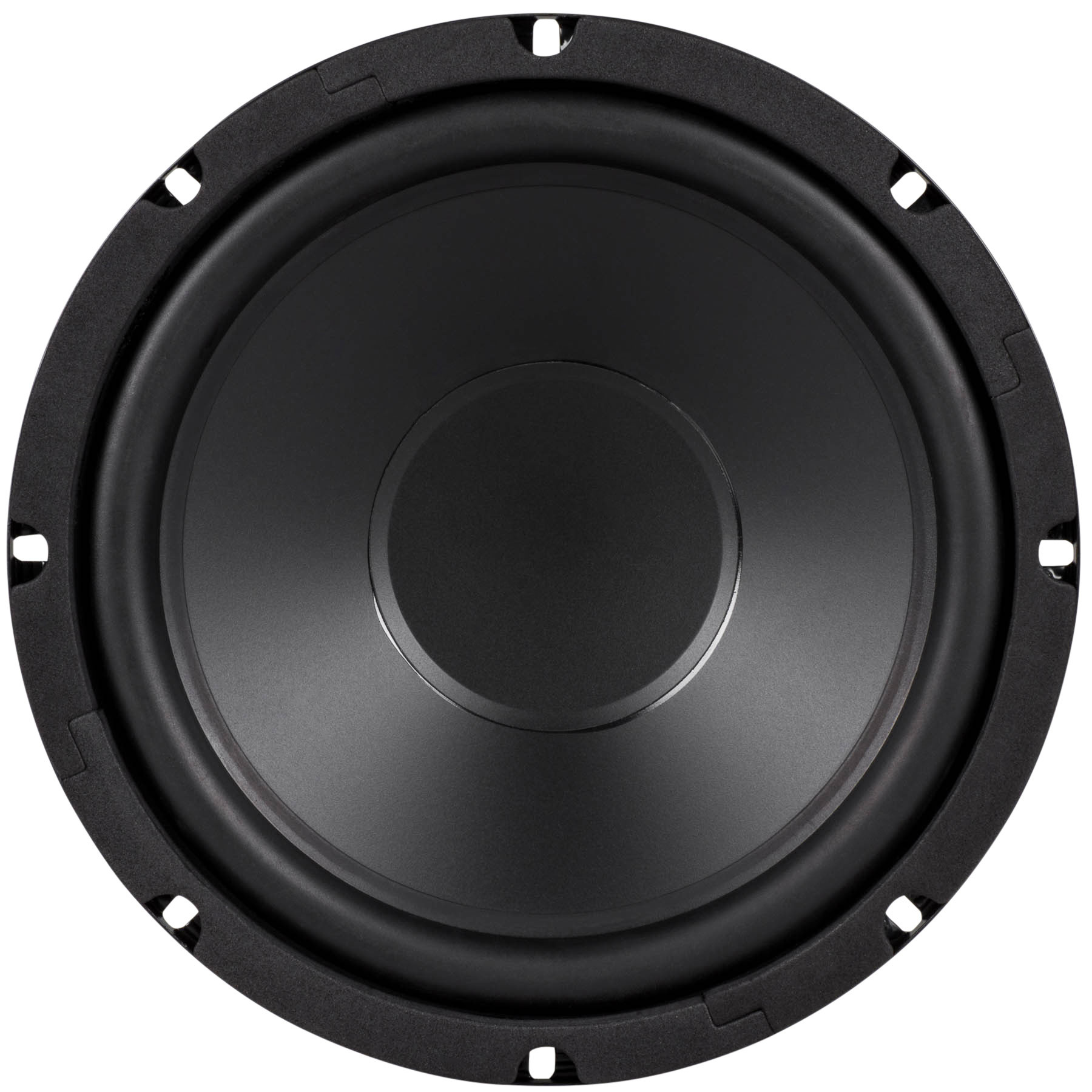

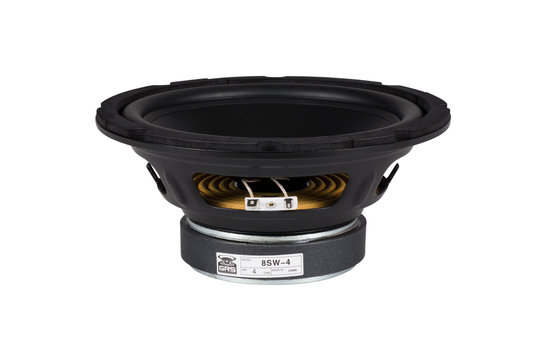

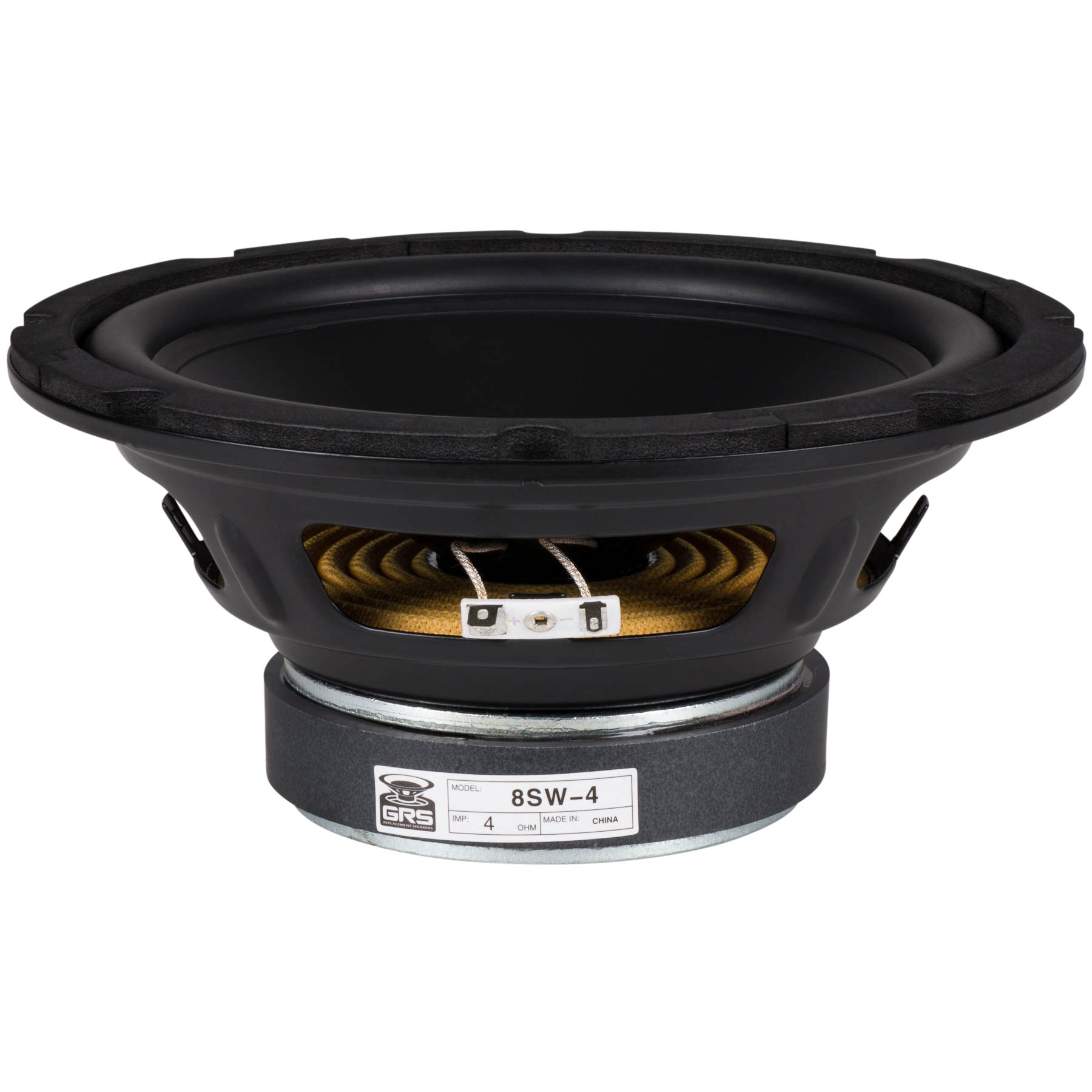

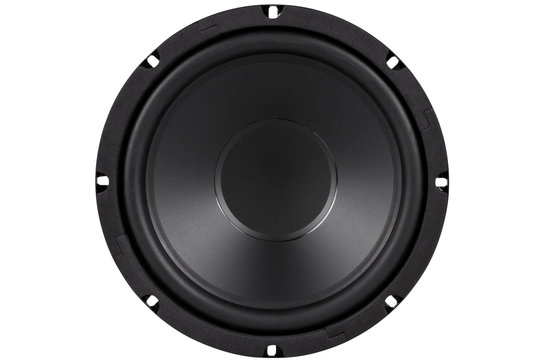

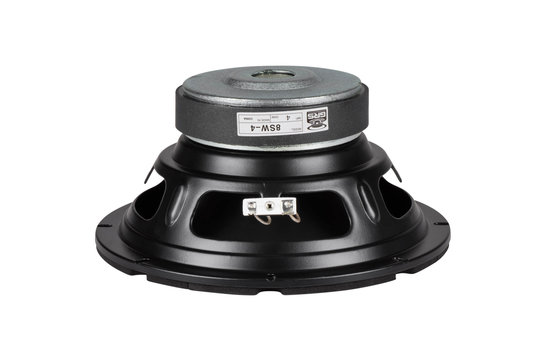

    GRS 8SW-4 8" Poly Cone Subwoofer 4 Ohm

    € 14,83€ 17,95 >10 In stock: delivery time 1-4 business days
    The GRS 8SW-4 8" 4 ohm poly cone driver is a true bargain in replacement subwoofers! This economical sub features a large diameter voice coil, durable polypropylene cone, and extended excursion for high energy bass reproduction.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -10% Order 4 for only €16,16 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The GRS 8SW-4 8" 4 ohm poly cone driver is a true bargain in replacement subwoofers! This economical sub features a large diameter voice coil, durable polypropylene cone, and extended excursion for high energy bass reproduction.



    Highlights

    • Polypropylene cone for perfect balance of stiffness, mass, and self-damping
    • Butyl rubber surround ensures high excursion and long-term durability
    • Large 1-1/2" voice coil and bumped back plate enable high power handling
    • Long-throw design for deep, powerful bass



    Product details

    GRS 8SW-4 8" Poly Cone Subwoofer 4 Ohm



    Now you can replace blown or damaged subwoofers with new drivers that equal or outperform the original! GRS poly cone subwoofers are the perfect replacement for tired, worn-out subwoofers in a variety of audio gear and even work great for new designs. Their handsome polypropylene cones provide durability and good looks, while the large vented magnet assemblies and extended voice coils enable long-throw performance and authoritative bass in a variety of enclosures.



    The 8" model features a 1-1/2" diameter voice coil with extended 6mm excursion for solid bass performance in compact sealed and vented enclosures. These versatile subs are also rugged enough to be used in dipole and automotive infinite baffle applications.



    See the below list of recommended enclosure alignments for new designs.



    Recommended sealed enclosure: 1.0 ft^3, F3 = 48 Hz, Qtc: 1.16



    Recommended vented enclosure: 1.0 ft^3, Fb = 40 Hz, F3 = 34 Hz



    Specifications

    Article number
    8SW-4
    Woofer Series
    Replacement woofer
    Woofer Type
    Sub Woofer
    Nominal Diameter
    8"
    Power Handling (RMS)
    80 Watts
    Power Handling (max)
    160 Watts
    Impedance
    4 ohms
    Sensitivity
    88 dB 2.83V/1m
    Frequency Response
    40 to 800 Hz
    Voice Coil Diameter
    1.5"
    DC Resistance (Re)
    3.86 ohms
    Voice Coil Inductance (Le)
    0.84 mH
    Resonant Frequency (Fs)
    49 Hz
    Mechanical Q (Qms)
    4.22
    Electromagnetic Q (Qes)
    1.19
    Total Q (Qts)
    0.88
    Compliance Equivalent Volume (Vas)
    0.93 ft.³
    Maximum Linear Excursion (Xmax)
    6 mm
    Cone / Diaphragm Material
    Poly
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    8.25"
    Overall Depth
    4"
    Baffle Cutout Diameter
    7.25"
    Bolt Circle Diameter
    7.875"
    # Mounting Holes
    8

    Reviews

    5 from 5Based on 1 reviews
    Review this product
    5 van 5
    Quite pleased with the purchase.More than decent sounding speakers. I would say that for the money u can't really hope for more than this. Used full GRS line of speakers to rebuild old pair of floor standing speakers I had and it turned out pretty descent. Used 2 of these in series plus one GRS 5SBM1-8 Replacement Mid-range Woofer for mids and a GRS BT3-8 Bullet Tweeter for highs. Had to cut down the tweeter a bit because it was outshouting everything else due to the higher sensitivity, but after putting one extra capacitor between the filter and the tweeter I got myself a pair of quite nice 8ohm floor standing speakers to go with my Denon PMA-700AE amplifier. The only real downside is the relatively low sensitivity - other than that you get a lot of bang for a little of your bucks, simply superb ultra budget speakers.
    By Erik Tsentovskiy on 17 January 2020
