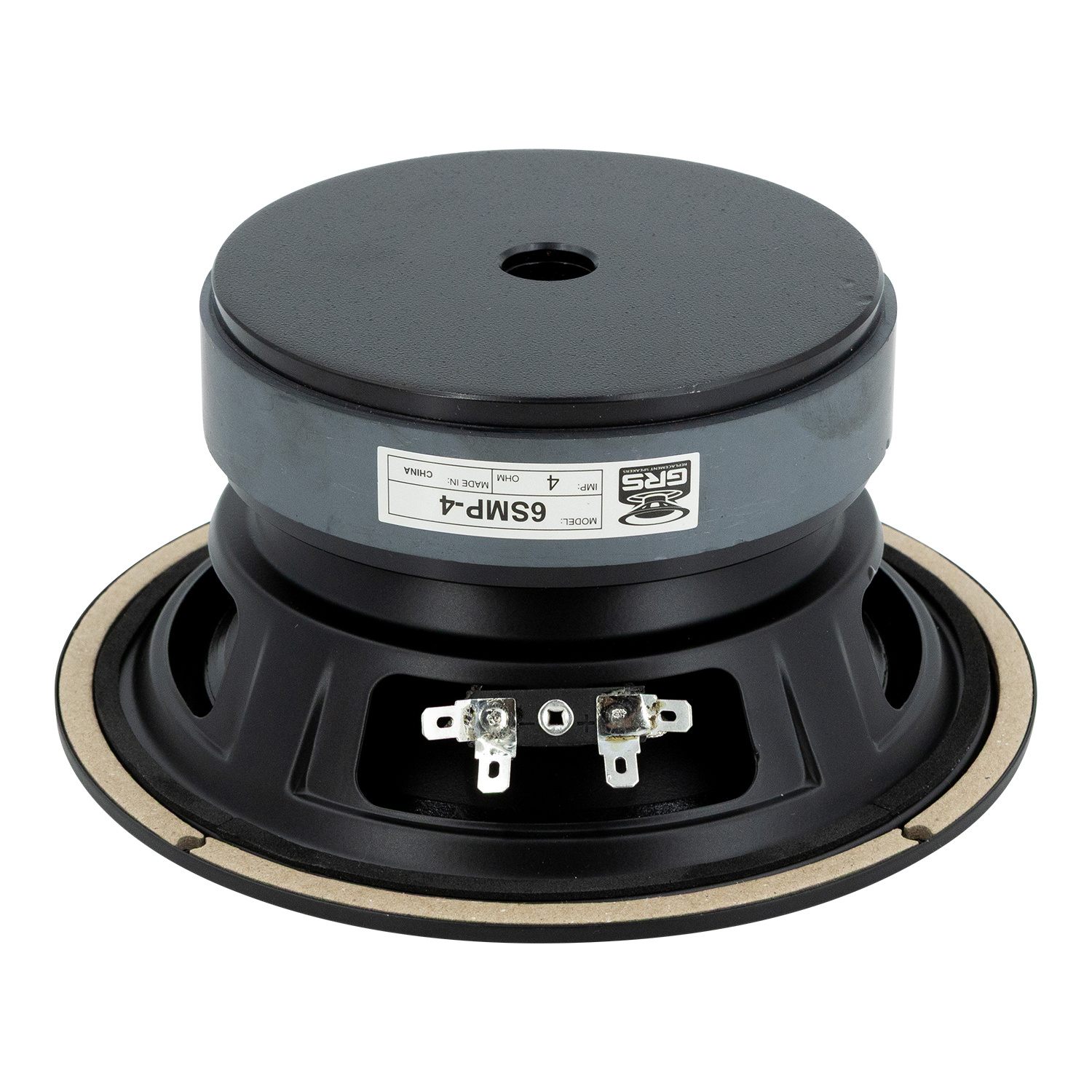

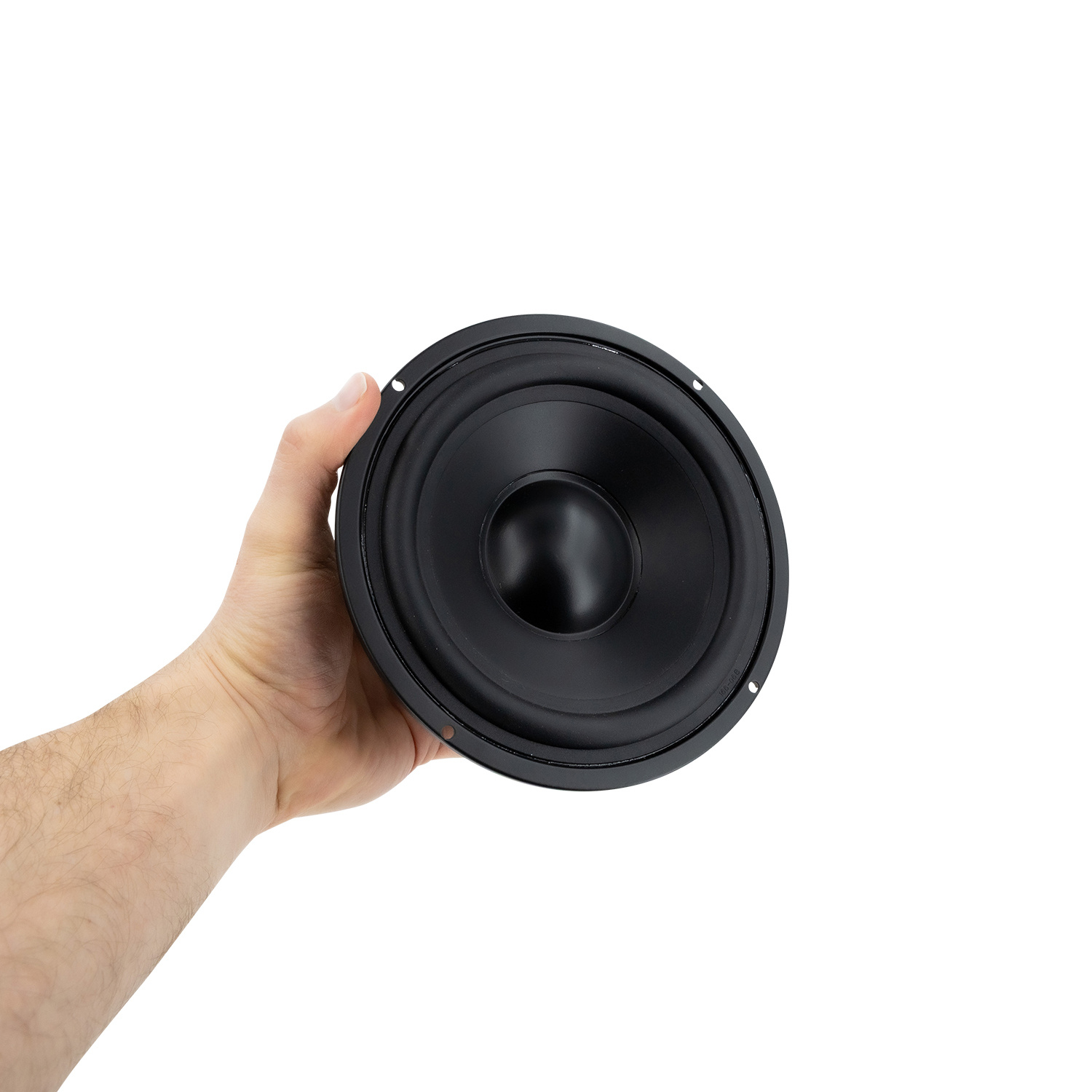

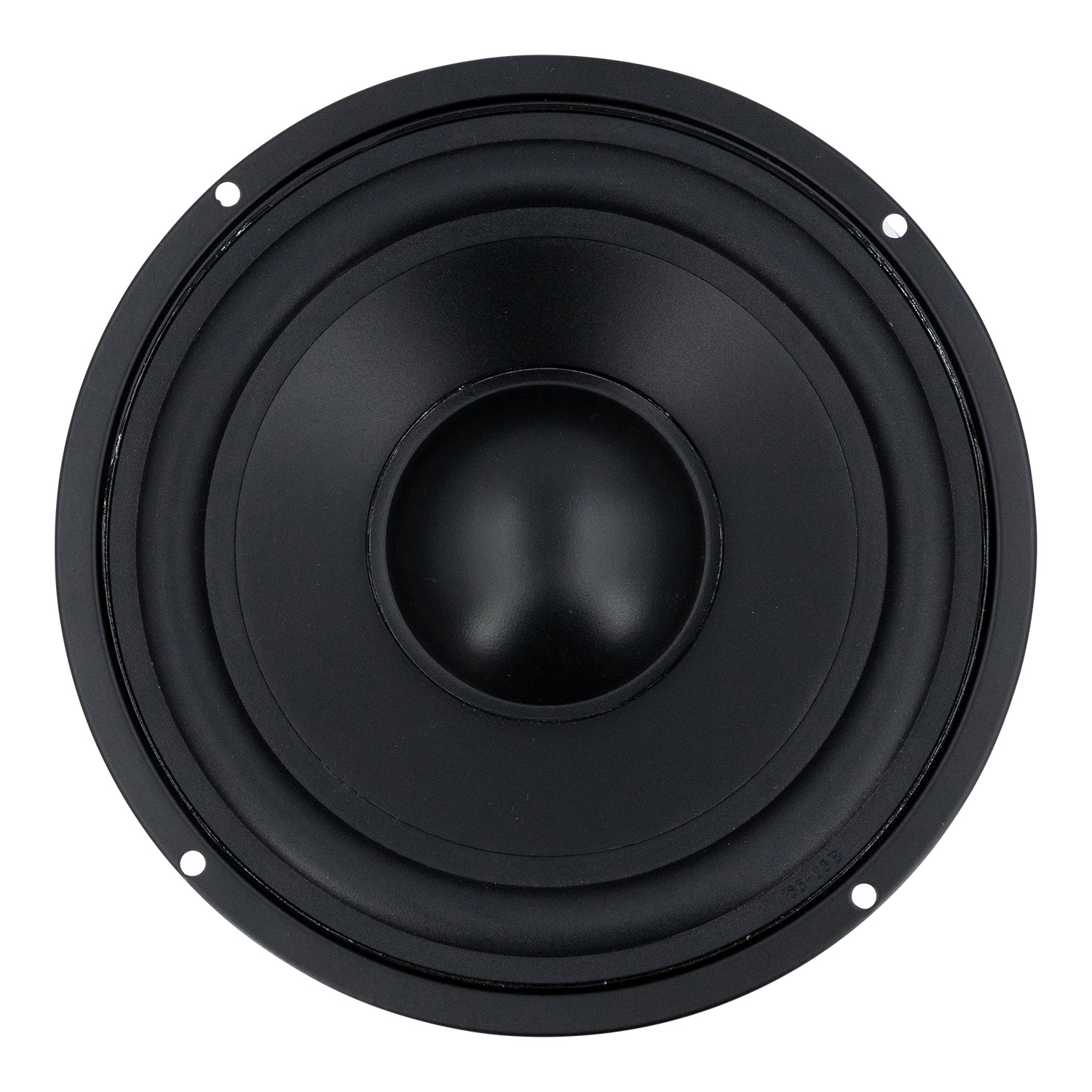

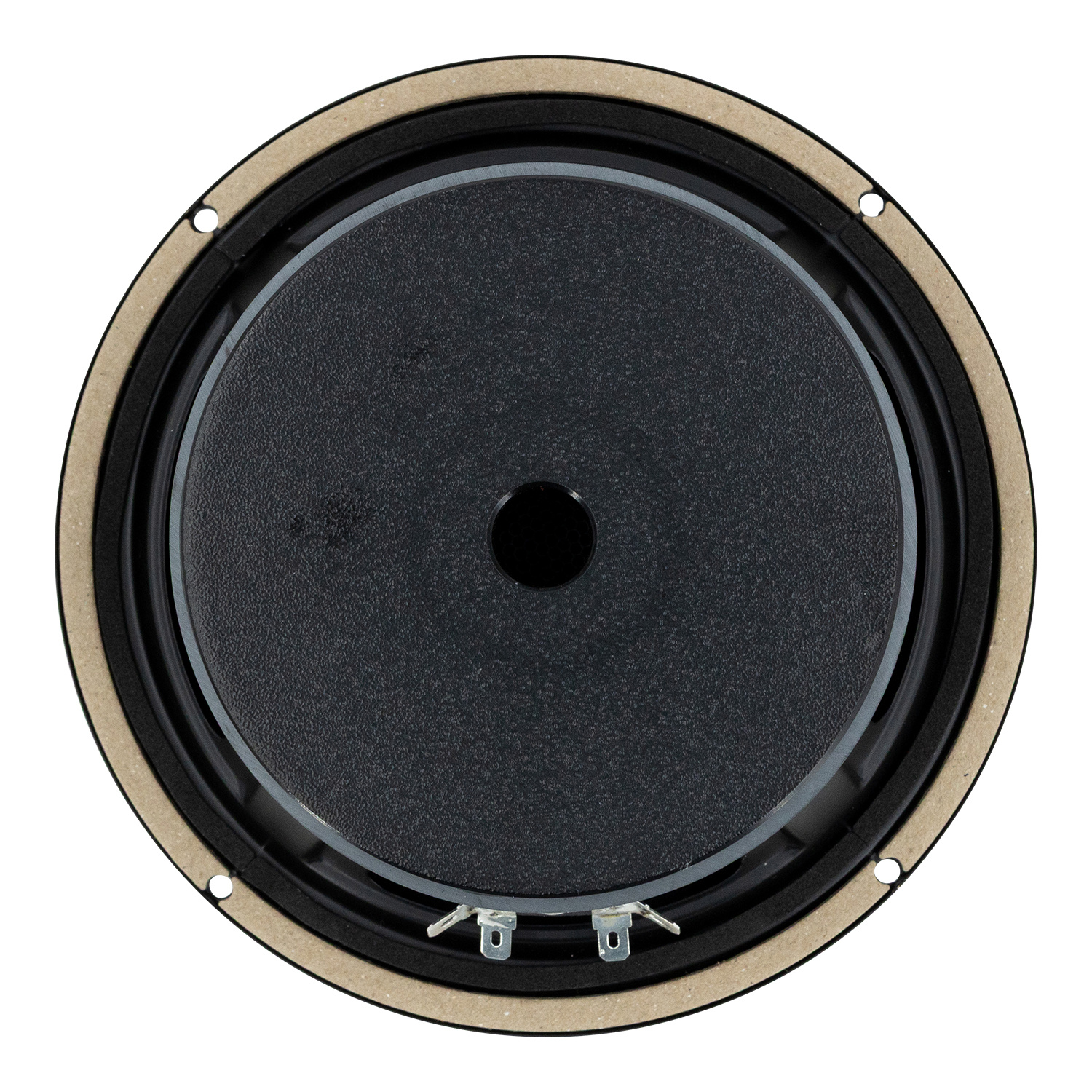

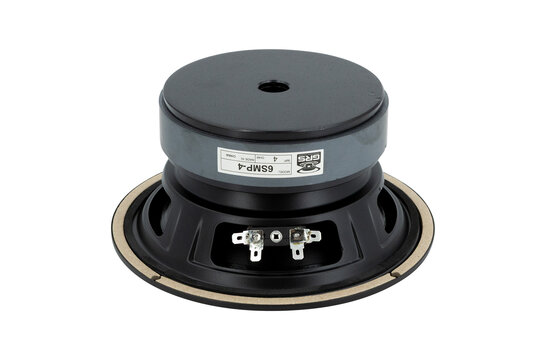

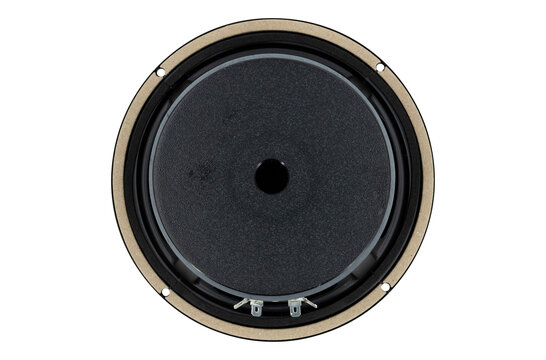

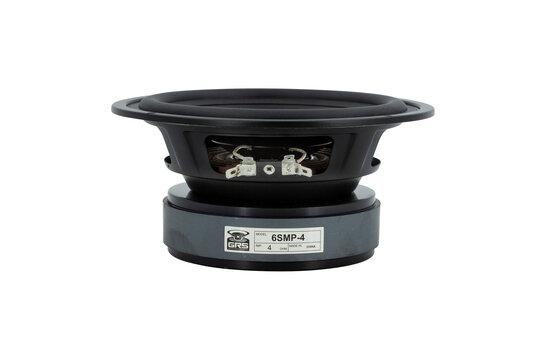

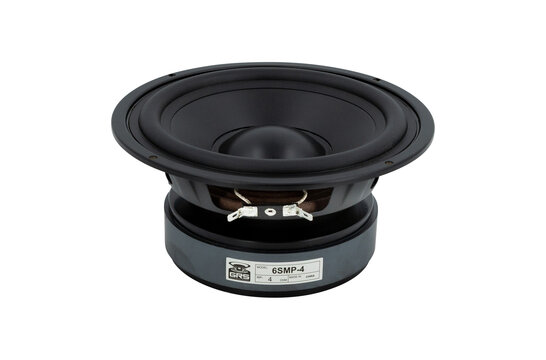

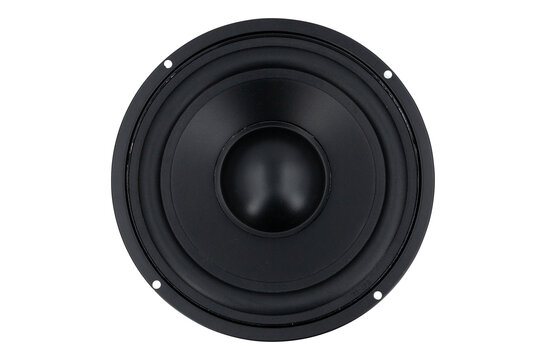

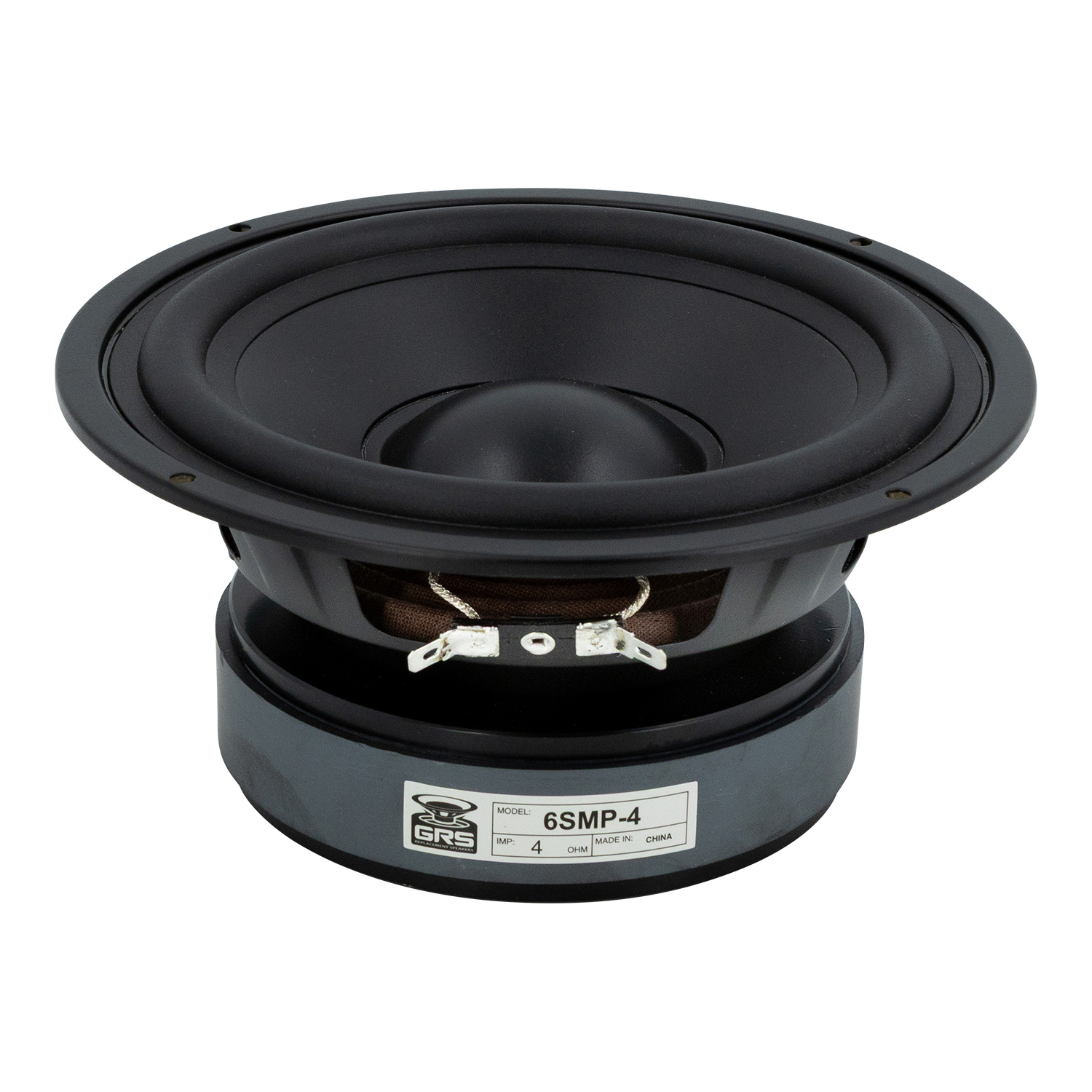

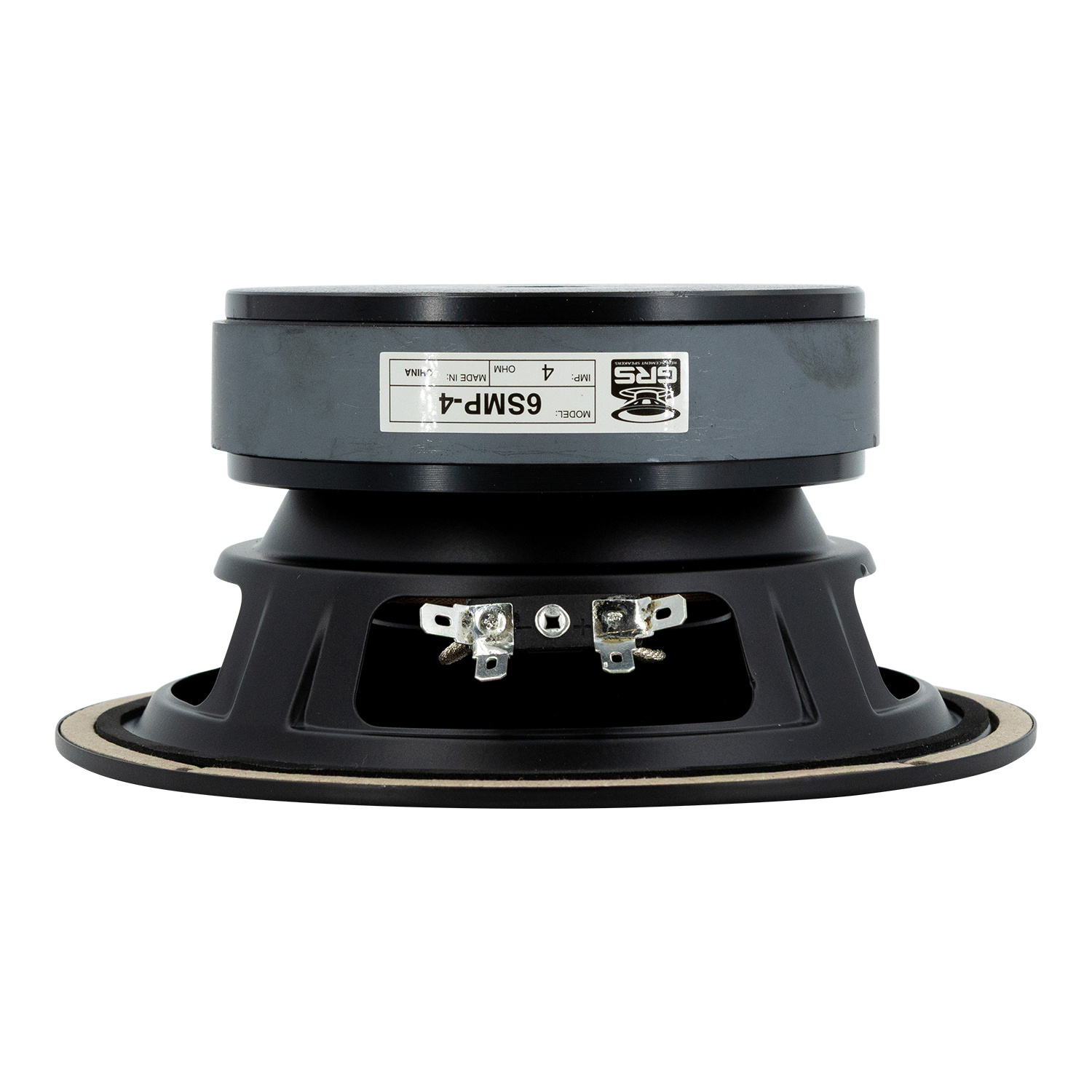

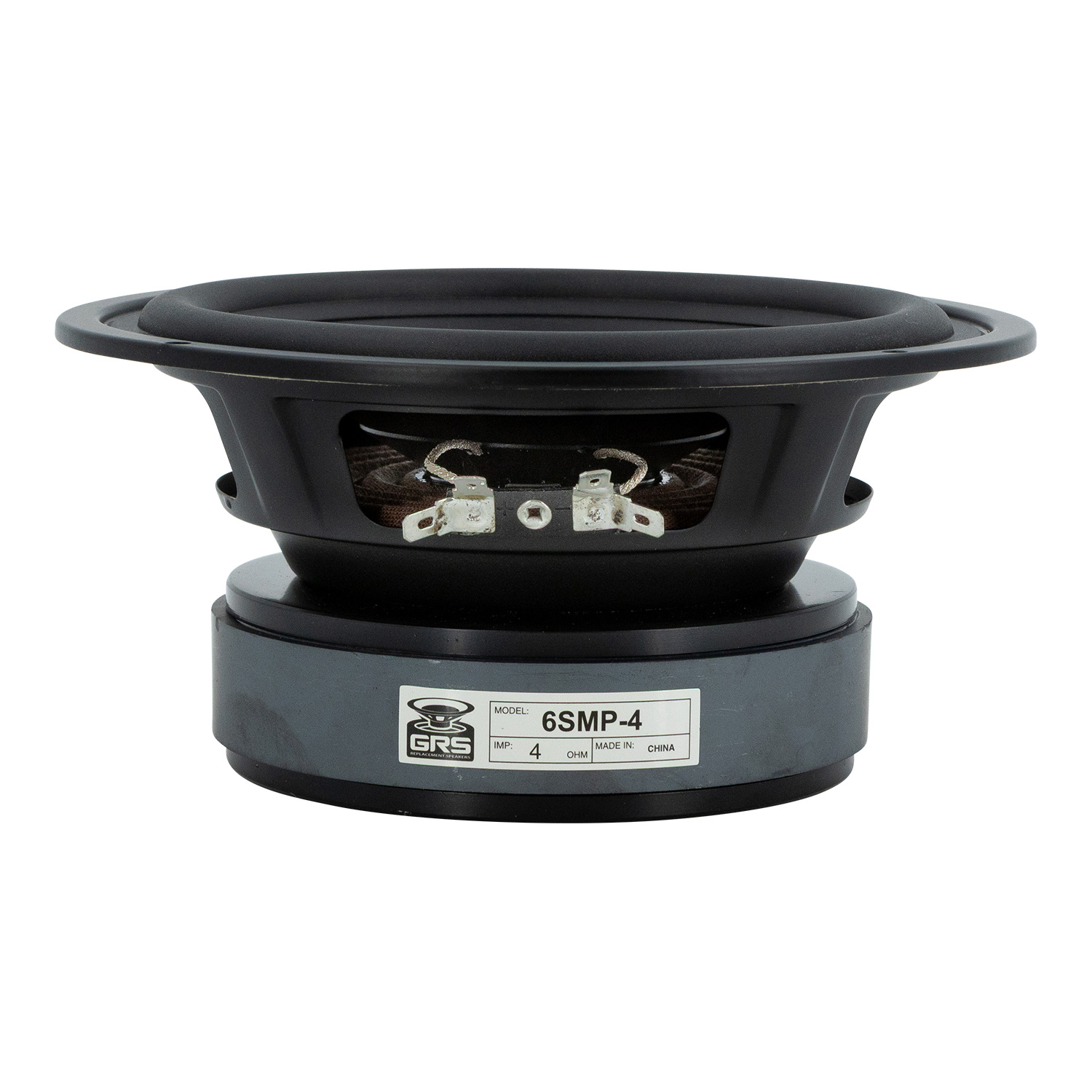

        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer

        GRS 6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer

        €39,95

        10+ expected on 19-12-2025

        Add to cart

        GRS 6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: GRS
        Show all New products
        6.5" | 4 Ω
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        € 33,02€ 39,95 Out of stock10+ expected on 19-12-2025
        • -5% Purchase 4 for only € 37,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer

        Product description GRS 6SMP-4 Bass-midwoofer

        The GRS 6SMP-4 is a robust 6-1/2" poly cone woofer optimized for surface mounting. With strong midbass performance, extended excursion, and smart thermal features, it’s ideal for compact audio systems, line arrays, or custom speaker builds that demand clarity and efficiency from a low-profile design.



        Highlights of the GRS 6SMP-4

        • High-excursion design with 5 mm Xmax for deep and accurate bass
        • Aluminum voice coil former supports superior heat dissipation and power handling
        • Copper cap minimizes inductance and reduces distortion at higher frequencies
        • Low-profile frame and integrated foam gasket for efficient surface mounting



        Product details GRS 6SMP-4

        GRS 6SMP-4 Surface Mount Woofer



        The GRS 6SMP-4 is a 6-1/2" 4-ohm surface-mount woofer designed with performance and practicality in mind. Its damped poly cone and rubber surround ensure clean response with minimal resonance, while the 5 mm Xmax allows for high-output, low-distortion bass extension down to 40 Hz. The voice coil features an aluminum former for effective heat transfer, and a copper cap on the pole reduces inductance for cleaner high-frequency performance. With a sensitivity of 90.2 dB @ 2.83V/1m and 50 watts RMS power handling, the 6SMP-4 is well-suited for high-efficiency DIY loudspeaker projects, midbass reinforcement, or compact two-way designs. A vented pole piece helps maintain performance under load, and the integrated gasket ensures an airtight seal in cabinet builds.

        Show more

        Specifications

        Article number
        6SMP-4
        EAN
        0848864079820
        Woofer Type
        Bass-midwoofer
        Power Handling (RMS)
        50 Watts
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        90.2 dB
        Frequency Response
        40 – 2,500 Hz
        Voice Coil Diameter
        39 mm
        DC Resistance (Re)
        3.7 Ohm
        Voice Coil Inductance (Le)
        0.29 mH
        Resonant Frequency (Fs)
        45 Hz
        Mechanical Q (Qms)
        2.73
        Electromagnetic Q (Qes)
        0.45
        Total Q (Qts)
        0.39
        Diaphragm Mass Inc. Airload (Mms)
        21g
        Mechanical Compliance of Suspension (Cms)
        0.60 mm/N
        Surface Area of Cone (Sd)
        136 cm²
        Volume of Displacement (Vd)
        68.4 cm³
        BL Product (BL)
        7.0 Tm
        Compliance Equivalent Volume (Vas)
        15 L
        Maximum Linear Excursion (Xmax)
        5 mm
        # Mounting Holes
        4

        Show more
