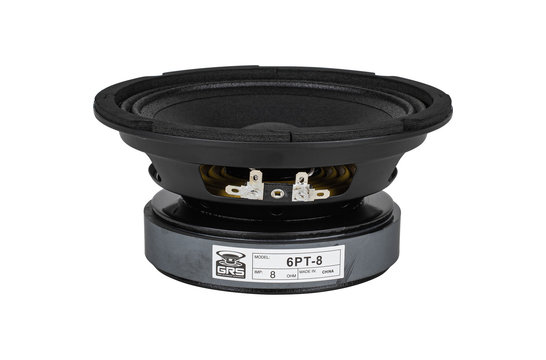

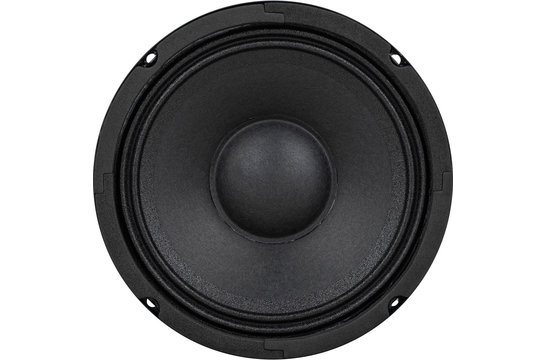

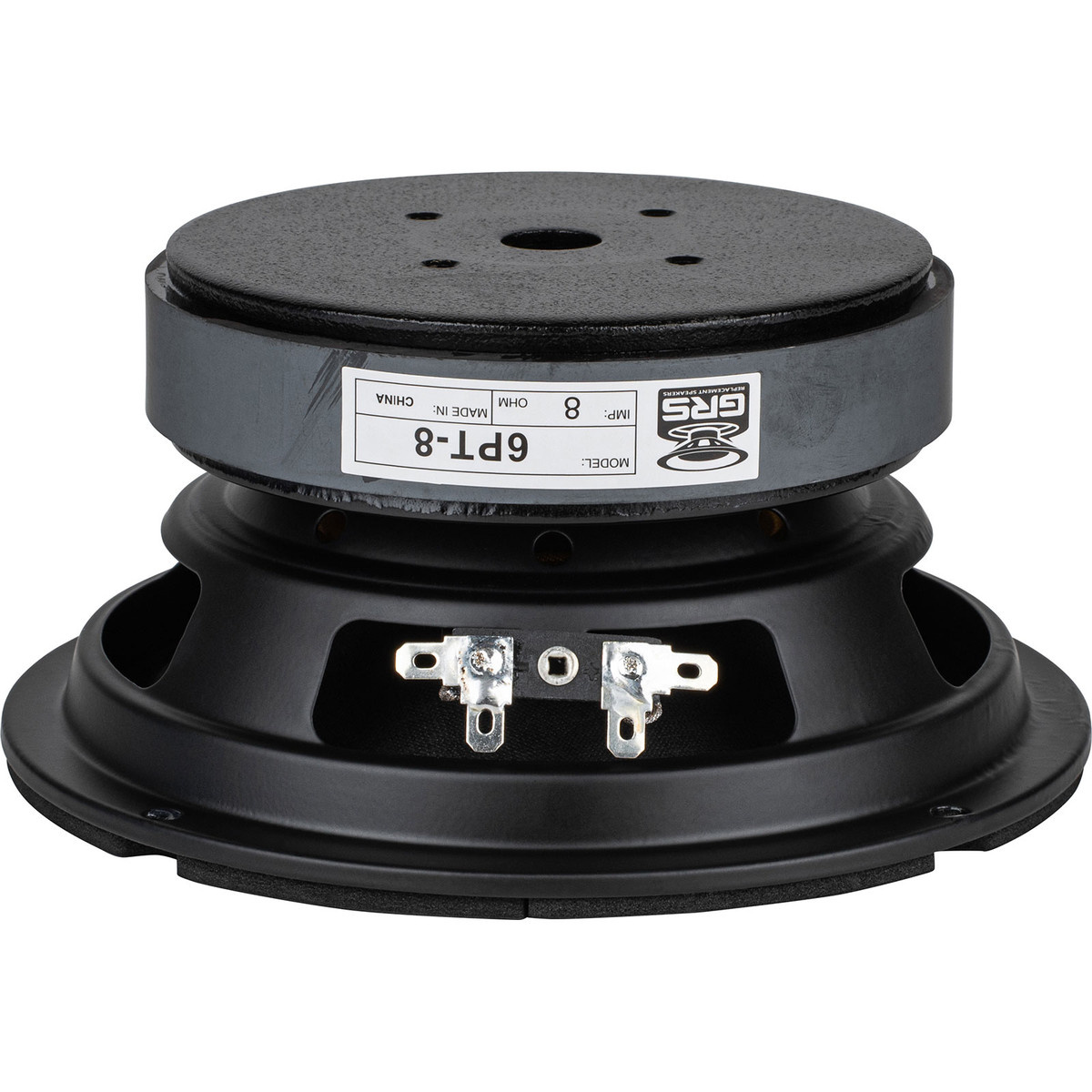

      GRS 6PT-8 6-1/2" Paper Cone Professional Midbass Woofer 8 Ohm

      € 20,62€ 24,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €23,70 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The GRS 6PT-8 6-1/2” professional paper cone woofer will deliver high output midbass and midrange response without breaking the bank. Packed with features like a 1.6” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a damaged loudspeaker or you are designing a high output 2 or 3-way system, the 6PT-8 is the perfect driver for budget builds.



      Highlights

      • Lightweight damped paper cone allows high efficiency with minimal resonance
      • Smooth on and off axis response for use in high output 2 or 3-way designs
      • Extensive venting keeps cool air flowing across the voice coil to minimize power compression

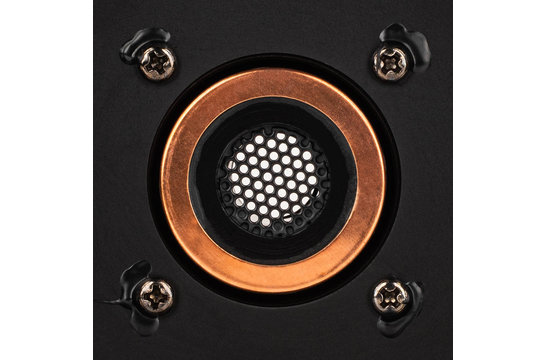

      • Inductance lowering copper cap reduces distortion and extends high frequency response
      • Spring-loaded push-button terminals makes wire connections quick and easy
      • Foam front gasket ensures an airtight seal for rear mount installations



      Product details

      GRS 6PT-8 6-1/2" Paper Cone Professional Midbass Woofer 8 Ohm



      Engineered for high output with smooth frequency response, the 6PT-8 6-1/2” professional woofer is ideal for use in systems built to provide impressive SPL. Packed with features you would expect from much more expensive drivers, the 6PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 3,000 Hz. Driving the cone is a 1.6” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 100 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 6PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a worn-out speaker, or are designing high output 2 or 3-way system, the 6PT-8 is the ideal choice if you want high output and natural response without spending a fortune.

      Specifications

      Article number
      6PT-8
      Nominal Diameter
      6-1/2"
      Power Handling (RMS)
      100 Watts
      Power Handling (max)
      200 Watts
      Impedance (Z)
      8 Ohms
      Sensitivity
      92dB 2.83V/1m
      Frequency Response
      55 to 11,000Hz
      DC Resistance (Re)
      7.4Ω
      Voice Coil Inductance (Le)
      1.1mH
      Resonant Frequency (Fs)
      94Hz
      Mechanical Q (Qms)
      4.74
      Electromagnetic Q (Qes)
      0.85
      Total Q (Qts)
      0.72
      Diaphragm Mass Inc. Airload (Mms)
      8g
      Mechanical Compliance of Suspension (Cms)
      0.36mm/N
      Surface Area of Cone (Sd)
      136.6cm²
      BL Product (BL)
      6.4T·m
      Compliance Equivalent Volume (Vas)
      0.335ft³
      Maximum Linear Excursion (Xmax)
      4.2mm
      Cone / Diaphragm Material
      Paper / Glass Fiber
      Surround Material
      Cloth
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Kapton® / Polyimide
      Basket / Frame Material
      Steel
      Overall Outside Diameter
      6.5"
      Overall Depth
      3"
      Baffle Cutout Diameter
      5.8"
      Bolt Circle Diameter
      6.14
      # Mounting Holes
      4
      Sealed Volume
      0.5ft³
      Sealed F3
      108Hz
      Vented Volume
      1.1ft³
      Vented F3
      57Hz
