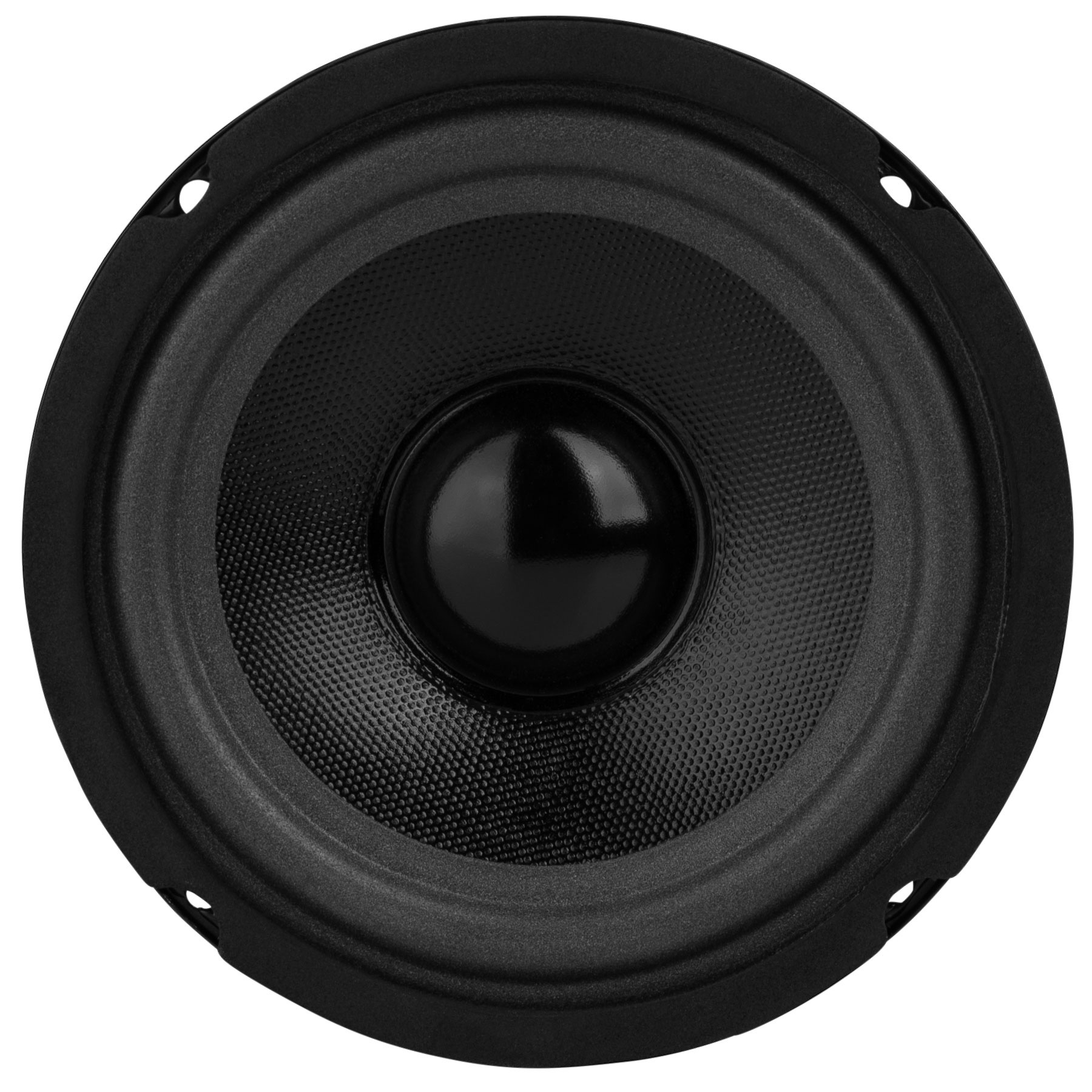

    GRS 5SBM1-8 5-1/4" Sealed Back Replacement Midrange with 1" Voice Coil 8 Ohm

    € 8,95 Out of stock: delivery time is 1 week
    The 5SBM1-8 5-1/4" sealed back midrange from GRS makes a great choice for use in higher output 3-way designs. With a common size and 8 ohm impedance this midrange is also an ideal replacement for many classic 3-way speaker systems.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -10% Order 4 for only €8,06 per piece
    • Low international shipping rates
    • Same day shipping*
    • Pay with PayPal, Creditcard, and more
    • In-house technical support

    Product description

    The 5SBM1-8 5-1/4" sealed back midrange from GRS makes a great choice for use in higher output 3-way designs. With a common size and 8 ohm impedance this midrange is also an ideal replacement for many classic 3-way speaker systems.



    Highlights

    • Sealed back design allows for cabinet installation without a separate midrange enclosure
    • Smooth, extended frequency response from 500 to 10,000 Hz
    • Treated paper cone and foam surround for a natural sound
    • 1" high temperature aluminum voice coil allows high power handling
    • Optimized motor features high-energy ceramic ferrite magnet



    Product details

    GRS 5SBM1-8 5-1/4" Sealed Back Midrange with 1" Voice Coil 8 Ohm



    The GRS 5SBM1-8 5-1/4" sealed back midrange combines high power handling and high efficiency making it an ideal replacement for many classic higher efficiency 3-way speakers. The sealed back allows for cabinet installation without a separate midrange enclosure. Thanks to the extended frequency response, this midrange is easy to combine with most higher efficiency tweeters. Adding a midrange can eliminate peaks and dips in response that can occur in typical two-way designs with large woofers. The GRS 5SBM1-8 a great value in high-performance midranges.



    Specifications

    Article number
    5SBM1-8
    Woofer Series
    Replacement woofer
    Woofer Type
    Midwoofer
    Nominal Diameter
    5-1/4"
    Power Handling (RMS)
    100 Watts
    Power Handling (max)
    200 Watts
    Impedance
    8 ohms
    Sensitivity
    93 dB 2.83V/1m
    Frequency Response
    500 to 10,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    7.2 ohms
    Voice Coil Inductance (Le)
    0.59 mH
    Resonant Frequency (Fs)
    493 Hz
    Cone / Diaphragm Material
    Coated Paper
    Surround Material
    Foam
    Voice Coil Wire Material
    CCA
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    5.23"
    Overall Depth
    2.09"
    Baffle Cutout Diameter
    4.375"
    Bolt Circle Diameter
    5"
    # Mounting Holes
    4

    Reviews

    5 from 5Based on 2 reviews
    Review this product
    5 van 5
    prijs/kwaliteit een super speaker om in eenzelfde kast met woofers te gebruken. Gebruik deze enkel als mid speaker, en tot op heden doen ze het prima
    By Dieter V. on 15 June 2019
    5 van 5
    Heb 4 van deze speakers ingebouwd als midrange in een 3-weg systeem. Dit is 1 van de weinige volledig gesloten speakers die ik gevonden heb, die rechtstreeks in een kast met subwoofers kan geplaatst worden, zonder dat er een apart compartiment moet gemaakt worden. De speakers leveren een geweldig geluid voor hun prijs.
    By Dieter on 6 June 2019
