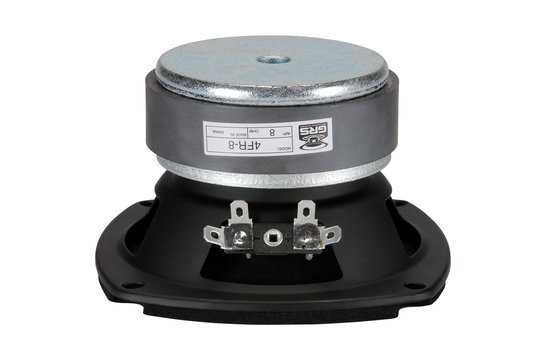

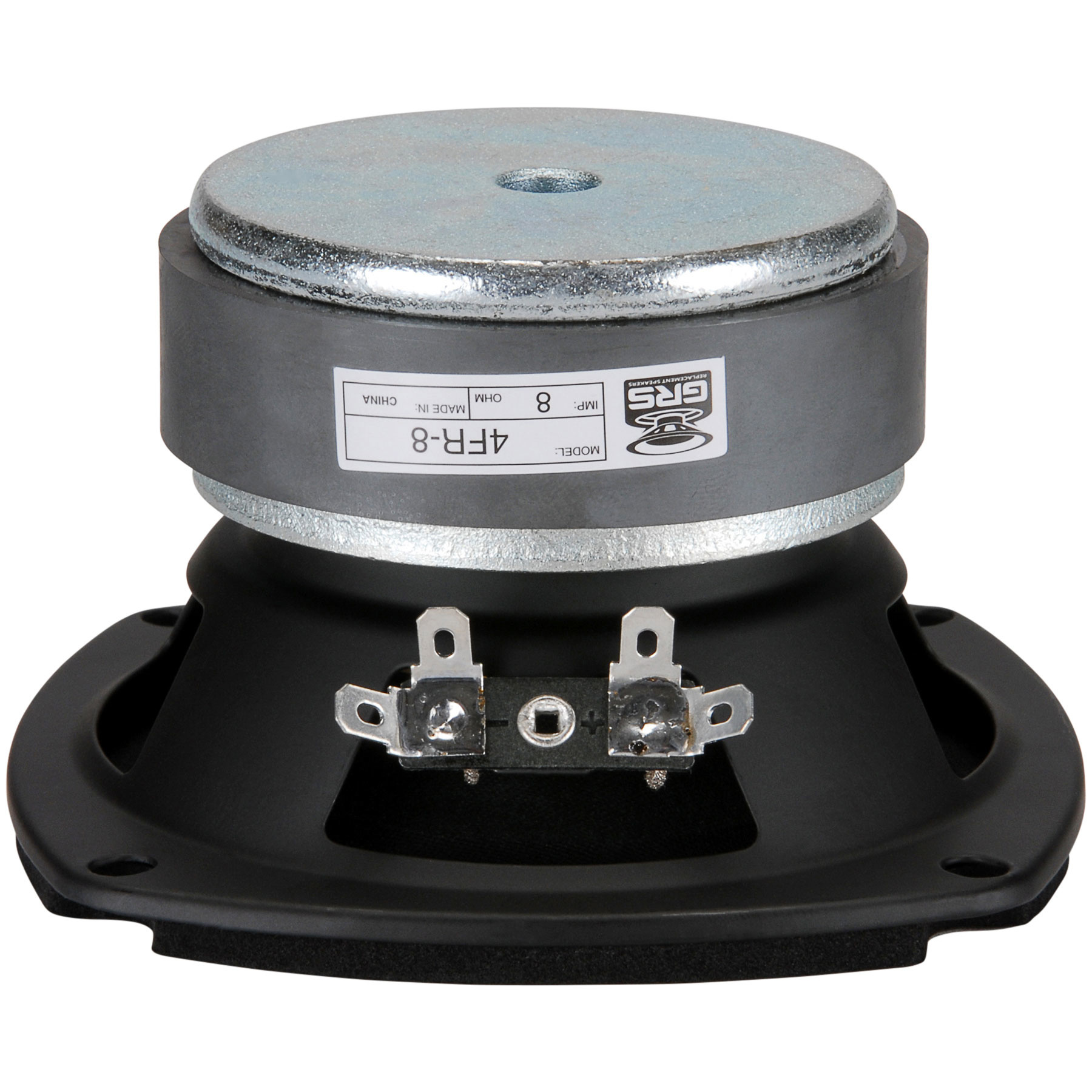

      GRS 4FR-8 Full-Range 4-1/2" Speaker Pioneer Type A11EC80-02F 8 Ohm

      € 9,46€ 11,45 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -10% Order 4 for only € 10,31 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The GRS 4FR-8 is perfect for compact designs that require wide-bandwidth, high-sensitivity performance at an economical price. It’s also a drop-in replacement for other popular 4-1/2" full-range drivers.



      Highlights

      • Replacement for Pioneer A11EC80-02F
      • Extended bandwidth and high sensitivity
      • Natural-sounding paper cone
      • Quality GRS construction



      Product Details

      GRS 4FR-8 Full-Range 4-1/2" Speaker Pioneer Type A11EC80-02F 8 Ohm



      GRS 4FR-8 full-range 4-1/2" speaker features a well-damped paper cone and long-lasting treated fabric surround. Its design parameters have been carefully chosen to suit a wide variety of enclosures for hi-fi or commercial use, and it's great for use as a full-range driver or as a high-sensitivity midwoofer.



      The large ceramic motor structure and lightweight Kapton voice coil former ensure crisp, highly-dynamic reproduction. This driver is a perfect drop-in replacement for the classic Pioneer model A11EC80-02F full-range driver, or other popular 4-1/2" full-range drivers.



      Specifications

      Article number
      4FR-8
      Woofer Series
      Full-Range Speakers
      Woofer Type
      Midrange / Midbass Drivers
      Nominal Diameter
      4-1/2"
      Power Handling (RMS)
      15 Watts
      Power Handling (max)
      30 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      91 dB 1W/1m
      Frequency Response
      100 to 10,000 Hz
      Voice Coil Diameter
      1"
      DC Resistance (Re)
      8.11 ohms
      Voice Coil Inductance (Le)
      0.71 mH
      Resonant Frequency (Fs)
      100 Hz
      Mechanical Q (Qms)
      5.14
      Electromagnetic Q (Qes)
      0.98
      Total Q (Qts)
      0.82
      Compliance Equivalent Volume (Vas)
      0.11 ft.³
      Maximum Linear Excursion (Xmax)
      1 mm
      Cone / Diaphragm Material
      Paper
      Surround Material
      Cloth
      Basket / Frame Material
      Steel
      Magnet Material
      Ferrite
      Overall Outside Diameter
      4.5"
      Overall Depth
      2.71"
      Baffle Cutout Diameter
      4.01"
      # Mounting Holes
      4
      Sealed Volume
      0.05 ft.³
      Sealed F3
      135 Hz
      Vented Volume
      0.1 ft.³
      Vented F3
      95 Hz
