        18PT-8 18" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm

        18PT-8 18" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm

        €129,95

        GRS 18PT-8 18" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: GRS
        € 107,40€ 129,95 7 In stock
        • -5% Purchase 4 for only € 123,45 per piece
        • -10% Purchase 8 for only € 116,96 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The GRS 18PT-8 18” professional paper cone woofer will deliver high output bass response without breaking the bank. Packed with features like a 3” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a worn-out professional subwoofer or are working on a completely new design, the 18PT-8 is the perfect driver for budget builds.



        Highlights

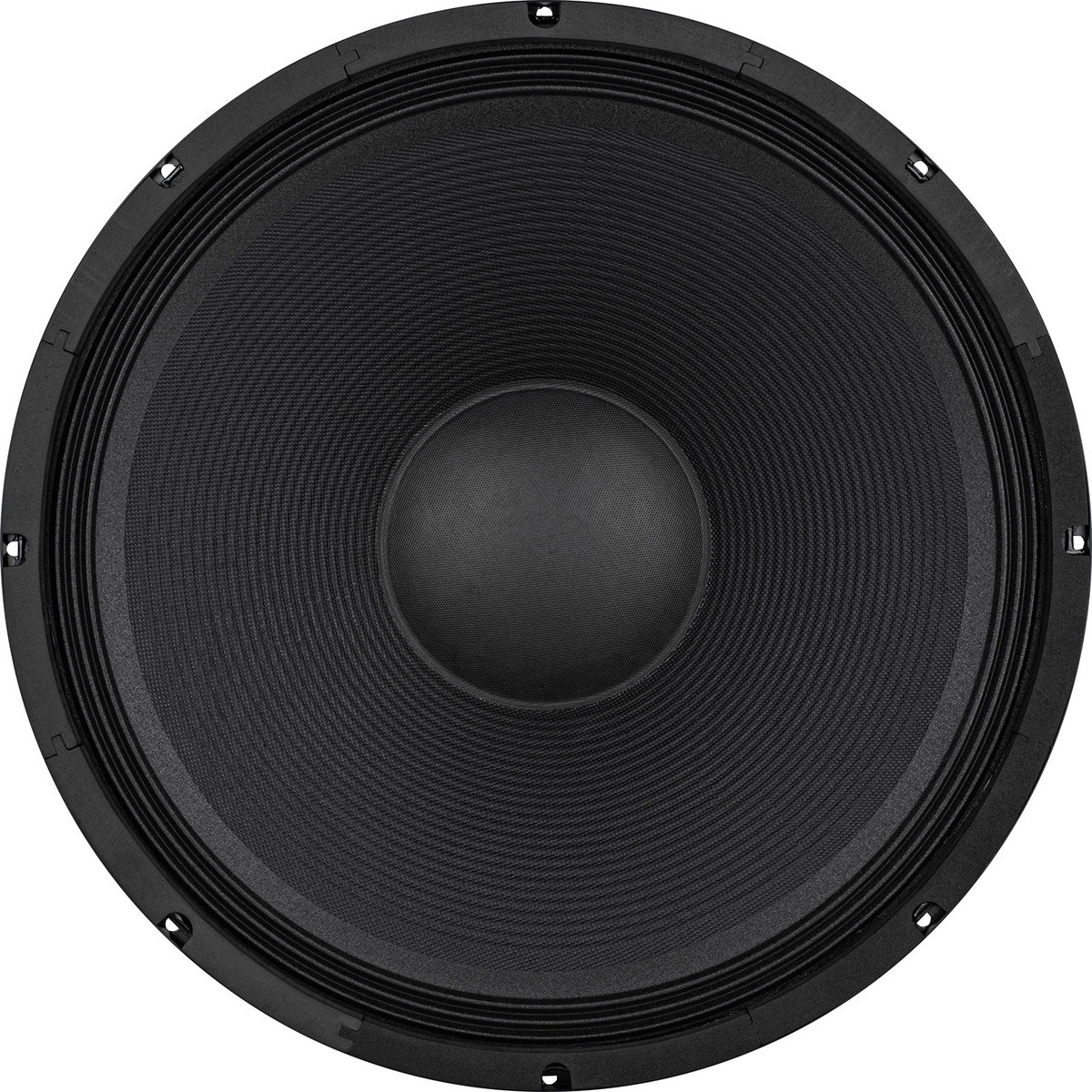

        • Lightweight ribbed paper cone allows high efficiency with minimal resonance
        • 3” diameter voice coil on heat resistant Kapton former handles up to 350 watts RMS
        • Great displacement capability is ideal for high output subwoofer designs
        • Extensive venting keeps cool air flowing across the voice coil to minimize power compression

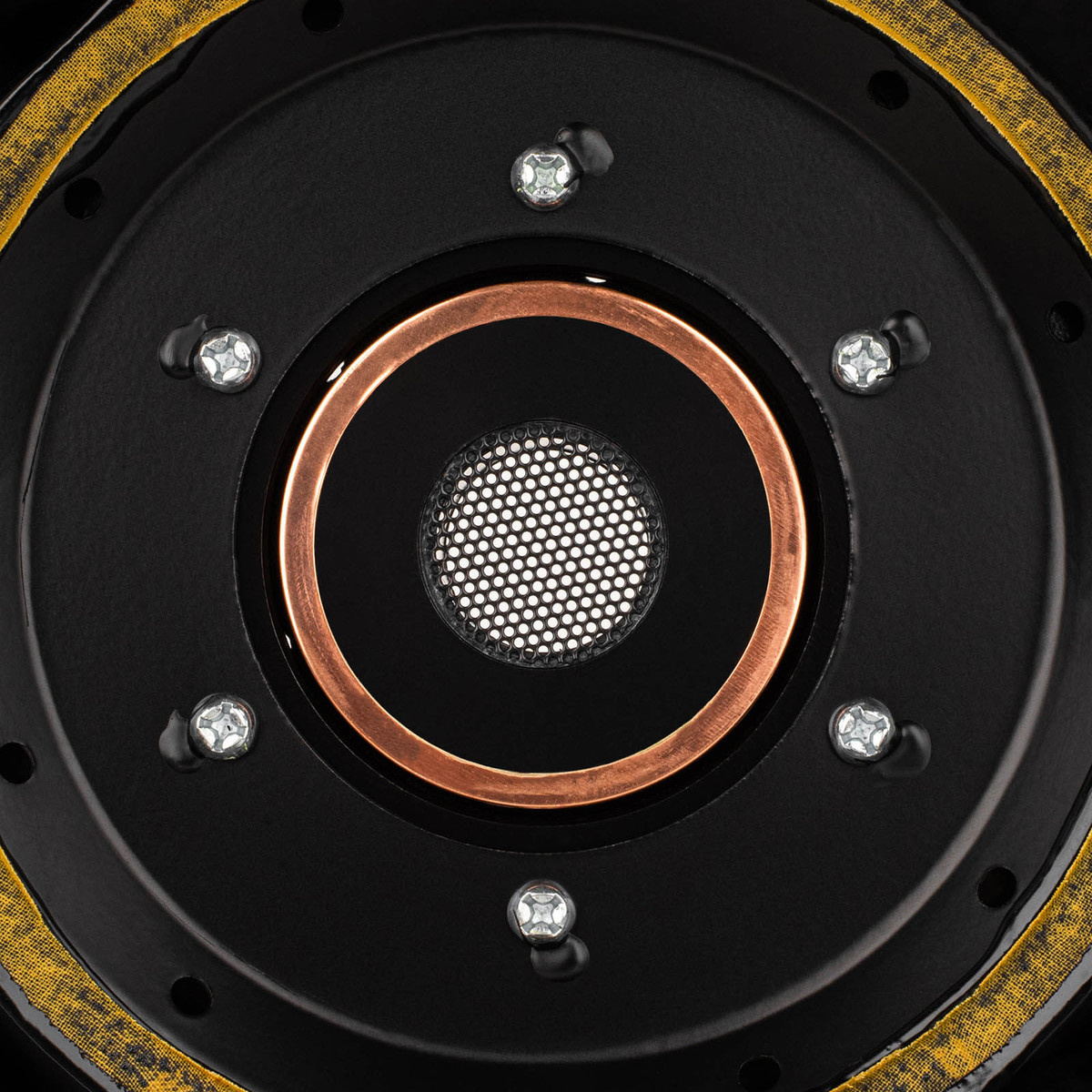

        • Inductance lowering copper cap reduces distortion and extends high frequency response
        • Spring-loaded push-button terminals makes wire connections quick and easy
        • Foam front gasket ensures an airtight seal for rear mount installations



        Product details

        GRS 18PT-8 18" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm



        Engineered for high output with powerful low frequency extension, the 18PT-8 18” professional woofer is ideal for use in large low-cost sound systems. Packed with features you would expect from much more expensive drivers, the 18PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 1,000 Hz. Driving the cone is a 3” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 350 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 18PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a blown professional subwoofer, or are designing a new system, the 18PT-8 is the ideal choice if you want high impact low frequency response without spending a fortune.

        Show more

        Specifications

        Article number
        18PT-8
        Woofer Series
        Paper Cone Professional Woofer
        Nominal Diameter
        18"
        Power Handling (RMS)
        350 Watts
        Power Handling (max)
        700 Watts
        Impedance (Z)
        8 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        93 dB
        Frequency Response
        25 to 4,000Hz
        Voice Coil Diameter
        3"
        DC Resistance (Re)
        6.9Ω
        Voice Coil Inductance (Le)
        1.9mH
        Resonant Frequency (Fs)
        23 Hz
        Mechanical Q (Qms)
        9.59
        Electromagnetic Q (Qes)
        0.58
        Total Q (Qts)
        0.54
        Diaphragm Mass Inc. Airload (Mms)
        218g
        Mechanical Compliance of Suspension (Cms)
        0.22mm/N
        Surface Area of Cone (Sd)
        1234cm²
        BL Product (BL)
        19.5T·m
        Compliance Equivalent Volume (Vas)
        16.8ft³
        Maximum Linear Excursion (Xmax)
        7.8 mm
        Cone / Diaphragm Material
        Paper / Glass Fiber
        Surround Material
        Cloth
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Kapton® / Polyimide
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        16.07"
        Overall Depth
        7.48"
        Baffle Cutout Diameter
        16.65"
        Bolt Circle Diameter
        17.59
        # Mounting Holes
        8
        Sealed Volume
        5ft³
        Sealed F3
        40Hz
        Vented Volume
        6ft³
        Vented F3
        34Hz

        Show more
