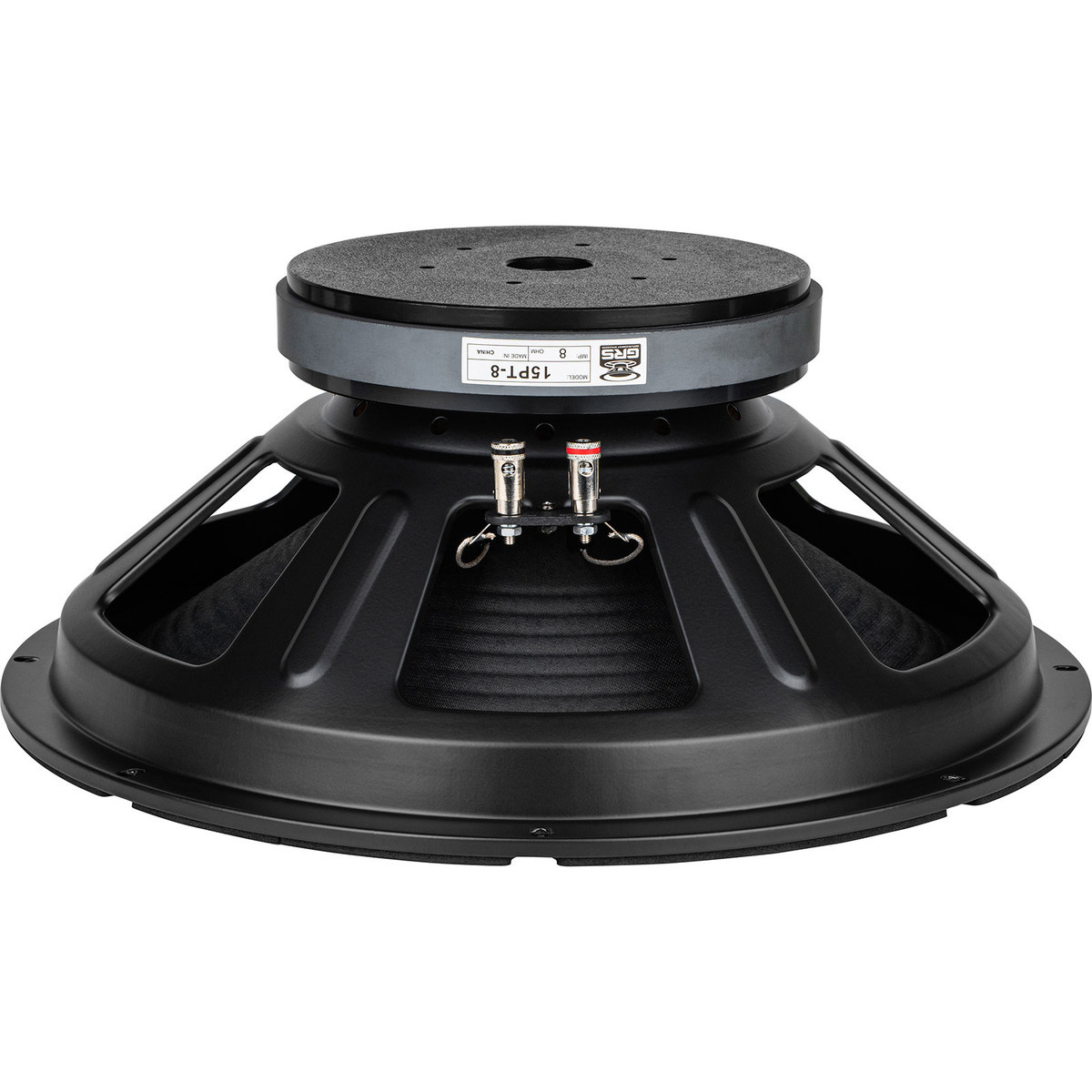

    GRS 15PT-8 15" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm

    € 82,60€ 99,95 >10 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €94,95 per piece
    • -10% Order 8 for only €89,96 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The GRS 15PT-8 15” professional paper cone woofer will deliver high output bass response without breaking the bank. Packed with features like a 3” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a worn-out professional subwoofer or are working on high SPL 3-way system, the 15PT-8 is the perfect driver for budget builds.



    Highlights

    • Lightweight ribbed paper cone allows high efficiency with minimal resonance
    • Excellent choice for high output 3-way designs and compact portable subwoofers
    • 3” diameter voice coil on heat resistant Kapton former handles up to 350 watts RMS
    • Extensive venting keeps cool air flowing across the voice coil to minimize power compression

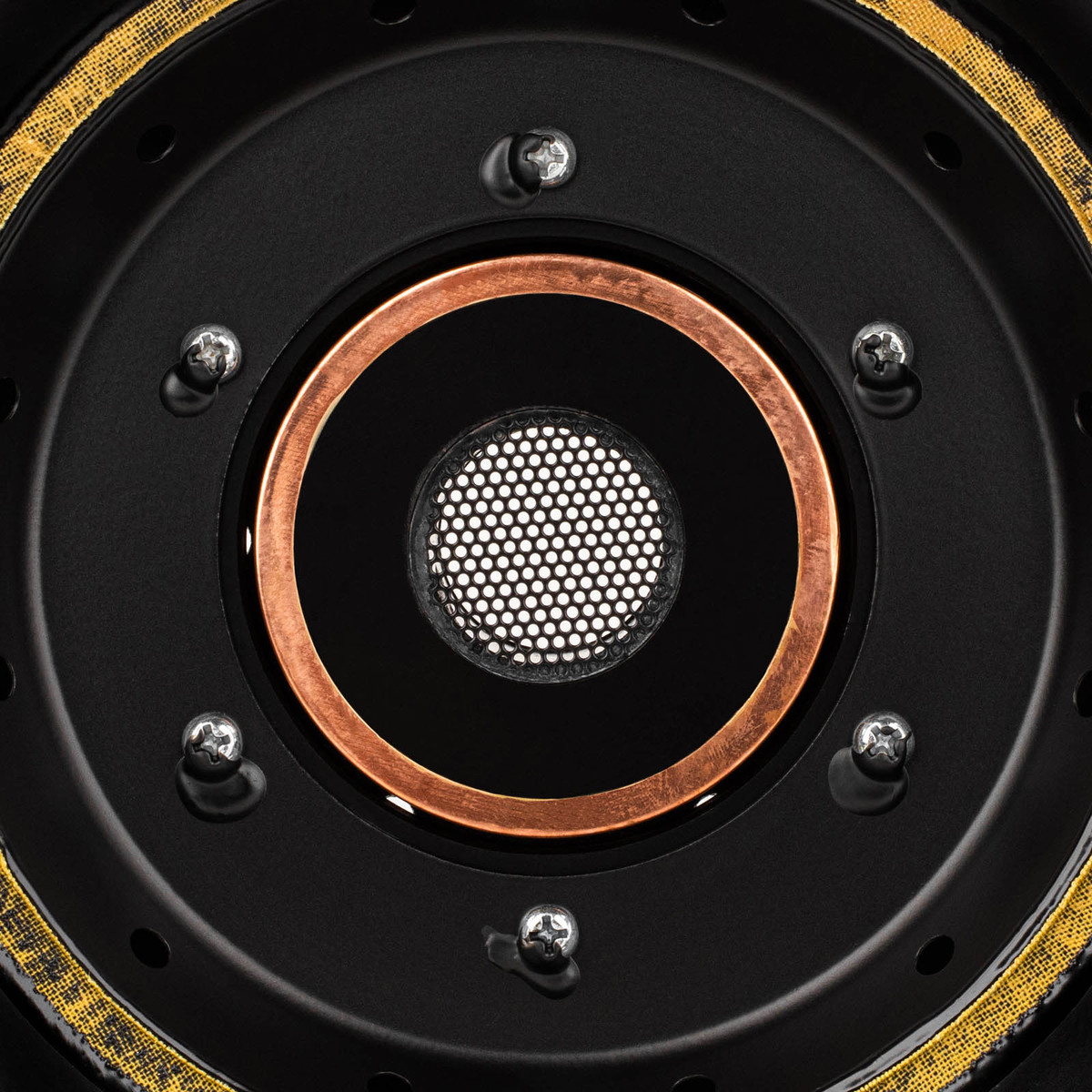

    • Inductance lowering copper cap reduces distortion and extends high frequency response
    • Spring-loaded push-button terminals makes wire connections quick and easy
    • Foam front gasket ensures an airtight seal for rear mount installations



    Product details

    GRS 15PT-8 15" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm



    Engineered for high output with powerful low frequency extension, the 15PT-8 15” professional woofer is ideal for use in large low-cost sound systems. Packed with features you would expect from much more expensive drivers, the 15PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 1,500 Hz. Driving the cone is a 3” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 350 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 15PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a blown professional subwoofer, or are designing high output 3-way system, the 15PT-8 is the ideal choice if you want high impact low frequency response without spending a fortune.

    Specifications

    Article number
    15PT-8
    Woofer Type
    Paper Cone Professional Woofer
    Nominal Diameter
    15"
    Power Handling (RMS)
    350 Watts
    Power Handling (max)
    700 Watts
    Impedance (Z)
    8 Ohms
    Sensitivity
    93dB 2.83V/1m
    Frequency Response
    30 to 6,000Hz
    Voice Coil Diameter
    3"
    DC Resistance (Re)
    7.4Ω
    Voice Coil Inductance (Le)
    2.1mH
    Resonant Frequency (Fs)
    28Hz
    Mechanical Q (Qms)
    11.7
    Electromagnetic Q (Qes)
    0.43
    Total Q (Qts)
    0.41
    Diaphragm Mass Inc. Airload (Mms)
    137g
    Mechanical Compliance of Suspension (Cms)
    0.24mm/N
    Surface Area of Cone (Sd)
    829.6cm²
    BL Product (BL)
    20.2T·m
    Compliance Equivalent Volume (Vas)
    8.55ft³
    Maximum Linear Excursion (Xmax)
    7.8mm
    Cone / Diaphragm Material
    Paper / Glass Fiber
    Surround Material
    Cloth
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Kapton® / Polyimide
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    15.12"
    Overall Depth
    5.9"
    Baffle Cutout Diameter
    13.77"
    Bolt Circle Diameter
    14.65
    # Mounting Holes
    8
    Sealed Volume
    3ft³
    Sealed F3
    53Hz
    Vented Volume
    5ft³
    Vented F3
    30Hz
