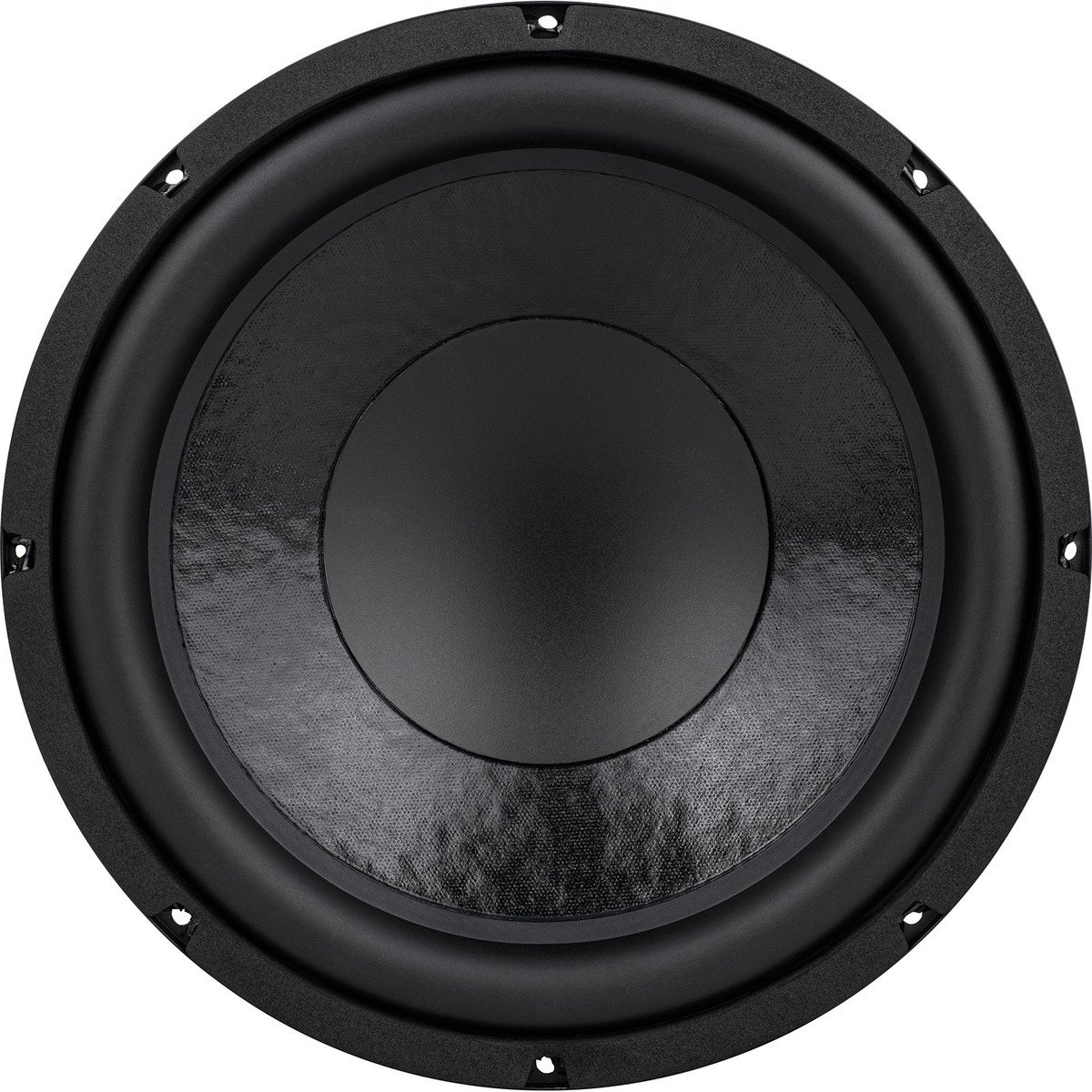

      GRS 12SW-4HE 12" Paper Cone Rubber Surround High Excursion Subwoofer 4 Ohm

      € 66,07€ 79,95 Out of stock: please contact us for accurate delivery times

      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €75,95 per piece
      • -10% Order 8 for only €71,96 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The versatile 12SW-4HE 12” high excursion subwoofer from GRS is designed to produce excellent low frequency extension in a variety of designs. Suitable for both sealed and vented enclosures, this driver the ideal replacement or upgrade for your existing subwoofers with worn out or blown drivers. Featuring extensive venting, rubber surround, high temperature voice coil, low Fs, and 12.5 mm of excursion the 12SW-4HE is built for remarkable bass response on a budget.



      Highlights

      • High excursion and low Fs to produce powerful low frequency output
      • 4-layer 2” voice coil on a thick aluminum former to handle up to 250 watts RMS
      • Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation
      • Durable reinforced paper cone with rubber surround produces reliable and consistent performance
      • Extended frame and bumped back plate allow ample clearance for high excursion



      Product details

      GRS 12SW-4HE 12" Paper Cone Rubber Surround High Excursion Subwoofer 4 Ohm



      Engineered for extended low frequency response and flexibility, the 12SW-4HE 12” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 12SW-4HE is suitable as a drop-in replacement for most existing 12” subwoofers. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. An extended frame and bumped back plate allow ample mechanical clearance to avoid damage when driven to high excursion. With a high temperature 2” voice coil wound on a thick aluminum former the 12SW-4HE can comfortably handle up to 250 watts RMS of power. Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. Capable of incredible low frequency extension, the GRS 12SW-4HE is the perfect driver for true bass on a budget.

      Specifications

      Article number
      12SW-4HE
      Woofer Type
      High Excursion Subwoofer
      Nominal Diameter
      12"
      Power Handling (RMS)
      250 Watts
      Power Handling (max)
      500 Watts
      Impedance (Z)
      4 Ohms
      Sensitivity
      84.5dB 2.83V/1m
      Frequency Response
      20 to 500Hz
      Voice Coil Diameter
      2"
      DC Resistance (Re)
      3.9Ω
      Voice Coil Inductance (Le)
      3.5mH
      Resonant Frequency (Fs)
      22Hz
      Mechanical Q (Qms)
      4.08
      Electromagnetic Q (Qes)
      0.48
      Total Q (Qts)
      0.43
      Diaphragm Mass Inc. Airload (Mms)
      237g
      Mechanical Compliance of Suspension (Cms)
      0.22mm/N
      Surface Area of Cone (Sd)
      507.3cm²
      BL Product (BL)
      16.2T·m
      Compliance Equivalent Volume (Vas)
      2.84ft³
      Maximum Linear Excursion (Xmax)
      12.5mm
      Cone / Diaphragm Material
      Paper
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Steel
      Magnet Material
      Ferrite
      Overall Outside Diameter
      12.125"
      Overall Depth
      6.3"
      Baffle Cutout Diameter
      11"
      Bolt Circle Diameter
      11.6
      # Mounting Holes
      8
      Sealed Volume
      1.2ft³
      Sealed F3
      40Hz
      Vented Volume
      2.9ft³
      Vented F3
      22Hz
