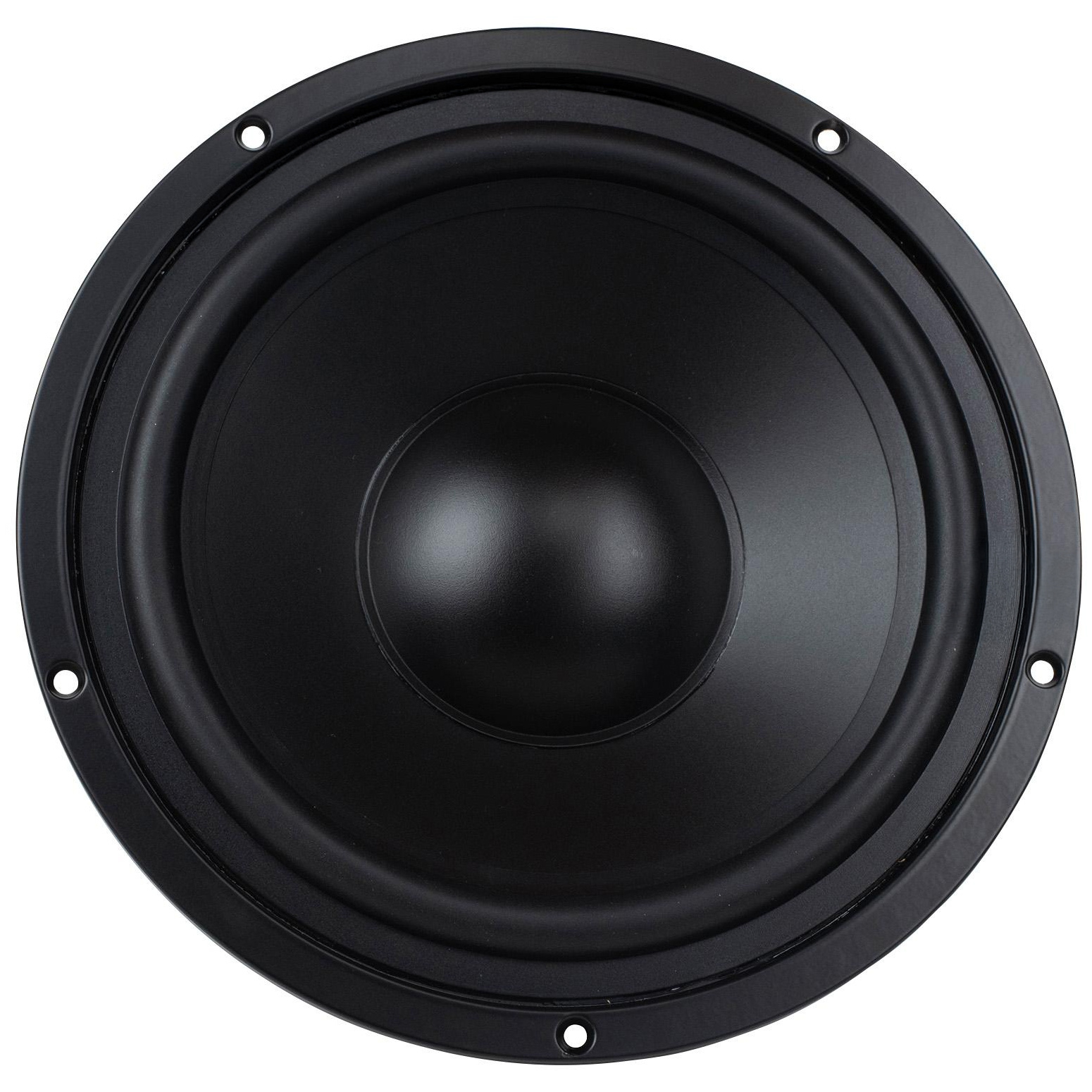

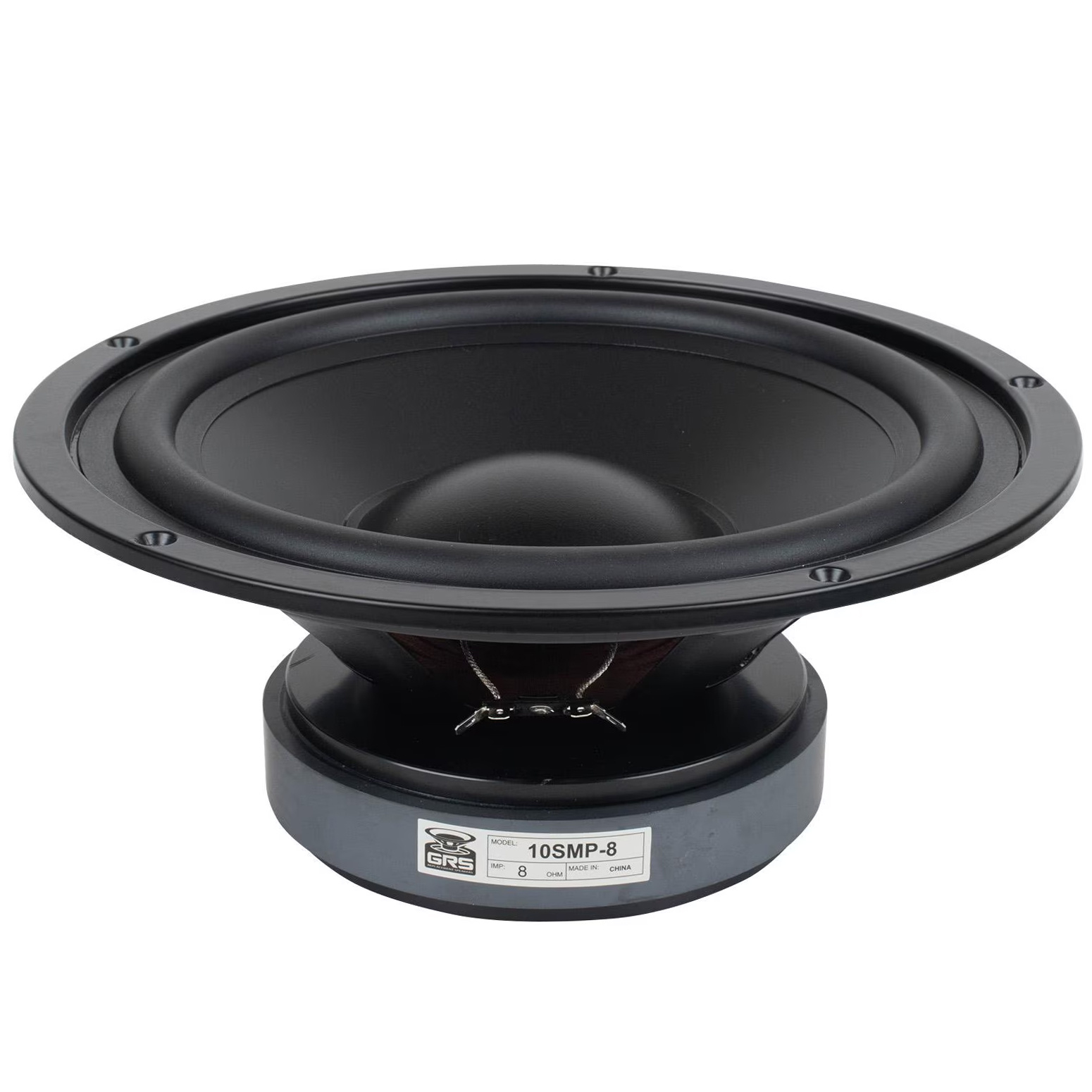

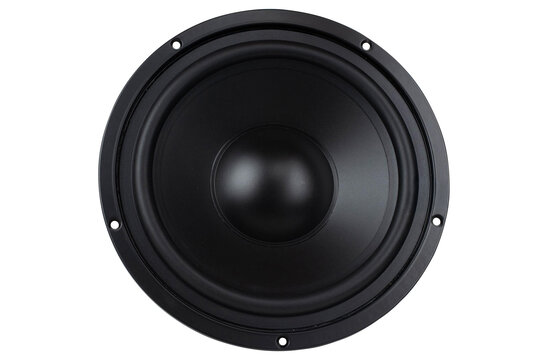

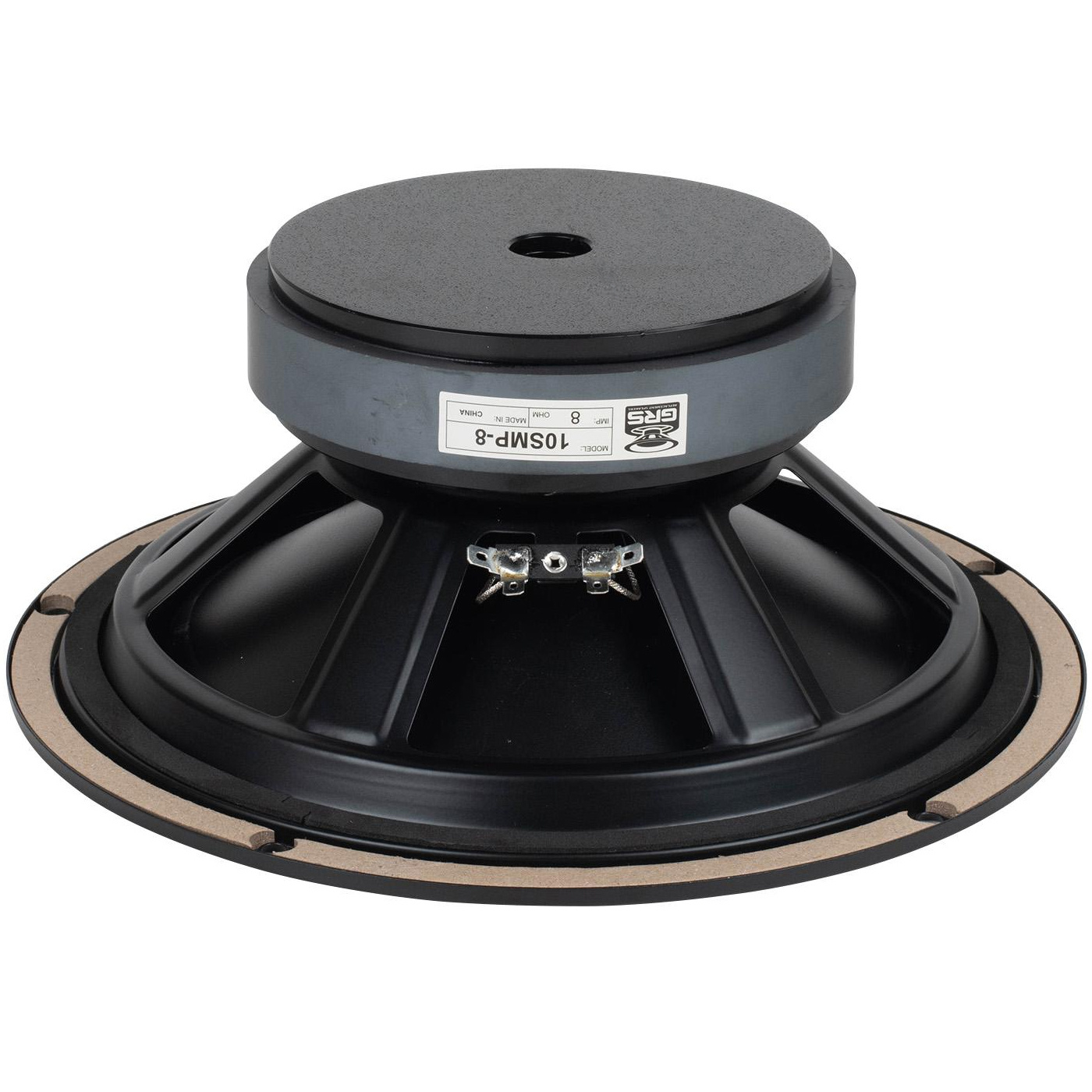

        Product description GRS 10SMP-8 Bass-midwoofer

        The GRS 10SMP-8 is a precision-engineered 10" surface-mount woofer designed for deep bass response and compact installation. With a wide frequency range and optimized motor structure, this 8-ohm driver offers exceptional control and thermal handling, making it ideal for tight-space subwoofer or full-range applications.



        Highlights of the GRS 10SMP-8

        • Extended frequency response down to 24 Hz with Fs of 29 Hz for deep bass reproduction
        • 5 mm Xmax and 70W RMS power handling for dynamic, distortion-free low end
        • Low inductance (Le 0.46 mH) with copper cap for improved midrange clarity
        • Surface-mount frame with integrated gasket ensures an airtight, flush cabinet fit



        Product details GRS 10SMP-8

        GRS 10SMP-8 Surface Mount Woofer



        The GRS 10SMP-8 is a 10" poly cone woofer with an 8-ohm impedance, tailored for surface-mount installations demanding strong bass extension and compact design compatibility. With a usable frequency range from 24 Hz to 2,000 Hz and 70 watts RMS power handling, this woofer balances efficiency and output. The vented pole piece improves cooling, while the copper cap helps reduce inductive distortion. A 39 mm aluminum voice coil former enhances thermal stability under high power conditions. Its 340 cm² cone area and 170 cm³ Vd provide solid low-end performance, while the low Qts (0.58) and moderate sensitivity (87.5 dB @ 2.83V/1m) make it ideal for sealed or vented enclosures. Whether used in shallow home subwoofers, compact PA systems, or custom car audio builds, the GRS 10SMP-8 delivers consistent, high-quality low-frequency output in a low-profile form factor.

        Show more

        Specifications

        Article number
        10SMP-8
        EAN
        0848864079875
        Woofer Type
        Bass-midwoofer
        Power Handling (RMS)
        70 Watts
        Impedance (Z)
        8 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        87.5 dB
        Frequency Response
        24 – 2,000 Hz
        Voice Coil Diameter
        39 mm
        DC Resistance (Re)
        6.1 Ohm
        Voice Coil Inductance (Le)
        0.46 mH
        Resonant Frequency (Fs)
        29 Hz
        Mechanical Q (Qms)
        2.75
        Electromagnetic Q (Qes)
        0.73
        Total Q (Qts)
        0.58
        Diaphragm Mass Inc. Airload (Mms)
        61g
        Mechanical Compliance of Suspension (Cms)
        0.49 mm/N
        Surface Area of Cone (Sd)
        340 cm²
        Volume of Displacement (Vd)
        170 cm³
        BL Product (BL)
        9.6 Tm
        Compliance Equivalent Volume (Vas)
        81 L
        Maximum Linear Excursion (Xmax)
        5 mm
        # Mounting Holes
        5
