        10PT-8 10" Paper Cone Professional Woofer 8 Ohm

        10PT-8 10" Paper Cone Professional Woofer 8 Ohm

        €62,95

        GRS 10PT-8 10" Paper Cone Professional Woofer 8 Ohm

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: GRS
        € 52,02€ 62,95 10+ In stock
        • -5% Purchase 4 for only € 59,80 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The GRS 10PT-8 10” professional paper cone woofer will deliver high output midbass and midrange response without breaking the bank. Packed with features like a 2” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a damaged DJ speaker or you are designing a high output 2 or 3-way system, the 10PT-8 is the perfect driver for budget builds.



        Highlights

        • Lightweight ribbed paper cone allows high efficiency with minimal resonance
        • Smooth on and off axis response up to 2,000 Hz for use in high output 2 or 3-way designs
        • Extensive venting keeps cool air flowing across the voice coil to minimize power compression

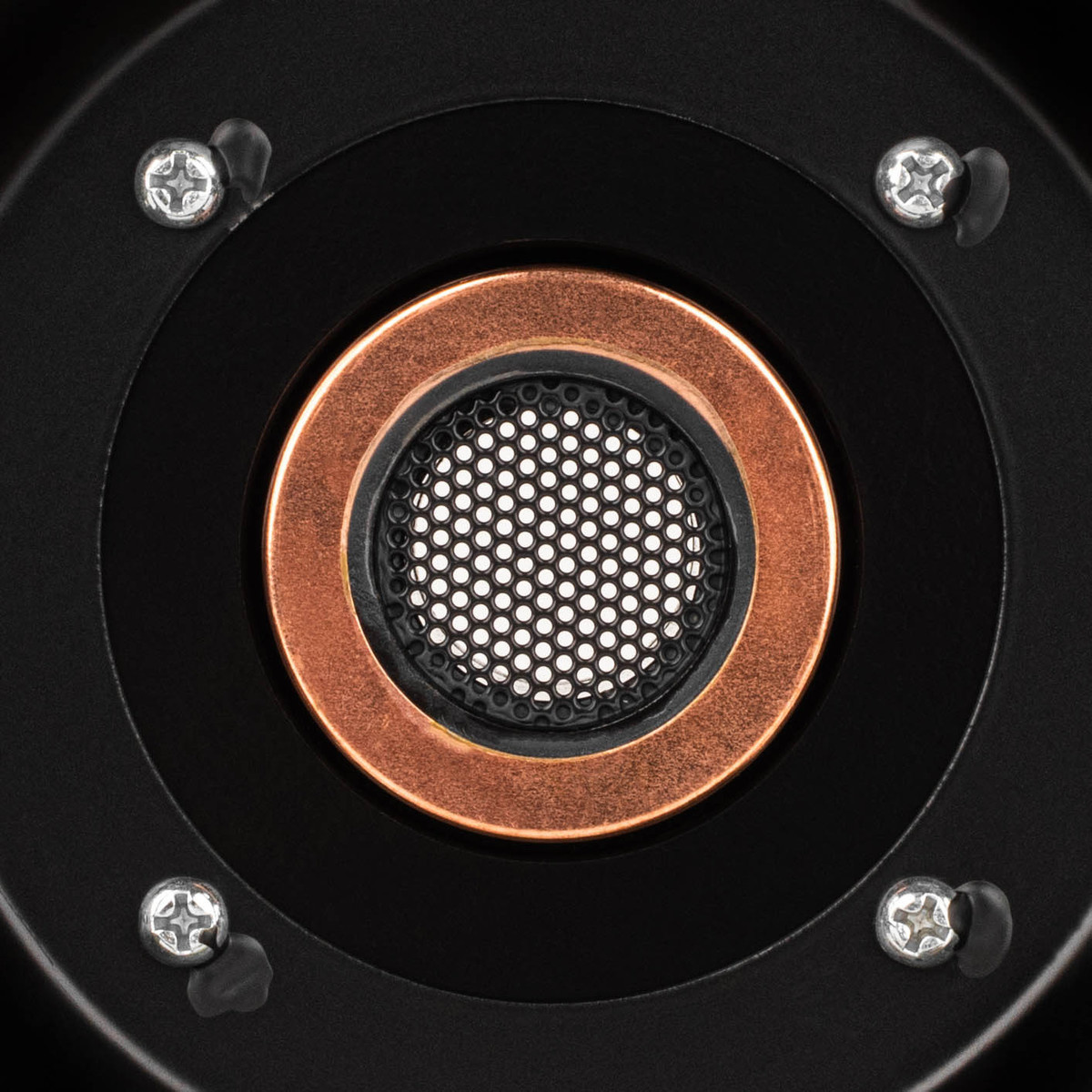

        • Inductance lowering copper cap reduces distortion and extends high frequency response
        • Spring-loaded push-button terminals makes wire connections quick and easy
        • Foam front gasket ensures an airtight seal for rear mount installations



        Product details

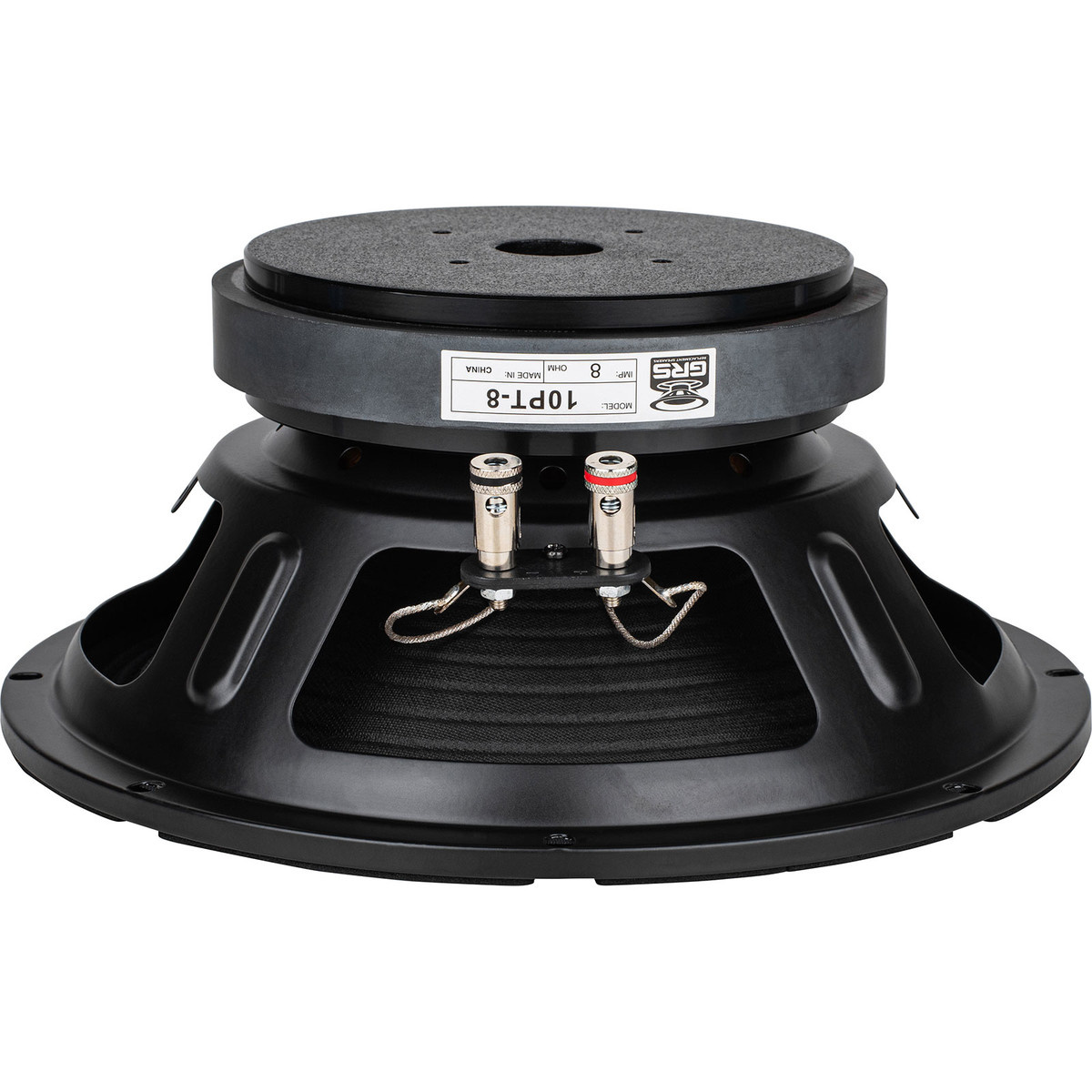

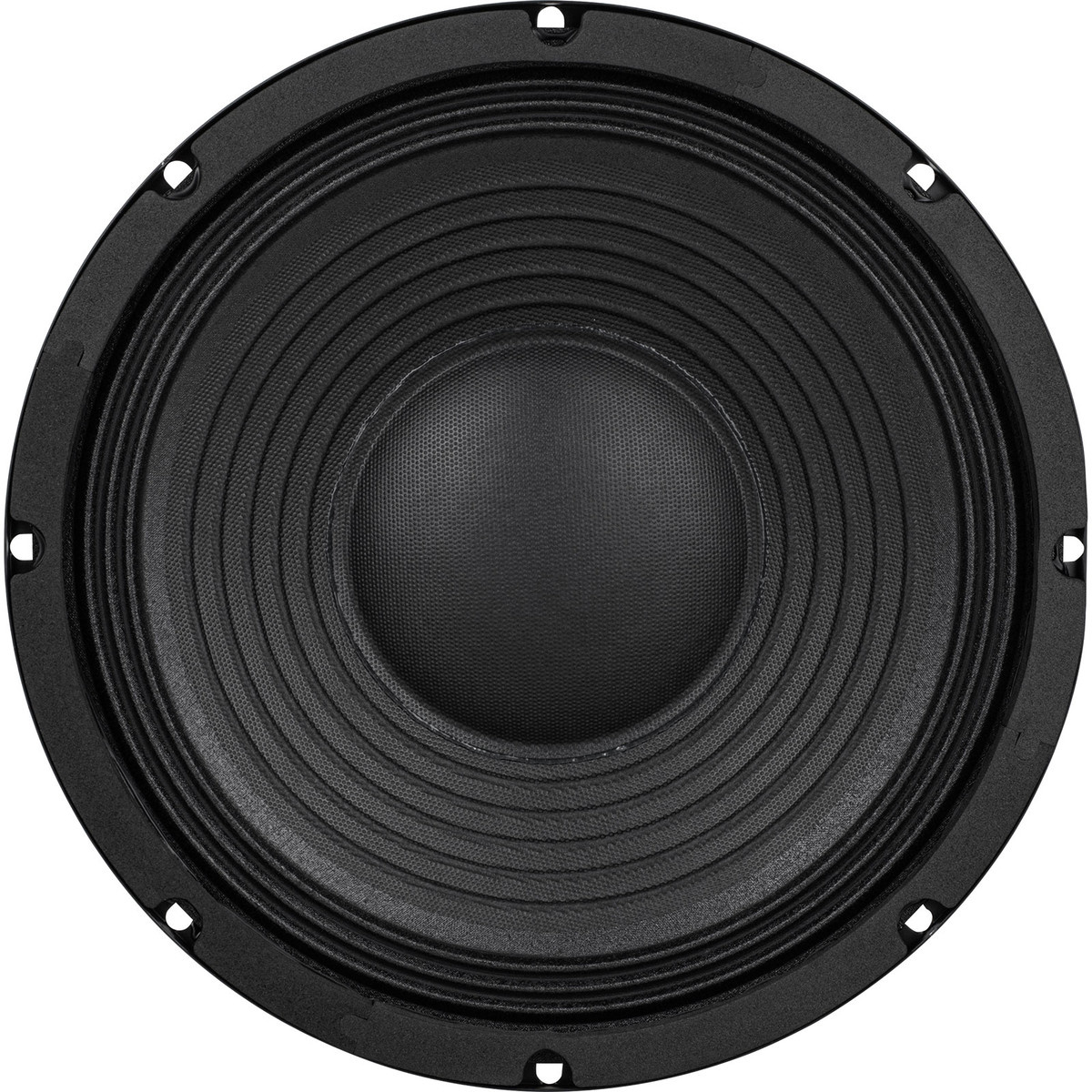

        GRS 10PT-8 10" Paper Cone Professional Woofer 8 Ohm



        Engineered for high output with smooth frequency response, the 10PT-8 10” professional woofer is ideal for use in systems built to provide impressive SPL. Packed with features you would expect from much more expensive drivers, the 10PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 2,000 Hz. Driving the cone is a 2” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 200 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 10PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a worn-out DJ speaker, or are designing high output 2 or 3-way system, the 10PT-8 is the ideal choice if you want high output and natural response without spending a fortune.

        Show more

        Specifications

        Article number
        10PT-8
        Woofer Type
        Paper Cone Professional Woofer
        Nominal Diameter
        10"
        Power Handling (RMS)
        200 Watts
        Power Handling (max)
        400 Watts
        Impedance (Z)
        8 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        93 dB
        Frequency Response
        40 to 7,000Hz
        DC Resistance (Re)
        7.1Ω
        Voice Coil Inductance (Le)
        1.6mH
        Resonant Frequency (Fs)
        47 Hz
        Mechanical Q (Qms)
        11.4
        Electromagnetic Q (Qes)
        0.5
        Total Q (Qts)
        0.48
        Diaphragm Mass Inc. Airload (Mms)
        43g
        Mechanical Compliance of Suspension (Cms)
        0.27mm/N
        Surface Area of Cone (Sd)
        348cm²
        BL Product (BL)
        13.4T·m
        Compliance Equivalent Volume (Vas)
        1.63ft³
        Maximum Linear Excursion (Xmax)
        7.8 mm
        Cone / Diaphragm Material
        Paper / Glass Fiber
        Surround Material
        Cloth
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Kapton® / Polyimide
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        10.16"
        Overall Depth
        4.41"
        Baffle Cutout Diameter
        9.13"
        Bolt Circle Diameter
        9.76
        # Mounting Holes
        8
        Sealed F3
        78Hz
        Vented Volume
        2.3ft³
        Vented F3
        38Hz

        Show more

        5 of 5
        Zeer tevreden met deze PA speaker. Gebruik hem als subwoofer in een actieve (tpa3251 2.1) compacte baskast met 2 satelietjes ( 4 x 3"). Het is serieuze redelijk low budget speaker. Gaat ondanks formaat kast behoorlijk diep. Goede "attack" en definitie met een door mij geliefde "basknor". Vind het een aanrader en top wat prijs/kwaliteit betreft.
        By Hans on 21 October 2023
