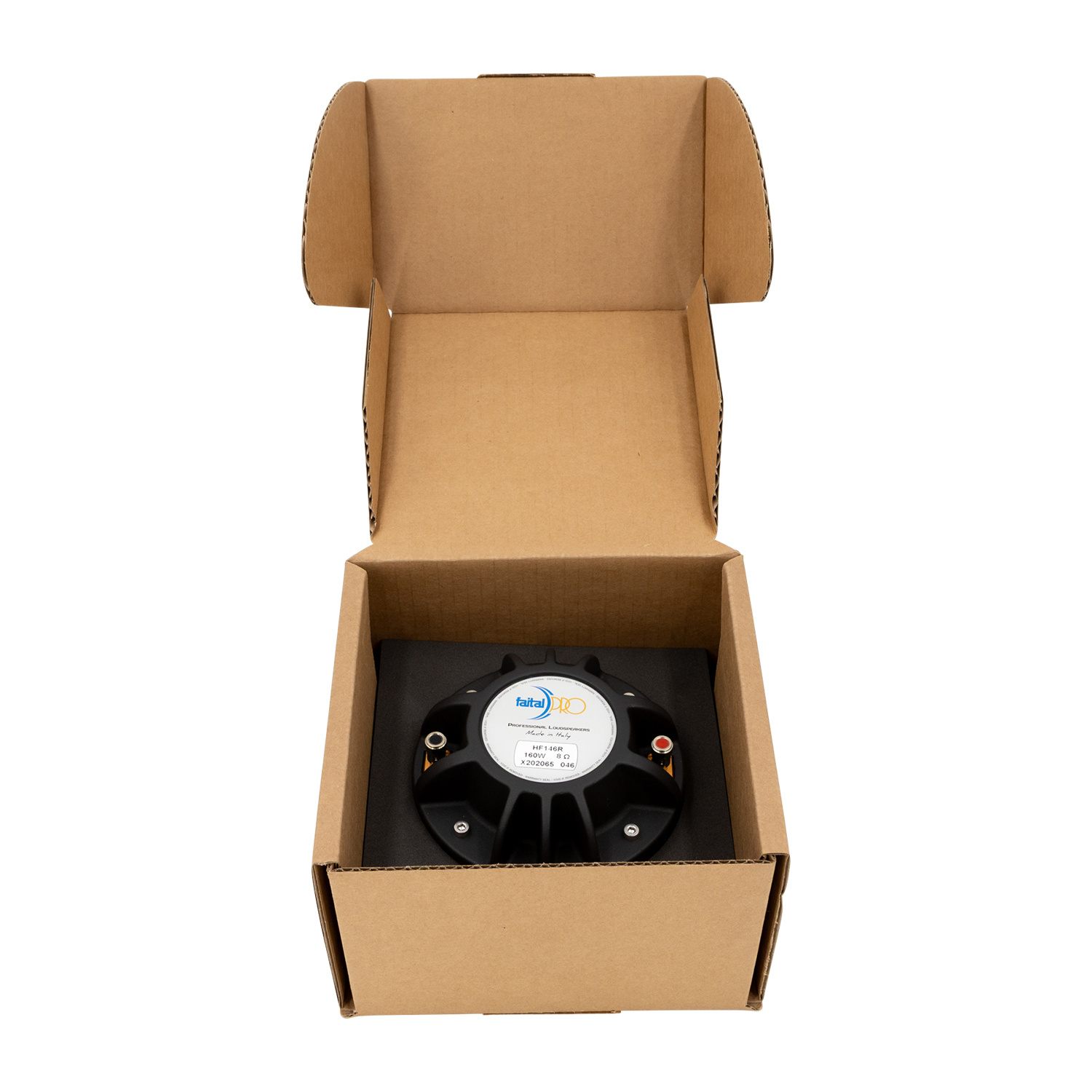

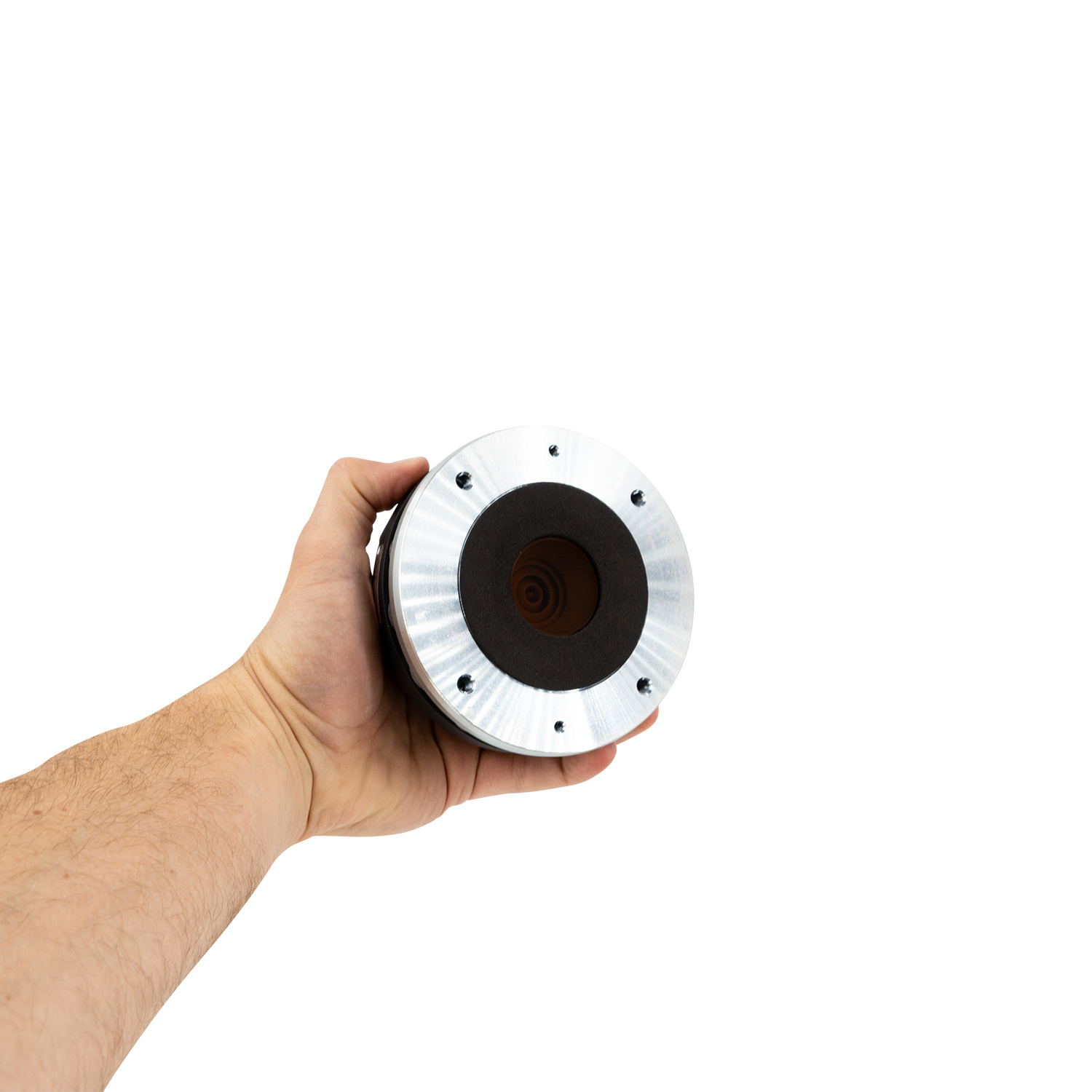

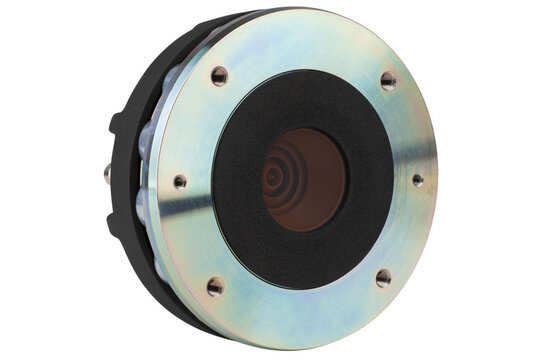

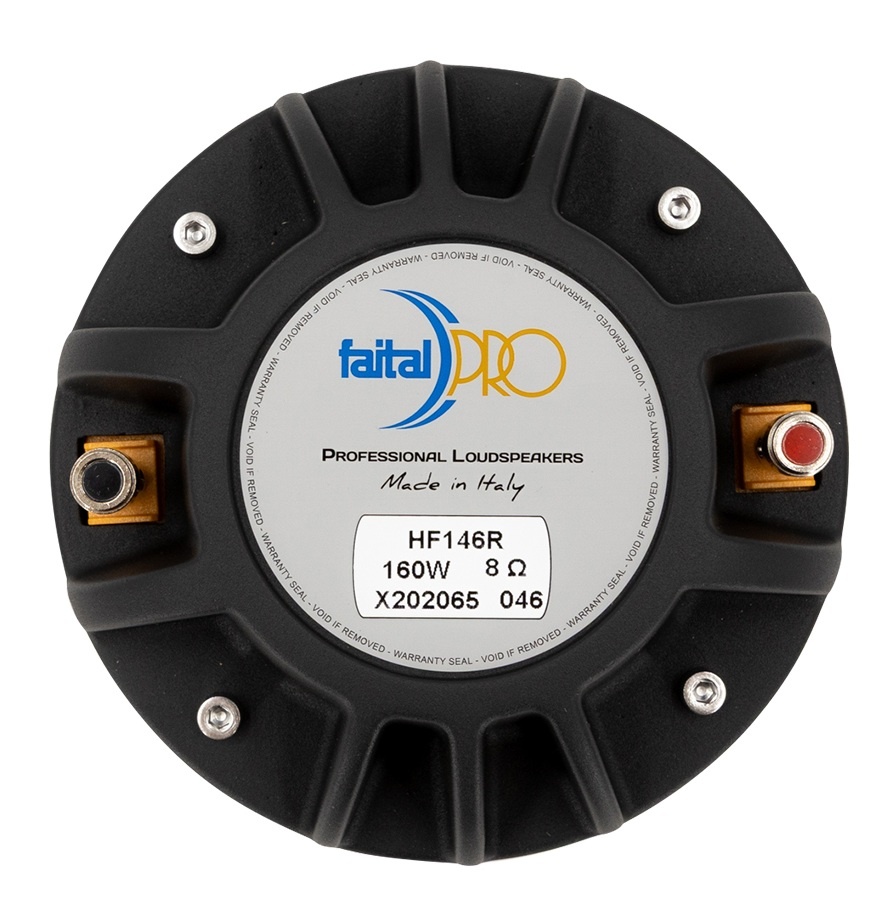

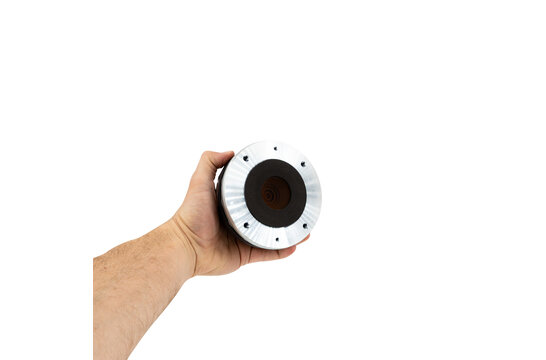

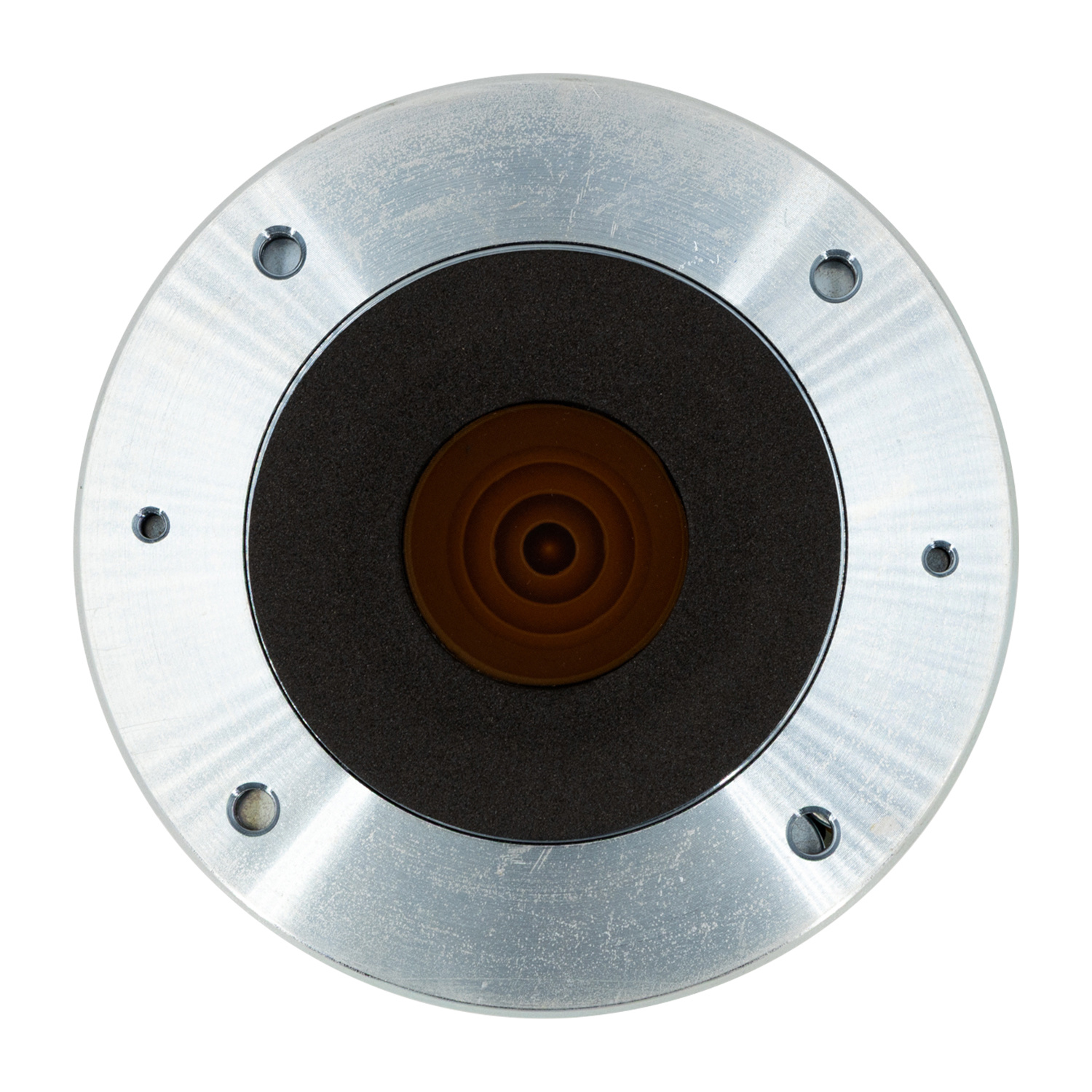

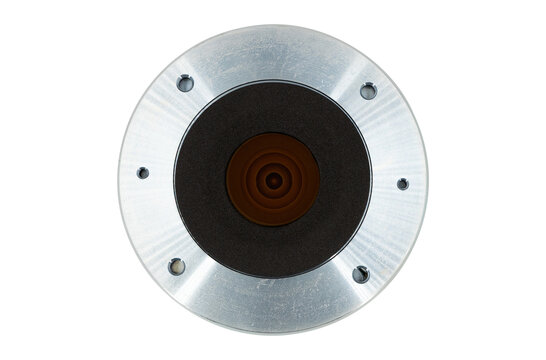

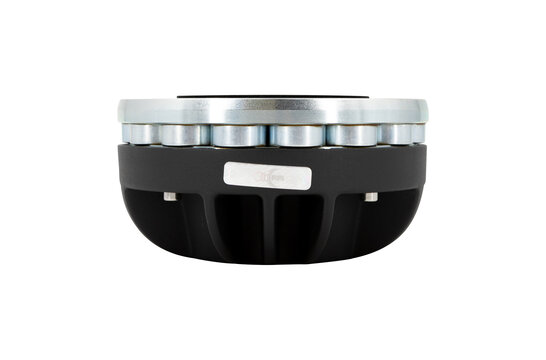

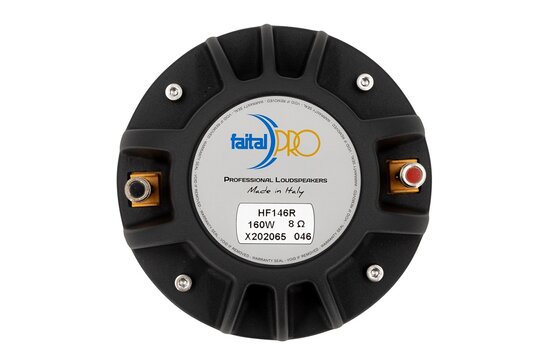

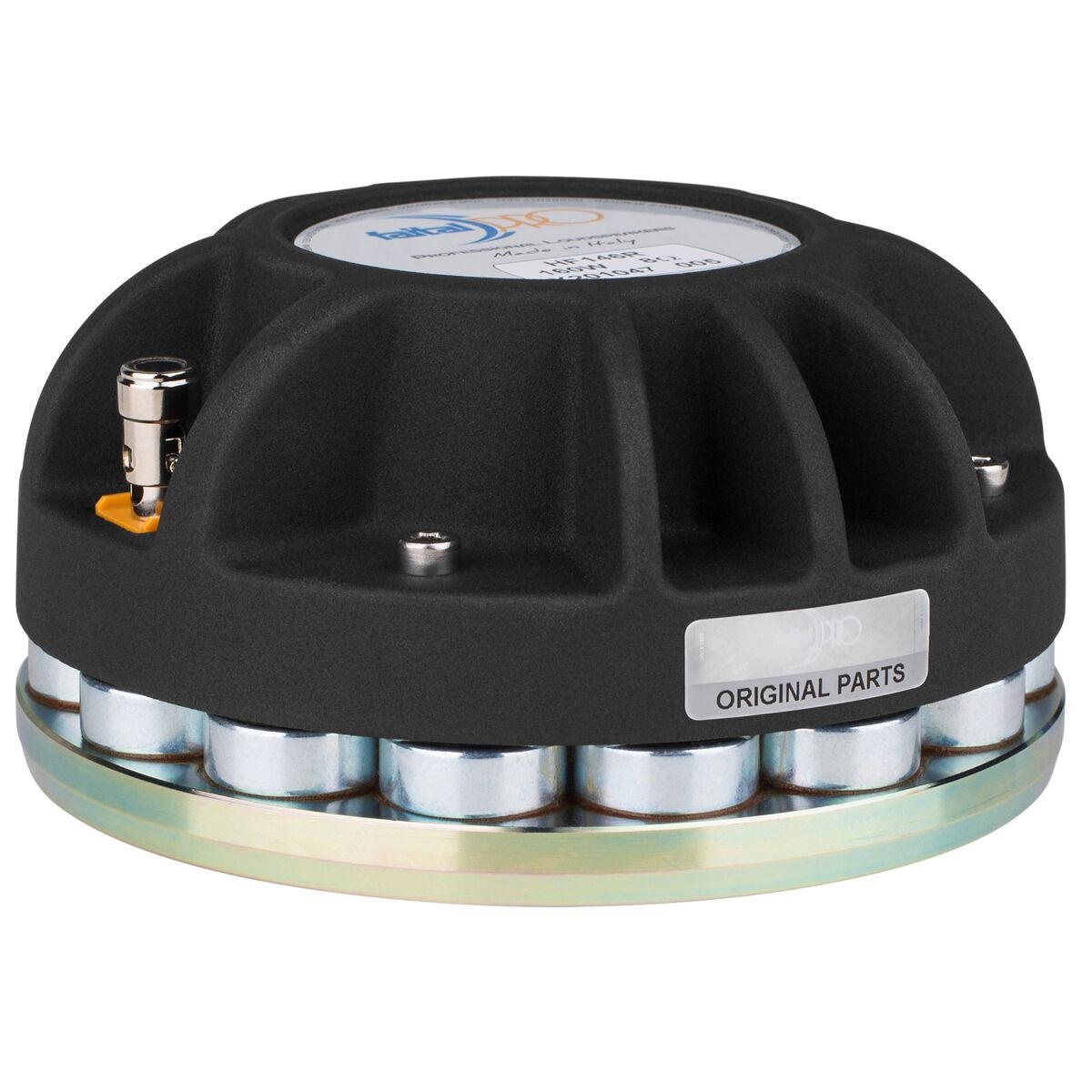

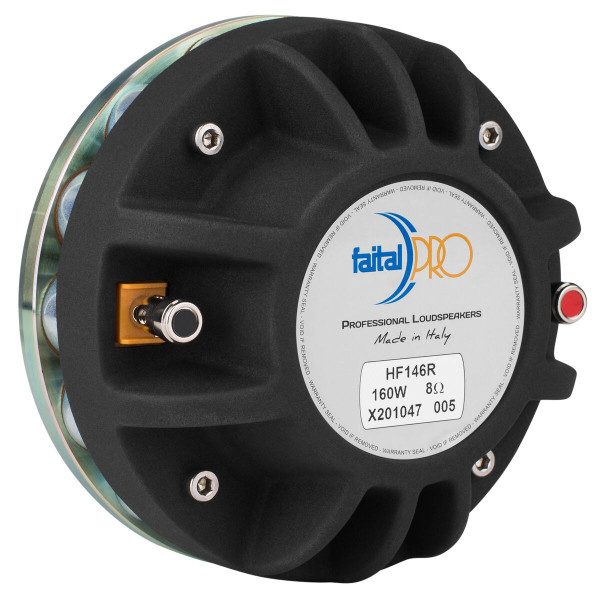

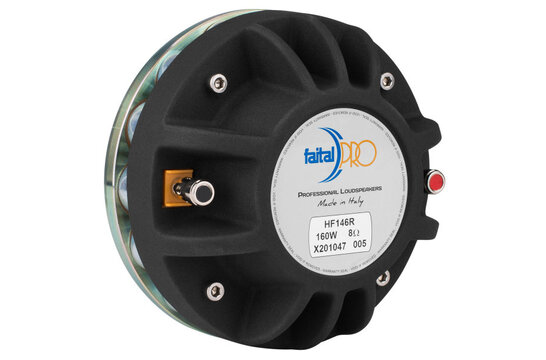

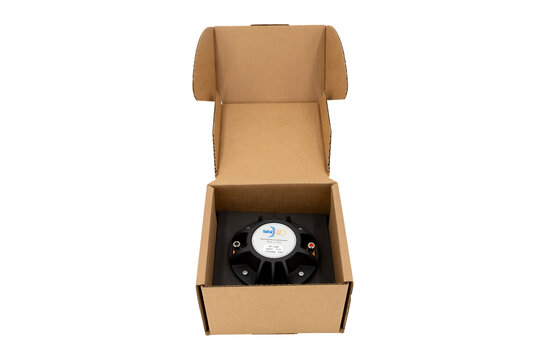

        HF146R-8P 1,4" Compression Driver 8 Ohm

        FaitalPRO HF146R-8P 1,4" Compression Driver 8 Ohm

        €289,95

        2 In stock

        Add to cart

        FaitalPRO HF146R-8P 1,4" Compression Driver 8 Ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: FaitalPRO
        Show all Compression driver
        1.4" | 8 Ω
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        € 239,63€ 289,95 2 In stock
        • -5% Purchase 4 for only € 275,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm
        HF146R-8P 1,4" Compression Driver 8 Ohm

        Product description FaitalPRO HF146R-8P Compression Driver

        The FaitalPRO HF146R is a high-output 1.4-inch compression driver designed for clarity, power, and acoustic tuning flexibility. With a 2.56" voice coil, neodymium magnet, and perforated suspension for controlled response, it's ideal for high-SPL horn-loaded systems in both live and installed professional sound.



        Highlights of the FaitalPRO HF146R

        • 80 W AES (above 0.9 kHz) and 40 W AES (above 0.65 kHz) power handling for versatile system integration
        • High 109 dB sensitivity and 2.56" aluminum voice coil for dynamic high-frequency performance
        • Perforated suspension design allows for acoustic tuning and smoother response
        • Neodymium slug crown magnet and 29° conical exit angle for compact, wide-dispersion integration



        Product details FaitalPRO HF146R

        FaitalPRO HF146R High-Frequency Compression Driver – 8 Ohm Version



        The FaitalPRO HF146R is a 1.4" exit high-frequency driver designed for powerful sound projection with fine-tuned control. Sharing the core architecture of the HF146, this "R" version introduces a perforated suspension that allows for optimized acoustic behavior, enhancing tuning options and overall sound quality. It features a 65 mm (2.56 in) aluminum voice coil and handles 80 W AES power above 0.9 kHz, or 40 W AES above 0.65 kHz — with peak capacities doubled.

        The ketone polymer diaphragm and annular phase plug enable smooth wavefront control, while the driver delivers full coverage from 700 Hz to 18 kHz. Its compact 2.5" depth and neodymium magnet ensure lightweight integration without sacrificing performance. The HF146R is well suited for advanced two-way and three-way systems, particularly in horn-loaded enclosures where clarity, efficiency, and acoustic precision are paramount.

        Show more

        Specifications

        Article number
        HF146R-8P
        EAN
        0848864051253
        Woofer Type
        Compression Driver
        Nominal Diameter
        1.4''
        Power Handling (RMS)
        80 Watts
        Power Handling (max)
        160 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        109 dB
        Frequency Response
        700 - 18.000 Hz
        Voice Coil Diameter
        65 mm
        DC Resistance (Re)
        5.5 Ω
        Voice Coil Wire Material
        Aluminium
        Voice Coil Former
        Kapton
        Overall Outside Diameter
        123 mm
        Overall Depth
        63.5 mm

        Show more

        Reviews

        0 reviews
        Review this product

        There are no reviews written yet about this product..
