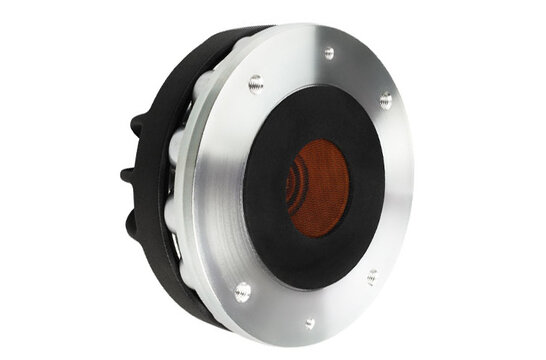

        HF146-8P 1,4" Compression Driver 8 Ohm

        FaitalPRO HF146-8P 1,4" Compression Driver 8 Ohm

        €289,95

        2 In stock

        Add to cart

        FaitalPRO HF146-8P 1,4" Compression Driver 8 Ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: FaitalPRO
        Show all Compression driver
        1.4" | 8 Ω
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        € 239,63€ 289,95 2 In stock
        • -5% Purchase 4 for only € 275,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm

        Product description FaitalPRO HF146-8P Compression Driver

        The FaitalPRO HF146 is a professional 1.4-inch exit compression driver engineered for clean, high-output performance with excellent low crossover capability. Designed for large-format horn systems, it delivers smooth, wide-range high-frequency reproduction with superior power handling and consistency.



        Highlights of the FaitalPRO HF146

        • 80 W AES (above 0.9 kHz) and 40 W AES (above 0.65 kHz) power handling for extended versatility
        • 109 dB sensitivity ensures powerful HF output with minimal amplifier strain
        • 65 mm (2.56”) aluminum voice coil and neodymium slug crown magnet for dynamic control
        • Wide frequency range from 700 Hz to 18 kHz with a 29° conical exit angle



        Product details FaitalPRO HF146

        FaitalPRO HF146 High-Frequency Compression Driver – 8 Ohm Version



        The FaitalPRO HF146 is a 1.4" exit high-frequency driver that balances high sensitivity, extended frequency response, and flexible power handling options. Designed for two- and three-way professional audio systems, the HF146 uses a 65 mm (2.56 in) aluminum voice coil on a Kapton former, capable of handling 80 W AES above 0.9 kHz or 40 W AES above 0.65 kHz. Peak handling doubles at both thresholds, offering up to 160 W and 80 W respectively.

        With a frequency range from 700 Hz to 18 kHz and a high 109 dB sensitivity, the HF146 performs exceptionally in vocal-critical and high-SPL applications. Its ketone polymer dome diaphragm and annular phase plug provide a coherent and dynamic HF response. The 29° conical exit angle ensures broad dispersion when used with standard 1.4" flares like the FaitalPRO LTH142. Ideal for use in compact or mid-sized horn-loaded enclosures where power-to-weight efficiency is key.

        Show more

        Specifications

        Article number
        HF146-8P
        EAN
        0848864011424
        Woofer Type
        Compression Driver
        Nominal Diameter
        1.4"
        Power Handling (RMS)
        80 Watts
        Power Handling (max)
        160 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        109 dB
        Frequency Response
        700 - 18.000 Hz
        DC Resistance (Re)
        5.5 Ω
        Voice Coil Wire Material
        Aluminium
        Voice Coil Former
        Kapton
        Overall Outside Diameter
        123 mm
        Overall Depth
        63.5 mm
        # Mounting Holes
        4
