        HF109-8F Compression Driver

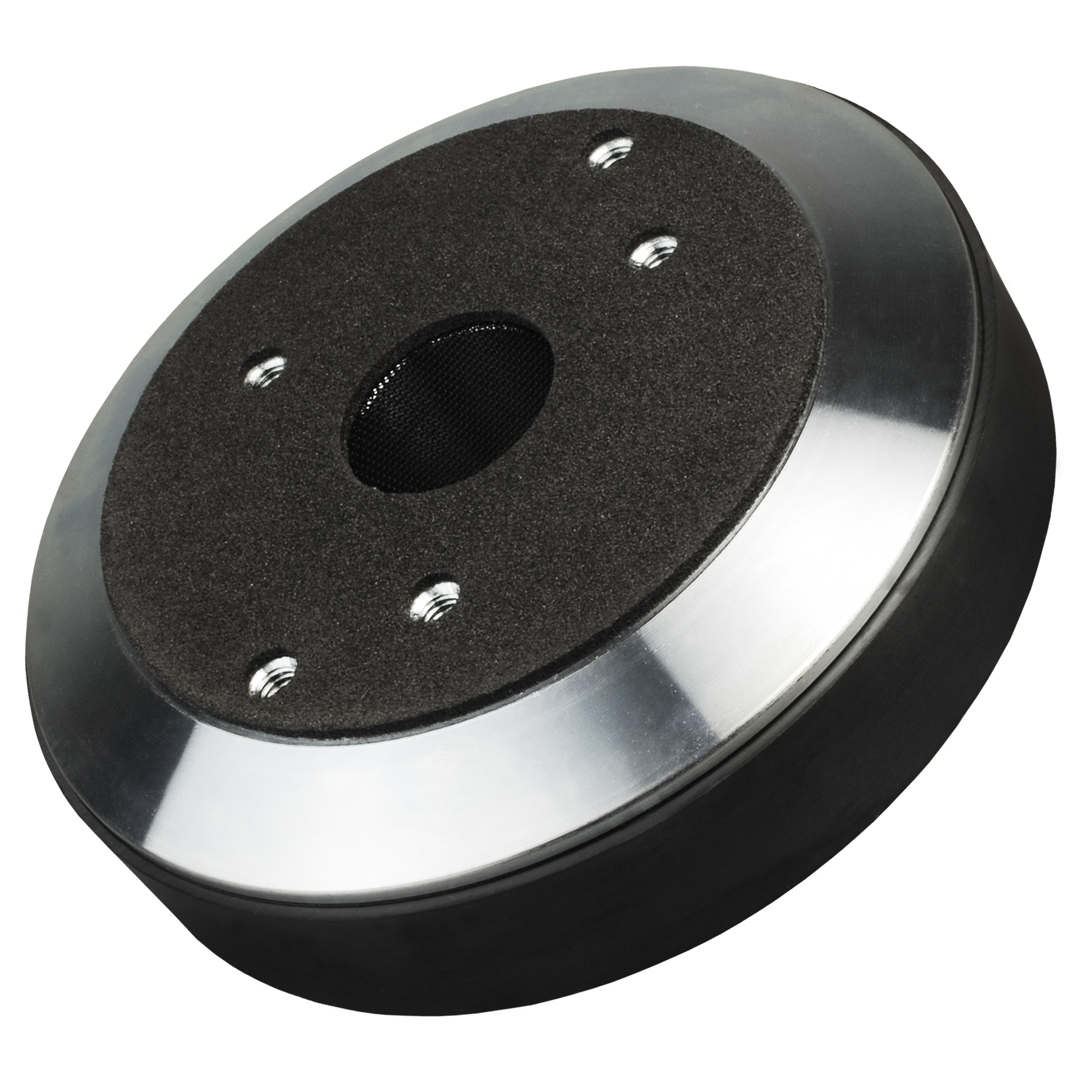

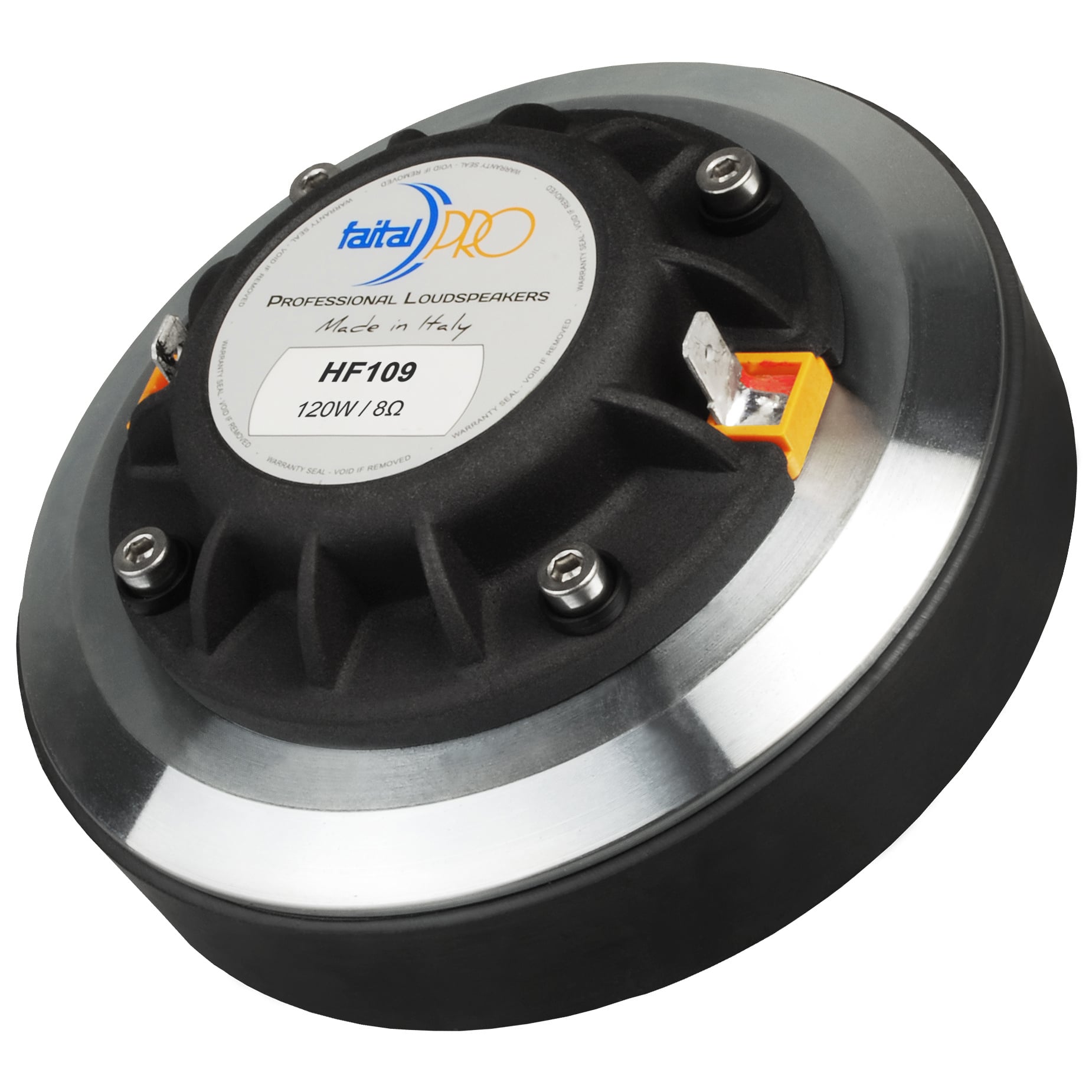

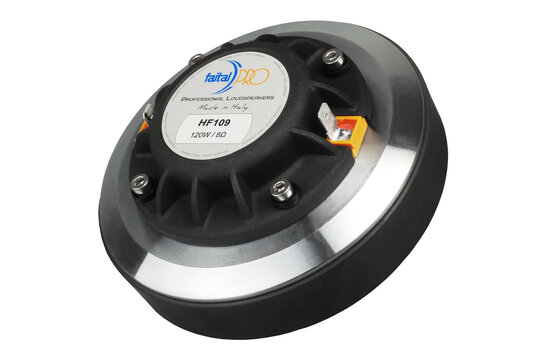

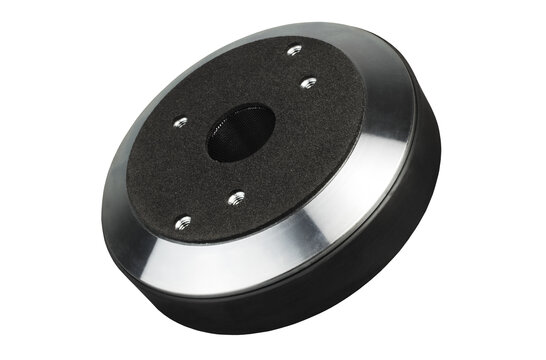

        FaitalPRO HF109-8F Compression Driver

        €159,95

        Out of stock

        Add to cart

        FaitalPRO HF109-8F Compression Driver

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: FaitalPRO
        Show all Compression driver
        1" | 8 Ω
        HF109-8F Compression Driver
        HF109-8F Compression Driver
        HF109-8F Compression Driver
        HF109-8F Compression Driver
        € 132,19€ 159,95 Out of stock
        • -5% Purchase 4 for only € 151,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        HF109-8F Compression Driver
        HF109-8F Compression Driver
        HF109-8F Compression Driver
        HF109-8F Compression Driver

        Product description FaitalPRO HF109-8F Compression Driver

        The FaitalPRO HF109 is a high-performance 1-inch compression driver that delivers remarkable clarity and efficiency, designed for demanding professional tweeter applications. With a robust power handling capability and an exceptionally high sensitivity of 108 dB, this driver is engineered to reproduce high frequencies with pristine detail, making it an excellent choice for high-end PA systems, studio monitors, or custom speaker builds. Its compact form factor and precision-engineered components ensure reliable integration into a wide range of audio setups requiring powerful, accurate high-frequency response.



        Highlights of the FaitalPRO HF109-8F

        • Outstanding 108 dB sensitivity for clear, dynamic high-frequency output
        • 60 W AES and 120 W maximum power handling for robust performance
        • Advanced ketone polymer diaphragm and annular phase plug design
        • Wide frequency range from 1 kHz to 20 kHz with smooth response



        Product details FaitalPRO HF109-8F

        FaitalPRO HF109 1" 60 W 108 dB 8 Ohm Compression Driver



        Engineered for accuracy and durability, the HF109 features a 25.4 mm throat and a robust ferrite ring magnet that helps deliver a flux density of 1.8 T, ensuring consistent output even under high power loads. The combination of a 44 mm aluminum voice coil and a ketone polymer dome diaphragm maximizes both transient response and resistance to deformation, making it ideal for long-term professional use. Its compact 121 mm diameter and 55 mm depth allow versatile mounting, while Faston terminals simplify installation and maintenance in any audio component project.



        The HF109’s advanced annular phase plug and conical exit angle (13°) optimize the dispersion of high frequencies, resulting in even sound coverage and minimal distortion. Its sensitivity rating of 108 dB (1W/1m) and broad frequency range from 1 kHz to 20 kHz make it suitable for both live sound reinforcement and fixed installations where clarity and projection are priorities. This driver is built for seamless integration with modern assembled crossovers and high-pass networks, ensuring clean, distortion-free operation above its 1.3 kHz minimum crossover frequency.



        Ideal for custom PA, touring, or studio monitors, the HF109 fits perfectly in professional speaker enclosures and is compatible with industry-standard 1-inch throat horns. Its ketone polymer diaphragm and Kapton former provide excellent thermal stability and reliability, making it a strong candidate for DIY speaker kit builders and audio system integrators seeking high SPL and sonic accuracy. The driver’s net air volume of only 0.43 dm³ ensures minimal impact on enclosure tuning, while its 2.2 kg weight strikes a balance between ruggedness and ease of handling.



        Whether upgrading an existing system or designing a new high-frequency solution from scratch, the FaitalPRO HF109 delivers exceptional sound quality and performance. Its robust construction and carefully selected materials guarantee longevity and consistent results in the most demanding applications. For those seeking reliability and precision in high-frequency reproduction, the HF109 stands out as a top-tier component for both professional and advanced home audio systems.

        Show more

        Specifications

        Article number
        HF109-8F
        Cone / Dome Diameter
        44 mm
        Power Handling (RMS)
        60 W
        Power Handling (max)
        120 W
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        108 dB
        Frequency Response
        1-20 kHz
        DC Resistance (Re)
        5.8 Ω
        Overall Outside Diameter
        121 mm
        Depth
        55 mm
        Diaphragm Material
        Ketone Polymer
        Recommended cut frequency
        1.3 kHz

        Show more
