        HF103-8F 1" Compression Driver 8 Ohm

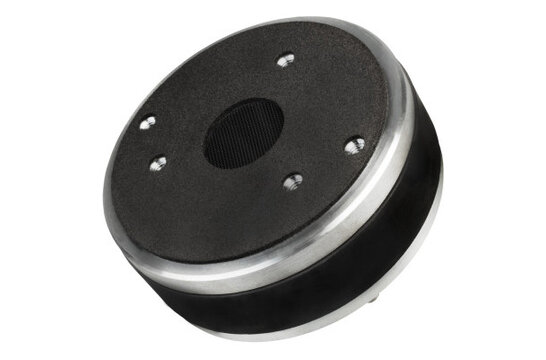

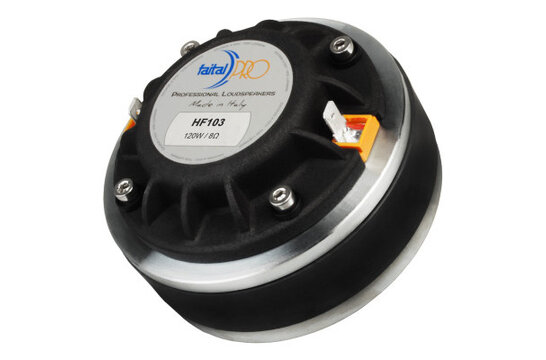

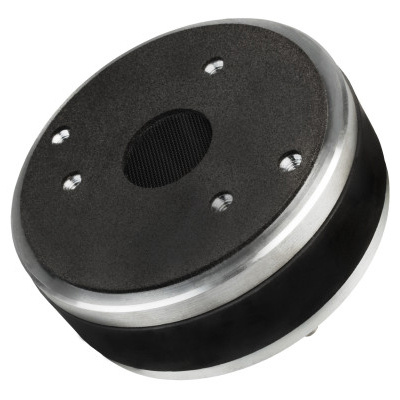

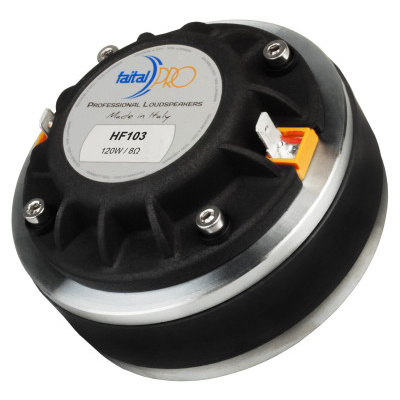

        FaitalPRO HF103-8F 1" Compression Driver 8 Ohm

        €134,95

        4 In stock

        Add to cart

        FaitalPRO HF103-8F 1" Compression Driver 8 Ohm

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: FaitalPRO
        Show all Compression driver
        1" | 8 Ω
        HF103-8F 1" Compression Driver 8 Ohm
        HF103-8F 1" Compression Driver 8 Ohm
        HF103-8F 1" Compression Driver 8 Ohm
        HF103-8F 1" Compression Driver 8 Ohm
        € 111,53€ 134,95 4 In stock
        • -5% Purchase 4 for only € 128,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        HF103-8F 1" Compression Driver 8 Ohm
        HF103-8F 1" Compression Driver 8 Ohm
        HF103-8F 1" Compression Driver 8 Ohm
        HF103-8F 1" Compression Driver 8 Ohm

        Product description FaitalPRO HF103-8F Compression Driver

        The FaitalPRO HF103 is a robust 1-inch high-frequency compression driver built for superior power handling and extended frequency response in professional audio systems. Featuring a larger 44 mm voice coil and wide-band coverage from 1 kHz to 20 kHz, it's a solid choice for demanding two-way and multi-way systems.



        Highlights of the FaitalPRO HF103

        • 60 W AES power handling and 120 W peak via a 1.73” aluminum voice coil
        • High 107 dB sensitivity for efficient sound output and excellent clarity
        • Extended low crossover capability down to 1.3 kHz for flexible integration
        • Ferrite ring magnet and ketone polymer dome diaphragm for smooth, powerful highs



        Product details FaitalPRO HF103

        FaitalPRO HF103 High-Frequency Compression Driver – 8 Ohm Version



        The FaitalPRO HF103 is a 1" exit compression driver optimized for high-SPL and high-resolution audio reproduction in professional loudspeaker systems. Its 44 mm (1.73 in) aluminum voice coil wound on a Kapton former allows it to handle 60 W AES (120 W peak) power while maintaining exceptional clarity and dynamic headroom. With a broad frequency range of 1 kHz to 20 kHz and a recommended crossover as low as 1.3 kHz, the HF103 excels in both compact two-way and large-format systems.

        The dome diaphragm is made from ketone polymer, supported by an annular phase plug for precise wavefront shaping. The driver incorporates a ferrite ring magnet delivering 1.5 T of flux density and uses a 13° conical exit angle for wide dispersion when paired with appropriate horn flares. At just 100 mm in diameter but weighing 1.3 kg, the HF103 strikes a balance between size and performance—making it a reliable HF component for touring systems and high-end enclosures requiring both output and fidelity.

        Show more

        Specifications

        Article number
        HF103-8F
        EAN
        9503496241397
        Tweeter Series
        Compression Driver
        Cone / Dome Diameter
        1.73"
        Power Handling (RMS)
        60 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        107 dB
        Frequency Response
        1.000 - 20.000 Hz
        Overall Outside Diameter
        100 mm
        Depth
        55 mm

        Show more
