        5HX220-8P Coaxial Woofer

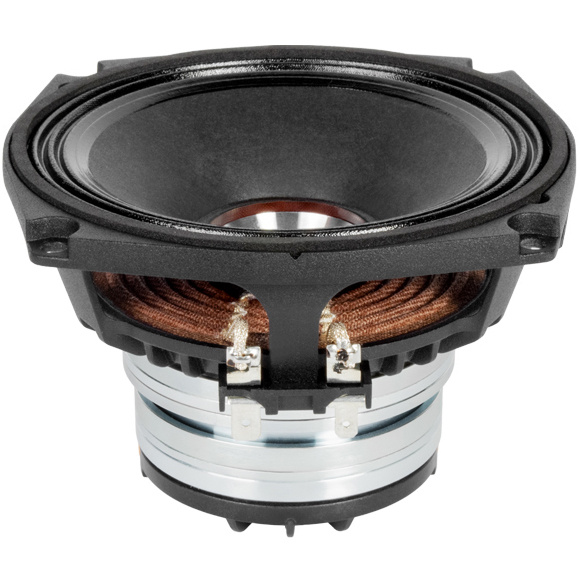

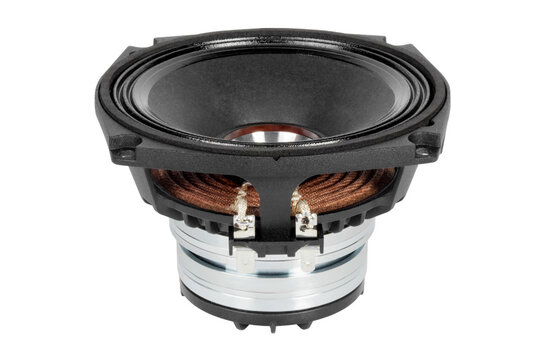

        FaitalPRO 5HX220-8P Coaxial Woofer

        €219,95

        Out of stock

        Add to cart

        FaitalPRO 5HX220-8P Coaxial Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: FaitalPRO
        Show all Coaxial woofer
        5" | 8 Ω
        5HX220-8P Coaxial Woofer
        € 181,78€ 219,95 Out of stock
        • -5% Purchase 4 for only € 208,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        5HX220-8P Coaxial Woofer

        Product description FaitalPRO 5HX220-8P Coaxial Woofer

        The FaitalPRO 5HX220 is a high-performance 5-inch coaxial loudspeaker engineered for demanding professional audio environments. With a robust low-frequency driver rated at 150 W AES and a powerful high-frequency driver rated at 30 W AES, this compact transducer delivers exceptional sound clarity, impressive sensitivity, and extended frequency response, making it ideal for a wide range of applications.



        Highlights of the FaitalPRO 5HX220-8P

        • 5-inch coaxial design with integrated LF and HF drivers for point-source clarity
        • LF power handling of 150 W AES and HF power handling of 30 W AES
        • High sensitivity: 91 dB (LF), 104 dB (HF) at 1W/1m
        • Neodymium ring magnets and lightweight construction for efficient, portable system integration



        Product details FaitalPRO 5HX220-8P

        FaitalPRO 5HX220 5" Coaxial Loudspeaker 8 Ohm



        The FaitalPRO 5HX220 features a sophisticated coaxial architecture that merges a 5-inch low-frequency woofer with a high-frequency dome tweeter, both utilizing 37 mm voice coils. This design ensures precise time alignment and consistent directivity, delivering point-source sound reproduction essential for professional speakers and studio monitors. The LF driver employs a treated polycotton cone with triple roll surround for smooth excursion and durability, while the HF section utilizes a ketone polymer dome for clean, extended highs up to 20,000 Hz.



        Exceptional sensitivity ratings of 91 dB (LF) and 104 dB (HF) guarantee that the 5HX220 achieves high output with modest amplifier power, making it suitable for portable PA systems, stage monitors, and high-quality woofers in compact enclosures. The use of neodymium ring magnets in both LF and HF sections contributes to the driver's light weight, at just 1.04 kg, and compact profile, which aids in easy mounting and transport.



        Engineered for reliability, the 5HX220 supports maximum power handling of 300 W for the LF driver and 60 W for the HF, while maintaining a minimum impedance of 6.4 Ohm (LF) and 7 Ohm (HF). The driver’s aluminum basket and integrated demodulation rings help to minimize distortion and improve thermal management. The combination of a glass fiber former for the woofer and a Kapton former for the tweeter delivers robust performance even during prolonged operation, ensuring longevity in demanding professional environments.



        Designed with versatility in mind, the FaitalPRO 5HX220 is ideal for compact full-range tweeters and coaxial systems, as well as for DIY projects and custom installations. Its extended frequency range (125 Hz to 20,000 Hz combined) and optimal dispersion characteristics make it an excellent choice for both main and monitor system designs. The driver’s compatibility with various audio components makes it a perfect fit for sound reinforcement, high fidelity home audio, or advanced test and acoustic-measurements setups.

        Show more

        Specifications

        Article number
        5HX220-8P
        Nominal Diameter
        5 " | 130 mm
        Power Handling (RMS)
        150 W
        Power Handling (max)
        300 W
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        91 dB
        Frequency Response
        125 Hz - 5000 Hz
        Voice Coil Diameter
        37 mm
        DC Resistance (Re)
        5.8 Ω
        Voice Coil Inductance (Le)
        0.2 mH
        Resonant Frequency (Fs)
        135 Hz
        Mechanical Q (Qms)
        10.2
        Electromagnetic Q (Qes)
        0.63
        Total Q (Qts)
        0.59
        Diaphragm Mass Inc. Airload (Mms)
        7.3 g
        Moving Mass Of Diaphragm (Mmd)
        6.3 g
        Mechanical Compliance of Suspension (Cms)
        0.19 mm/N
        Surface Area of Cone (Sd)
        90.6 cm²
        BL Product (BL)
        7.7 Tm
        Compliance Equivalent Volume (Vas)
        2.2 L
        Maximum Linear Excursion (Xmax)
        4.57 mm
        Driver's Mechanical Losses (Rms)
        0.6 Ns/m
        Surround Material
        Polycotton
        Voice Coil Wire Material
        Aluminum
        Voice Coil Former
        Glass Fiber
        Basket / Frame Material
        Aluminum
        Magnet Material
        Neodymium
        Overall Outside Diameter
        150 x 128 mm
        Overall Depth
        90 mm
        Baffle Cutout Diameter
        118 mm
        Bolt Circle Diameter
        139 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5.3 mm
