        5FE120-8F 5" Bass-midwoofer 8 Ohm

        FaitalPRO 5FE120-8F 5" Bass-midwoofer 8 Ohm

        €39,95

        10 In stock

        Add to cart

        FaitalPRO 5FE120-8F 5" Bass-midwoofer 8 Ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: FaitalPRO
        Show all Bass-mid woofer
        5" | 8 Ω
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        € 33,02€ 39,95 10 In stock
        • -5% Purchase 4 for only € 37,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm
        5FE120-8F 5" Bass-midwoofer 8 Ohm

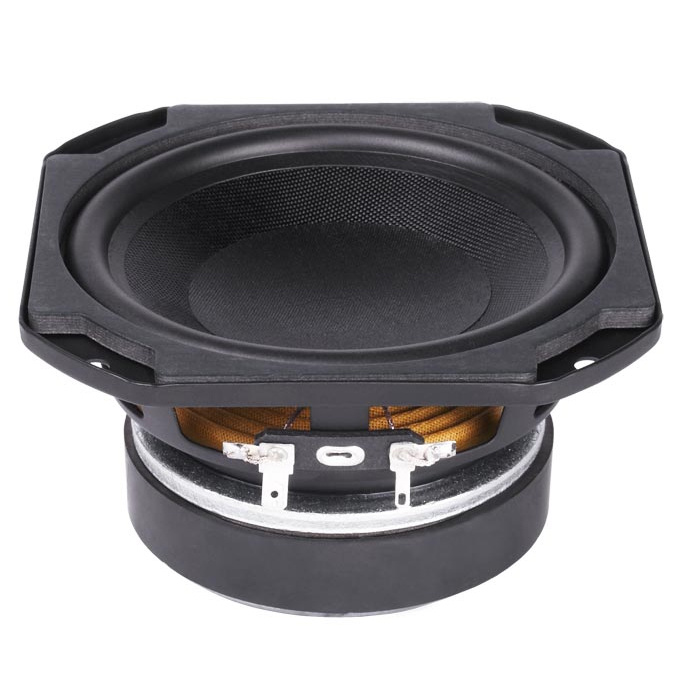

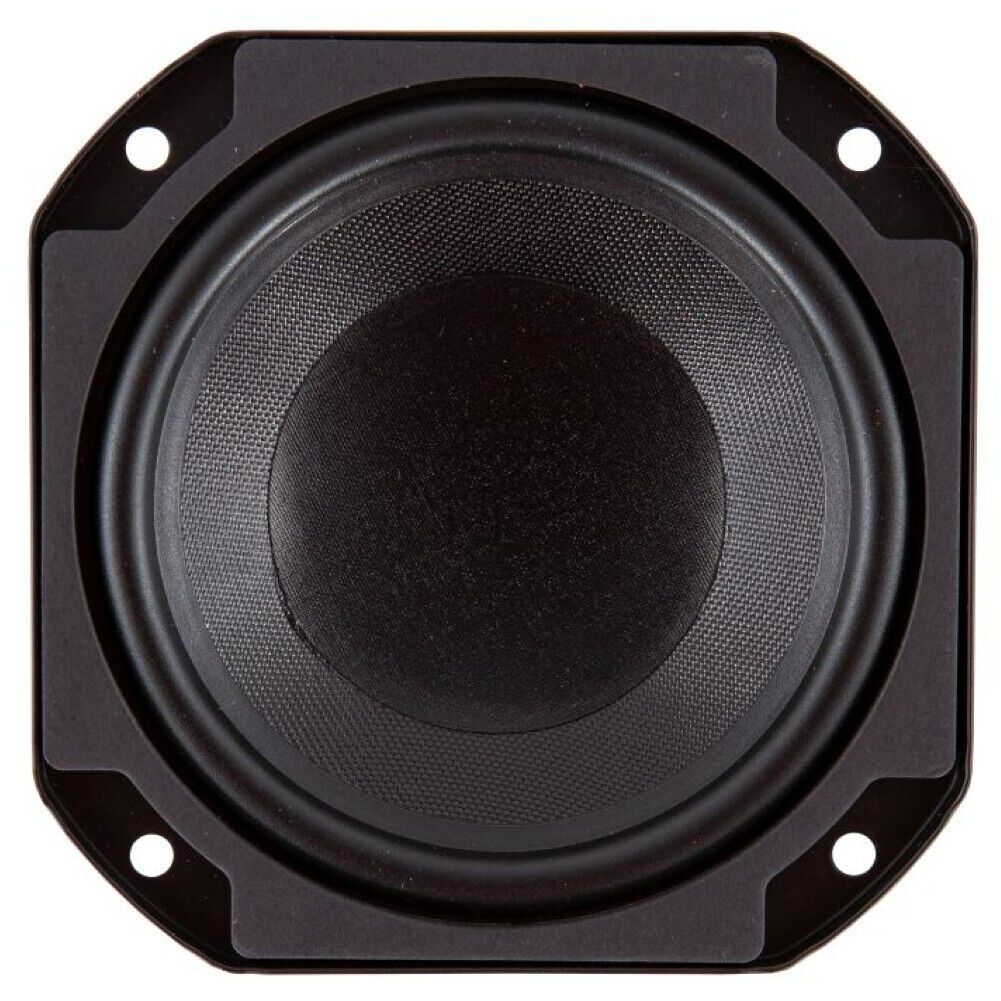

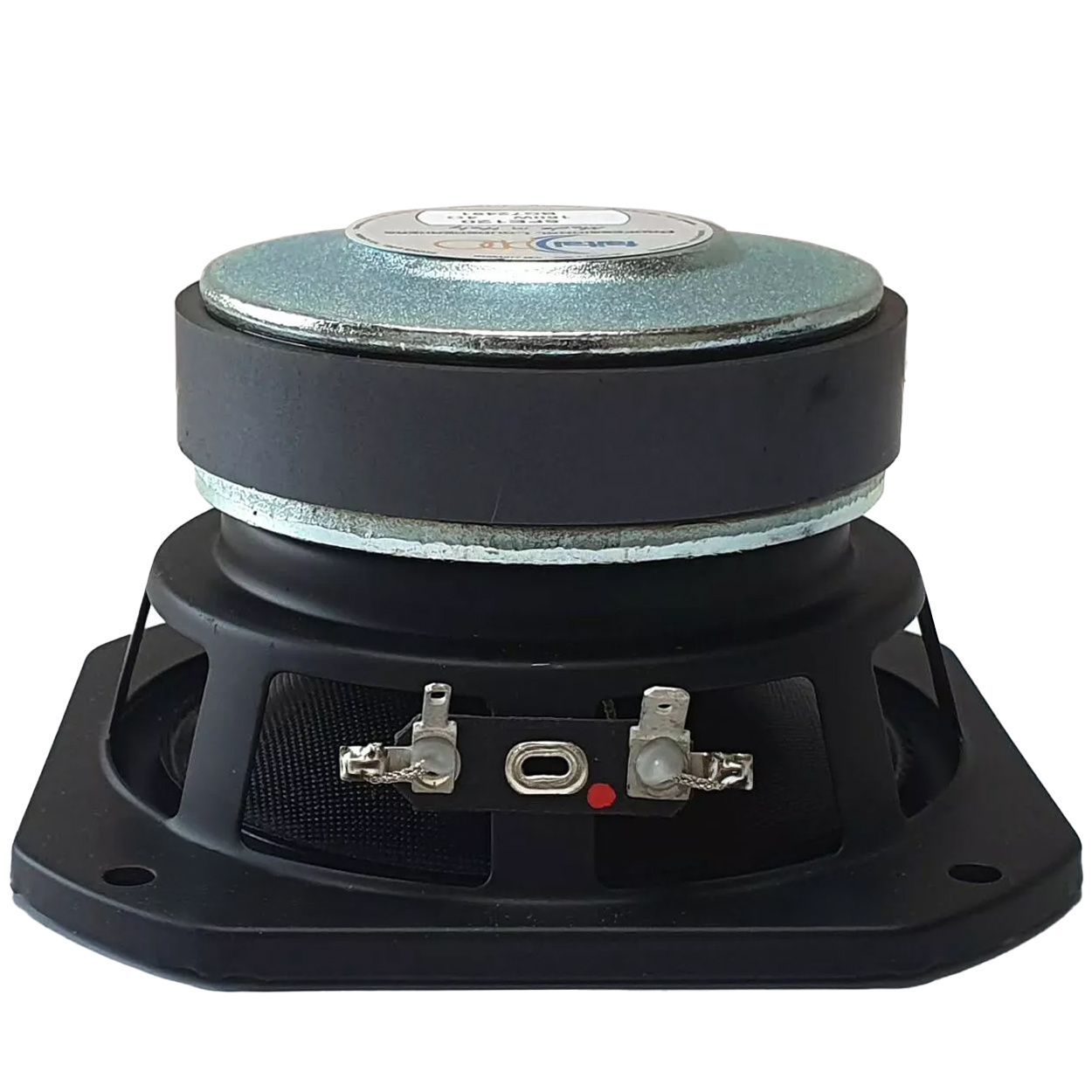

        Product description FaitalPRO 5FE120-8F Bass-midwoofer

        High-efficiency 5" bass-midwoofer with 8-ohm impedance, designed for extended midbass response and high output in compact speaker enclosures and two-way systems.



        Highlights of the FaitalPRO 5FE120-8F Bass-midwoofer

        • 5" (130mm) bass-midrange driver with 8-ohm impedance for wide amplifier and crossover compatibility
        • High sensitivity of 91dB (1W/1m) for excellent output in compact systems
        • Ferrite magnet motor system for strong magnetic control and reduced distortion
        • Frequency response from approximately 70Hz to 6.5kHz supports versatile speaker applications



        Product details FaitalPRO 5FE120-8F Bass-midwoofer

        FaitalPRO 5FE120-8F Bass-midwoofer Bass-Midrange Driver Unit



        The FaitalPRO 5FE120-8F is a professional-grade 5-inch bass-midrange driver optimized for clarity, efficiency, and flexibility in speaker design. With an 8-ohm impedance, this model integrates seamlessly into both single-driver and series-wired systems. Its ferrite magnet motor and treated paper cone deliver articulate midrange and tight, punchy bass with low distortion. Spanning a frequency response of 70Hz to 6.5kHz and boasting a sensitivity of 91dB, the 5FE120-8F performs reliably in two-way speakers, compact studio monitors, and portable PA applications. A pressed steel basket provides structural integrity while minimizing unwanted resonance. This driver is ideal for professionals and DIYers seeking a compact yet powerful solution for full-range sound reproduction with a midbass focus.

        Show more

        Specifications

        Article number
        5FE120-8F
        EAN
        0848864011042
        Woofer Type
        Bass-Midwoofer
        Nominal Diameter
        5''
        Power Handling (RMS)
        80 Watts
        Power Handling (max)
        160 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        63 - 6.300 Hz
        Voice Coil Diameter
        32 mm
        DC Resistance (Re)
        5.4 Ω
        Voice Coil Inductance (Le)
        0.41 mH
        Resonant Frequency (Fs)
        65 Hz
        Mechanical Q (Qms)
        7.4
        Electromagnetic Q (Qes)
        0.51
        Total Q (Qts)
        0.48
        Diaphragm Mass Inc. Airload (Mms)
        11.0 g
        Moving Mass Of Diaphragm (Mmd)
        10.1 g
        Mechanical Compliance of Suspension (Cms)
        0.55 mm/N
        Surface Area of Cone (Sd)
        84 cm²
        BL Product (BL)
        6.9 N/A
        Compliance Equivalent Volume (Vas)
        5.4 dm³
        Maximum Linear Excursion (Xmax)
        5.25 mm
        Driver's Mechanical Losses (Rms)
        0.6 kg/s
        Voice Coil Wire Material
        Cu
        Voice Coil Former
        Kapton
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        144.8 mm
        Overall Depth
        71,5 mm
        Baffle Cutout Diameter
        114 mm
        Bolt Circle Diameter
        133 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5.3 mm
