        Product description FaitalPRO 3FE22-4F Full-range Woofer

        Compact full-range 3" professional driver with a lightweight design and high efficiency, ideal for portable systems and tight-space applications.



        Highlights of the FaitalPRO 3FE22-4F Full-range Woofer

        • 83mm (3") full-range driver with 4-ohm impedance for flexible system integration
        • High sensitivity of 91dB (1W/1m) for strong output in compact enclosures
        • Lightweight neodymium magnet assembly ensures low weight and high performance
        • Wide frequency response from 100Hz to 20kHz for clear, natural sound



        Product details FaitalPRO 3FE22-4F Full-range Woofer

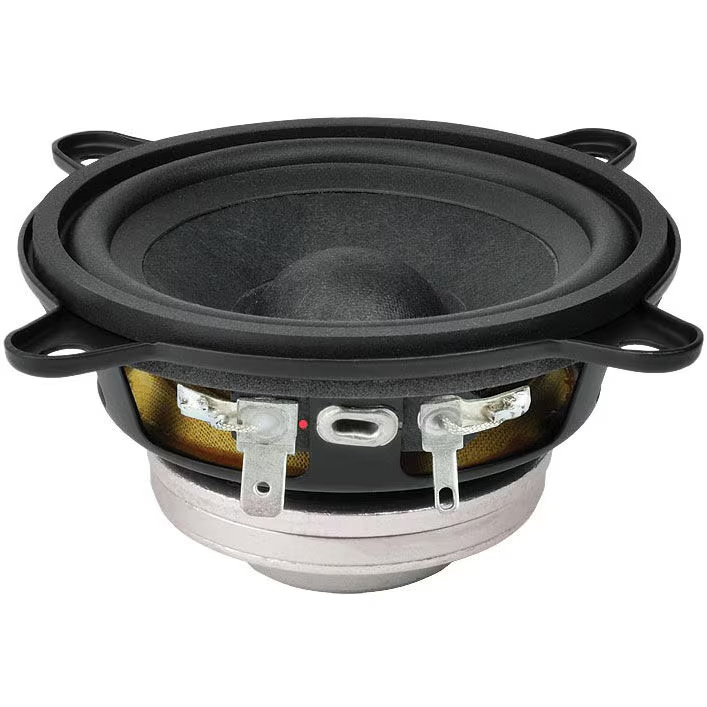

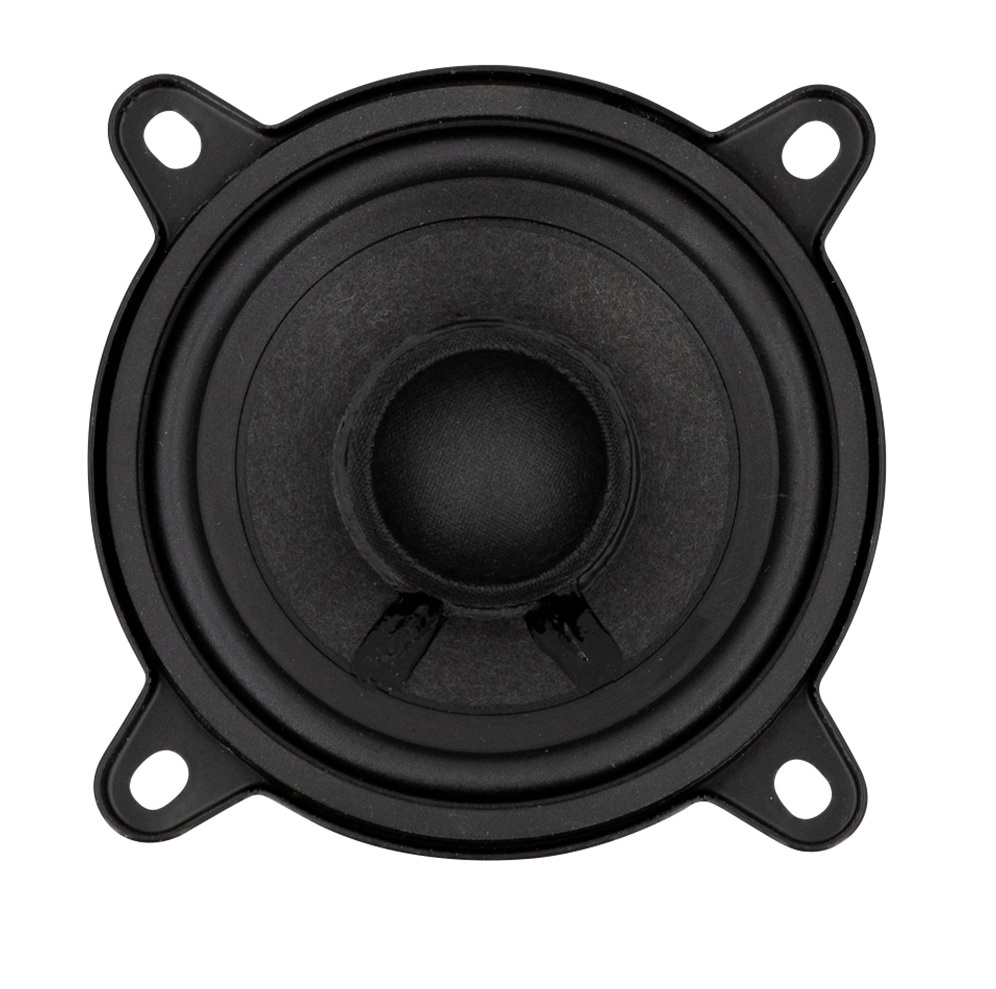

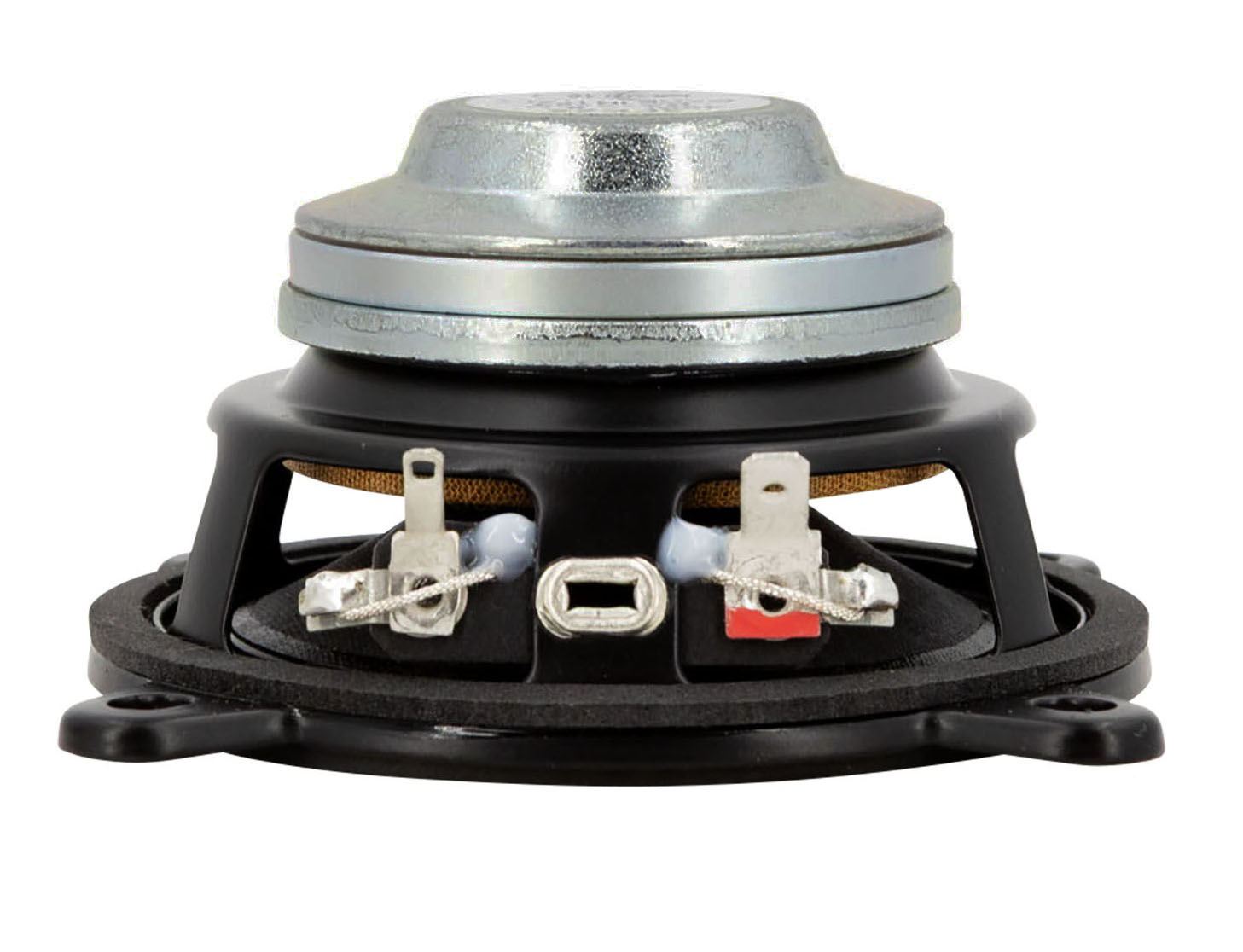

        FaitalPRO 3FE22-4F Full-range Woofer Full-range Driver Unit



        The FaitalPRO 3FE22-4F is a compact 3-inch full-range driver designed for professional and high-fidelity applications where space efficiency and audio accuracy are paramount. This 4-ohm variant offers high efficiency with a sensitivity rating of 91dB, delivering robust performance even in smaller enclosures. The lightweight neodymium magnet system reduces overall weight without compromising magnetic strength, making the driver ideal for portable PA systems, line arrays, and custom monitors. With a frequency response stretching from 100Hz to 20kHz, the 3FE22-4F produces smooth mids and articulate highs, ideal for speech reinforcement and full-range music playback. Its pressed steel basket and treated paper cone are optimized for reliable performance and tonal neutrality. Whether used standalone or in a multi-driver system, the 3FE22-4F delivers consistent quality in a minimal footprint.

        Show more

        Specifications

        Article number
        3FE22-4F
        EAN
        0848864011134
        Woofer Type
        Full Range Woofer
        Nominal Diameter
        3"
        Power Handling (RMS)
        20 Watts
        Power Handling (max)
        40 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        91 dB
        Frequency Response
        100 - 20.000 Hz
        Voice Coil Diameter
        19 mm
        DC Resistance (Re)
        3.3 Ω
        Voice Coil Inductance (Le)
        0.10 mH
        Resonant Frequency (Fs)
        110 Hz
        Mechanical Q (Qms)
        3.6
        Electromagnetic Q (Qes)
        0.40
        Total Q (Qts)
        0.36
        Diaphragm Mass Inc. Airload (Mms)
        2.4 g
        Moving Mass Of Diaphragm (Mmd)
        2.2 g
        Mechanical Compliance of Suspension (Cms)
        0.87 mm/N
        Surface Area of Cone (Sd)
        33 cm²
        BL Product (BL)
        3.7 N/A
        Compliance Equivalent Volume (Vas)
        1.3 dm³
        Maximum Linear Excursion (Xmax)
        1.73 mm
        Driver's Mechanical Losses (Rms)
        0.5 kg/s
        Voice Coil Wire Material
        Aluminium
        Voice Coil Former
        Kapton
        Basket / Frame Material
        Steel
        Magnet Material
        Neodymium
        Overall Outside Diameter
        105.6 mm
        Overall Depth
        46 mm
        Baffle Cutout Diameter
        73.6 mm
        Bolt Circle Diameter
        92 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        4.5 mm
