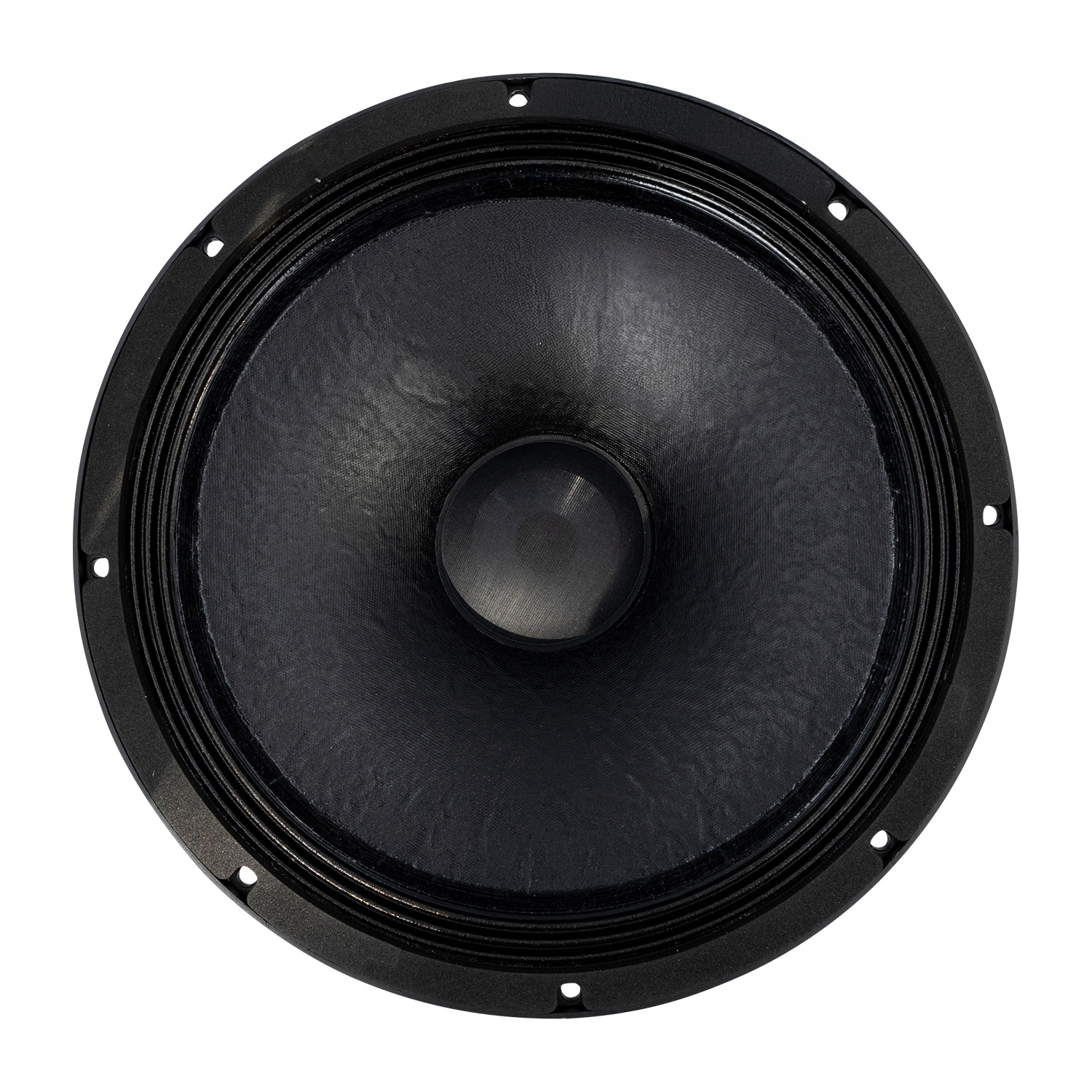

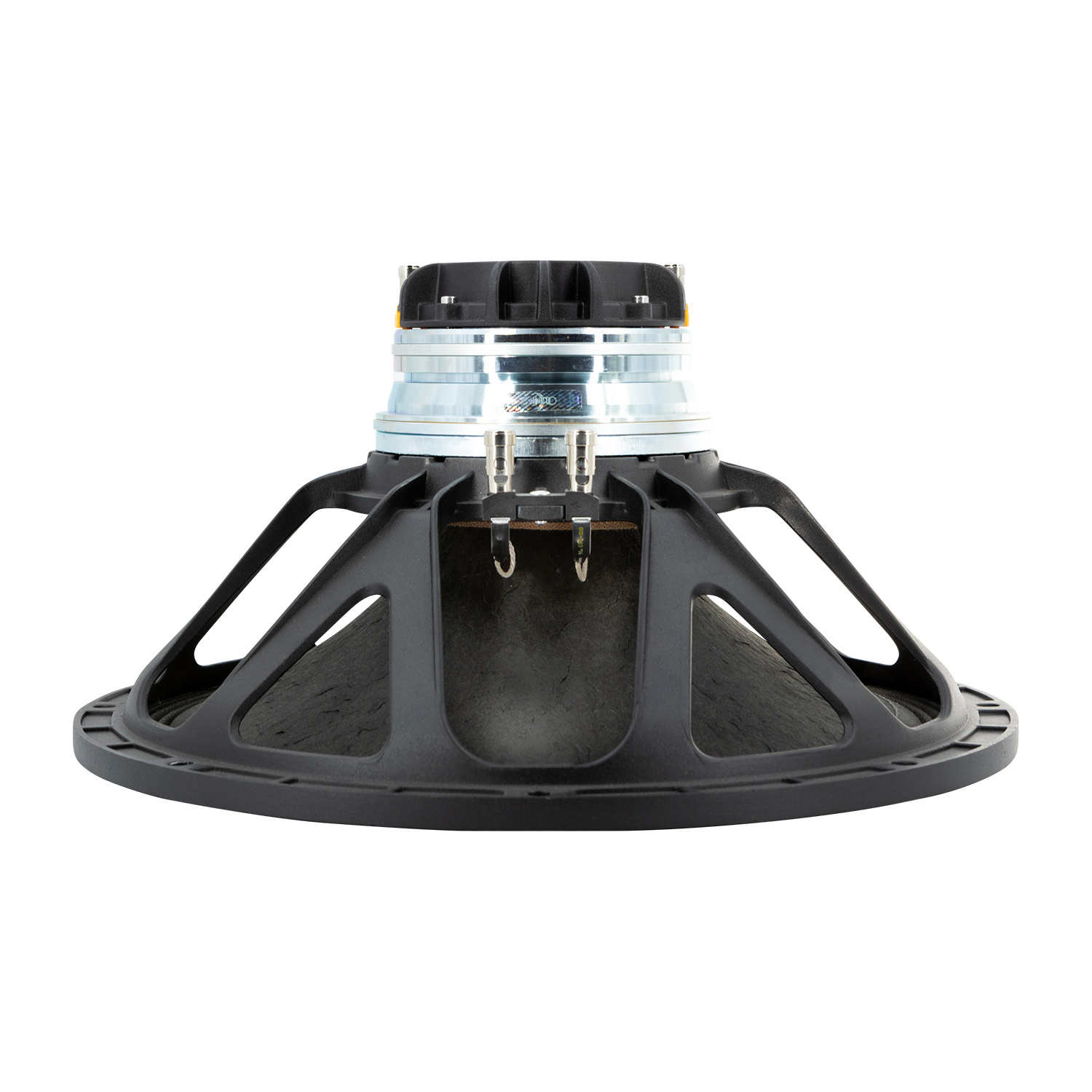

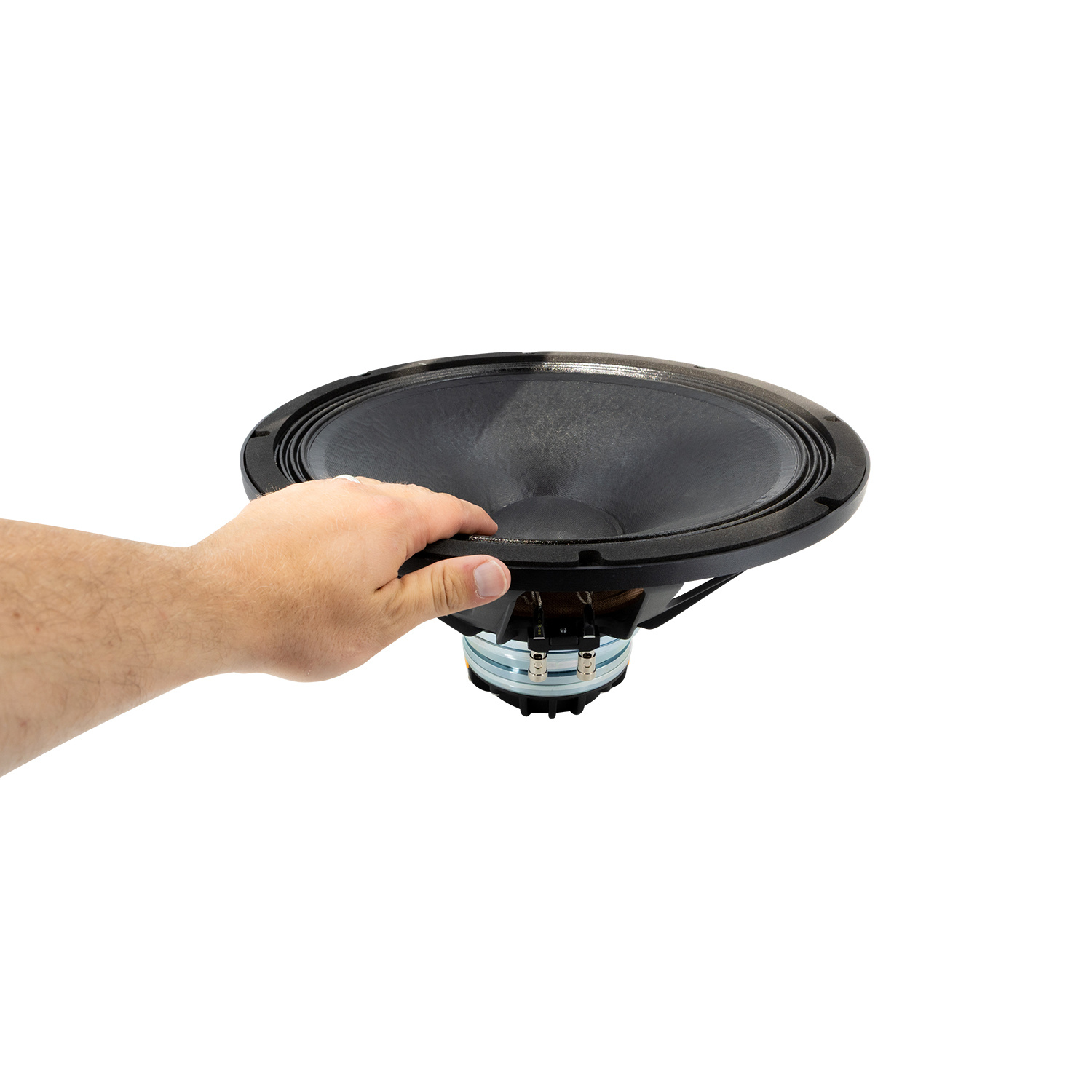

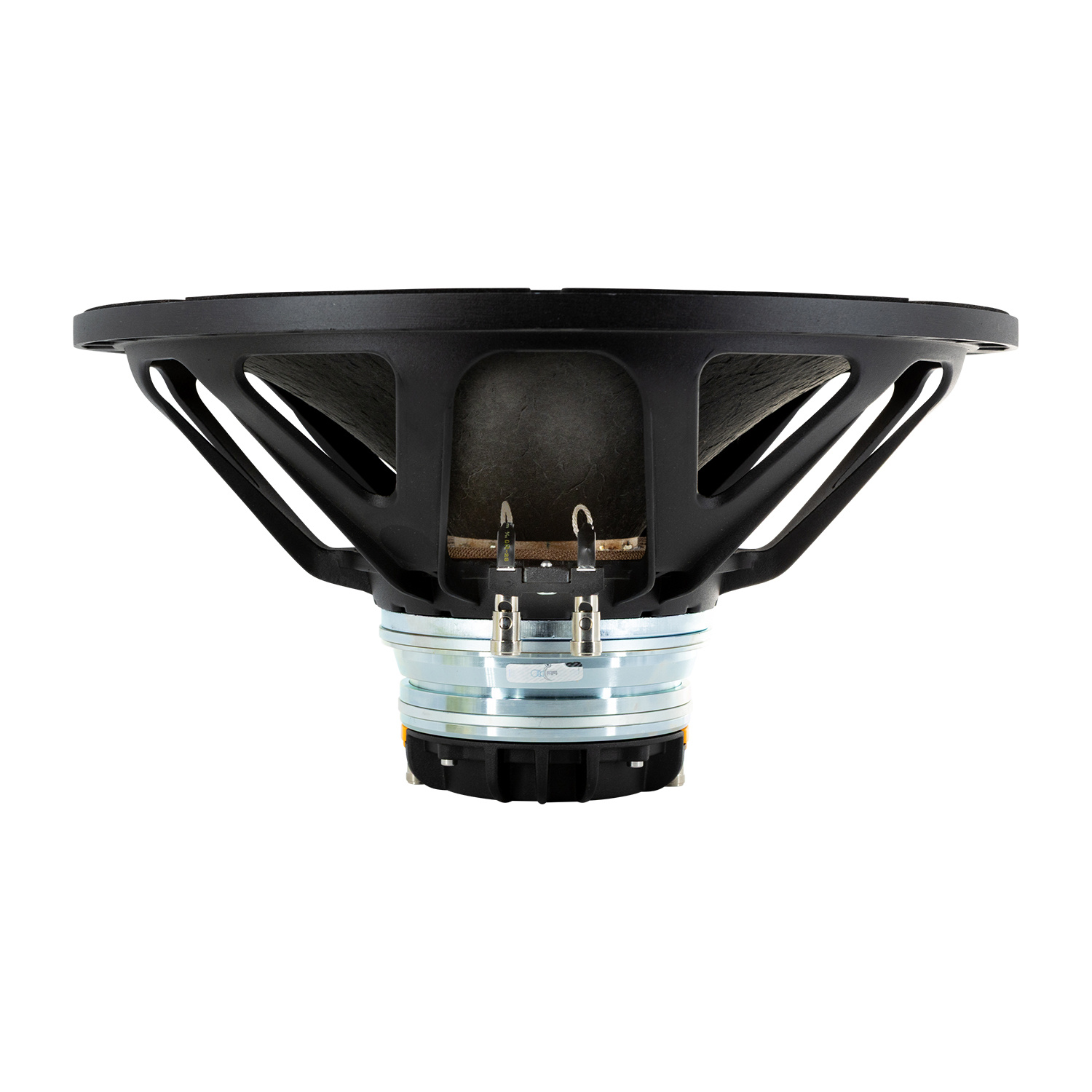

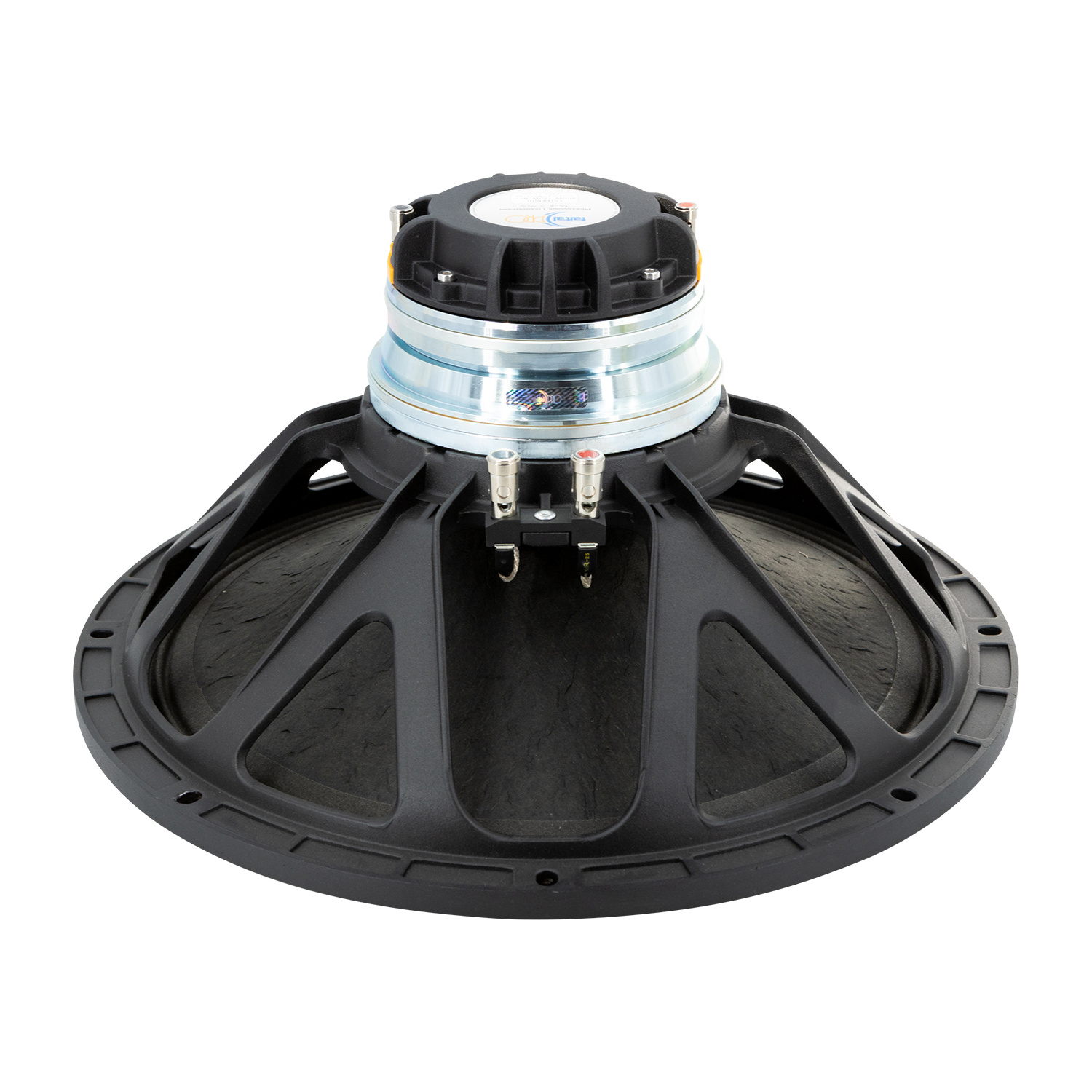

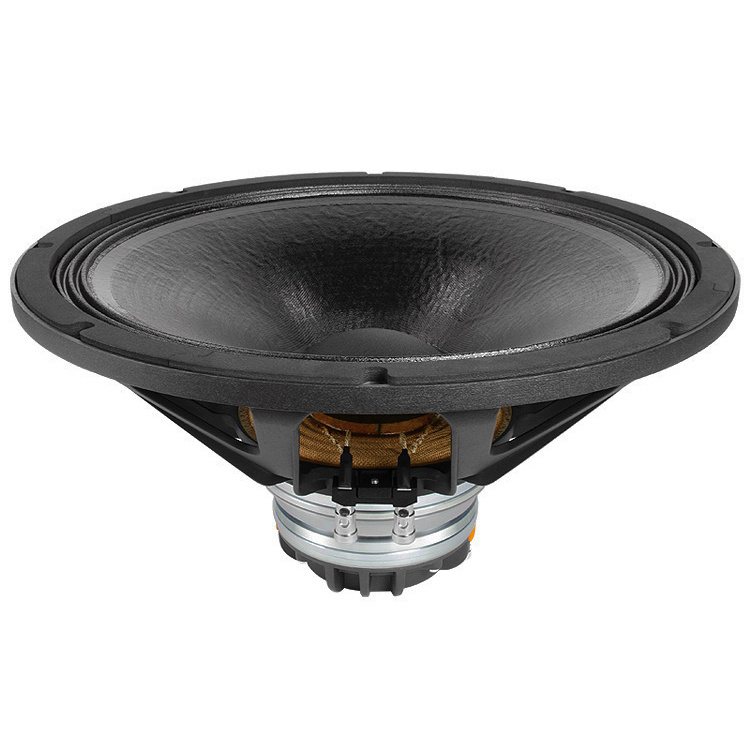

        15HX500-8P 15" Coaxial Woofer 8 Ohm

        FaitalPRO 15HX500-8P 15" Coaxial Woofer 8 Ohm

        €699,95

        2 In stock

        Add to cart

        FaitalPRO 15HX500-8P 15" Coaxial Woofer 8 Ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: FaitalPRO
        Show all Subwoofer
        15" | 8 Ω
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        € 578,47€ 699,95 2 In stock
        • -5% Purchase 4 for only € 664,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm
        15HX500-8P 15" Coaxial Woofer 8 Ohm

        Product description FaitalPRO 15HX500-8P Coaxial Woofer

        The FaitalPRO 15HX500 is a powerful coaxial loudspeaker combining a 15-inch LF woofer with a high-efficiency HF compression driver. Designed for full-range professional audio applications, it offers wide bandwidth, high SPL handling, and compact system integration in a single unit.



        Highlights of the FaitalPRO 15HX500

        • Integrated 15" low-frequency woofer and 2.9" high-frequency compression driver
        • 400 W AES (LF) and 90 W AES (HF) power handling for high-output performance
        • Excellent sensitivity: 97 dB (LF) and 105 dB (HF) for efficient system response
        • Neodymium magnets for both LF and HF keep the weight at just 6.1 kg



        Product details FaitalPRO 15HX500

        FaitalPRO 15HX500 Coaxial Loudspeaker Driver – 8 Ohm Version



        The FaitalPRO 15HX500 is a professional coaxial transducer integrating a 15-inch woofer and a 1.4" exit compression driver in a single frame. The LF section features a 77 mm (3 in) copper voice coil on a glass fiber former, handling up to 400 W AES and delivering deep, controlled bass from 40 Hz to 3150 Hz. The HF driver employs a 74 mm (2.91 in) aluminum voice coil with a titanium dome diaphragm and neodymium motor, offering smooth and extended high-frequency response from 500 Hz to 20 kHz.

        With 105 dB sensitivity in the HF and 97 dB in the LF, this coaxial driver is highly efficient and ideal for compact, high-output enclosures in stage monitors, front fills, or portable full-range systems. The integrated design improves phase coherence and reduces enclosure volume requirements, while the 900 Hz recommended crossover point ensures clean, natural transition between LF and HF sections. Its aluminum basket and demodulation ring in the woofer further enhance thermal and mechanical performance.

        Show more

        Specifications

        Article number
        15HX500-8P
        EAN
        9508736425841
        Woofer Type
        Coaxial Woofer
        Nominal Diameter
        15''
        Power Handling (RMS)
        400 Watts
        Power Handling (max)
        800 Watts (LF) + 180 Watts (HF)
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        97 dB (LF) + 105 dB (HF)
        Frequency Response
        40-3.150 Hz (LF) + 500-20.000 Hz (HF)
        Voice Coil Diameter
        77 mm (LF) + 74 mm (HF)
        DC Resistance (Re)
        5 Ω (LF) + 5.6 Ω (HF)
        Voice Coil Inductance (Le)
        0.84 mH
        Resonant Frequency (Fs)
        40 Hz
        Mechanical Q (Qms)
        5.5
        Electromagnetic Q (Qes)
        0.29
        Total Q (Qts)
        0.28
        Diaphragm Mass Inc. Airload (Mms)
        110.0 g
        Moving Mass Of Diaphragm (Mmd)
        81.3 g
        Mechanical Compliance of Suspension (Cms)
        0.14 mm/N
        Surface Area of Cone (Sd)
        864 cm²
        BL Product (BL)
        22.2 N/A
        Compliance Equivalent Volume (Vas)
        150.1 cm³
        Maximum Linear Excursion (Xmax)
        9.40 mm
        Driver's Mechanical Losses (Rms)
        5.0 kg/s
        Voice Coil Wire Material
        Cu (LF) + Al (HF)
        Voice Coil Former
        Glass Fiber (LF) + Kapton (HF)
        Basket / Frame Material
        Aluminium
        Magnet Material
        Neodymium
        Overall Outside Diameter
        380 mm
        Overall Depth
        200 mm
        Baffle Cutout Diameter
        352 mm
        Bolt Circle Diameter
        374 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        7.4 mm

        Show more
