        10FE400-4F 10" Bass-midwoofer 4 Ohm

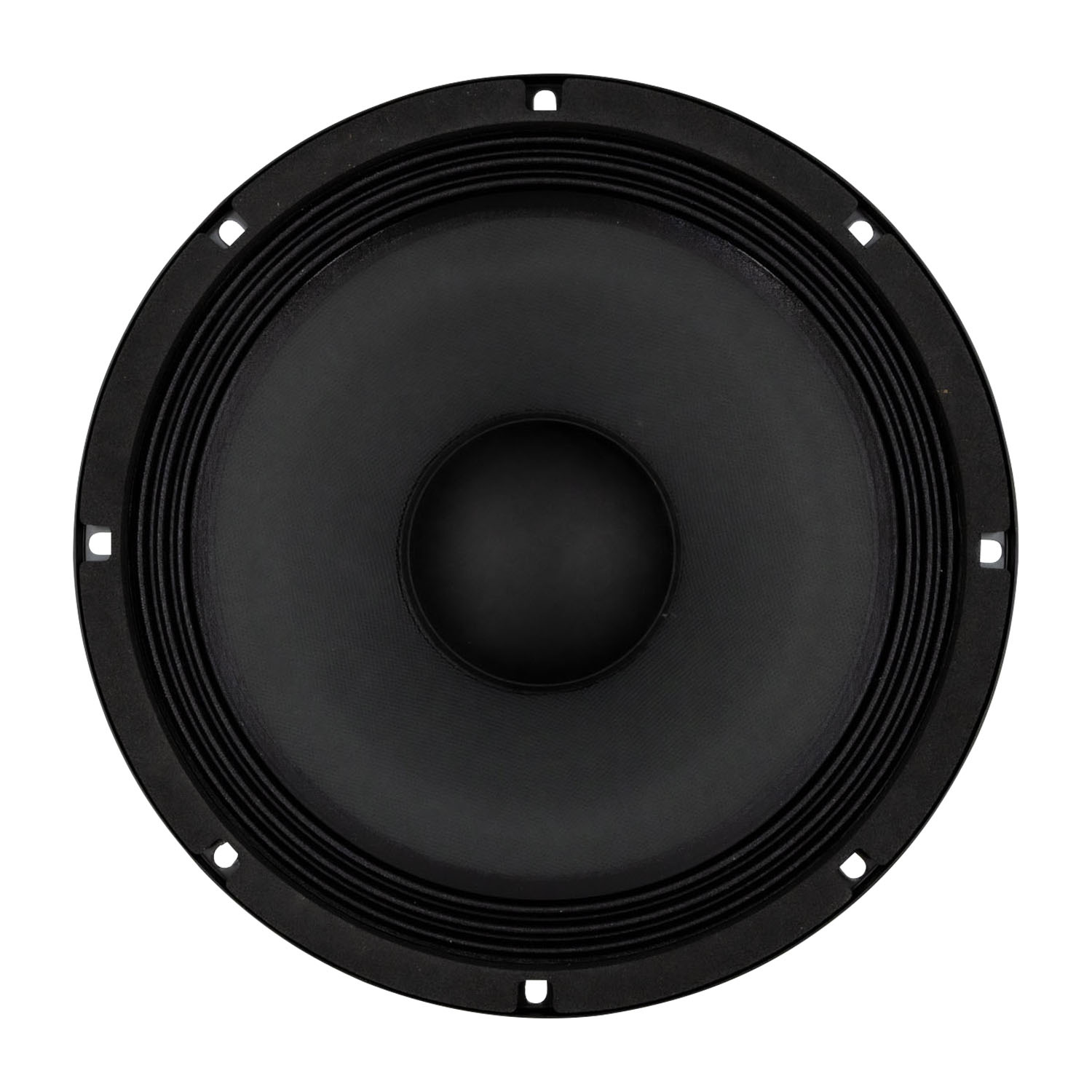

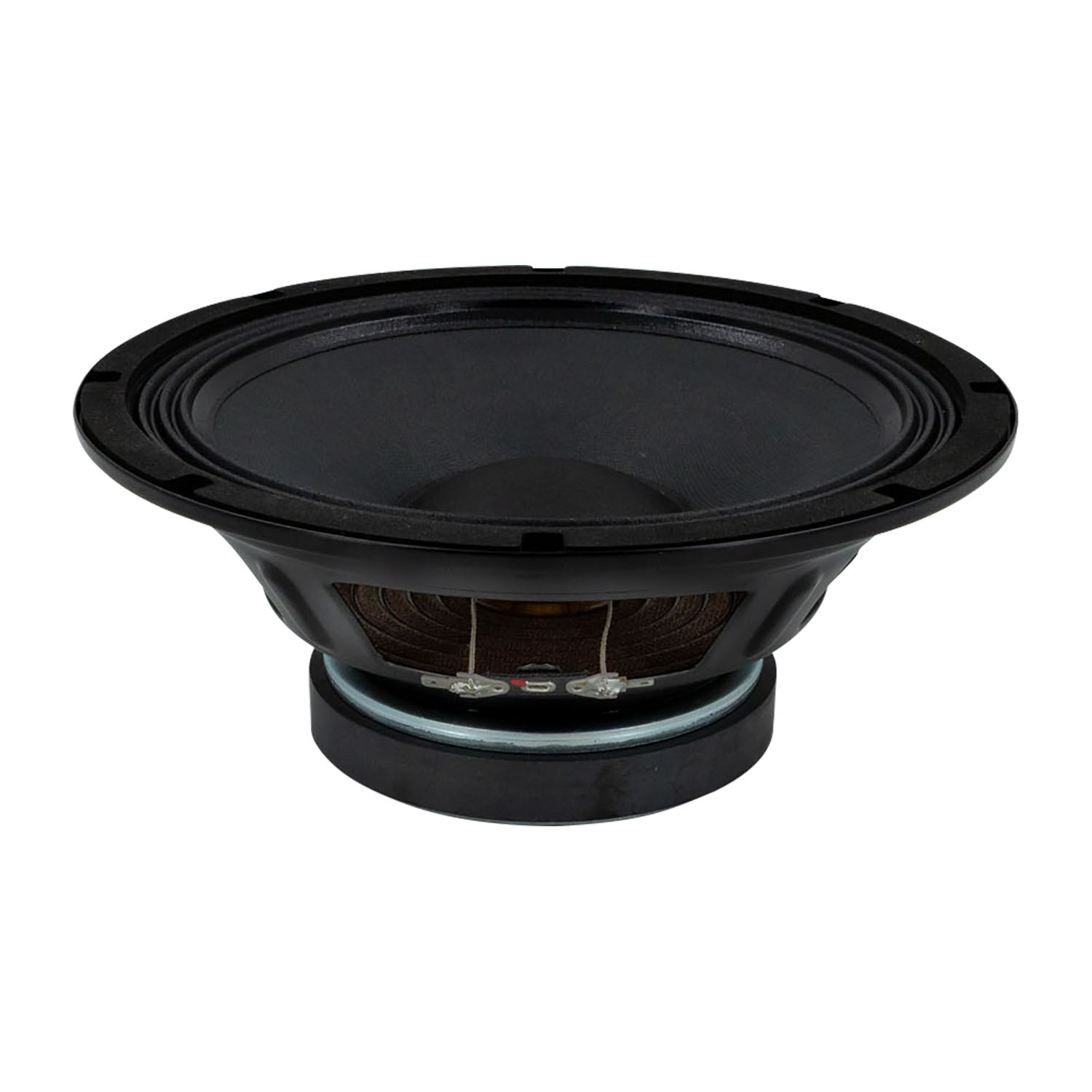

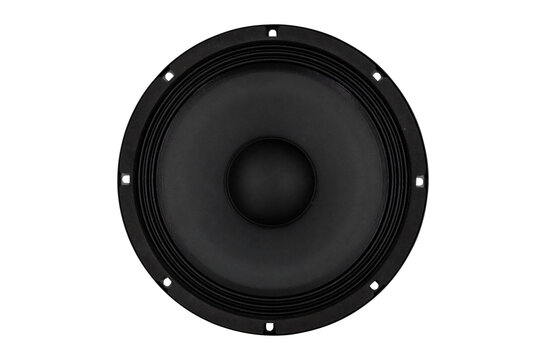

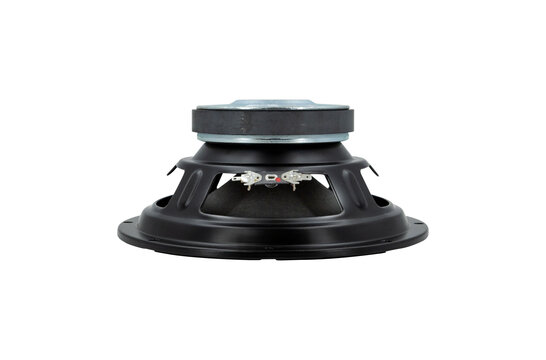

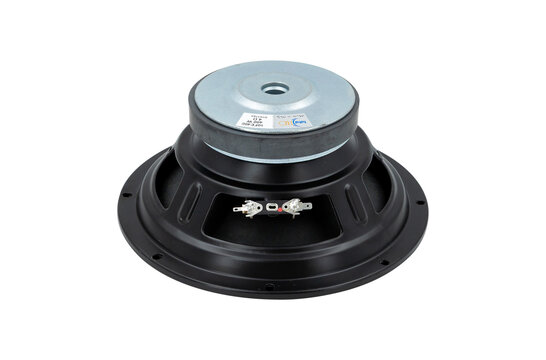

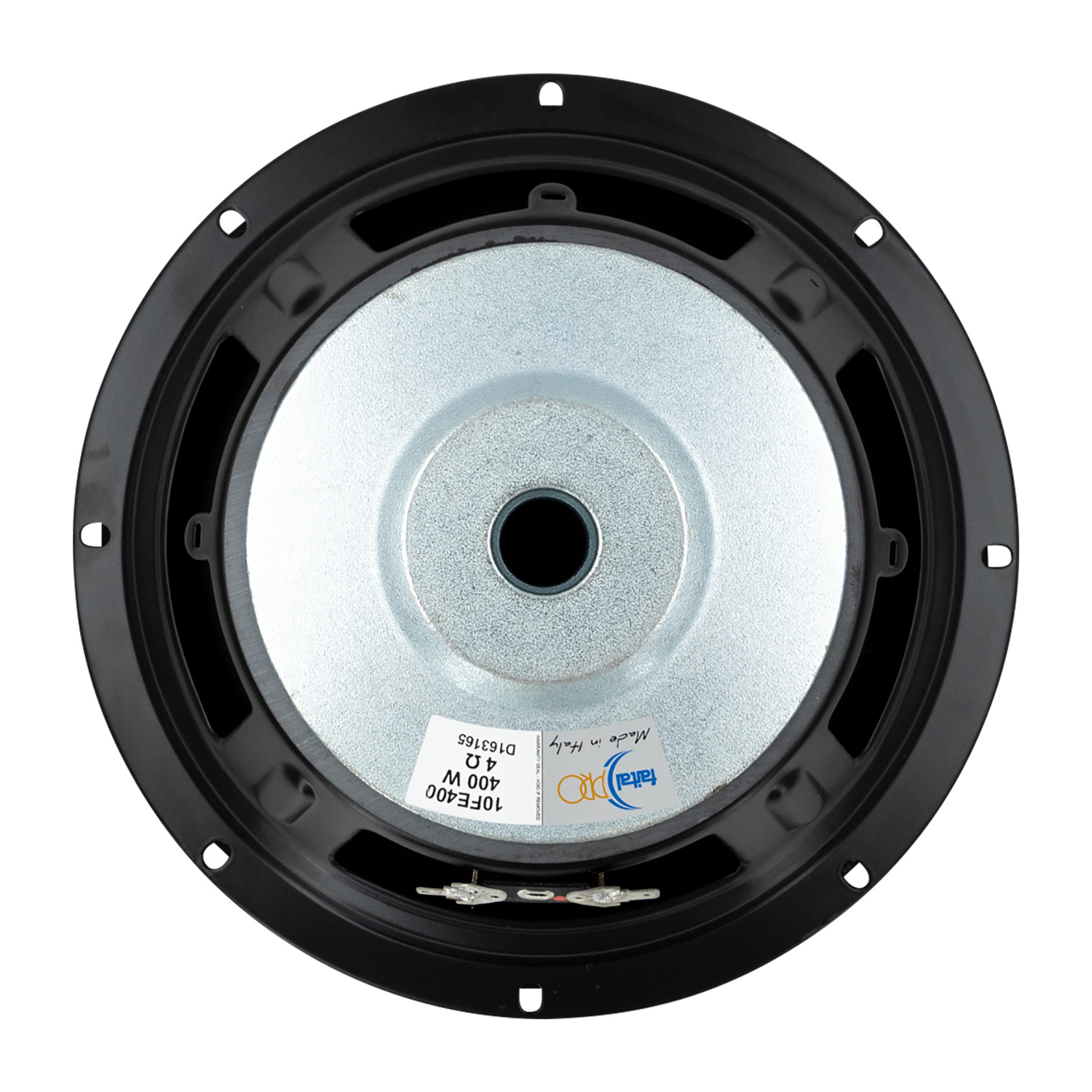

        FaitalPRO 10FE400-4F 10" Bass-midwoofer 4 Ohm

        €76,95

        4 In stock

        Add to cart

        FaitalPRO 10FE400-4F 10" Bass-midwoofer 4 Ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: FaitalPRO
        Show all Bass-mid woofer
        10" | 4 Ω
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        € 63,60€ 76,95 4 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm
        10FE400-4F 10" Bass-midwoofer 4 Ohm

        Product description FaitalPRO 10FE400-4F Bass-midwoofer

        The FaitalPRO 10FE400-4F is a 10" 4 Ohm bass-midwoofer with 200 W AES power handling, 95 dB sensitivity and a usable frequency range from 60 Hz to 4500 Hz.



        Highlights of the FaitalPRO 10FE400-4F

        • 10" bass-midwoofer with 4 Ohm nominal impedance
        • 200 W AES power handling and 400 W maximum power handling
        • 95 dB sensitivity for efficient output
        • 60 Hz to 4500 Hz frequency range
        • 44 mm copper voice coil on an aluminium former
        • Ferrite ring magnet, steel basket and triple-roll treated polycotton surround



        Product details FaitalPRO 10FE400-4F

        FaitalPRO 10FE400-4F 10" Bass-midwoofer 4 Ohm



        The FaitalPRO 10FE400-4F is a 10" bass-midwoofer designed for strong output and efficient performance. With 200 W AES power handling, 400 W maximum power handling and 95 dB sensitivity, it is well suited for demanding loudspeaker designs that need a capable low and mid-frequency driver.



        This 4 Ohm woofer has a frequency range of 60 Hz to 4500 Hz, making it suitable for bass-mid duties where extended midrange reach is useful. Key motor parameters include a 44 mm copper voice coil, aluminium former, 1.10 T flux density and a ferrite ring magnet.



        The mechanical design uses a steel basket and a triple-roll treated polycotton surround. Installation-relevant measurements include a 233 mm baffle cutout, 111 mm depth, 7 mm flange and gasket thickness, and a net weight of 2.95 kg.



        For builders working with professional audio components, the 10FE400-4F offers practical Thiele and Small parameters including Fs 60 Hz, Qts 0.41, Vas 33.6 dm³, Sd 362 cm² and 5.62 mm Xmax. These values help with enclosure planning and system integration.

        Show more

        Specifications

        Article number
        10FE400-4F
        EAN
        9503324611484
        Woofer Type
        LF Loudspeaker
        Nominal Diameter
        250
        Power Handling (RMS)
        200
        Power Handling (max)
        400
        Impedance (Z)
        4
        Sensitivity (SPL at 1m / 2.83V)
        95
        Frequency Response
        60-4500
        Voice Coil Diameter
        44
        DC Resistance (Re)
        3.2
        Voice Coil Inductance (Le)
        0.5
        Resonant Frequency (Fs)
        60
        Mechanical Q (Qms)
        5.2
        Electromagnetic Q (Qes)
        0.44
        Total Q (Qts)
        0.41
        Diaphragm Mass Inc. Airload (Mms)
        38.3
        Moving Mass Of Diaphragm (Mmd)
        30.5
        Mechanical Compliance of Suspension (Cms)
        0.18
        Surface Area of Cone (Sd)
        362
        BL Product (BL)
        10.2
        Compliance Equivalent Volume (Vas)
        33.6
        Maximum Linear Excursion (Xmax)
        5.62
        Driver's Mechanical Losses (Rms)
        2.8
        Surround Material
        Treated Polycotton
        Voice Coil Wire Material
        Cu
        Voice Coil Former
        Al
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite Ring
        Overall Outside Diameter
        260
        Overall Depth
        111
        Baffle Cutout Diameter
        233
        Bolt Circle Diameter
        246

        Show more
