    Samba MT | Bookshelf Speaker Kit | Components Only

    € 132,19€ 159,95 Out of stock: please contact us for accurate delivery times

    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The Samba cabinet kit delivers reference quality sound with natural high frequency response and powerful low end capability. This premium design delivers pinpoint imaging, revealing detail, and flat response with minimal distortion. This kit includes only the components, not the knock-down cabinet.



    • The Samba speaker kit delivers revealing and accurate response with incredible detail
    • Incredibly flat response throughout the crossover region, ±1.5 dB from 500-15,000 Hz
    • Full 6 dB of baffle step compensation for powerful bass response, even away from a wall


    Product details

    Denovo Audio Samba MT | Bookshelf Speaker Kit | Components Only


    Designed by the engineers at Dayton Audio, the Samba speaker kit is a compact 2-way bookshelf speaker that provides a reference quality sound without the usual high price. The Sambas produce an extremely detailed and accurate sound while still delivering a natural and non-fatiguing quality that is perfect for long listening sessions. Both the woofer and tweeter use low distortion motors and non-resonant diaphragms to deliver accurate sound that allows the speakers seemingly disappear into your listening environment. The Samba speaker kit will be right at home in everything from a high-end recording studio to any audiophile's living room.


    Bass and midrange frequencies are handled by the popular Dayton Audio RS180P-4 7" Reference Paper Woofer. With a reinforced paper cone and low-distortion motor system with dual shorting rings, this driver sets the standards for value in high-performance woofers. High frequency duties go to the Dayton Audio RST28F-4 1-1/8" Reference Series Fabric Dome Tweeter. Designed to be a match for the Reference Series woofers, this tweeter was the obvious choice and with a state-of-the-art Ferrofluid cooled motor system, including copper shorting rings, to ensure that high frequency content is reproduced as transparently as possible, assuring studio-quality performance.

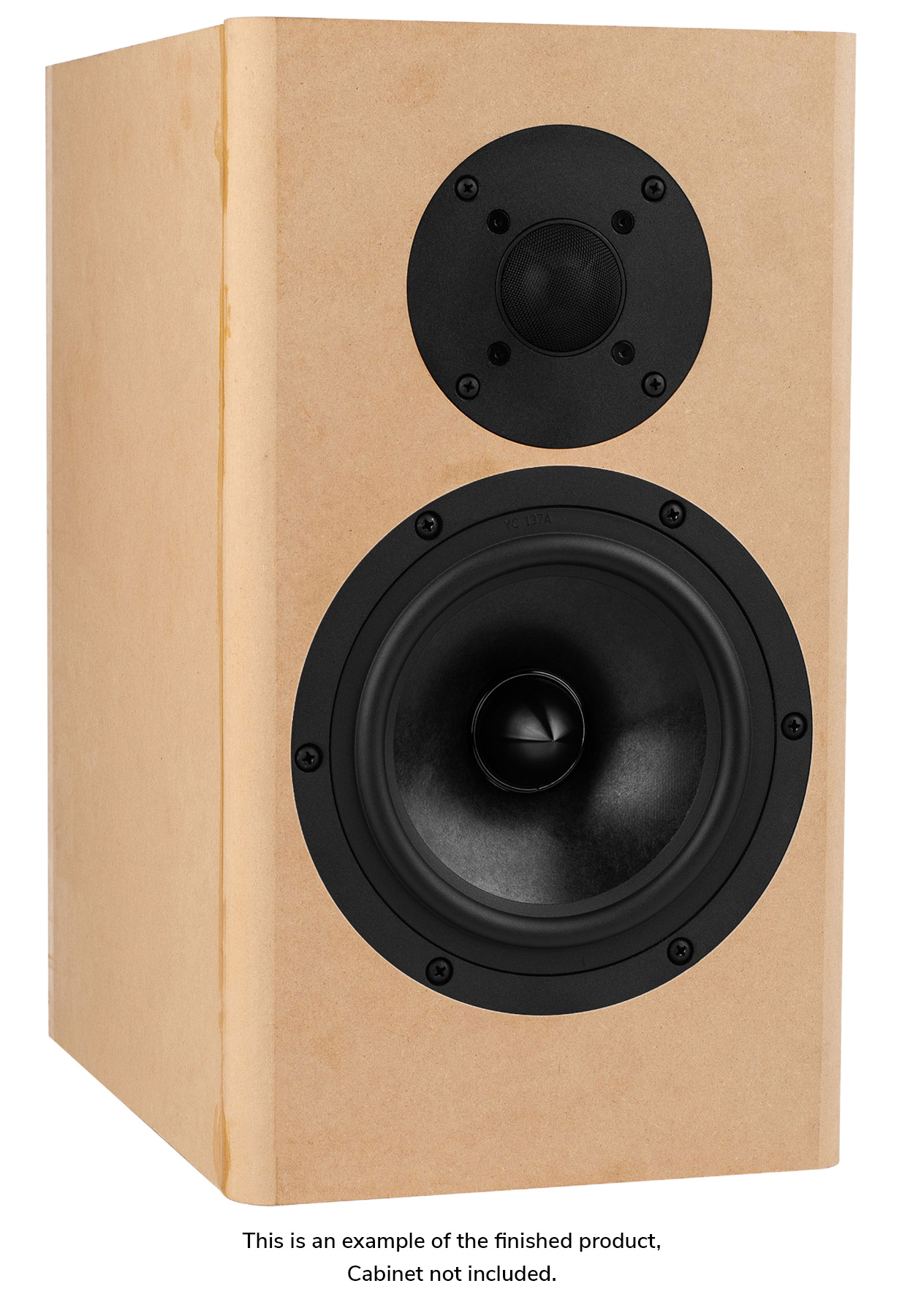

    The solid 3/4" MDF enclosure panels are all CNC milled by Denovo Audio to tight tolerances ensuring easy assembly. The finished enclosure includes a center brace tying all sides together minimizing cabinet resonances. Recesses for flush mounting the drivers and the opening for the port are pre-cut making assembly a snap.

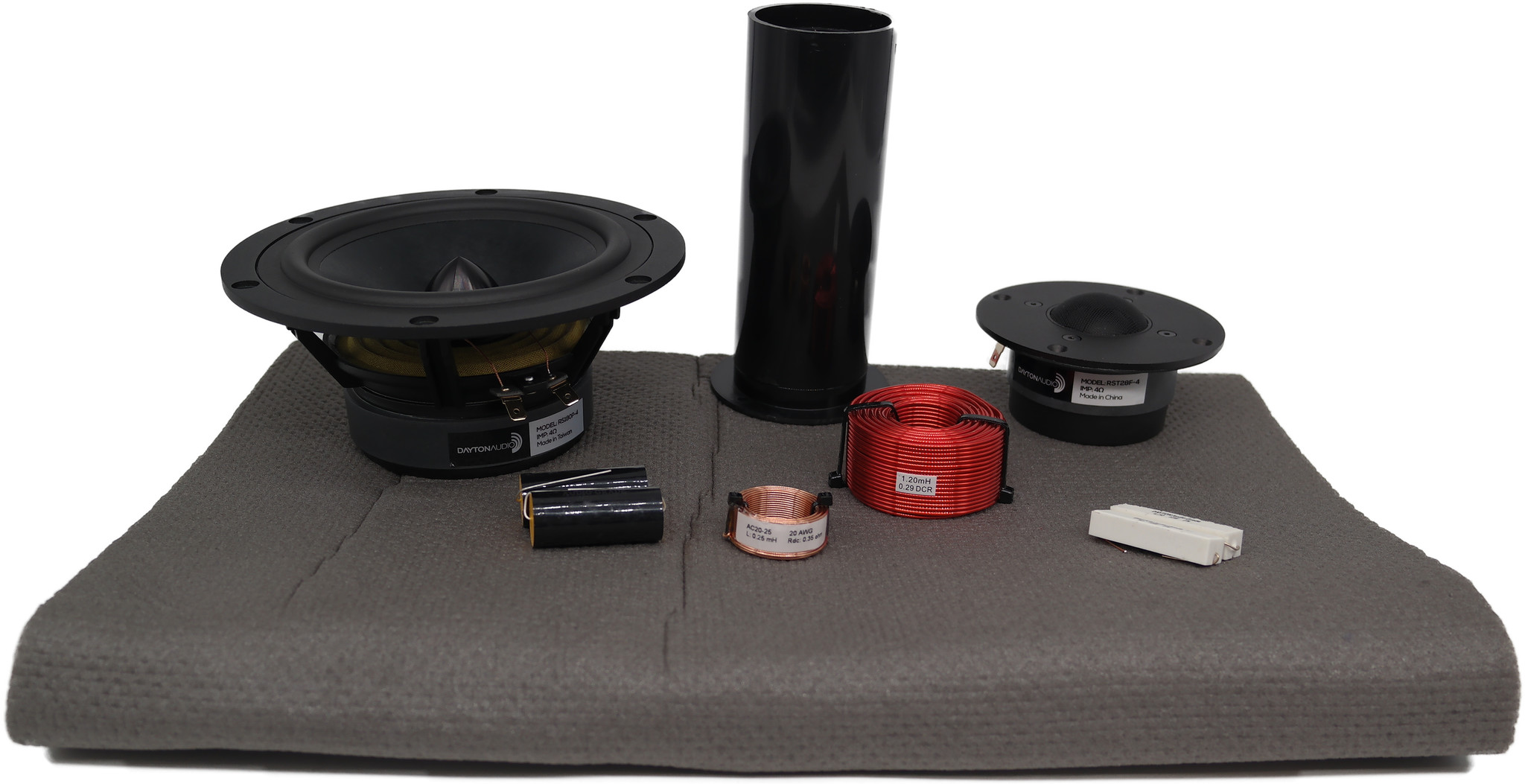

    This kit includes nearly everything you need to build a top-notch speaker in no time, including: drivers, port, damping material, and crossover components.


    This kit includes parts to build a single speaker.


    Note: Screws, Cabinets, baffle, binding posts, and speaker wire are not included.


    Specifications: Power handling: 70 watts RMS/140 watts max • Frequency response: 40-20,000 Hz • Impedance: 4 ohms • Sensitivity: 87 dB 1W/1m• Dimensions: 15" H x 8.5" W x 11-3/4" D.


    Article number
    Samba MT Components


    5 from 5Based on 2 reviews
    Review this product
    5 of 5
    Even over maatvoering op de baffle. Als je een hoogte van 381mm aanhoudt zit het centrum van de tweeter op ~ 85 en die van de midwoofer op ~235 mm vanaf de bovenkant gemeten. Succes
    By Eelco on 29 May 2021
    5 of 5
    Dit is een heel fijne speaker. Mooi uitgebalanceerd geluidsbeeld. Ik had eerder al de Amiga MT gebouwd en vond de midwoofer er cool uitzien. Op basis van beoordelingen de componenten kit gekocht en zelf de kasten gemaakt. De midwoofer van de Samba is dezelfde maar dan van papier.
    De maten van de speaker plaatsing kon ik nergens vinden dus heb ik zelf afgeleid. Maar ze zien er gaaf uit. Deze papieren midwoofer vindt ik zelfs mooier dan die van de Amiga (alu).
    Over het geluid. Hij gaat niet zo diep als de Amiga maar ik vind het hoog wat sprankelijker en er zit evengoed een bass met autoriteit in. Heb hem nu aangesloten op de PASS ACA klasse A DIY versterker en dat is een lekkere combinatie.
    By Eelco on 28 May 2021
