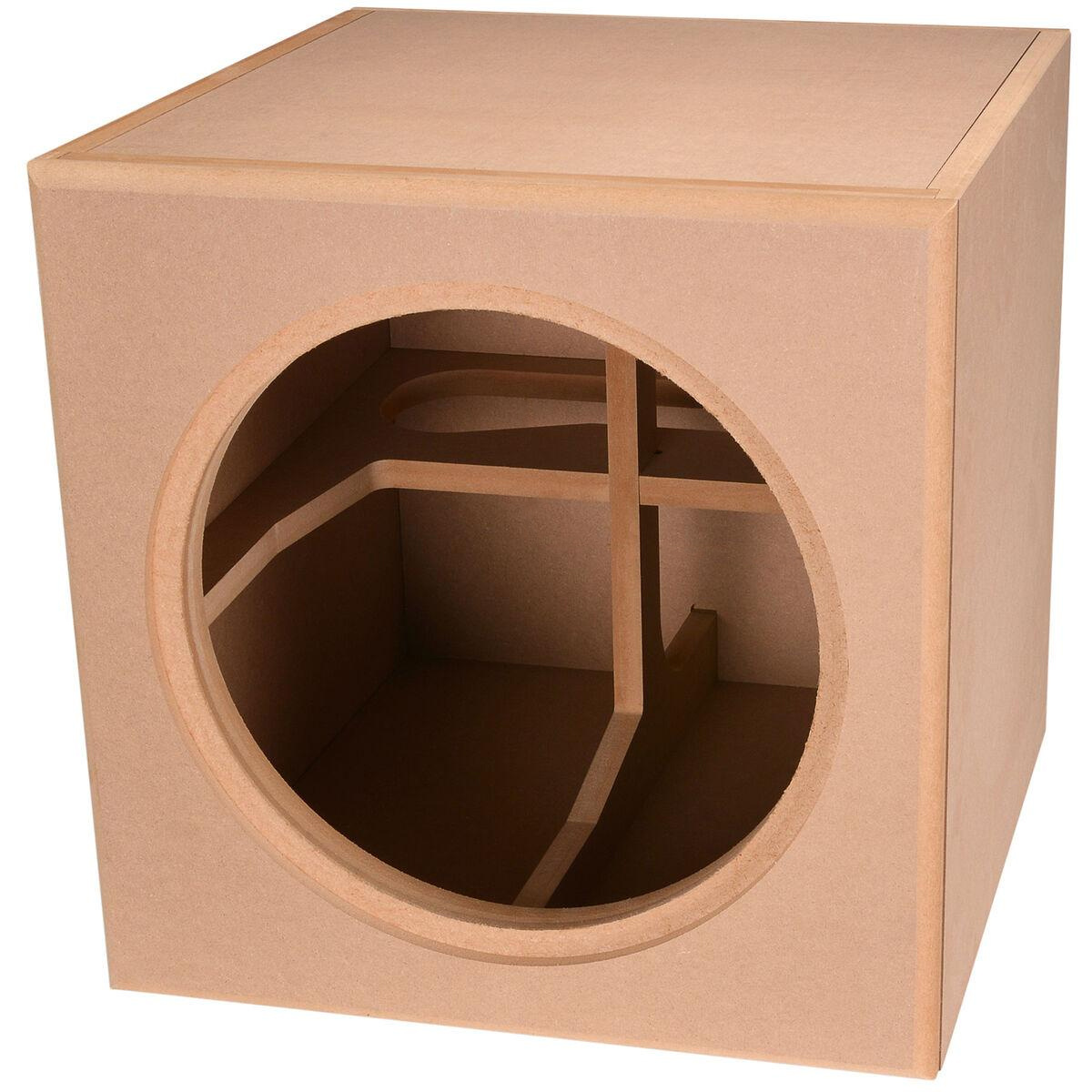

Build the ultimate subwoofer using this extremely rigid, 85 liter subwoofer flatpack. Extremely well thought out, this cabinet includes precision-machined panels that include dadoes, a double-thick front baffle, and a unique two-piece brace system.
- 85 liter cabinet made of 3/4" MDF panels with a 1-1/2" thick front baffle

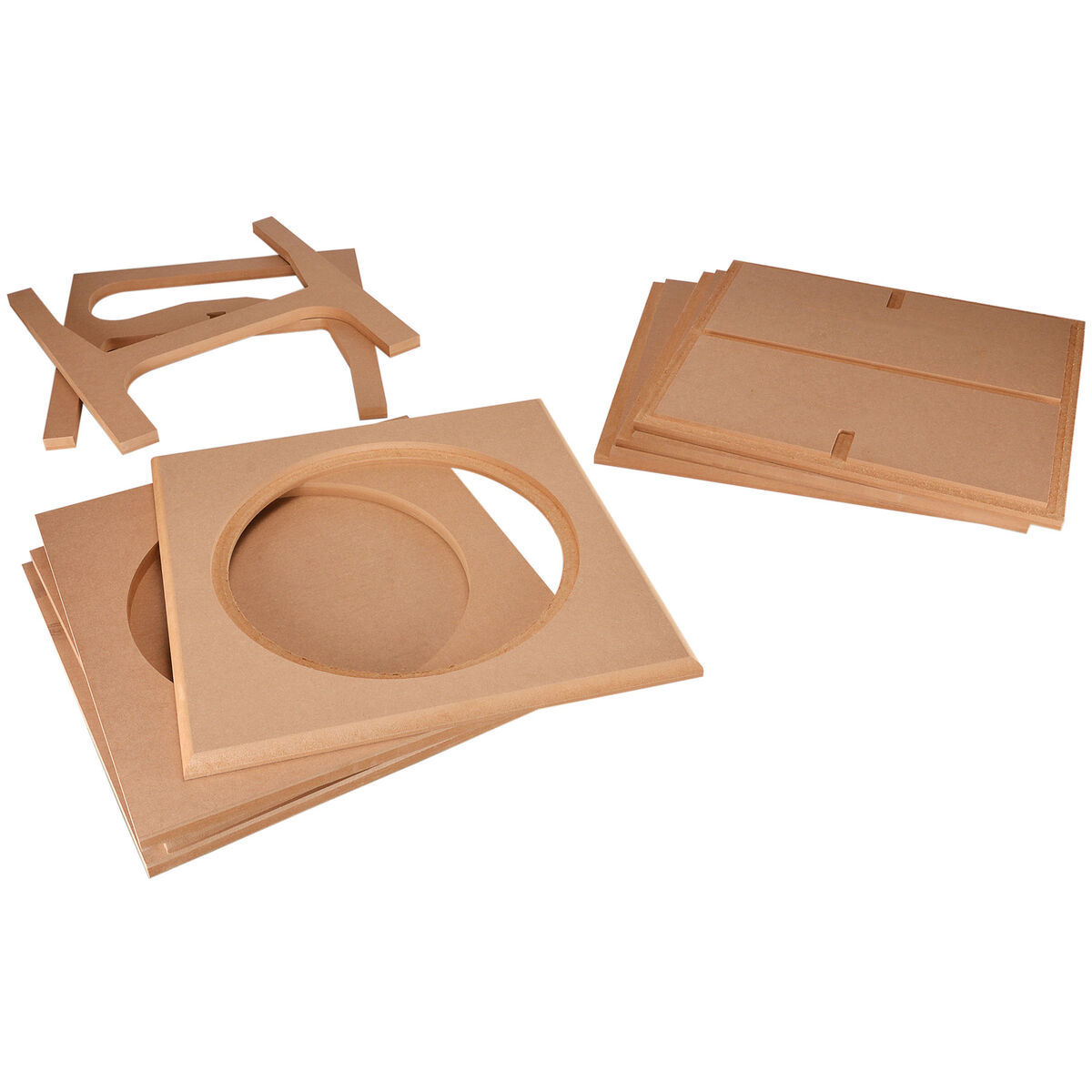

- CNC-machined dadoes, subwoofer cutout and recess, and a unique bracing system that increases cabinet rigidity
- Designed specifically for the Dayton Audio Ultimax 15" subwoofer
Denovo Audio 15" Ultimax DIY Cabinet Flatpack
This CNC machined cabinets make it easy for the beginner to end up with amazing finished results without all of the time and effort necessary to perfect your woodworking skills. This cabinet is designed for speaker builders and designers who don't have access to tools or a woodshop.
This particular cabinet is designed specifically for the Dayton Audio 15" Ultimax subwoofer, but works for any subwoofer with an overall diameter of 15-3/8" or less, and a cutout requirement of 14" or less. For optimum performance with the Ultimax 15" subwoofer, add three pounds of Acousta-Stuf polyfill for a Qtc of 0.707 and an f3 of 35 Hz.

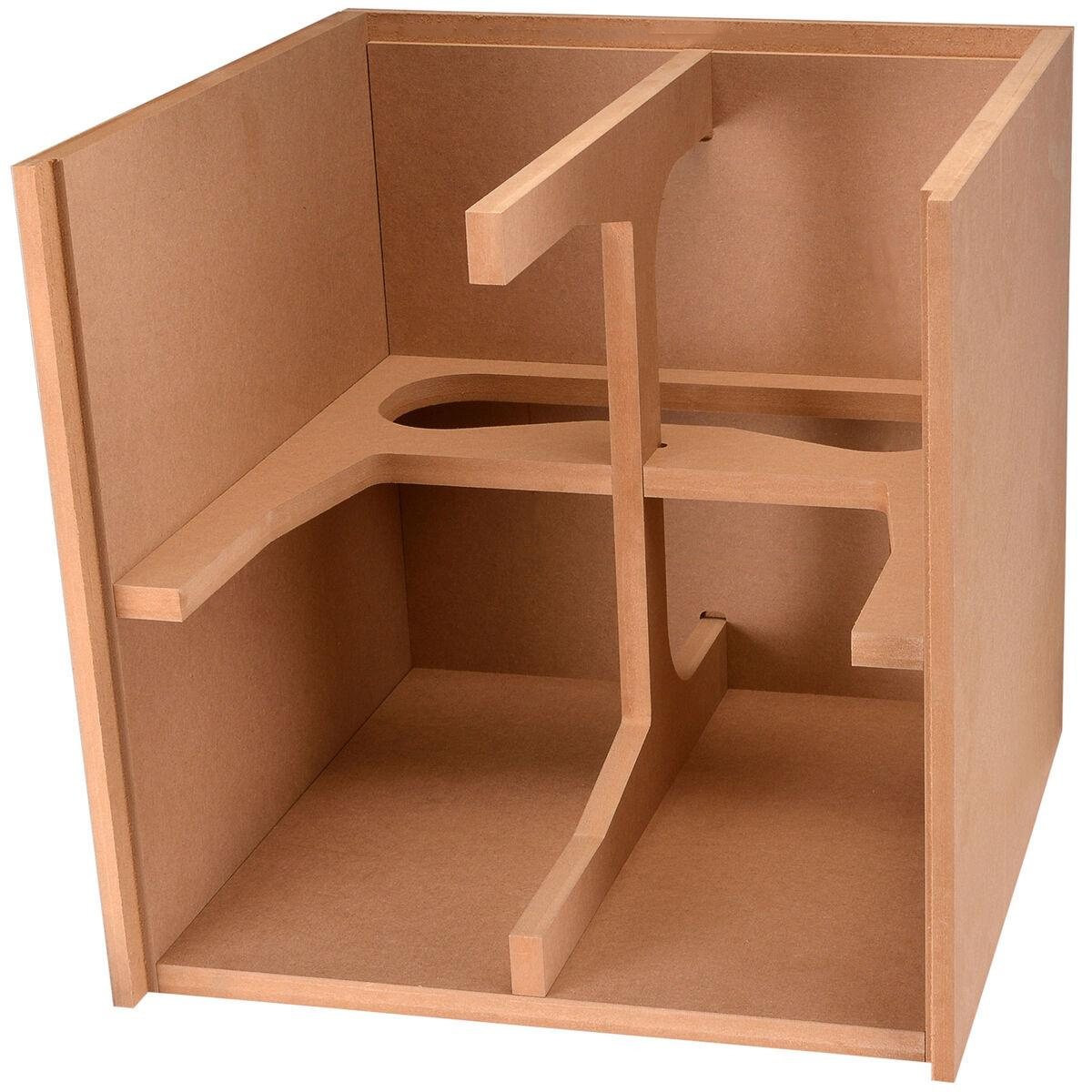

During the CNC manufacturing process, rabbets dadoes are cut into the back panel for precise panel alignment. A unique two-piece brace adds superior rigidity without affecting the subwoofer's performance. Both side panels feature 3/4" rabbeted extensions with recesses to perfectly install the first piece of the two-part, double thick baffle. Plate amplifier installation is made easy by following the scribed interior guide with a jig saw and by modifying one of the braces.
The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 15" High Output Reference Series subwoofer. All that's left to do is finish it to match your décor or paint it to stand out. When your friends ask about it, you get the pleasure of saying, "I built it myself!"
*This cabinet still needs to be assembled.*
