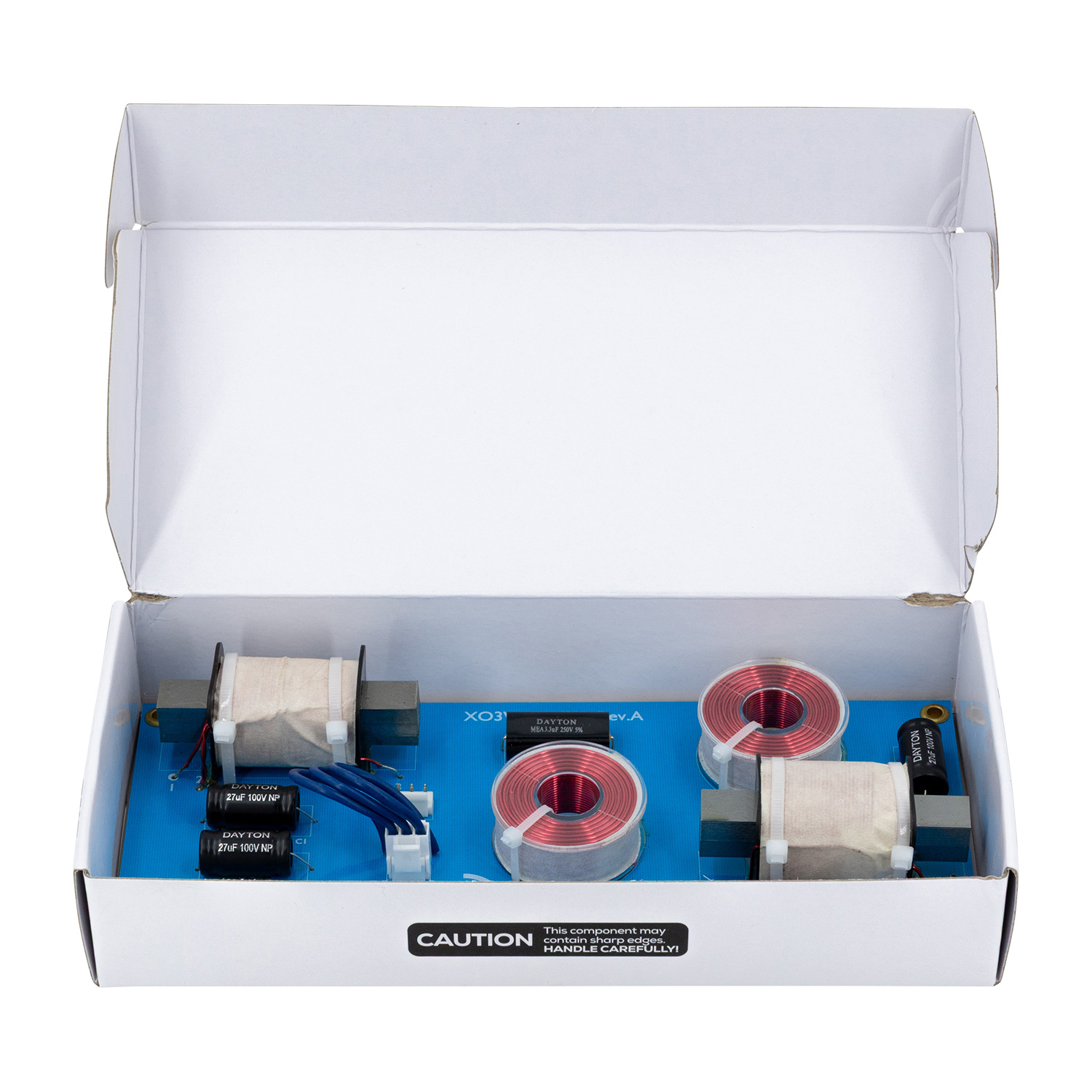

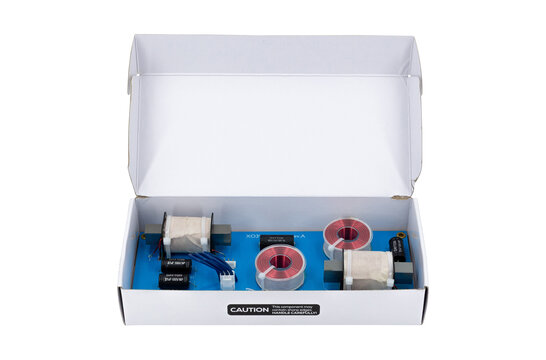

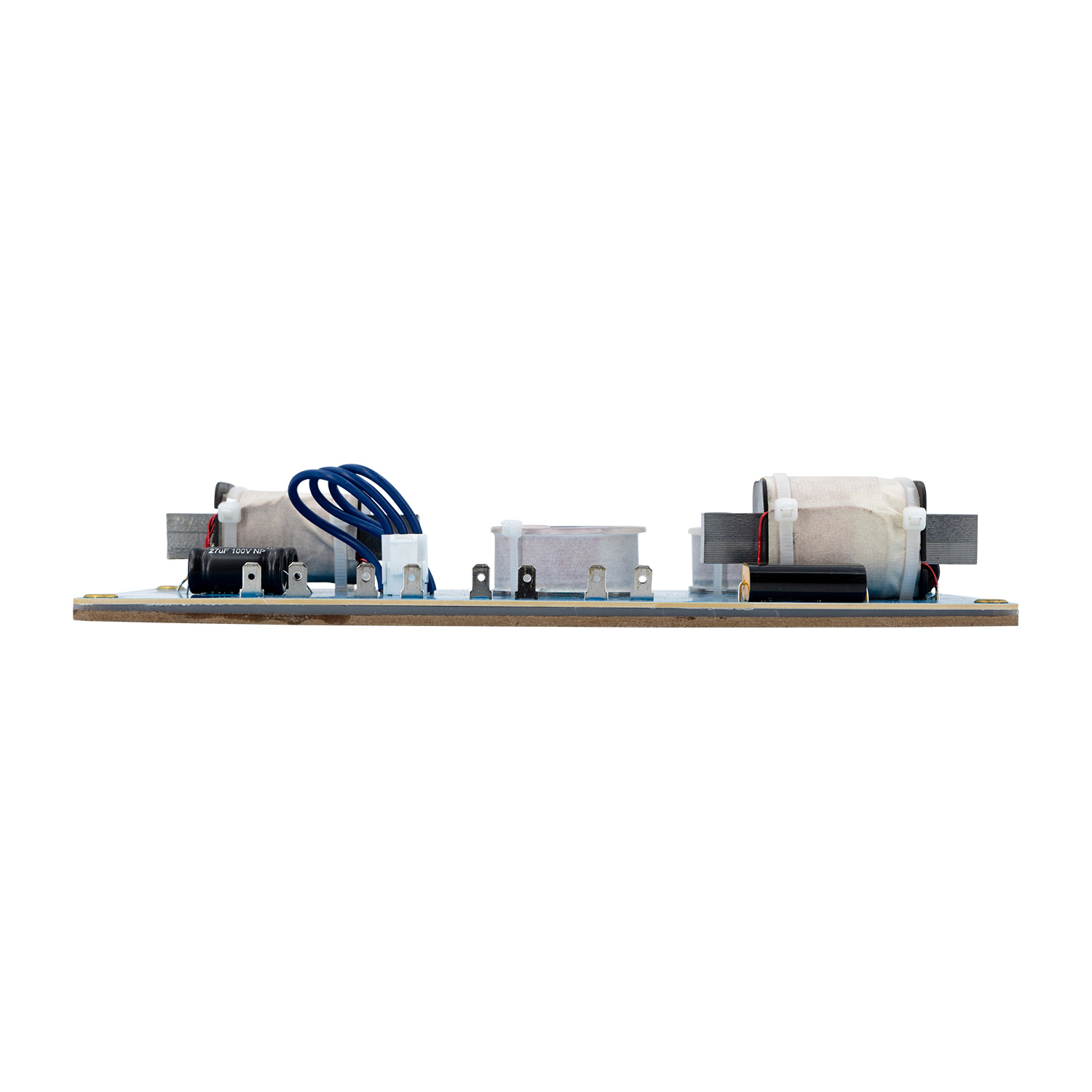

      Dayton Audio XO3W-375/3K 3-Way Speaker Crossover 375/3,000 Hz Assembled crossover

      € 56,16€ 67,95 2 In stock6 expected on 09-02-2023

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped today
      • In-house technical support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      These 3-way, 2nd-order (12 dB/octave) crossovers were designed with a 3 octave spread between crossover points. Dayton Audio metallized polyester film capacitors are used in critical midrange and tweeter signal paths. 18 gauge tweeter and midrange inductors, and 20 gauge woofer inductors are used to keep DC resistance to a minimum.



      Highlights

      • Designed with a 3 octave spread between crossover points
      • Metallized polyester film capacitors are used in the critical midrange and tweeter signal paths
      • Low-pass section allows for the use of 4 or 8 ohm woofers



      Product details

      Dayton Audio XO3W-375/3K 3-Way Speaker Crossover 375/3,000 Hz

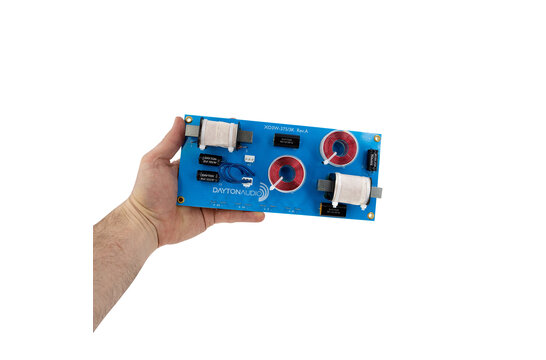

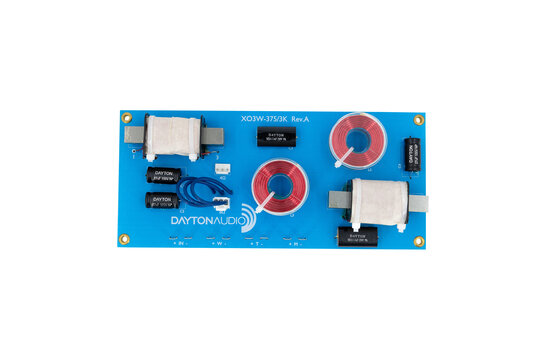

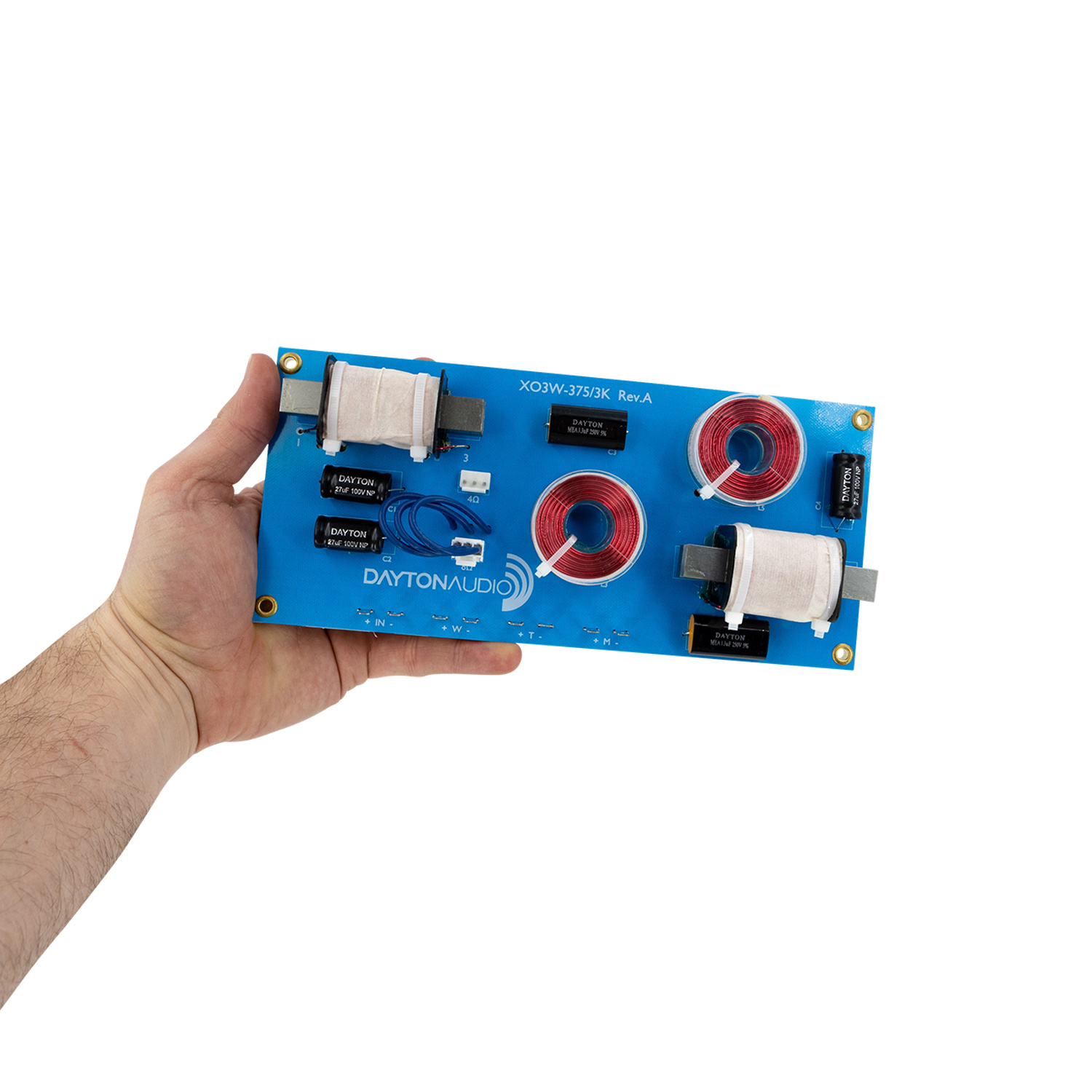

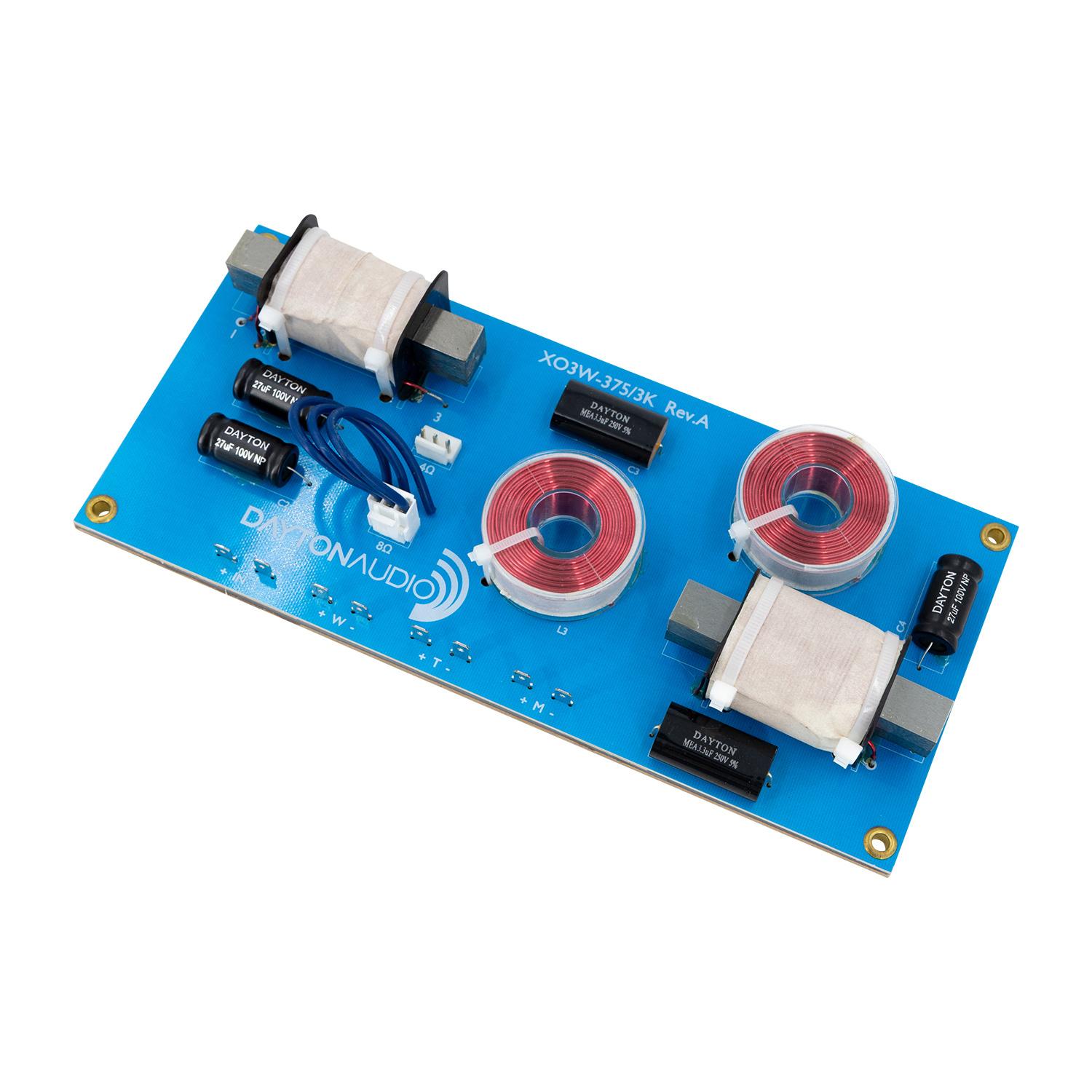

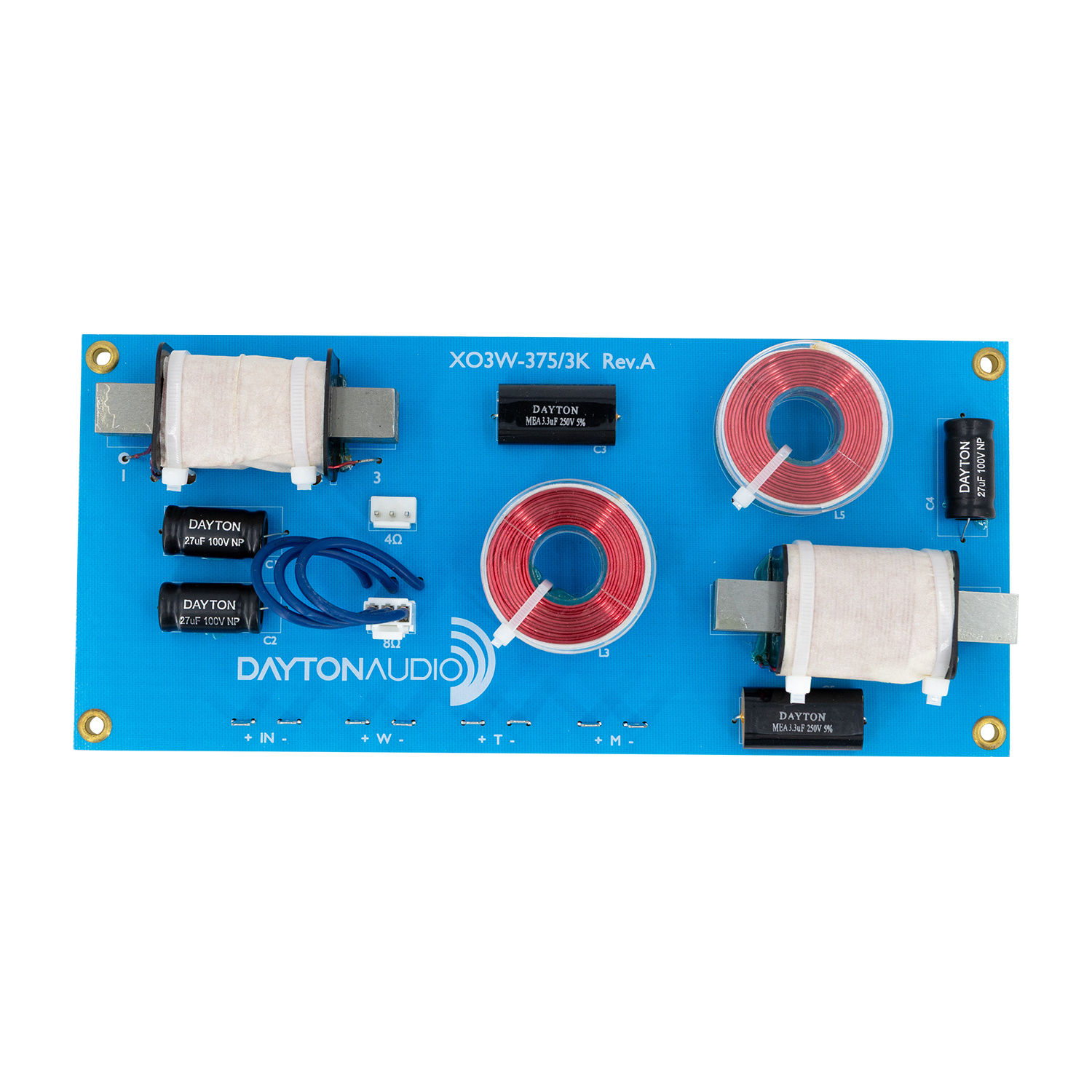

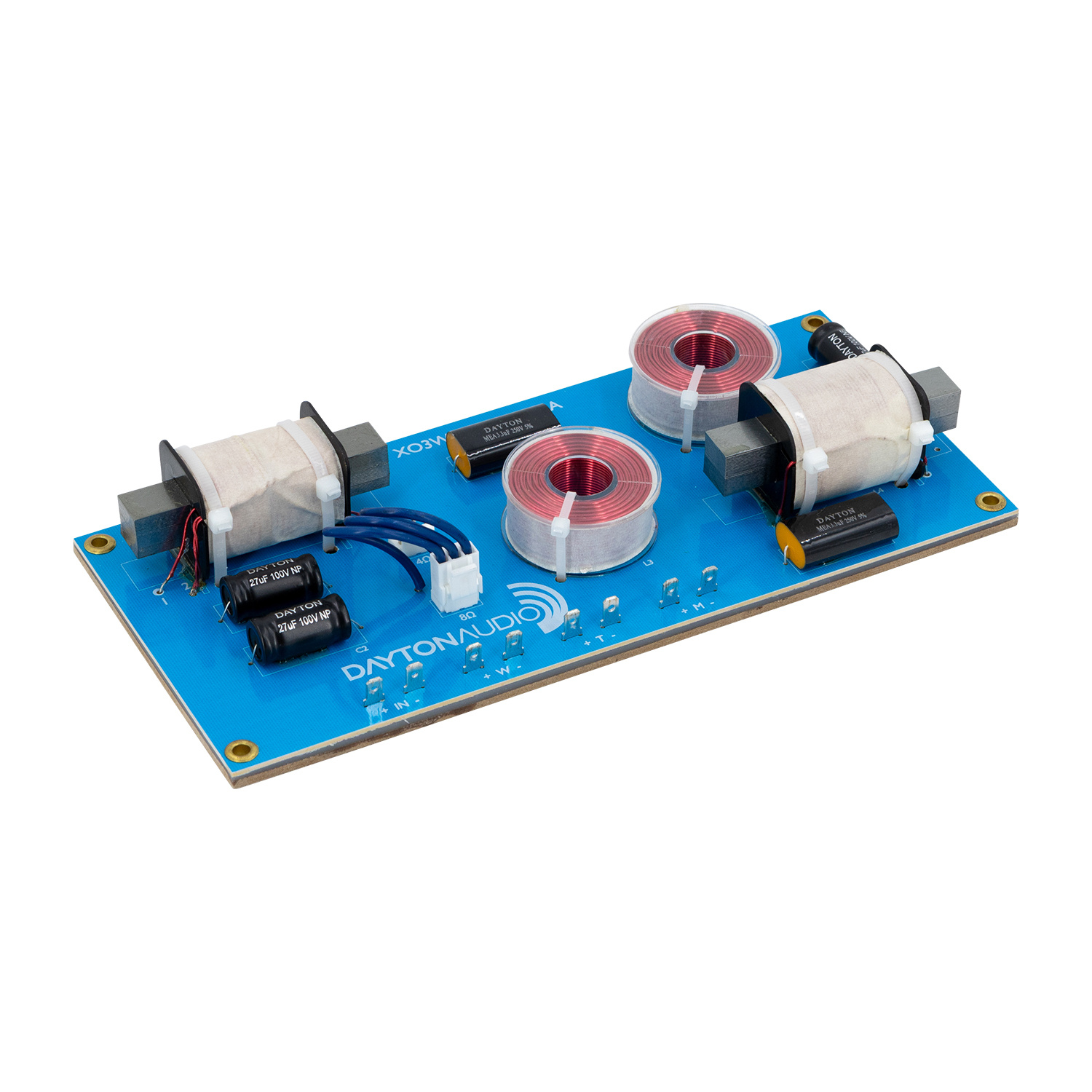

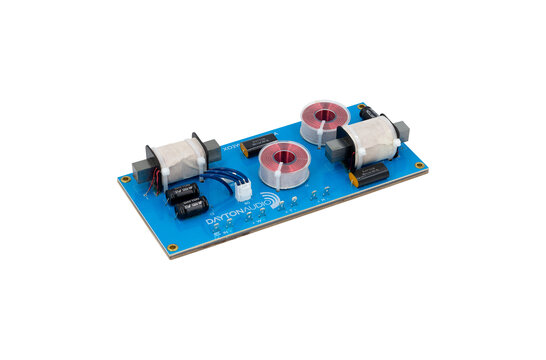

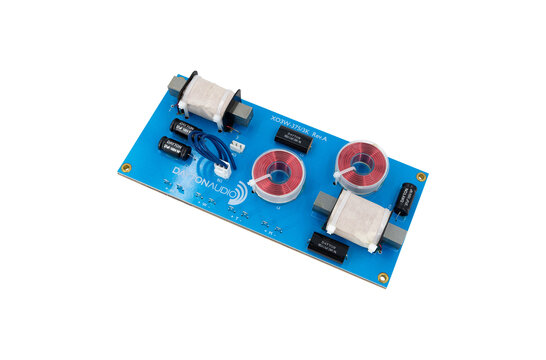

      These 3-way, 2nd-order (12 dB/octave) crossovers were designed with a 3 octave spread between crossover points. Dayton Audio metallized polyester film capacitors are used in the critical midrange and tweeter signal paths. 18 gauge tweeter and midrange inductors, and 20 gauge woofer inductors are used to keep DC resistance to a minimum. A unique design feature of the low-pass section allows for the use of 4 or 8 ohm woofers, perfect for building a multi woofer system. The midrange and high-pass sections are rated for an 8 ohm load. All components are glued or fastened down to eliminate buzzing and vibrations. The high quality blue PC board uses a back plate for added rigidity and eyelet holes for easy mounting. Available in a variety of crossover points. 300W power handling. Board measures: 11-3/8" W x 4-3/8" H x 2" D. Terminals are 0.205".

      Show more

      Specifications

      Article number
      XO3W-375/3K

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      4 of 5
      No description was given
      By Fredrik H. on 21 April 2021
      5 of 5
      Mooi product, kwalitatief goed opgebouwd.
      By Johan W. on 26 January 2021
