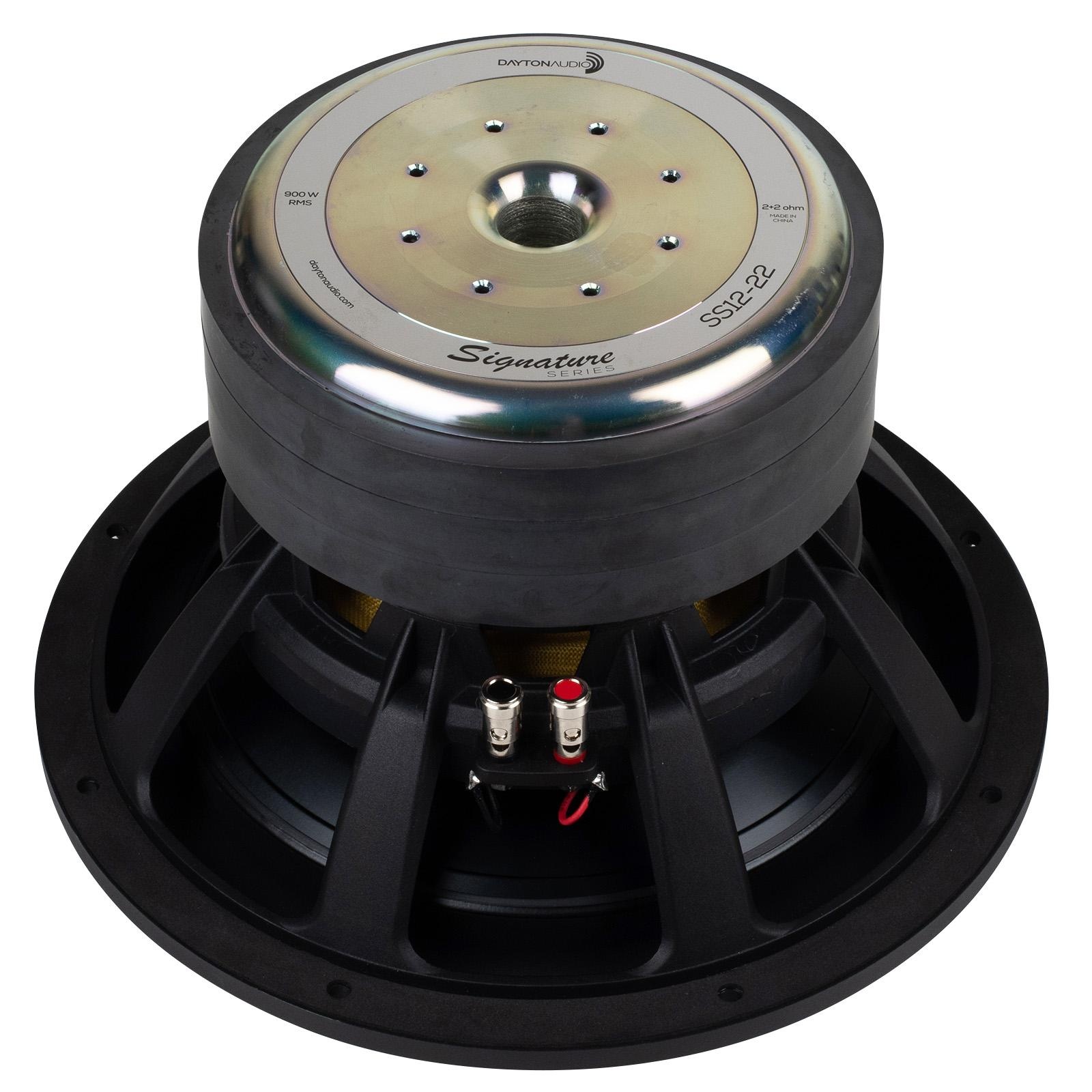

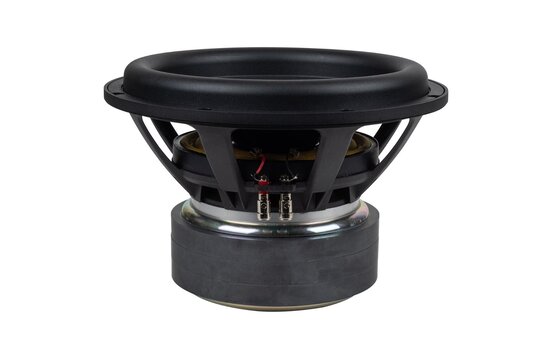

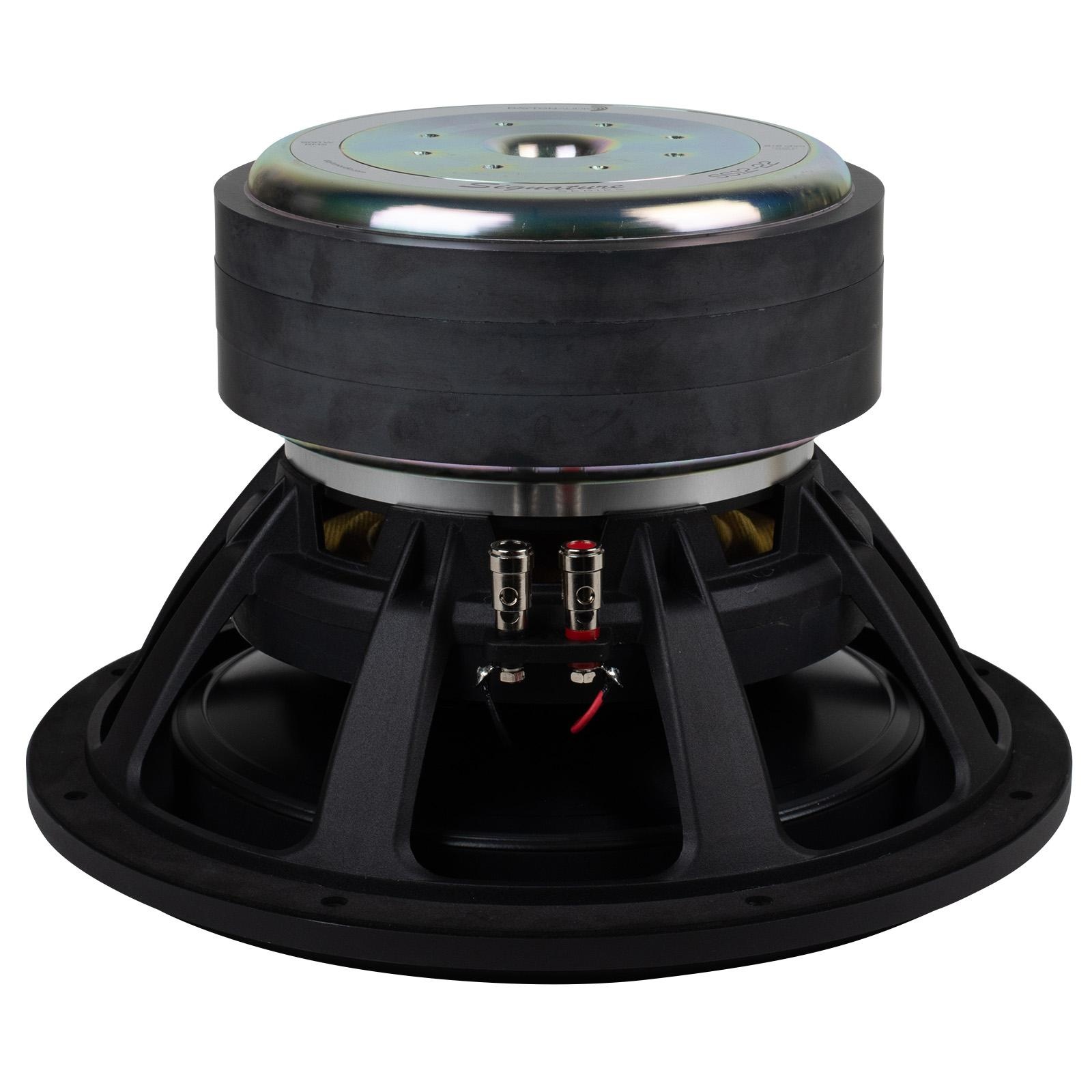

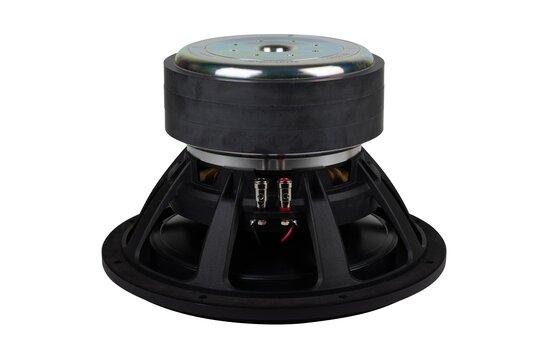

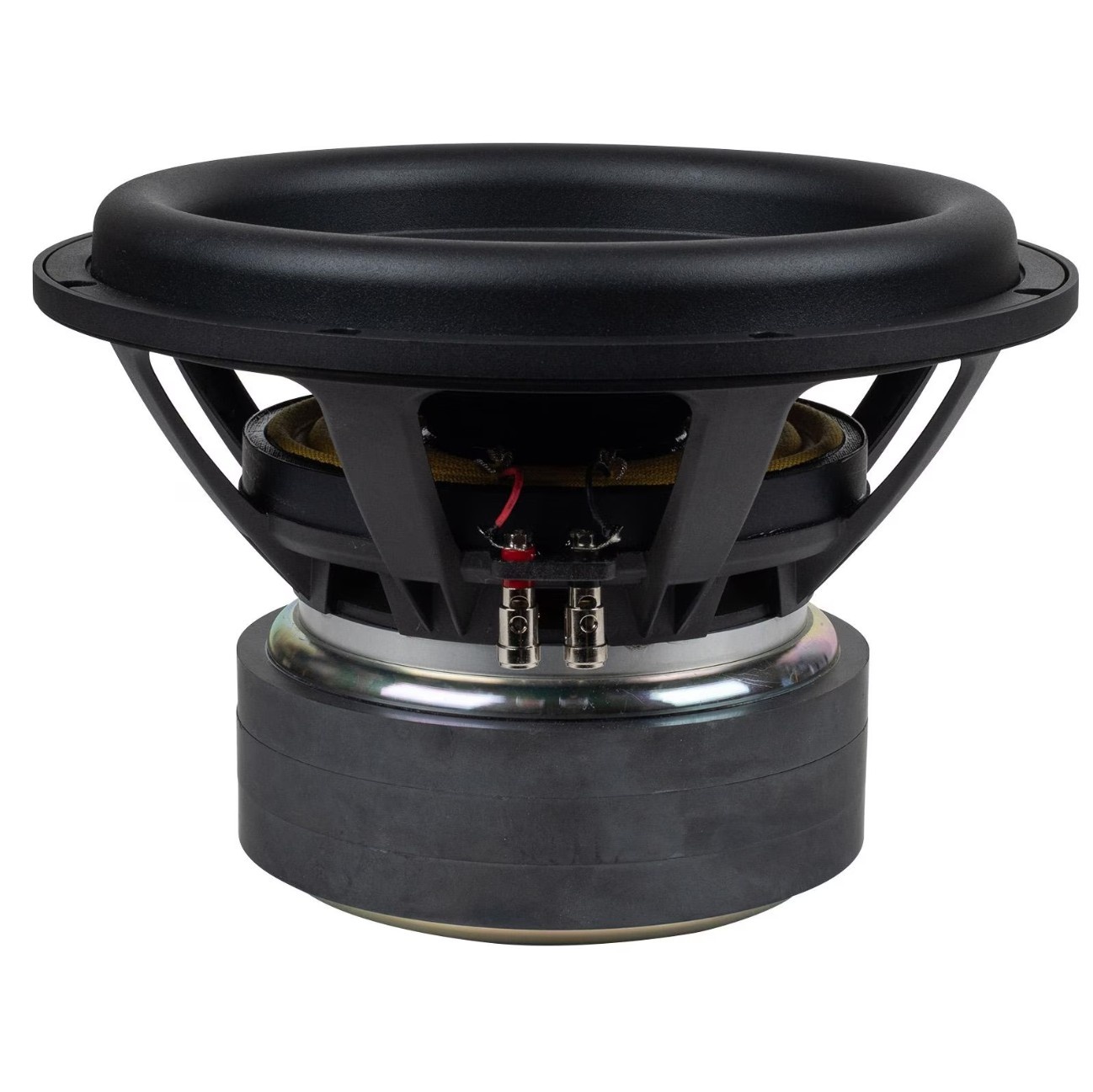

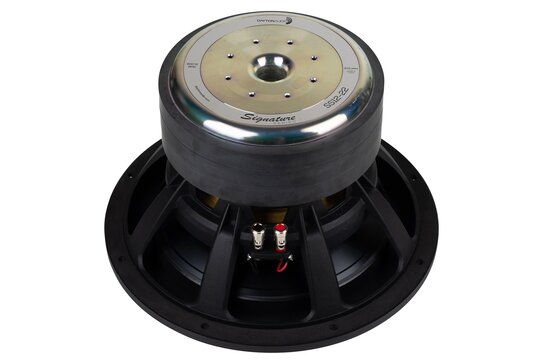

        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil

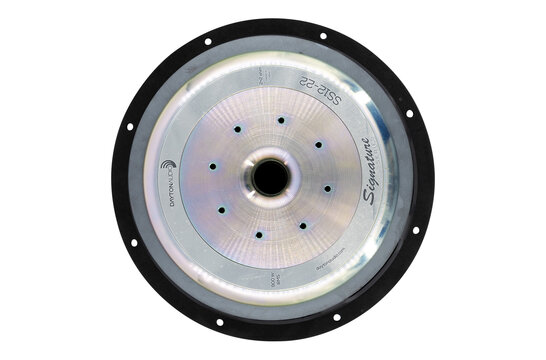

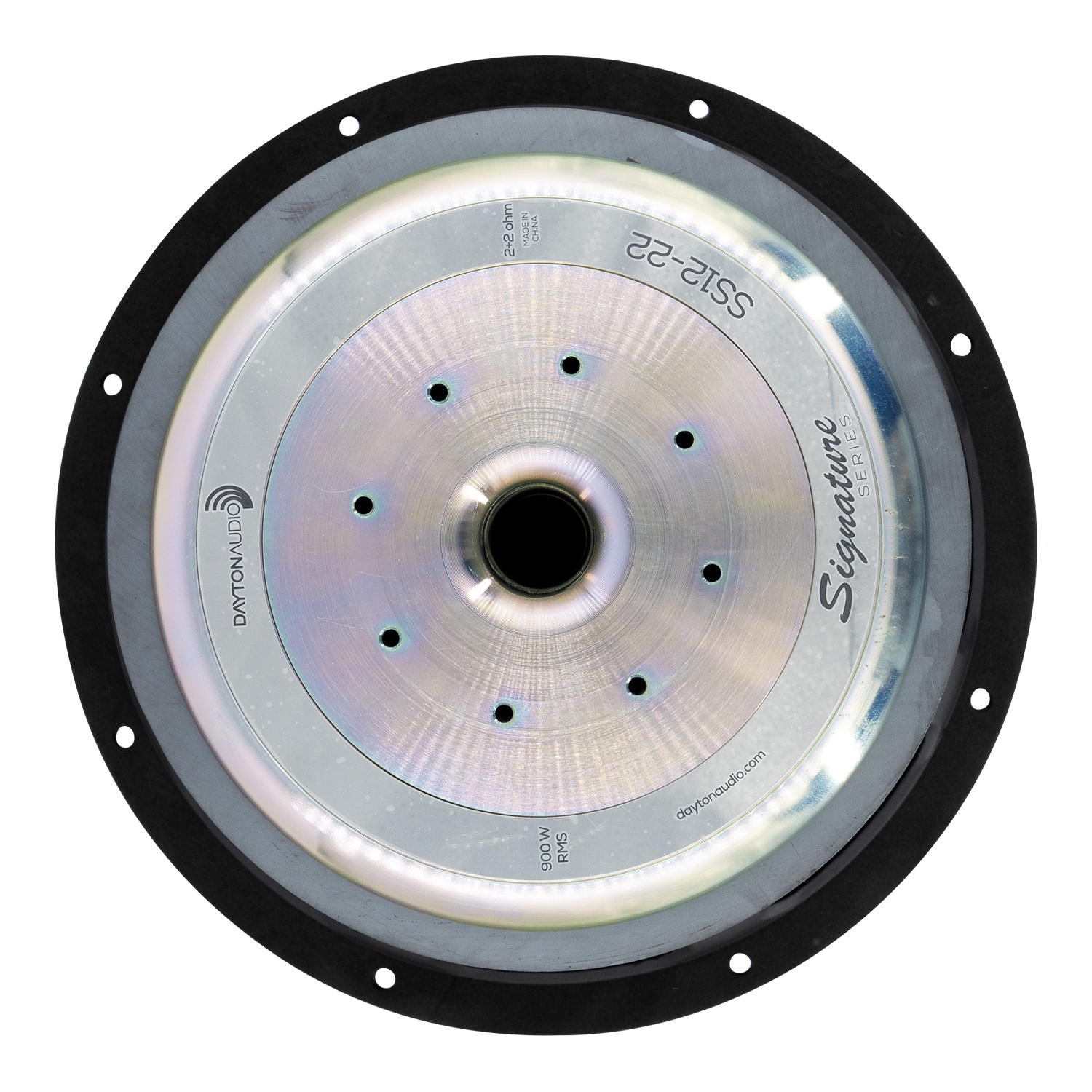

        Dayton Audio SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil

        €349,95

        10 expected on 19-12-2025

        Add to cart

        Dayton Audio SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Dayton Audio
        Show all New products
        12" | 2+2 Ω
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        € 289,21€ 349,95 Out of stock10 expected on 19-12-2025
        • -5% Purchase 4 for only € 332,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil
        SS12-22 Signature Series 12" DVC Subwoofer 2 ohms Per Coil

        Product description Dayton Audio Signature SS12-22 DVC Subwoofer

        The SS12-22 is a 12" Signature Series subwoofer featuring dual 2-ohm voice coils, purpose-built for powerful low-frequency extension and extreme output. With premium materials and engineering, it offers high excursion, deep bass response, and thermal resilience—ideal for home theater, car audio, or custom subwoofer builds.



        Highlights of the SS12-22 Signature Series Subwoofer

        • Rigid one-piece aluminum cone with rubber surround for tight and accurate bass
        • Massive 900W RMS power handling via a 3" 4-layer CCAW voice coil
        • 23 mm Xmax and 24.3 Tm BL factor for deep excursion and powerful motor control
        • Triple shorting paths and extensive venting reduce distortion and manage heat



        Product details SS12-22 Signature Series Subwoofer





        The SS12-22 is the flagship 12" subwoofer in the Signature Series, engineered to deliver deep and controlled bass for demanding audio environments. With dual 2-ohm voice coils and 900W RMS power handling, it is designed to excel in both high-output and audiophile-grade setups.

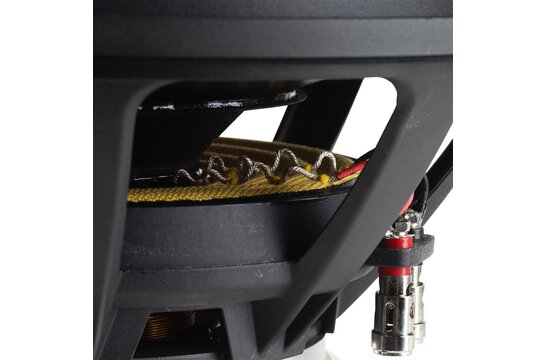

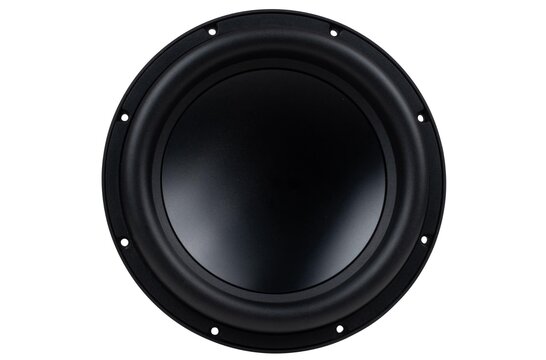

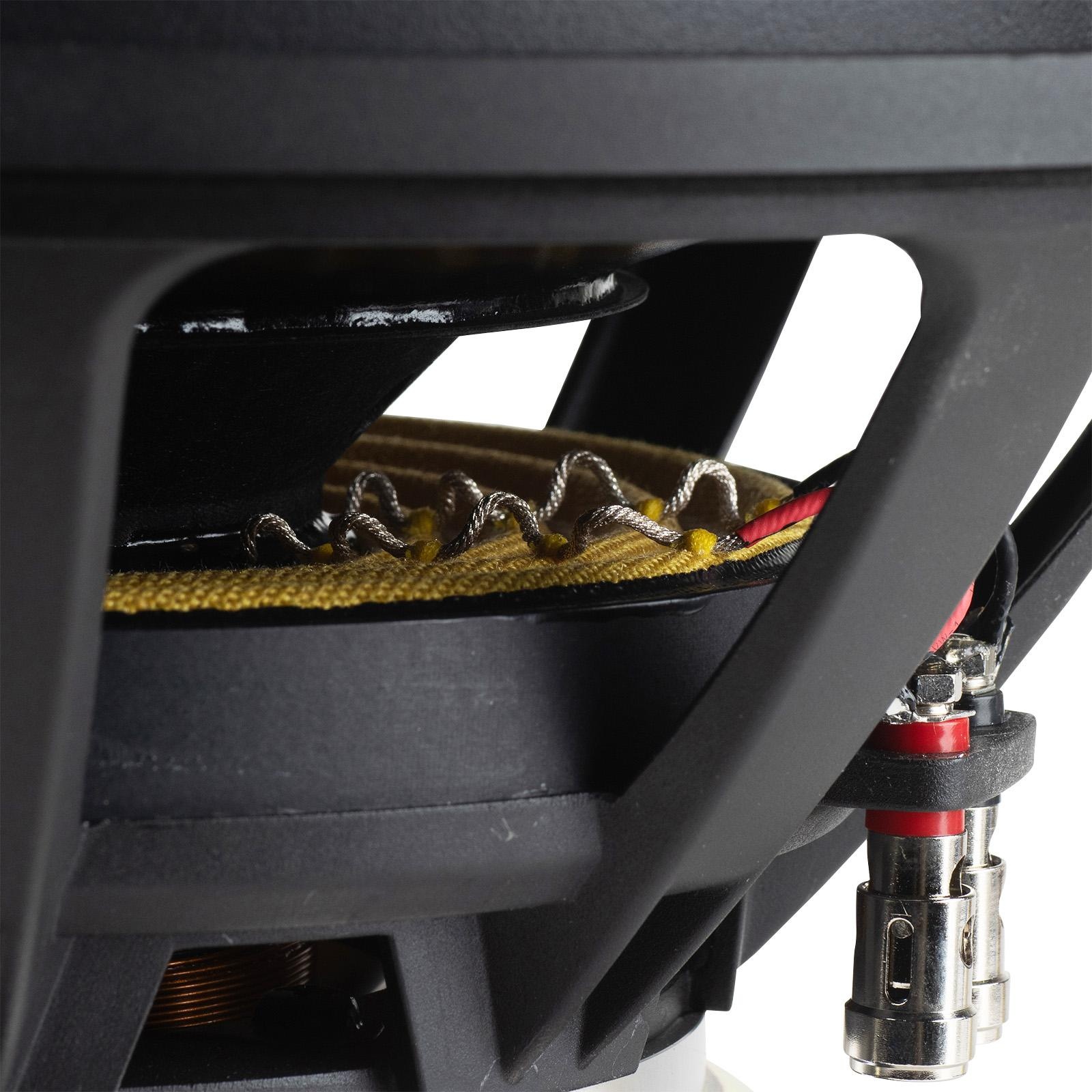

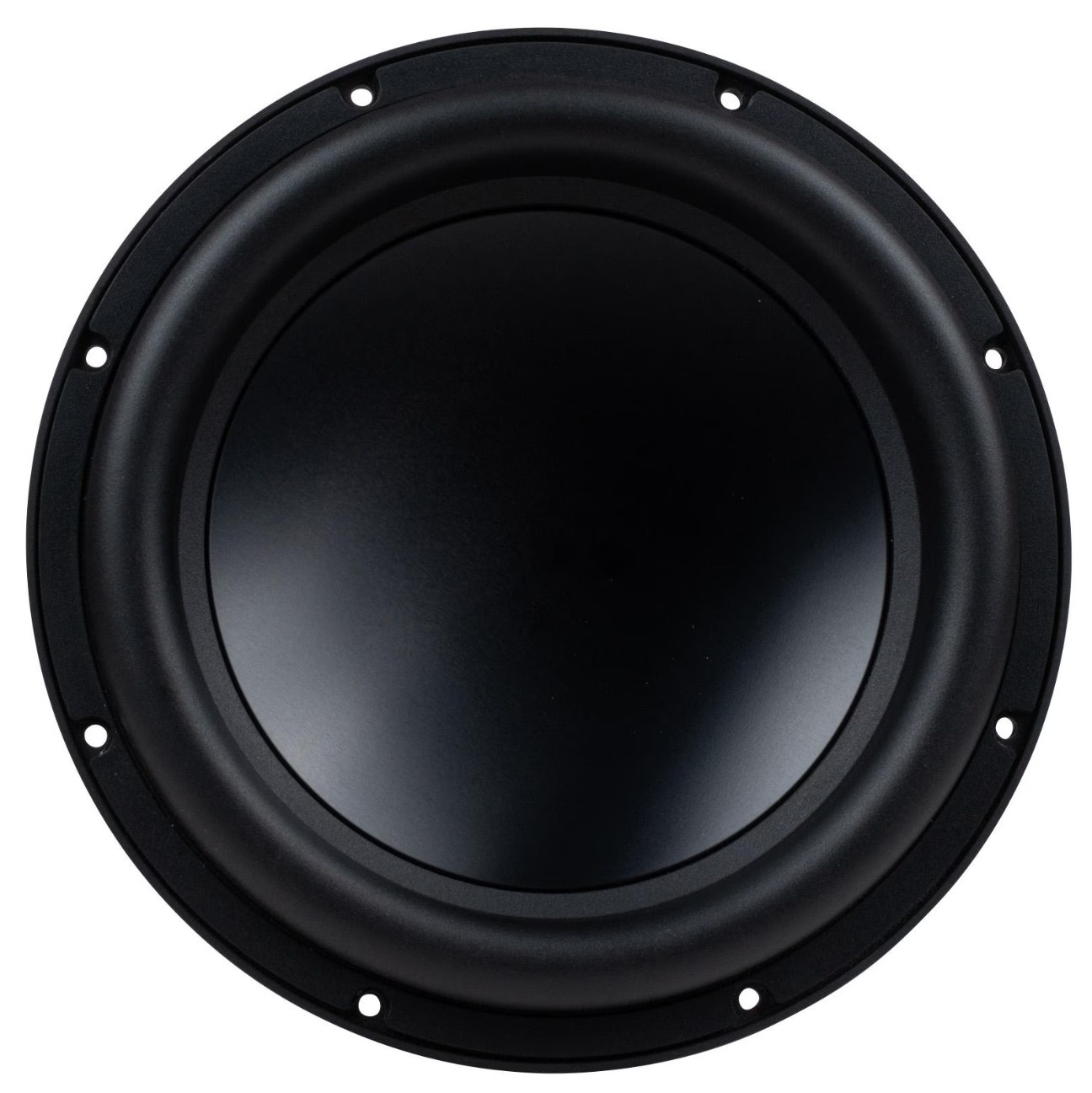

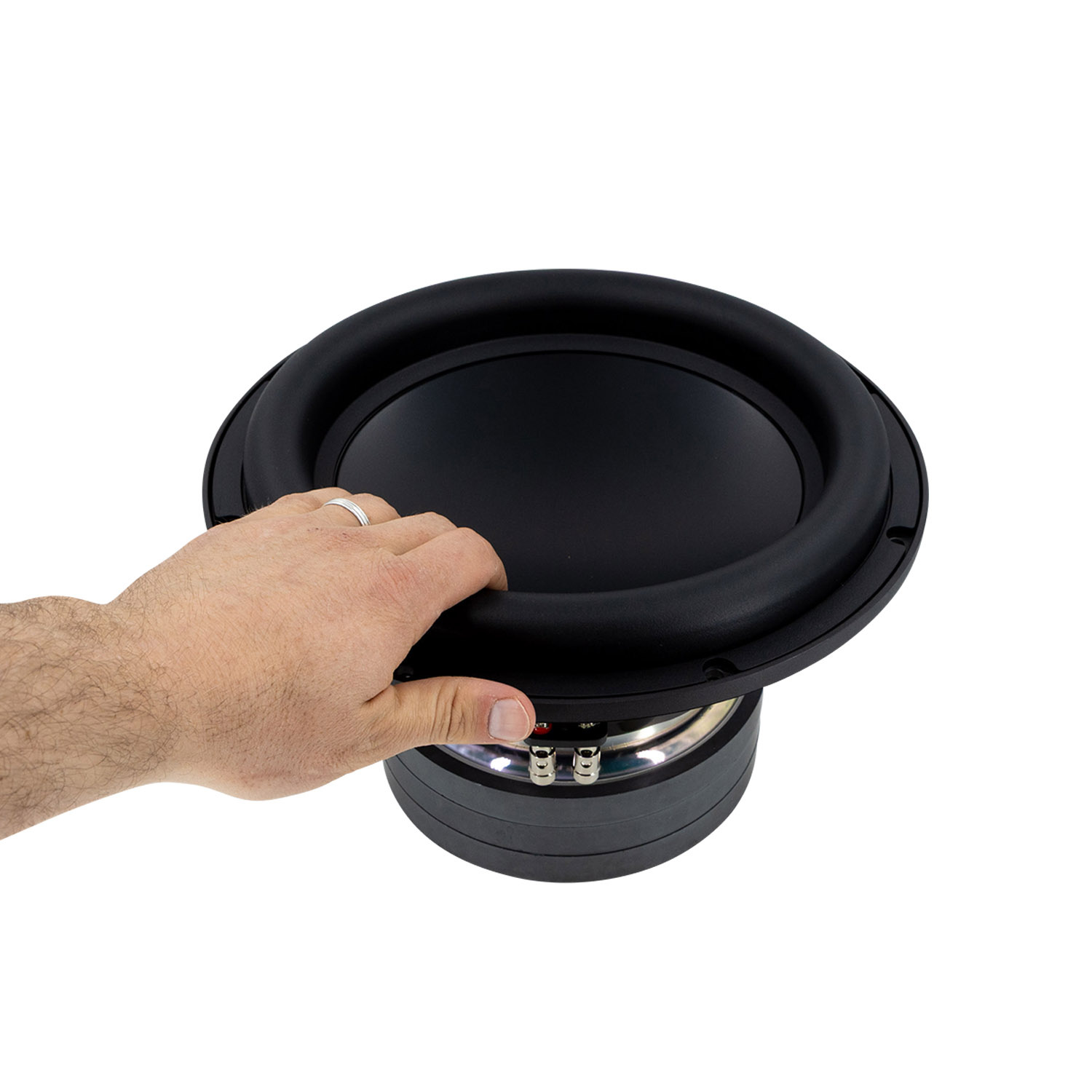

        Its sleek one-piece aluminum cone ensures structural rigidity under stress, while the rubber surround offers reliable excursion damping. A 3" 4-layer copper-clad aluminum wire (CCAW) voice coil is wound onto a high-temperature former, allowing the SS12-22 to handle extended high-power playback without thermal compression.

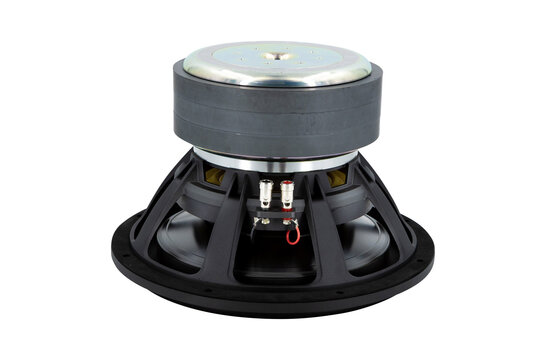

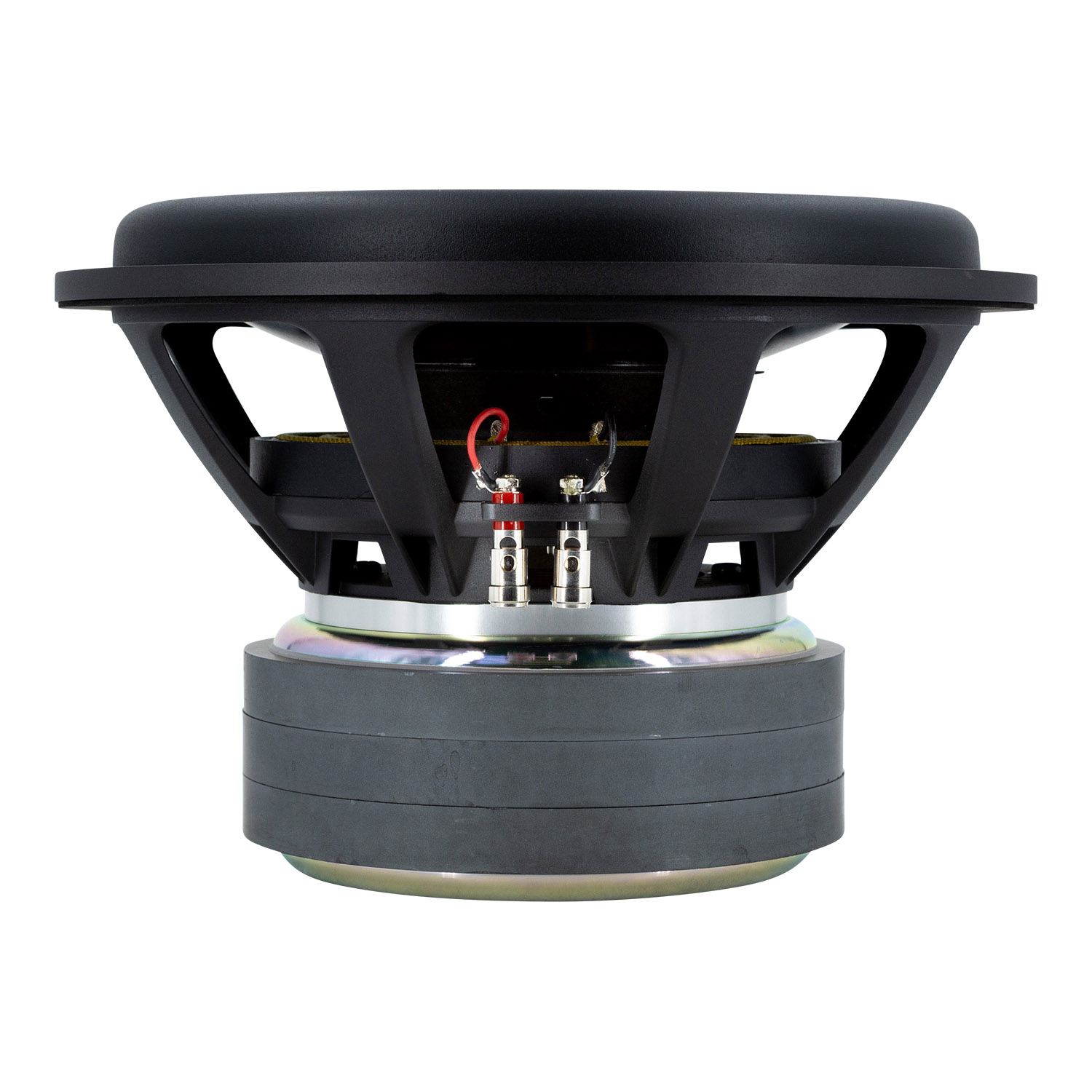

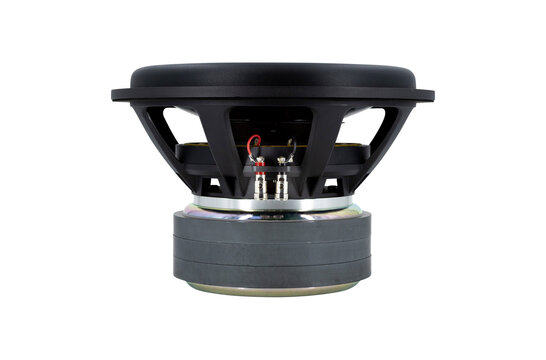

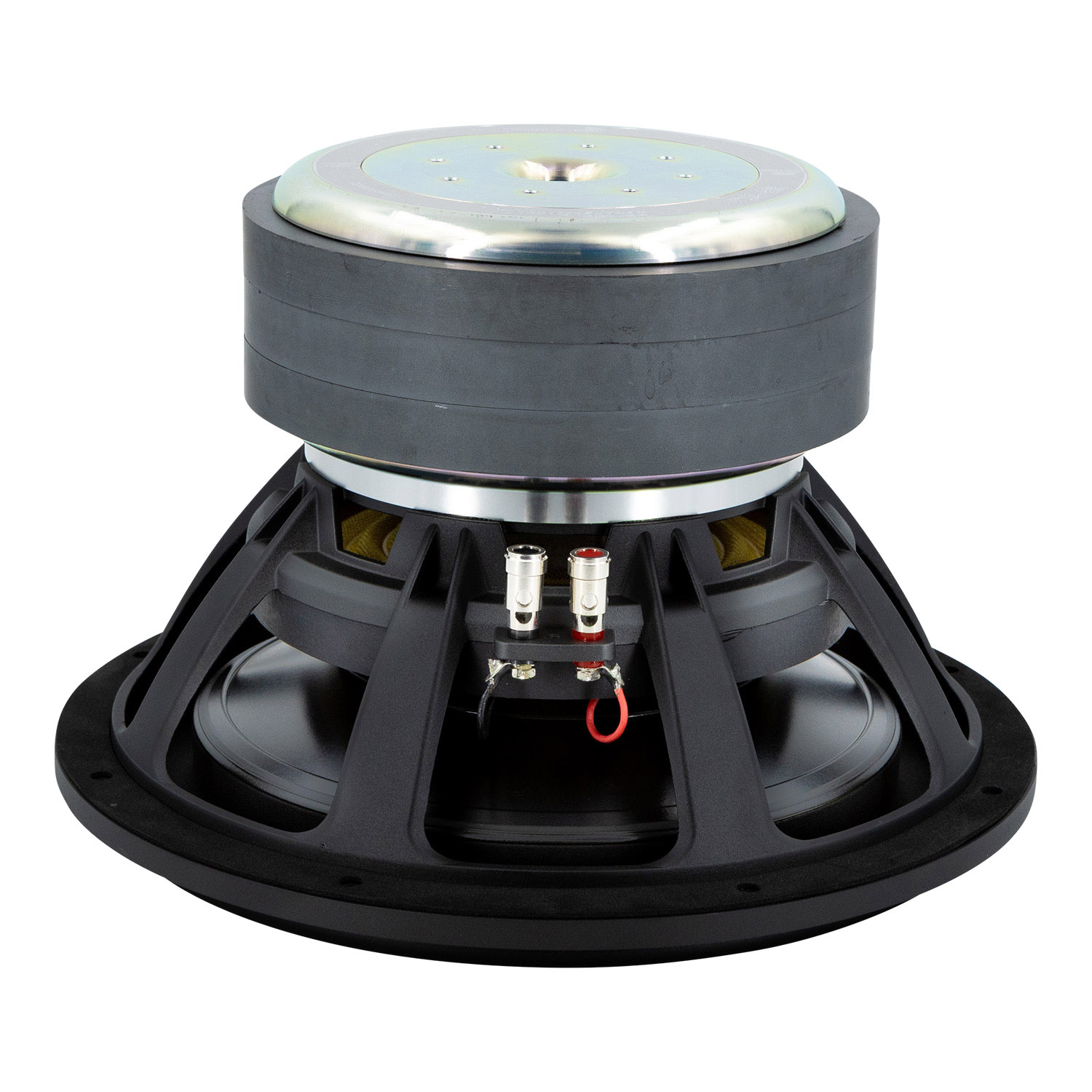

        At its core, the motor assembly features a triple magnet structure and triple shorting paths, delivering a high BL factor of 24.3 Tm. The large 23 mm Xmax and massive Sd of 528 cm² allow for a peak displacement (Vd) of 1194 cm³, enabling the subwoofer to move significant air volume with authority and control. Parameters like a low Fs of 27 Hz and Qts of 0.35 make it ideal for sealed or vented enclosures where low-end extension and accuracy are required.



        With a sensitivity of 88.1 dB (2.83V/1m) and a usable frequency range from 20–500 Hz, the SS12-22 provides commanding performance in dedicated bass channels, full-range systems, or multi-subwoofer configurations. It's the go-to choice for those who require deep, articulate bass in a 12" format.

        Show more

        Specifications

        Article number
        SS12-22
        EAN
        0848791011146
        Woofer Series
        Dayton Audio Signature series
        Woofer Type
        Subwoofer
        Nominal Diameter
        12"
        Power Handling (RMS)
        900 Watts
        Power Handling (max)
        1,800 watts
        Impedance (Z)
        2 + 2 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88.1 dB
        Frequency Response
        20-500 Hz
        Voice Coil Diameter
        77 mm
        DC Resistance (Re)
        4.9 ohms
        Voice Coil Inductance (Le)
        1.8 mH
        Resonant Frequency (Fs)
        27 Hz
        Mechanical Q (Qms)
        3.47
        Electromagnetic Q (Qes)
        0.39
        Total Q (Qts)
        0.35
        Diaphragm Mass Inc. Airload (Mms)
        275g
        Mechanical Compliance of Suspension (Cms)
        0.125 mm/N
        Surface Area of Cone (Sd)
        528 cm²
        Volume of Displacement (Vd)
        1194 cm³
        BL Product (BL)
        24.3 Tm
        Compliance Equivalent Volume (Vas)
        49.4 liters
        Maximum Linear Excursion (Xmax)
        23 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Voice Coil Wire Material
        CCA
        Voice Coil Former
        Aluminum
        Dual Voice Coil
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        320.9 mm
        Overall Depth
        194.3 mm
        Baffle Cutout Diameter
        285.3 mm
        Bolt Circle Diameter
        302 mm
        # Mounting Holes
        8

        Show more
