        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil

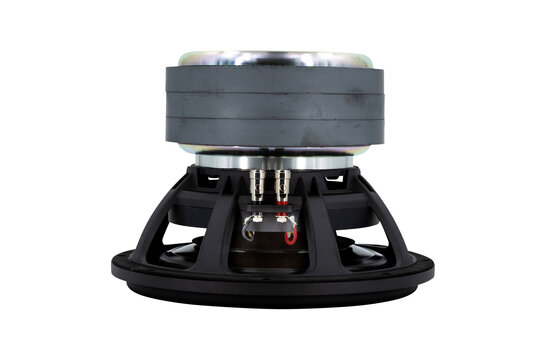

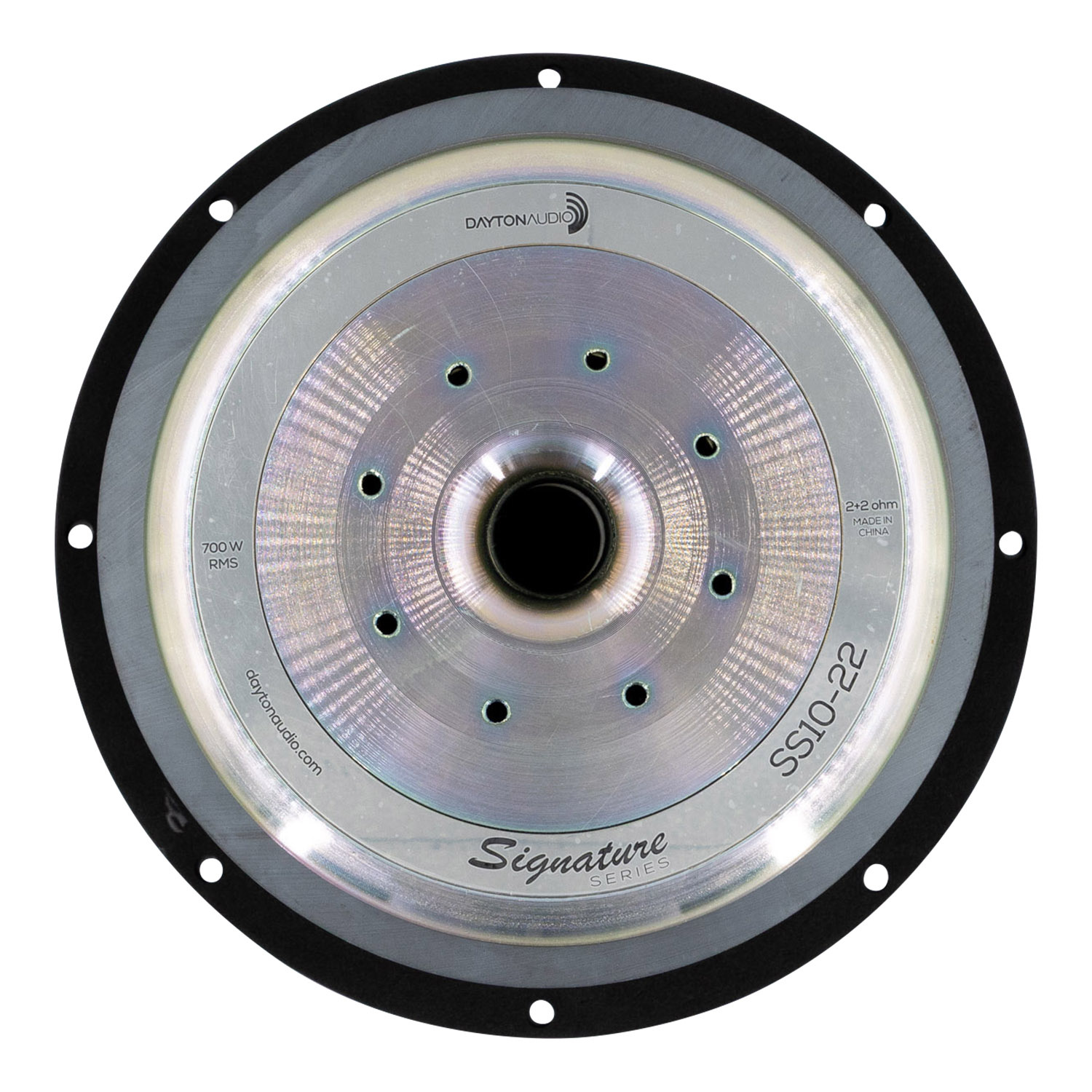

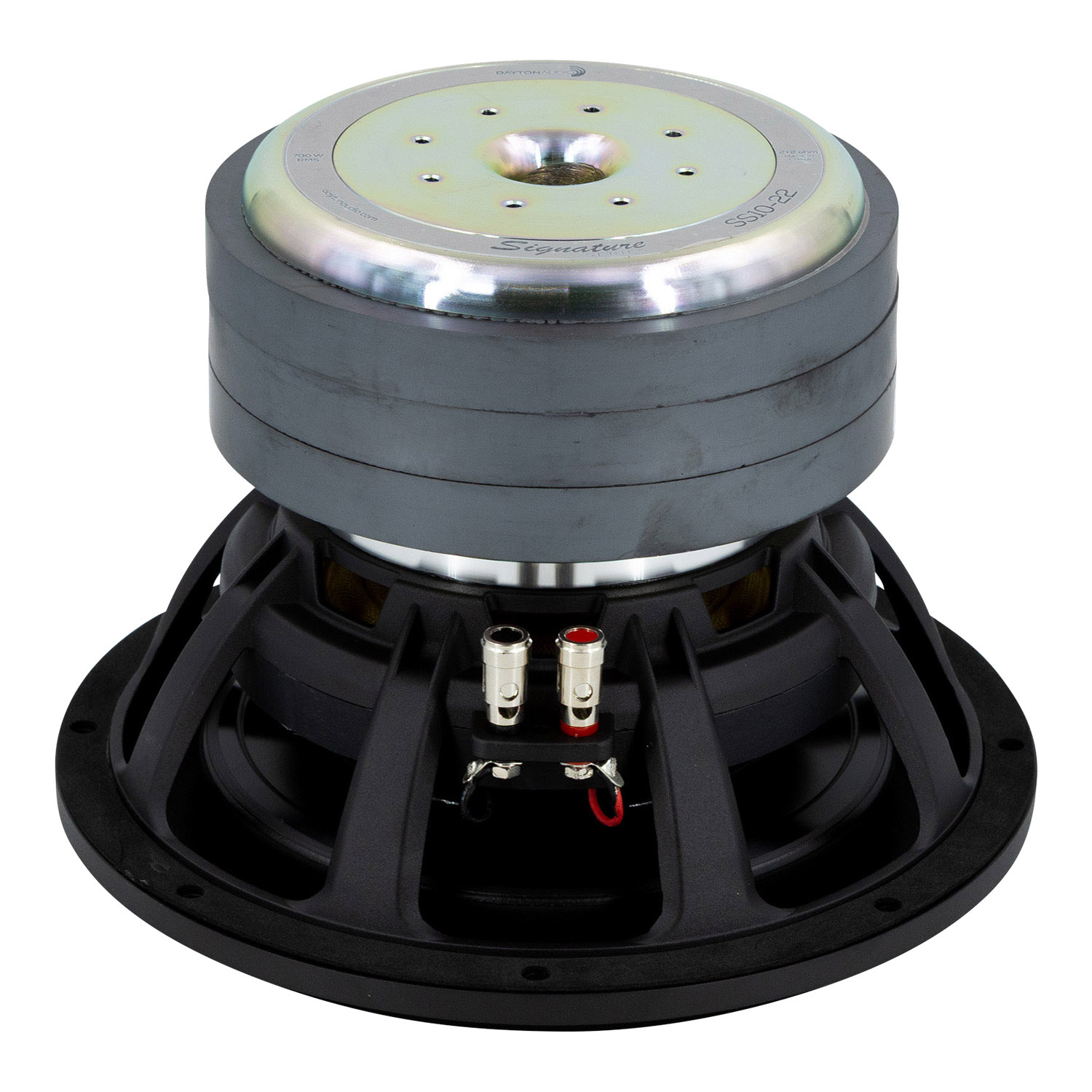

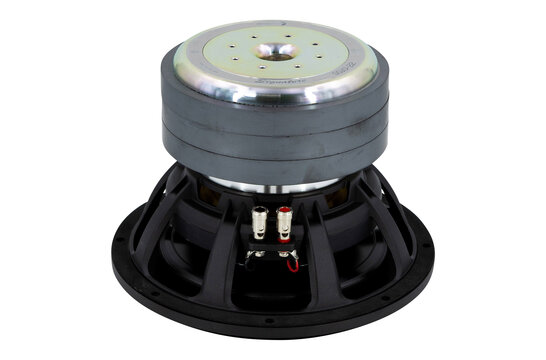

        Dayton Audio SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil

        €279,95

        6 expected on 19-12-2025

        Add to cart

        Dayton Audio SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Dayton Audio
        Show all New products
        10" | 2+2 Ω
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        € 231,36€ 279,95 Out of stock6 expected on 19-12-2025
        • -5% Purchase 4 for only € 265,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil
        SS10-22 Signature Series 10" DVC Subwoofer 2 ohms Per Coil

        Product description Dayton Audio Signature SS10-22 DVC Subwoofer

        The SS10-22 is a 10" high-performance Signature Series subwoofer designed for exceptional low-frequency output in compact or medium-sized enclosures. With dual 2-ohm voice coils and advanced motor technology, it delivers tight, deep bass with minimal distortion—perfect for serious audio systems in home or mobile setups.



        Highlights of the Dayton Audio SS10-22 Signature Series Subwoofer

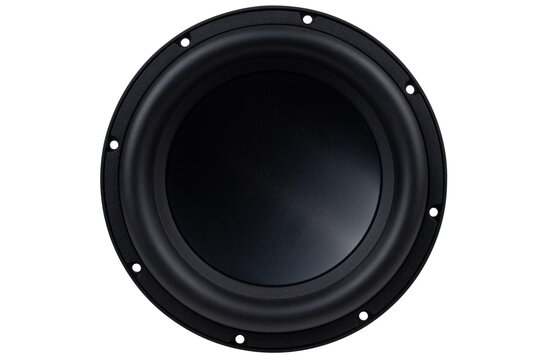

        • Robust one-piece aluminum cone with rubber surround for superior rigidity and damping
        • Massive 700W RMS power handling through a 2.5" 4-layer CCAW voice coil
        • 21 mm Xmax and triple magnet structure ensure deep, distortion-free bass
        • Dual 2-ohm voice coils and extensive venting for flexible wiring and thermal efficiency



        Product details SS10-22 Signature Series Subwoofer





        The SS10-22 is engineered for enthusiasts demanding high-output bass in a compact 10" format. With dual 2-ohm voice coils, this subwoofer provides wiring flexibility for both mono and stereo amplifier configurations. Its stiff, one-piece aluminum cone and rubber surround deliver controlled, low-distortion bass even under heavy load.

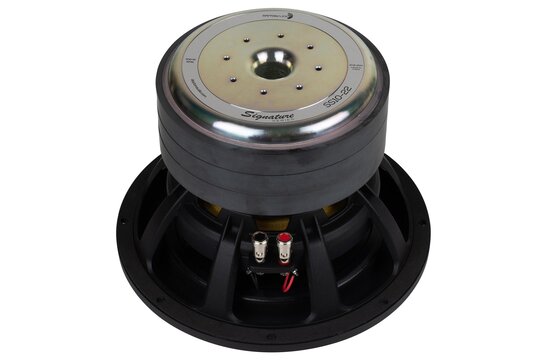

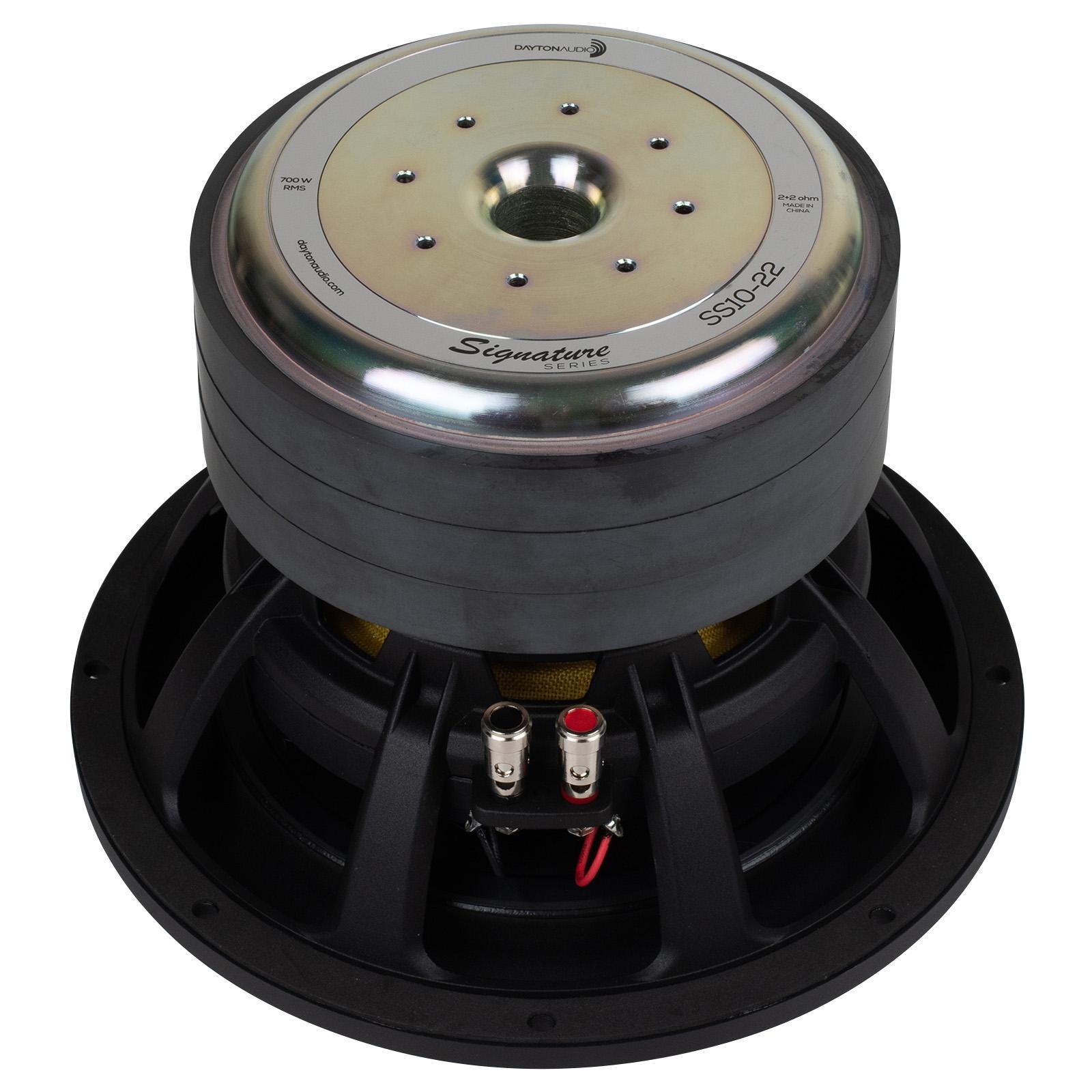

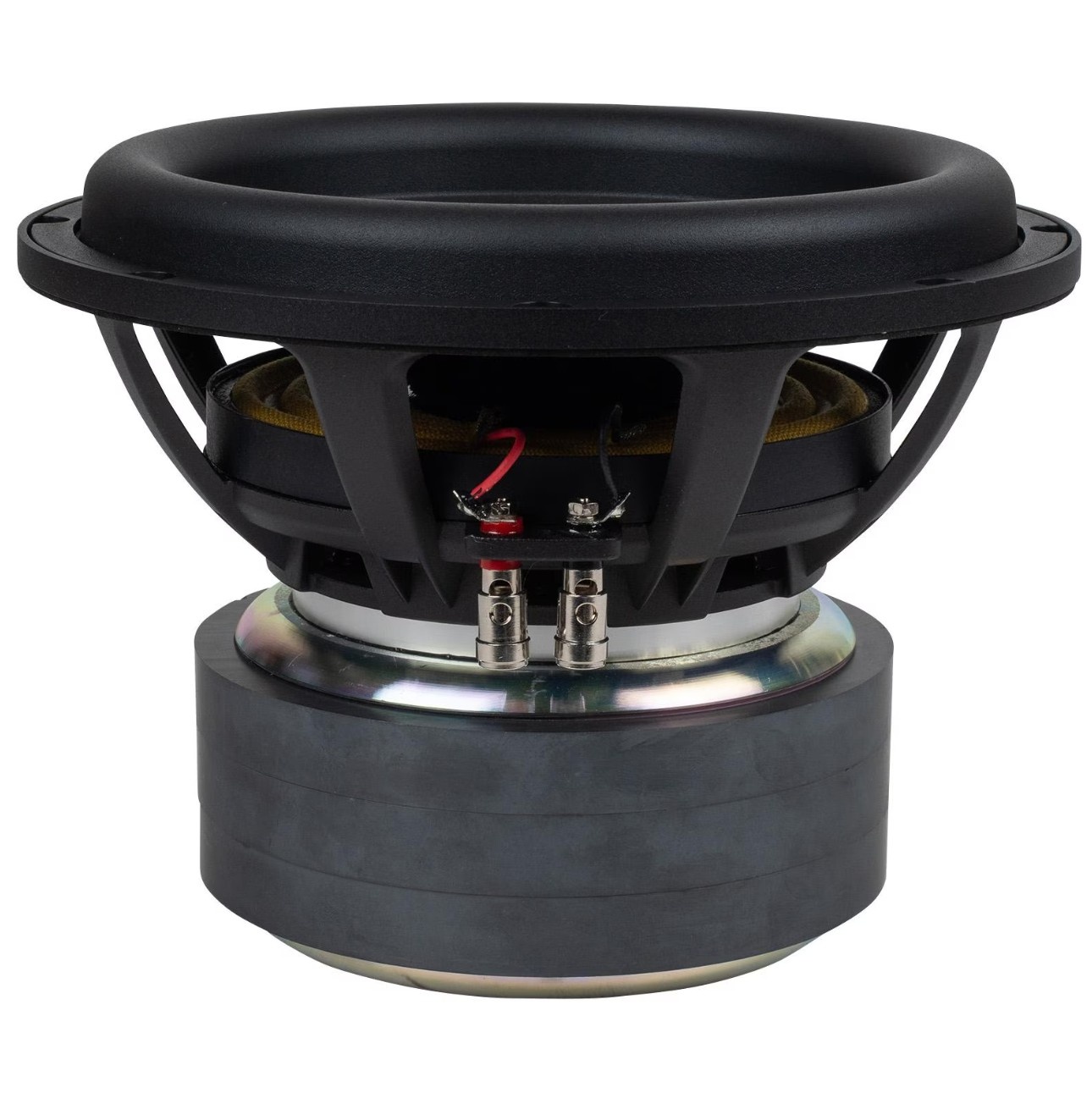

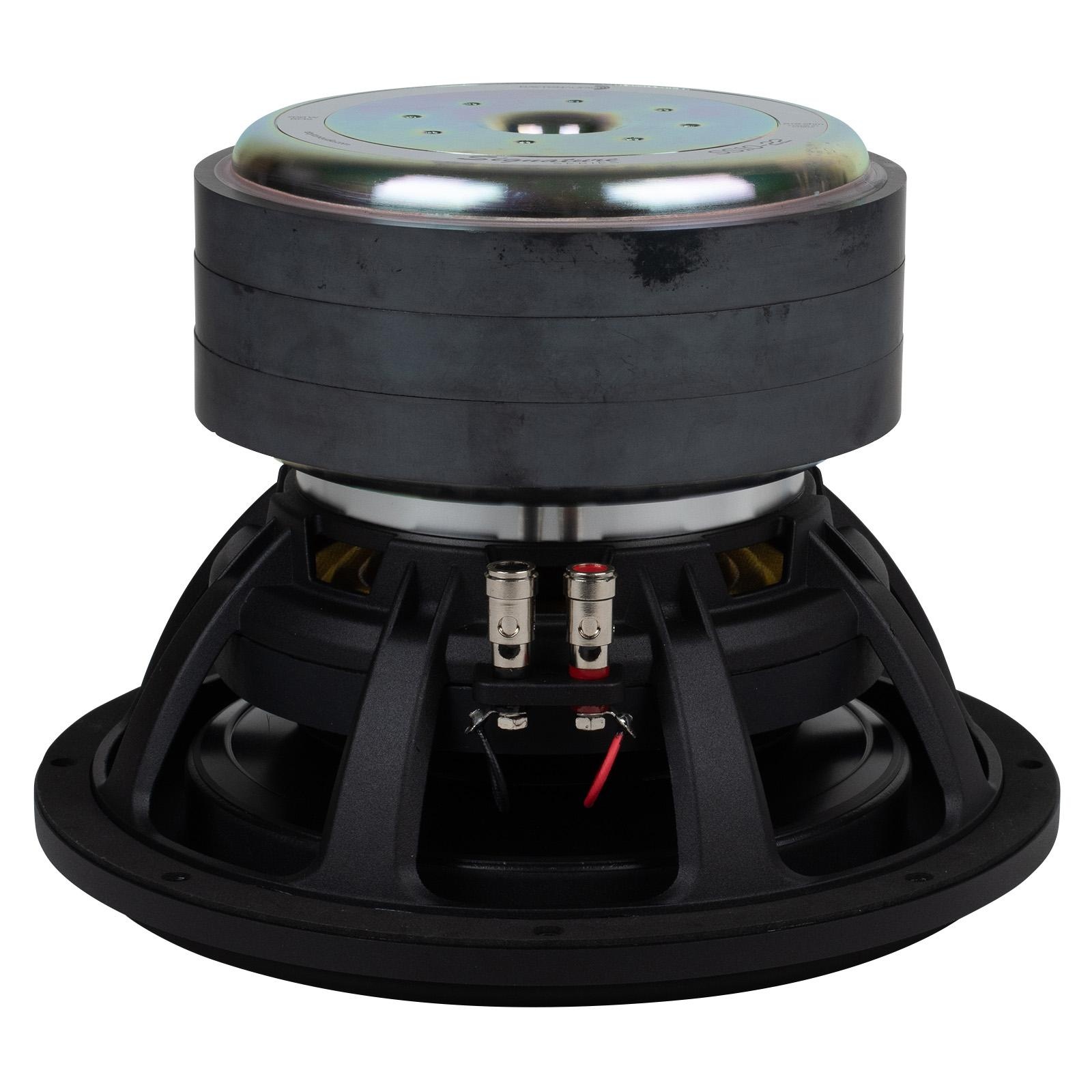

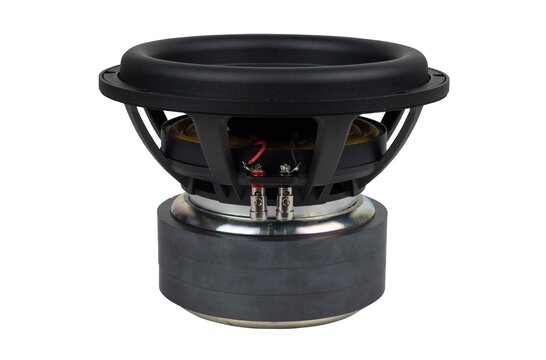

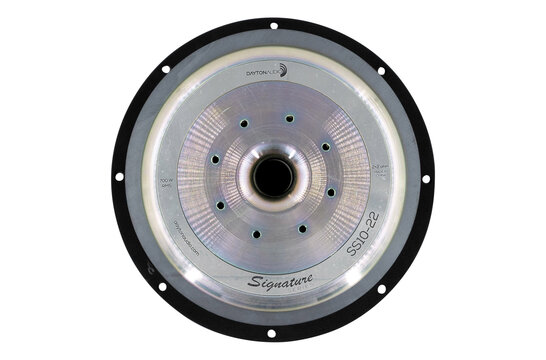

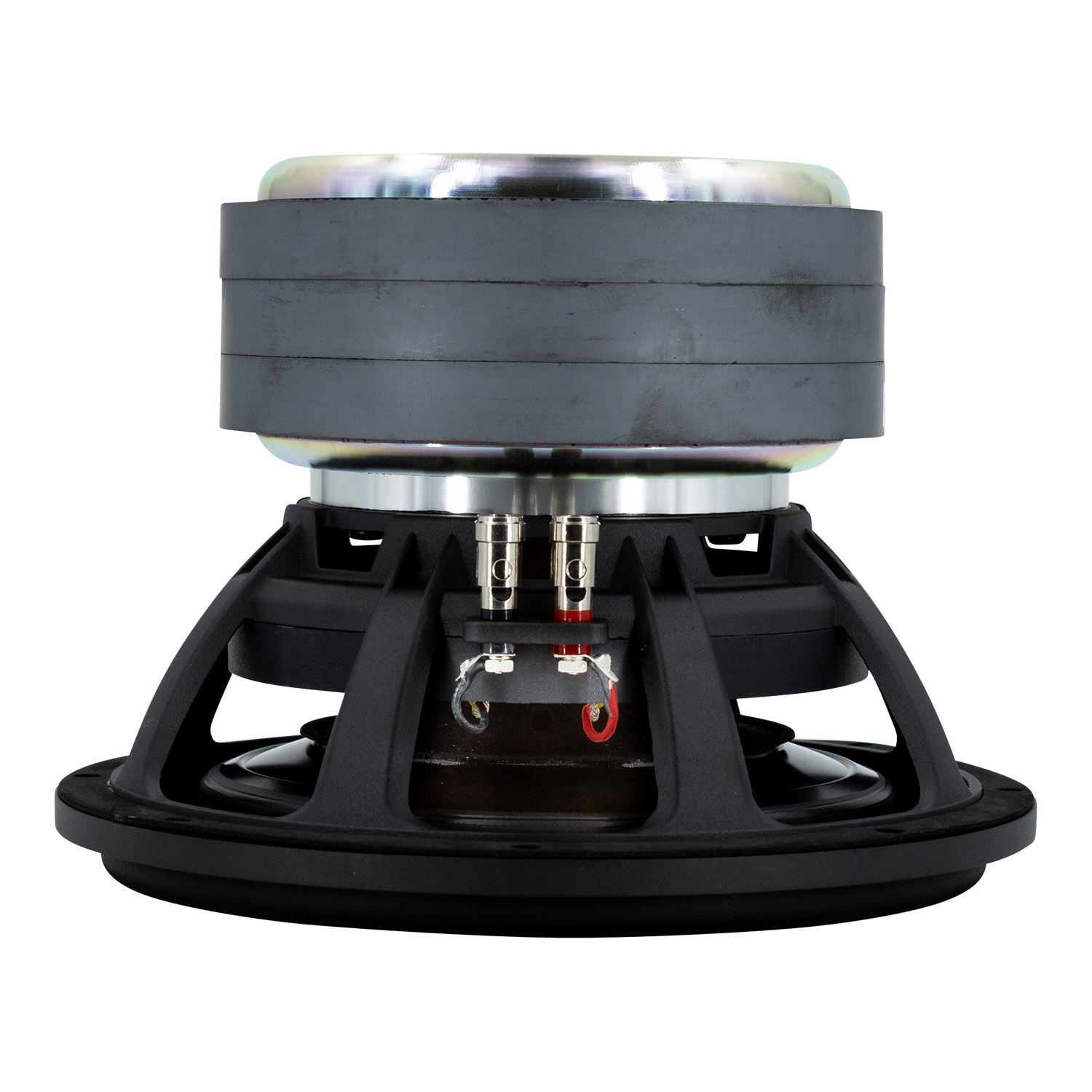

        At the heart of the SS10-22 is a powerful triple-stacked magnet motor driving a long-stroke 2.5" 4-layer CCAW voice coil. The result is a massive 700 watts RMS power handling capability and an impressive Xmax of 21 mm, allowing it to displace up to 627 cm³ of air (Vd). The subwoofer’s parameters (Qts: 0.40, Fs: 34 Hz, Vas: 20.6L) support sealed or vented enclosure designs optimized for accurate low-end extension.

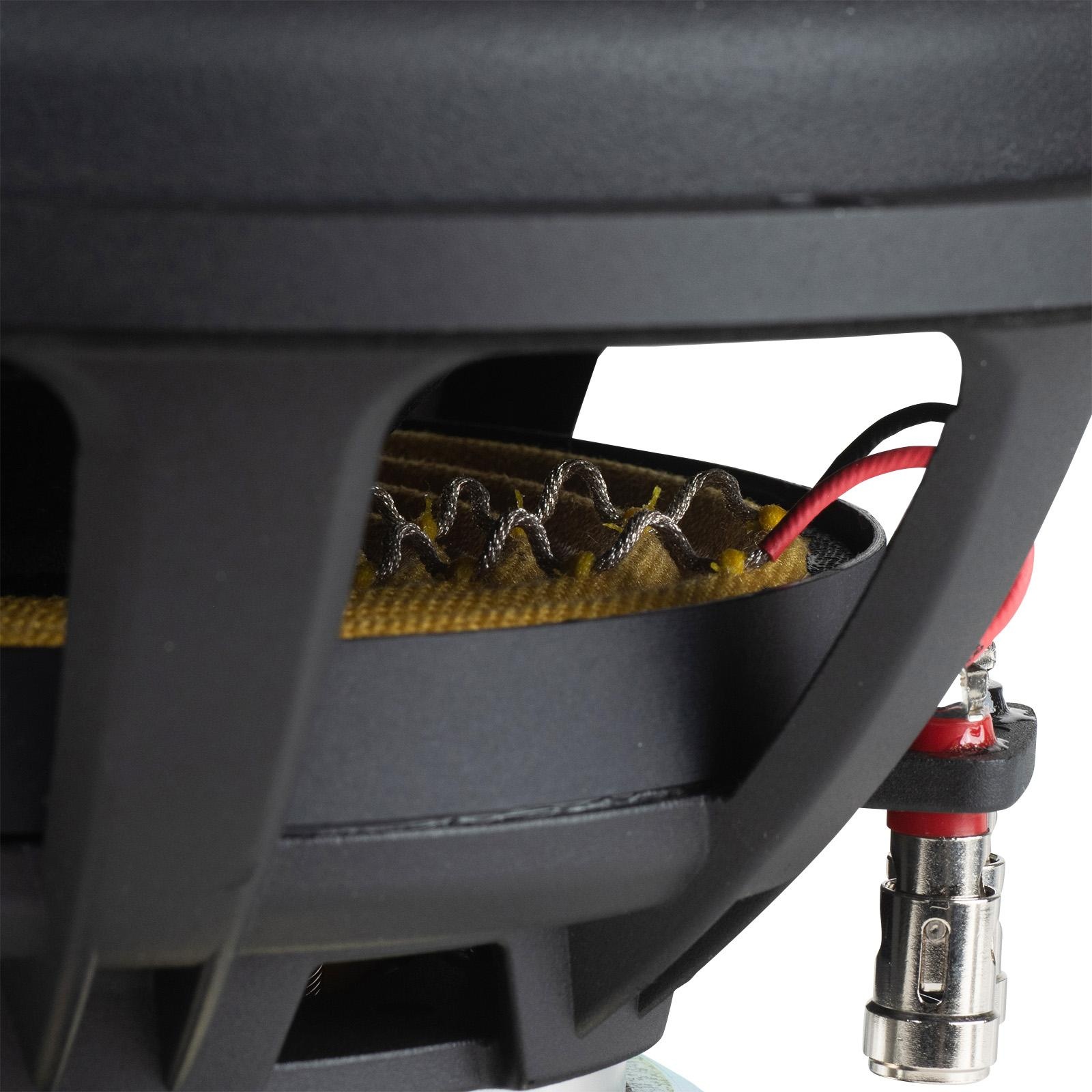

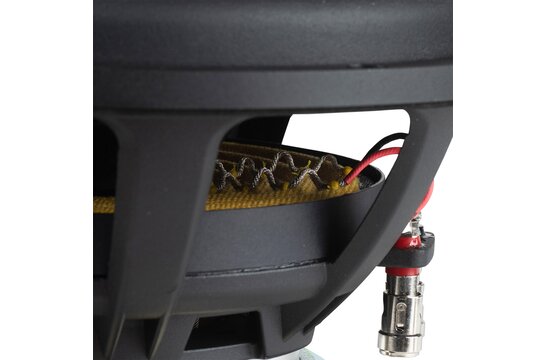

        Additional highlights include triple shorting rings to reduce inductance (Le: 1.6 mH) and minimize distortion, dual spiders for mechanical stability, and extensive venting to keep the motor and voice coil cool. With a sensitivity of 87.1 dB (2.83V/1m) and a usable frequency response from 20 to 500 Hz, the SS10-22 is ideal for bass-heavy music, home theater LFE channels, or custom car audio builds that demand deep, articulate low-end.

        Show more

        Specifications

        Article number
        SS10-22
        EAN
        0848791011122
        Woofer Series
        Dayton Audio Signature series
        Woofer Type
        Subwoofer
        Nominal Diameter
        10"
        Power Handling (RMS)
        700 Watts
        Power Handling (max)
        1,400 watts
        Impedance (Z)
        2 + 2 ohms
        Sensitivity (SPL at 1m / 2.83V)
        87.1 dB
        Frequency Response
        20-500 Hz
        Voice Coil Diameter
        63.5 mm
        DC Resistance (Re)
        4.4 ohms
        Voice Coil Inductance (Le)
        1.6 mH
        Resonant Frequency (Fs)
        34 Hz
        Mechanical Q (Qms)
        3.80
        Electromagnetic Q (Qes)
        0.45
        Total Q (Qts)
        0.40
        Diaphragm Mass Inc. Airload (Mms)
        180g
        Mechanical Compliance of Suspension (Cms)
        0.122 mm/N
        Surface Area of Cone (Sd)
        344.5 cm²
        Volume of Displacement (Vd)
        627 cm³
        BL Product (BL)
        19.4 Tm
        Compliance Equivalent Volume (Vas)
        20.6 liters
        Maximum Linear Excursion (Xmax)
        21 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        rubber
        Voice Coil Wire Material
        CCAW
        Voice Coil Former
        Aluminum
        Dual Voice Coil
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        266 mm
        Overall Depth
        179 mm
        Baffle Cutout Diameter
        236.7 mm
        Bolt Circle Diameter
        252 mm
        # Mounting Holes
        8

        Show more
