        RSS315-PR 12" Aluminum Cone Passive Radiator

        RSS315-PR 12" Aluminum Cone Passive Radiator

        €159,95

        Dayton Audio RSS315-PR 12" Aluminum Cone Passive Radiator

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 132,19€ 159,95 3 In stock7 expected on 30-08-2024
        • -5% Purchase 4 for only € 151,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

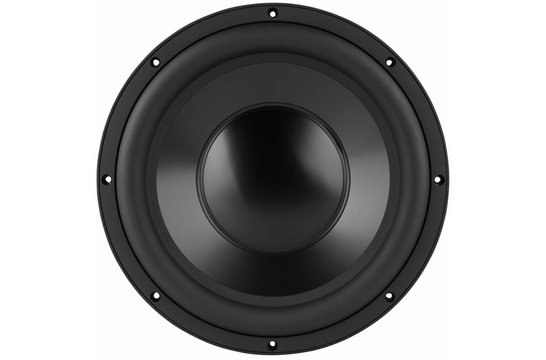

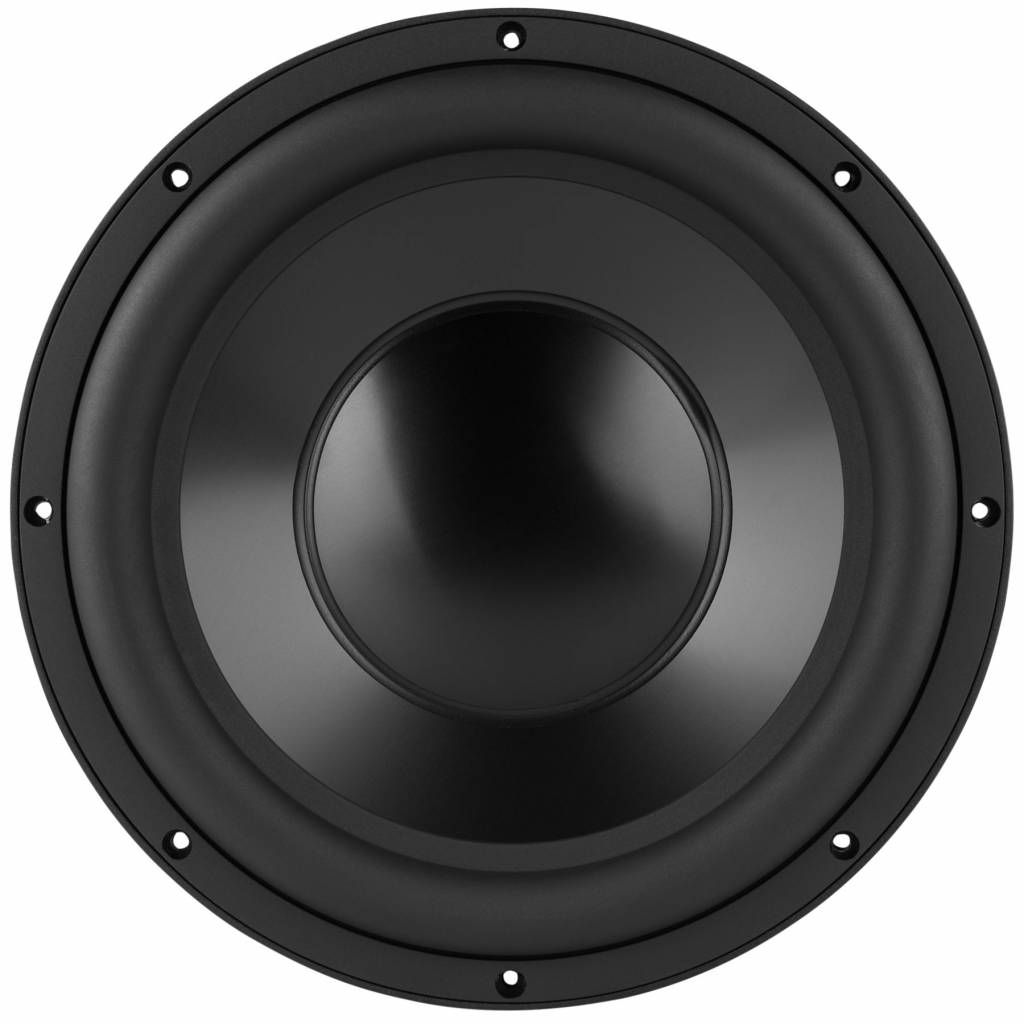

        Dayton Audio's RSS315-PR 12" passive radiator is the ideal choice for tuning small enclosures lower than possible with a conventional port. With a thick aluminum cone, cast frame, rubber surround, and incredible excursion capabilities (52 mm peak to peak) this radiator is perfect for today's high excursion subwoofers.



        Highlights

        • SMS™ (Sandwich Mass System) permits greater linearity by minimizing angular torque
        • Durable yet compliant suspension provides substantial linear travel and mechanical stability
        • Rigid cast aluminum frame with thick black anodized aluminum cone
        • Threaded rod with lock nut for easy adjustment of tuning frequency
        • Includes six 75 gram weighted disks for simple tuning adjustment
        • Cosmetically identical to the popular Reference Series subwoofer lines



        Product details

        Dayton Audio RSS315-PR 12" Aluminum Cone Passive Radiator



        We are proud to offer our customers a complete line of Dayton Audio Reference Series passive radiators. These high quality, well-engineered passive radiators are carefully constructed using the same rigid anodized aluminum cone and cast frame as Dayton Audio's world renowned Reference Series subwoofers, making them visually identical and a perfect match to the very popular line of drivers.

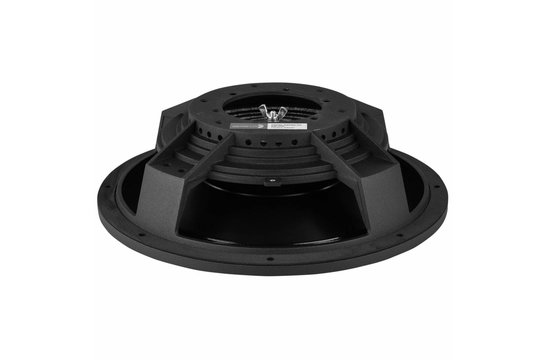

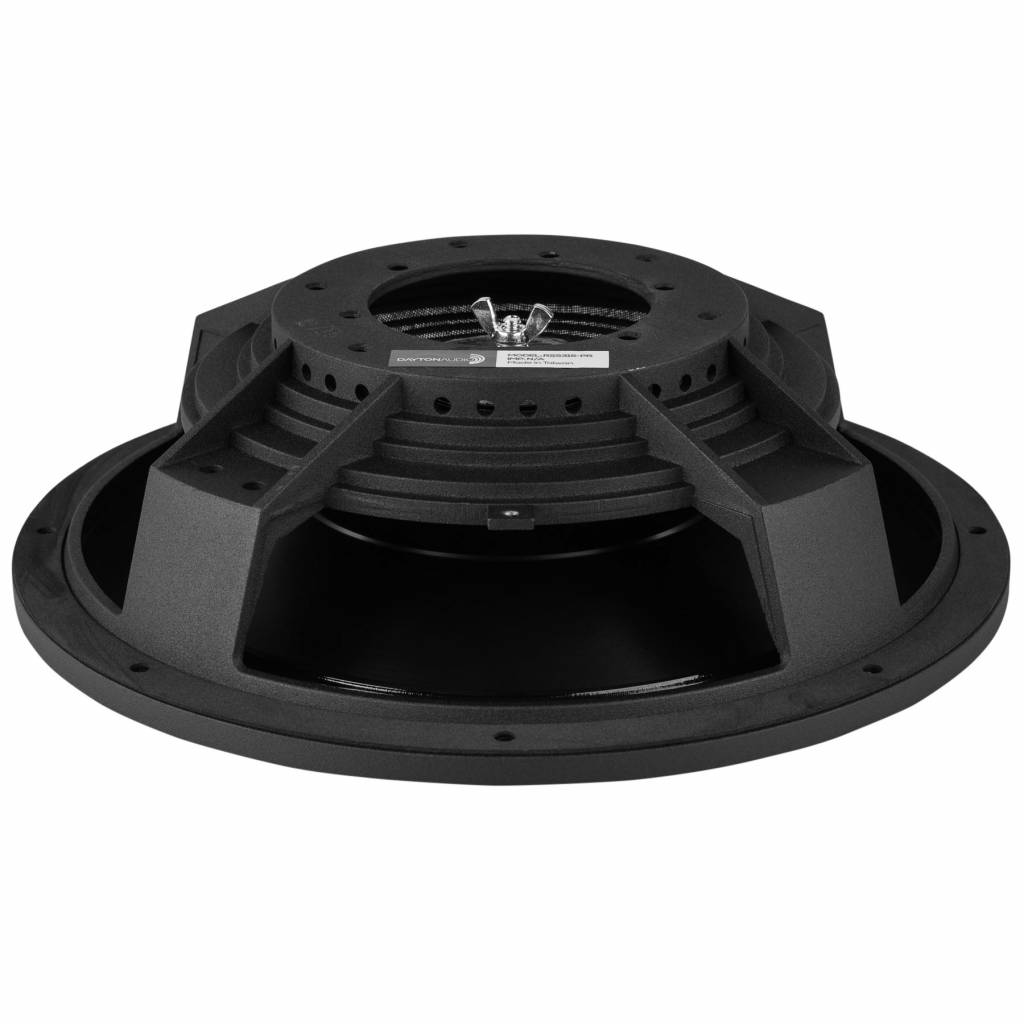

        Each passive radiator employs the unique SMS™ (Sandwiched Mass Structure) design which keeps the majority of the mass centered between the surround and spider providing greater linearity by minimizing angular torque. These passives are also tunable using the included weights with the bolt-on mass adjustment assembly, making them easily integrated into virtually any subwoofer design.

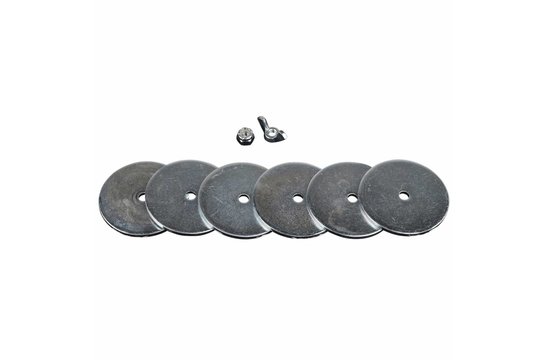

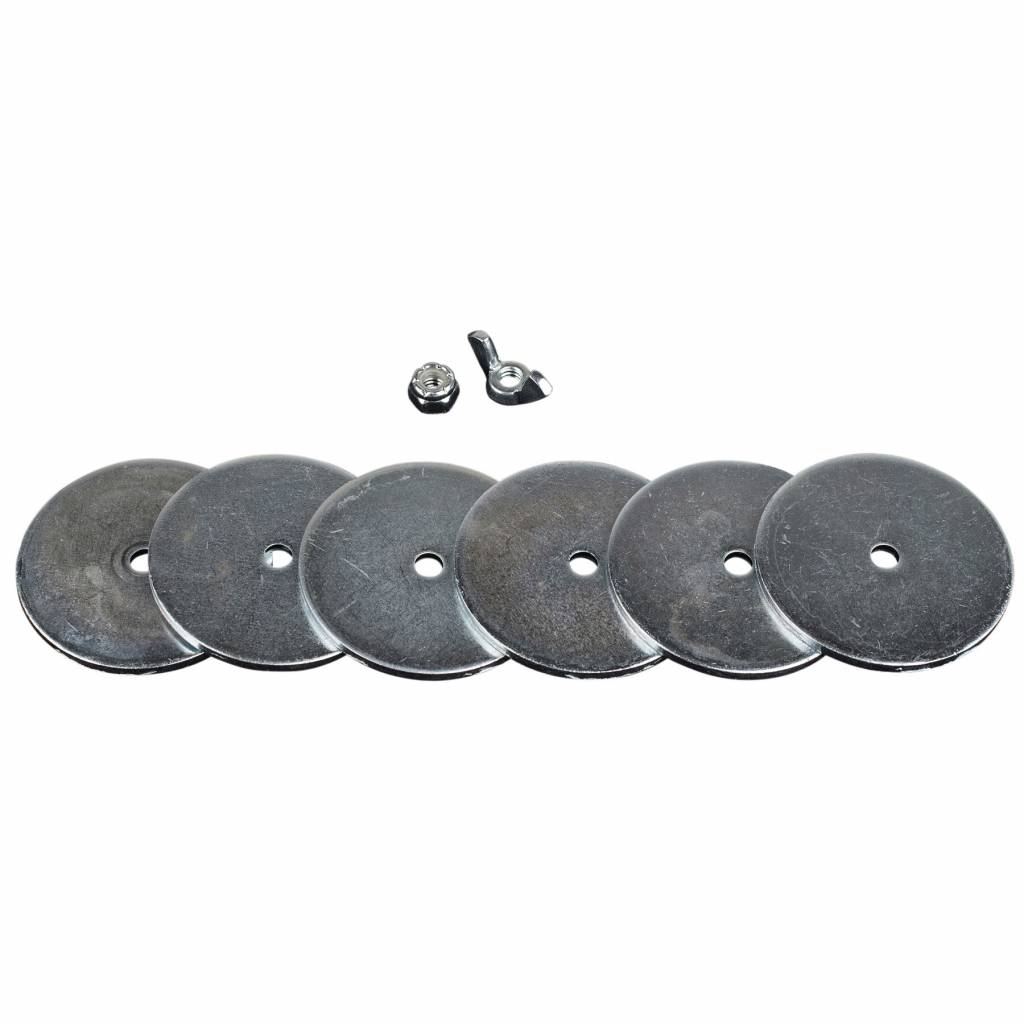

        The RSS315-PR 12" passive radiator includes:


        (1) Passive radiator
        (6) 75 gram disk weights
        (1) wing nut (for tuning)
        (1) lock nut (for final assembly)



        Specifications: • Fs: 21 Hz • Vas: 2.79 cu. ft. (78.9 liters) • Qms: 4.79 • Cms: 0.22 mm/N • Mms: 300g • Rms: 7.77 kg/s • Sd: 506.7 sq. cm. • Xmech: 26 mm • Dimensions: Overall diameter: 12.36", Cutout diameter: 11.10", Depth: 3.43".



        Note: Parameters above are for the passive only with no additional mass added. Parameters with additional mass added are listed in the table below.

        Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
        To calculate Vd: Sd x Xmax = Vd

        Show more

        Specifications

        Article number
        RSS315-PR
        Woofer Series
        Reference Series
        Woofer Type
        Passive Radiator
        Nominal Diameter
        12"
        Resonant Frequency (Fs)
        21 Hz
        Mechanical Q (Qms)
        4.79
        Diaphragm Mass Inc. Airload (Mms)
        300g
        Mechanical Compliance of Suspension (Cms)
        0.22 mm/N
        Surface Area of Cone (Sd)
        506.7 cm²
        Volume of Displacement (Vd)
        1,317.4 cm³
        Compliance Equivalent Volume (Vas)
        78.9 liters
        Maximum Linear Excursion (Xmax)
        26 mm
        Driver's Mechanical Losses (Rms)
        7.77 kg/s
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Basket / Frame Material
        Cast Aluminum
        Overall Outside Diameter
        314 mm
        Overall Depth
        87 mm
        Baffle Cutout Diameter
        282 mm
        # Mounting Holes
        8
