      Dayton Audio RSS265HO-44 10" Reference HO DVC Subwoofer

      € 231,36€ 279,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €265,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The RSS265HO-44 10" High Output Reference Subwoofer from Dayton Audio is designed for high power handling and extremely low distortion. A small enclosure requirement allows it to be used in car audio and space limited home audio applications.



      Highlights

      • Dual 4 ohm voice coils for many wiring options
      • Extensively vented motor eliminates compression and allows quiet excursion
      • Extra-thick black anodized aluminum cone for maximum rigidity
      • Triple shorting-ring motor for ultra-low distortion
      • Parameters optimized for small enclosures
      • Highest quality materials throughout for long-lasting performance



      Product details

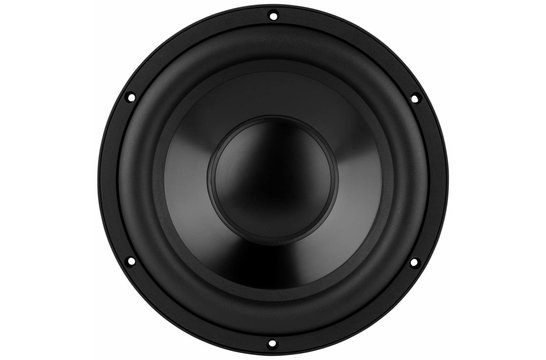

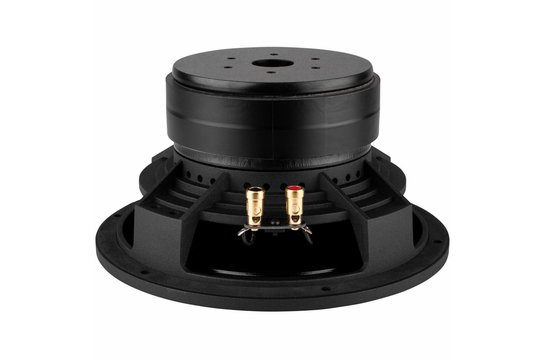

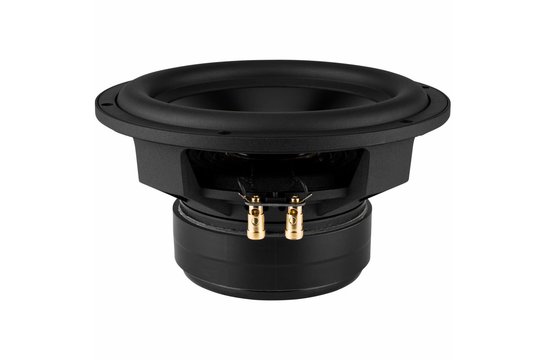

      Dayton Audio RSS265HO-44 10" Reference HO DVC Subwoofer



      Dayton Audio's 10" RSS265HO-44 High Output Reference Series subwoofer is purpose-built for moving lots of air, extreme power handling, extremely low distortion... and it does it all with an extremely small enclosure requirement! The minimum airspace optimization of this driver makes it perfect for car audio automotive applications and limited space home audio applications.



      To minimize distortion, three copper short-circuit paths are built into the motor. This reduces second, third, and intermodulation distortion to levels only attained previously by expensive, exotic subwoofers. A side benefit is reduced energy storage and inductance, making the RSS265-HO-44 a very musical subwoofer. In fact, frequency response remains very flat up to 500 Hz.



      Additional features include: a heavy gauge black anodized aluminum cone that resists deformation from extreme air pressure levels found inside of small sealed enclosures, a fully ventilated motor for reduced power compression, a rigid cast aluminum frame for structural integrity, and a tough rubber surround that won't wear down over years of use. Dual 4-ohm voice coils allow for a wide array of wiring options.



      As with all Dayton Audio subwoofers, you receive a full 5-year warranty. Designed and engineered in the U.S.A.



      Specifications

      Article number
      RSS265HO-44
      Woofer Series
      Reference Series
      Woofer Type
      Subwoofer
      Nominal Diameter
      10"
      Power Handling (RMS)
      600 Watts
      Power Handling (max)
      1200 Watts
      Impedance (Z)
      4+4 ohms
      Sensitivity
      90.5 dB 2.83V/1m
      Frequency Response
      25 to 600 Hz
      Voice Coil Diameter
      2.58"
      DC Resistance (Re)
      1.6 ohms
      Voice Coil Inductance (Le)
      0.77 mH
      Resonant Frequency (Fs)
      27.6 Hz
      Mechanical Q (Qms)
      4.42
      Electromagnetic Q (Qes)
      0.50
      Total Q (Qts)
      0.45
      Diaphragm Mass Inc. Airload (Mms)
      161g
      Mechanical Compliance of Suspension (Cms)
      0.21 mm/N
      Surface Area of Cone (Sd)
      352.3 cm²
      BL Product (BL)
      9.39 Tm
      Compliance Equivalent Volume (Vas)
      1.23 ft.³
      Maximum Linear Excursion (Xmax)
      13.25 mm
      Cone / Diaphragm Material
      Aluminum
      Surround Material
      Rubber
      Dual Voice Coil
      Yes
      Basket / Frame Material
      Cast Aluminum
      Overall Outside Diameter
      10.5"
      Overall Depth
      5"
      Baffle Cutout Diameter
      9.25"
      Sealed Volume
      0.55 ft.³
      Sealed F3
      46 Hz
      Vented Volume
      1.5 ft.³
      Vented F3
      22 Hz
