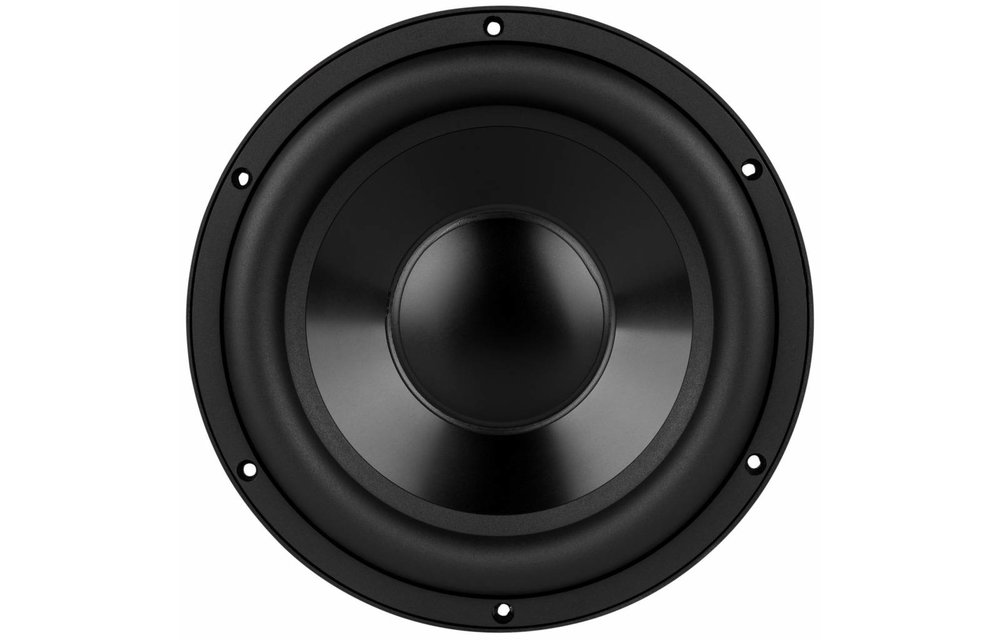

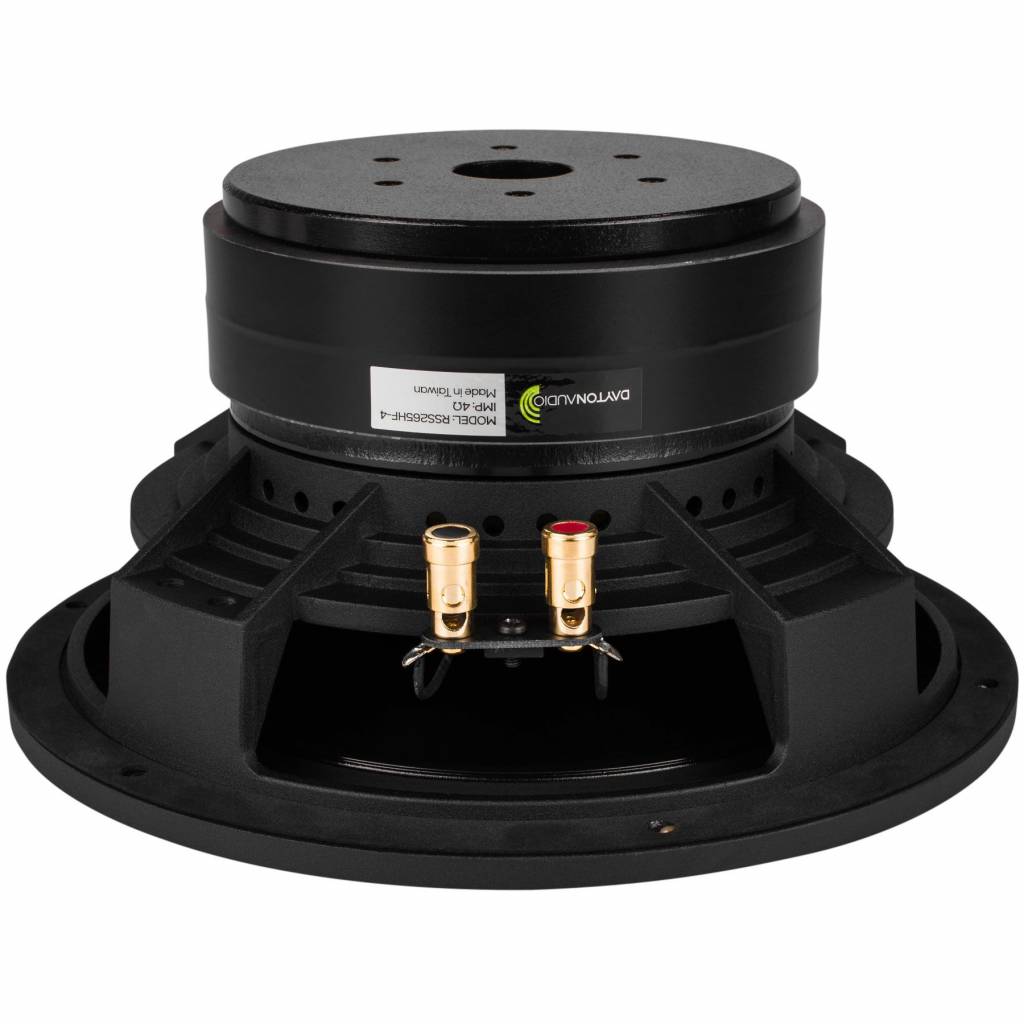

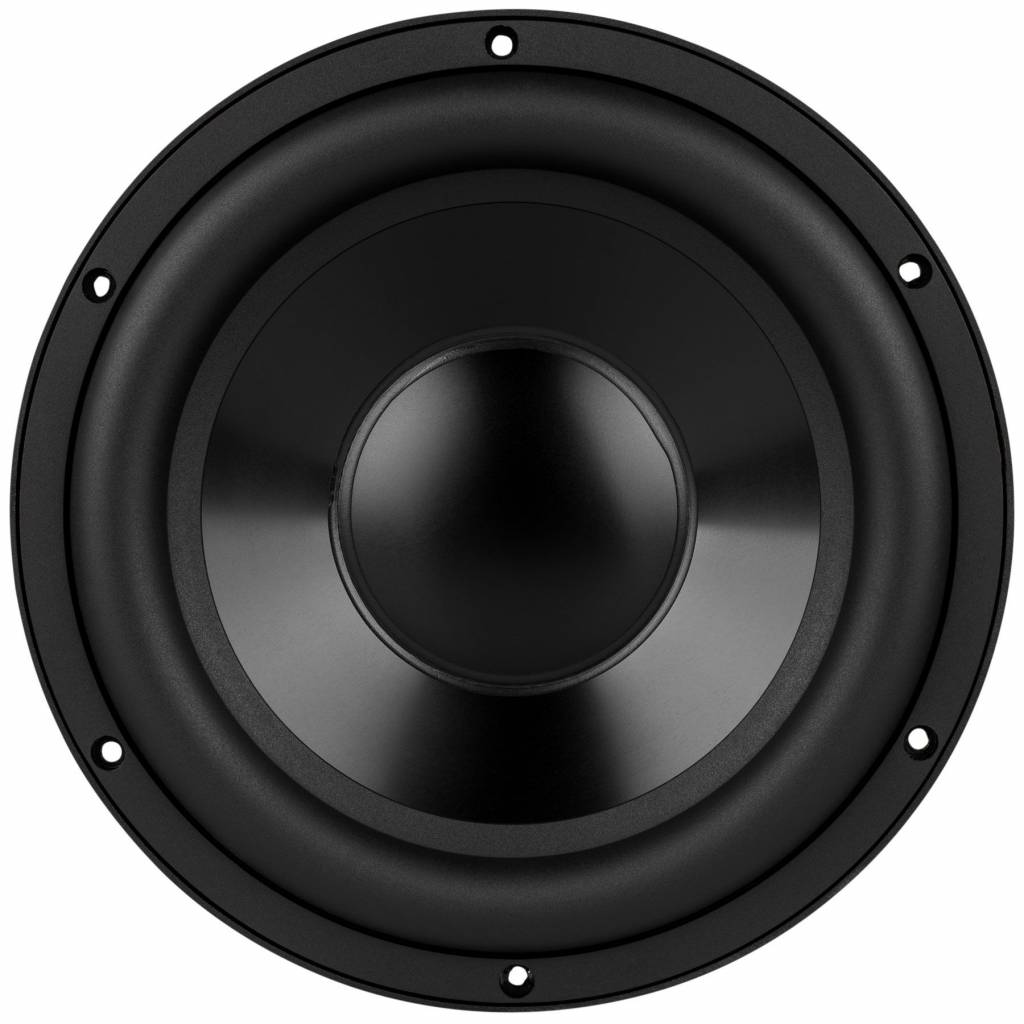

Dayton Audio Reference RSS265HF-4 Subwoofer

Name: Dayton Audio Reference RSS265HF-4 Subwoofer
Brand: Dayton Audio
SKU: RSS265HF-4
Price: 229.95 EUR
Availability: InStock
Rating: 4.8 (5 reviews)

5 reviews

Brand: Dayton Audio

Show all Subwoofer

Compare

10" | 4 Ω

€ 190,04€ 229,95 10+ In stock

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

The Dayton Audio RSS265HF-4 10" subwoofer features the high-definition/low-distortion attributes of the acclaimed Reference Series, and provides great results in compact single-driver subwoofer speaker systems...or when used in multiples!

Highlights

Extensively vented motor eliminates compression and allows quiet excursion
Lightweight black anodized aluminum cone for rigidity and lower moving mass
Suitable for sealed or vented enclosures
Triple shorting ring motor for ultra-low distortion
2-layer coil for reduced back EMF
Highest quality materials throughout for long-lasting performance

Product details

Dayton Audio RSS265HF-4 10" Reference HF Subwoofer 4 Ohm

As with the rest of the Reference Series, the main focus of the Dayton Audio RSS265HF 10" subwoofer is ultra-low distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, thick rubber surround, and custom basket give this Dayton Audio driver a unique, high-end look. Choose the High Fidelity (HF) version for home systems when you are looking for clean, low bass and are not restricted by speaker cabinet size.

Specifications

Article number: RSS265HF-4
Woofer Series: Reference Series
Woofer Type: Subwoofer
Nominal Diameter: 10"
Power Handling (RMS): 350 watts
Power Handling (max): 700 watts
Impedance (Z): 4 ohms
Sensitivity: 87.8 dB @ 2.83V/1m
Frequency Response: 22 - 1,000 Hz
Voice Coil Diameter: 64 mm
Magnet Weight: 100 oz.
DC Resistance (Re): 3.5 ohms
Voice Coil Inductance (Le): 0.96 mH @ 1 kHz
Resonant Frequency (Fs): 25.6 Hz
Mechanical Q (Qms): 3.06
Electromagnetic Q (Qes): 0.53
Total Q (Qts): 0.45
Diaphragm Mass Inc. Airload (Mms): 120g
Mechanical Compliance of Suspension (Cms): 0.32 mm/N
Surface Area of Cone (Sd): 356.3 cm²
Volume of Displacement (Vd): 438.3 cm³
BL Product (BL): 11.43 Tm
Compliance Equivalent Volume (Vas): 54 liters
Maximum Linear Excursion (Xmax): 12.3 mm
Cone / Diaphragm Material: Black Anodized Aluminum Cone
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 266 mm
Overall Depth: 136.5 mm
Baffle Cutout Diameter: 235 mm
# Mounting Holes: 6
Sealed Volume: 0.53 ft.³
Sealed F3: 51 Hz
Vented Volume: 1.68 ft.³
Vented F3: 27 Hz

Reviews

5 reviews

5 from 5Based on 5 reviews

Review this product

5 of 5

Es wurde keine Beschreibung gegeben.

By Felix H. on 7 October 2020

5 of 5

Toll verarbeiteter Lautsprecher. Er spielt bei mir in 70l Bassreflex als Tieftöner bis 300Hz. Nach etwas Einspielzeit klingt er sehr satt mit schönem Tiefgang. Sehr zu empfehlen.

By Thorsten Q. on 1 January 2020
