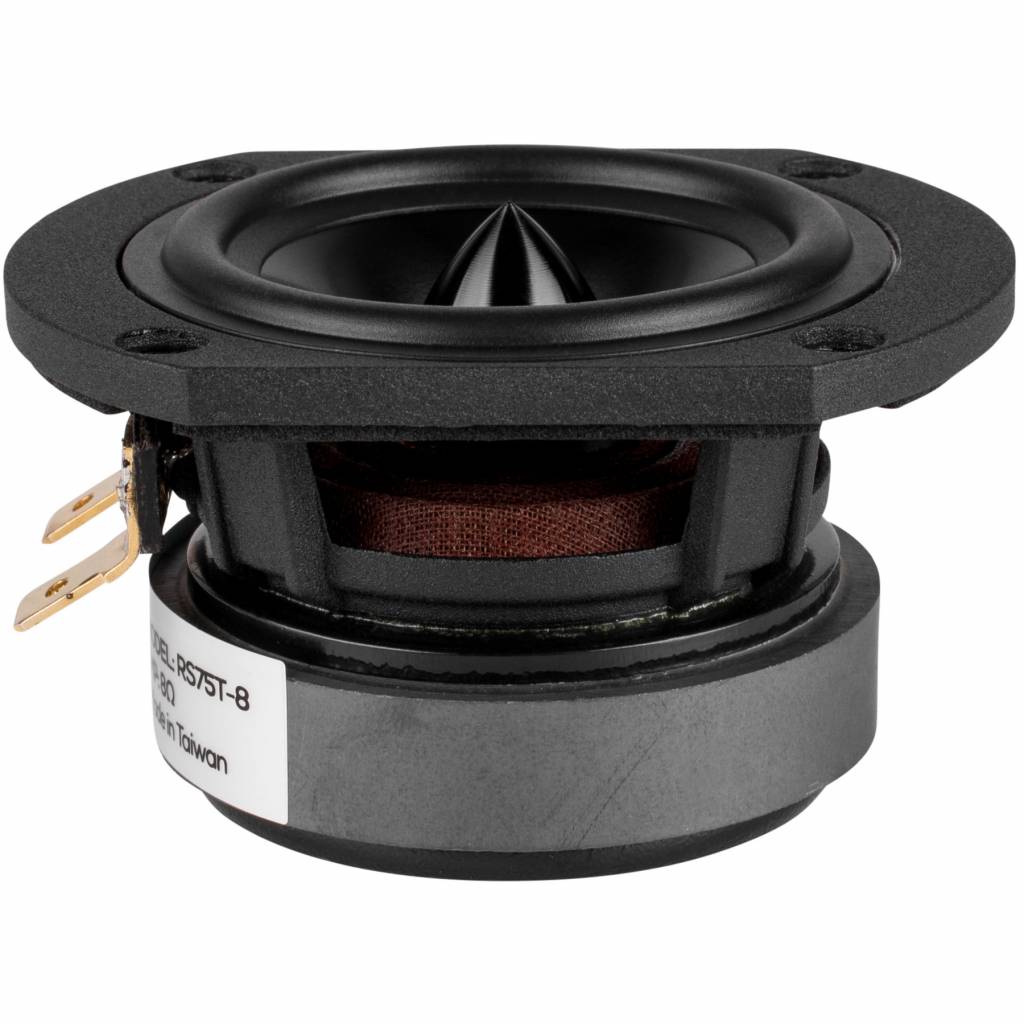

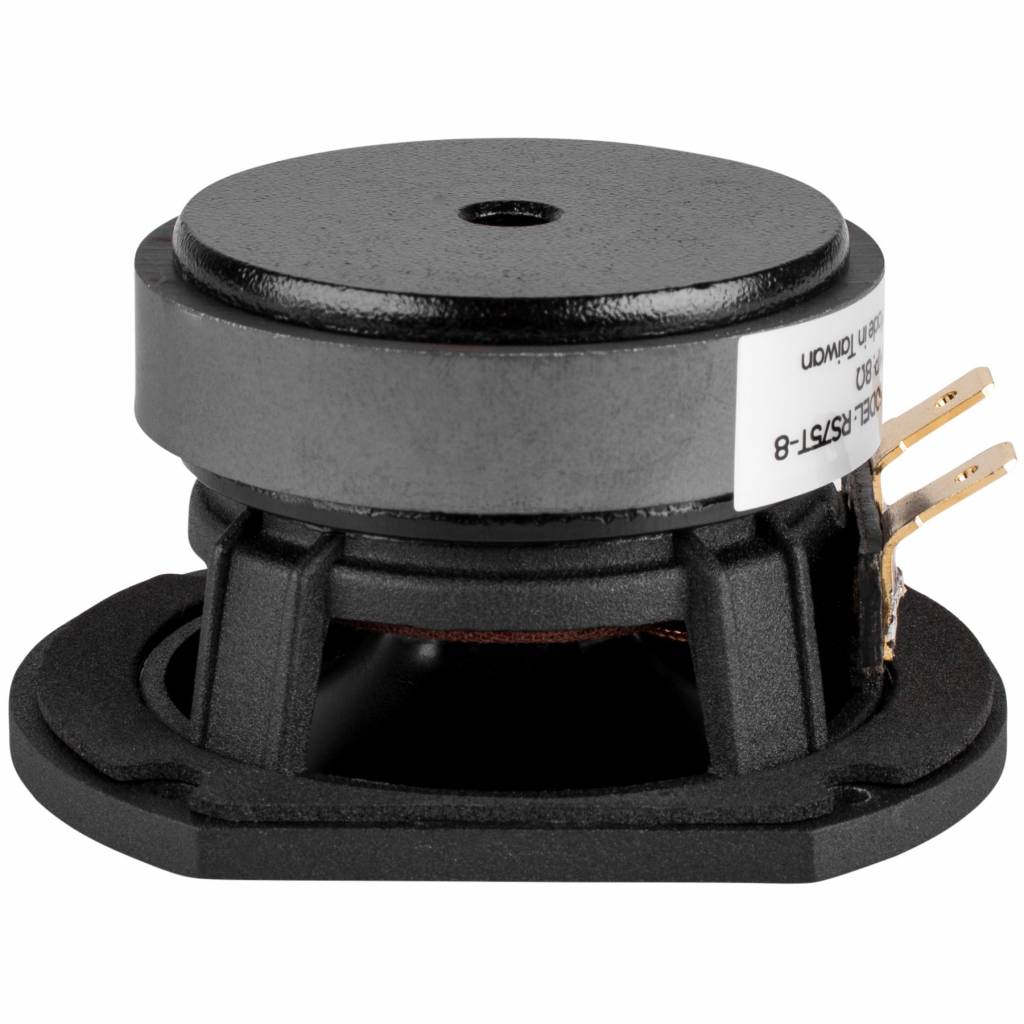

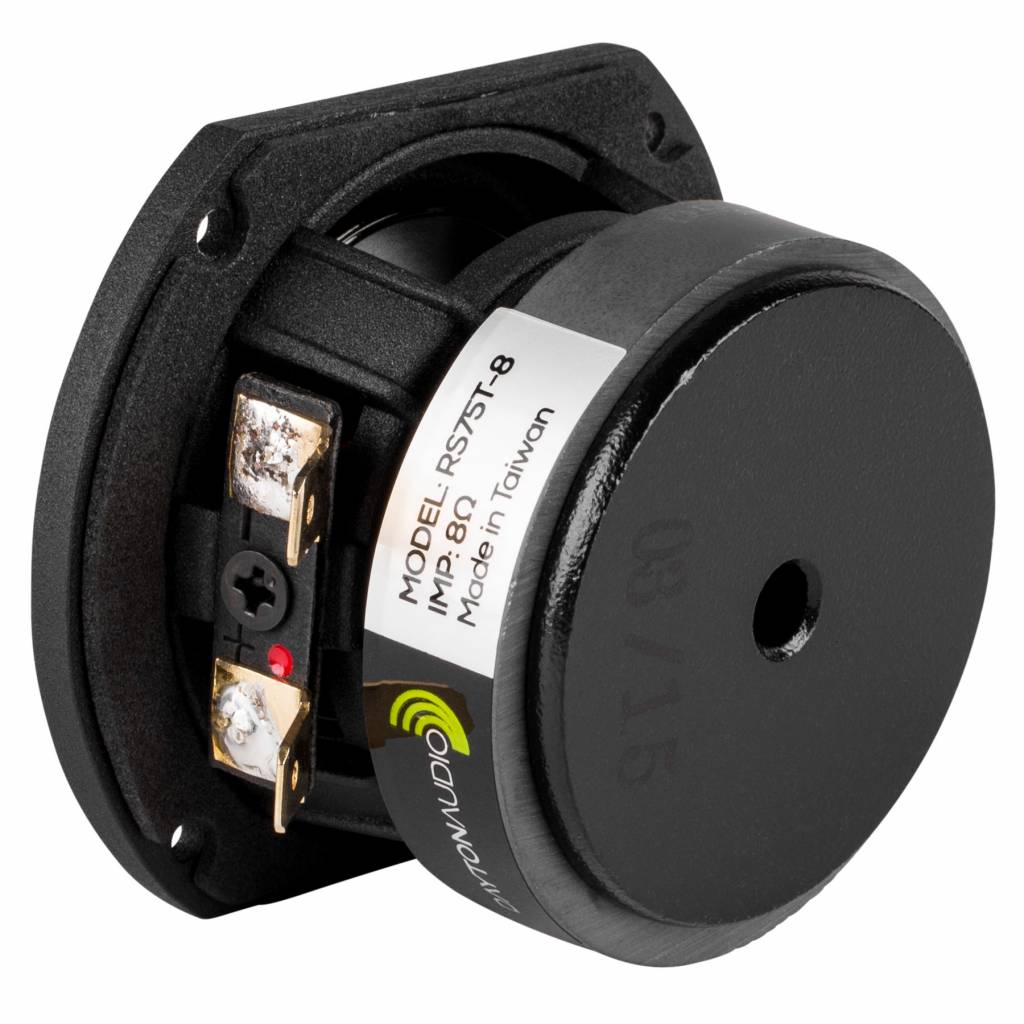

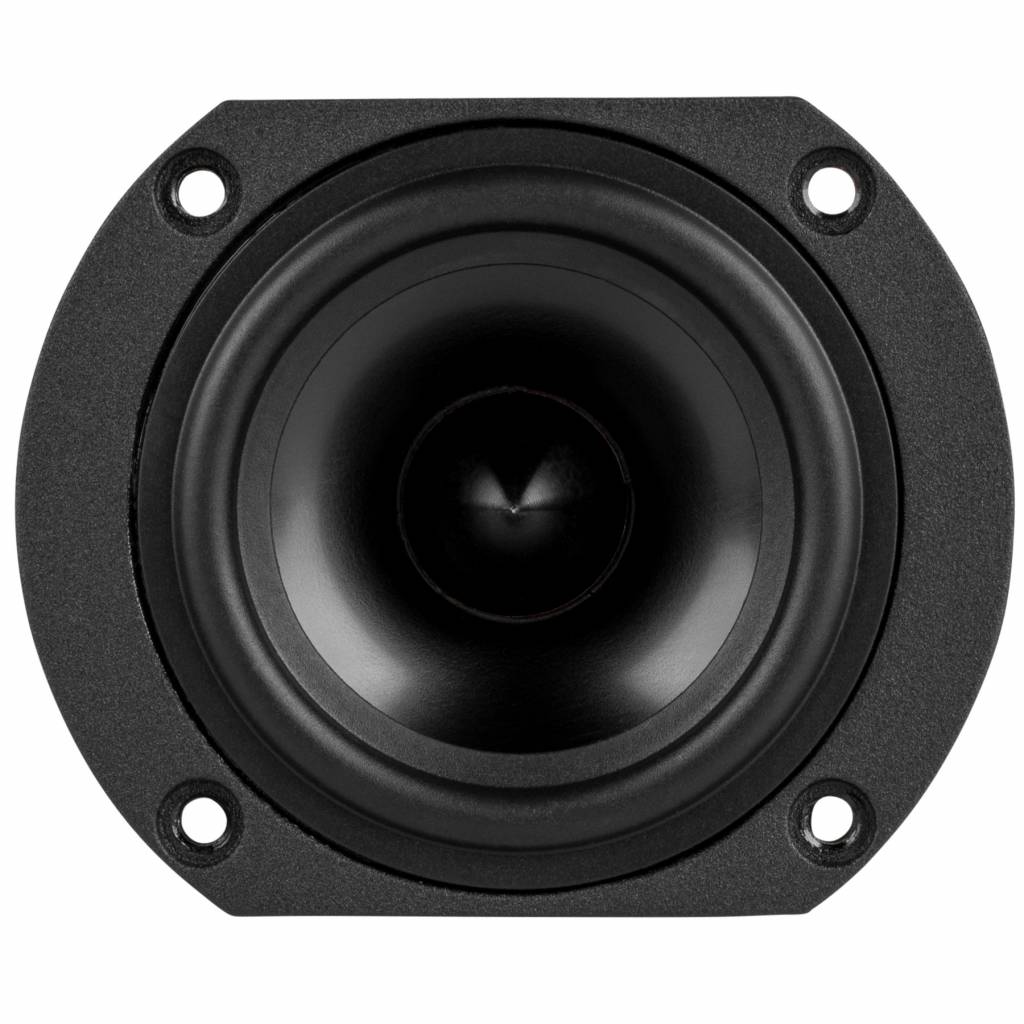

        RS75T-8 3" Reference Full-Range Driver Truncated Frame

        RS75T-8 3" Reference Full-Range Driver Truncated Frame

        €41,95

        Dayton Audio RS75T-8 3" Reference Full-Range Driver Truncated Frame

        2 reviews
        5 from 5
        2 reviews
        5 stars
        50%
        4 stars
        50%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 34,67€ 41,95 10+ In stock
        • -5% Purchase 4 for only € 39,85 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75T-8 can outperform "boutique" drivers that cost several times the price.



        Highlights

        • Truncated cast frame—great for line arrays and MTM speaker designs
        • Full-range performance
        • Low distortion and high resolution
        • Aluminum frame, aluminum cone, rubber surround
        • Distortion-reducing copper ring, copper cap, and aluminum phase plug
        • Subtle yet high-tech look makes a bold cosmetic statement
        • Designed and engineered in USA



        Product details

        Dayton Audio RS75T-8 3" Reference Full-Range Driver Truncated Frame



        The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75T-8 can outperform "boutique" drivers that cost several times the price. The driver's truncated frame makes it ideal for line arrays and ultra-compact MTM designs requiring minimal driver-to-driver spacing. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.

        Show more

        Specifications

        Article number
        RS75T-8
        Woofer Series
        Reference Series
        Woofer Type
        Full-Range
        Nominal Diameter
        3"
        Power Handling (RMS)
        15 watts
        Power Handling (max)
        30 watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        84.3 dB
        Frequency Response
        170 - 20,000 Hz
        Voice Coil Diameter
        16 mm
        DC Resistance (Re)
        6.1 ohms
        Voice Coil Inductance (Le)
        0.32 mH @ 1 kHz
        Resonant Frequency (Fs)
        189 Hz
        Mechanical Q (Qms)
        5.84
        Electromagnetic Q (Qes)
        1.13
        Total Q (Qts)
        0.95
        Diaphragm Mass Inc. Airload (Mms)
        1g
        Mechanical Compliance of Suspension (Cms)
        0.69 mm/N
        Surface Area of Cone (Sd)
        12 cm²
        Volume of Displacement (Vd)
        1.56 cm³
        BL Product (BL)
        2.58 Tm
        Compliance Equivalent Volume (Vas)
        0.22 liters
        Maximum Linear Excursion (Xmax)
        1.3 mm
        Cone / Diaphragm Material
        Black Anodized Aluminum Cone
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        72 mm
        Overall Depth
        38.5 mm
        Baffle Cutout Diameter
        54 mm
        # Mounting Holes
        4
        Sealed Volume
        0.02 ft.³
        Sealed F3
        175.2 Hz
        Vented Volume
        0.05 ft.³
        Vented F3
        96 Hz

        Show more

        4 of 5
        Ben er blij mee voldoet aan mijn verwachting
        By Herman G. on 17 October 2020
        5 of 5
        Veel power in kleine driver! Handig formaat dankzij vlakke kanten, zeer compact!
        By Gwijde V. on 5 December 2019
