      Dayton Audio RS75-8 3" Reference Full-Range Driver

      € 30,12€ 36,45 4 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €34,63 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-8 can outperform "boutique" drivers that cost several times the price.



      Highlights

      • Full-range performance with low distortion and high resolution
      • Durable construction with aluminum frame, aluminum cone, rubber surround
      • Distortion-reducing copper ring, copper cap, and aluminum phase plug
      • Subtle yet high-tech look makes a bold cosmetic statement
      • Designed and engineered in USA



      Product details

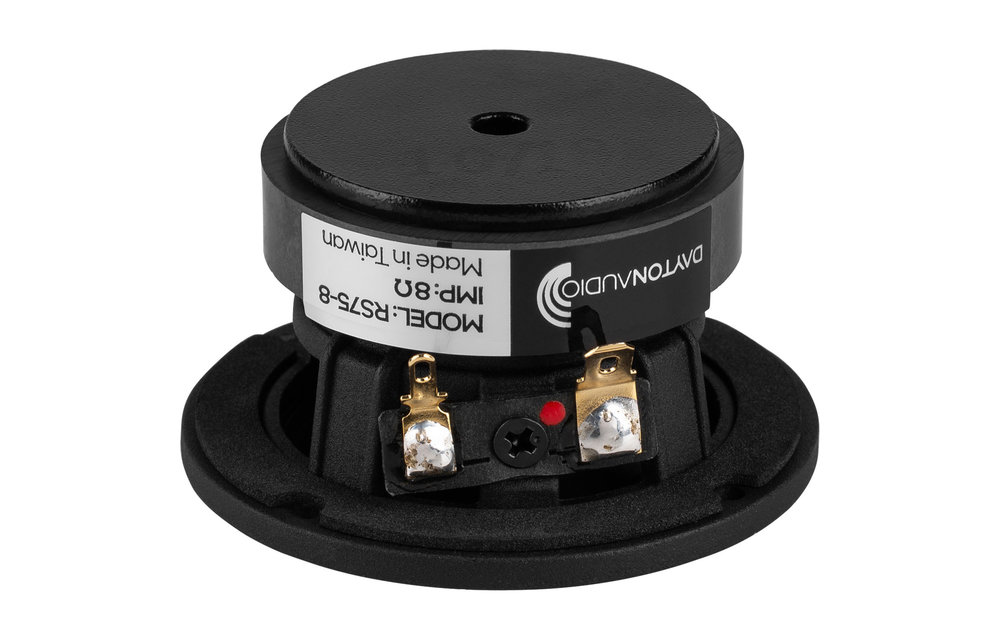

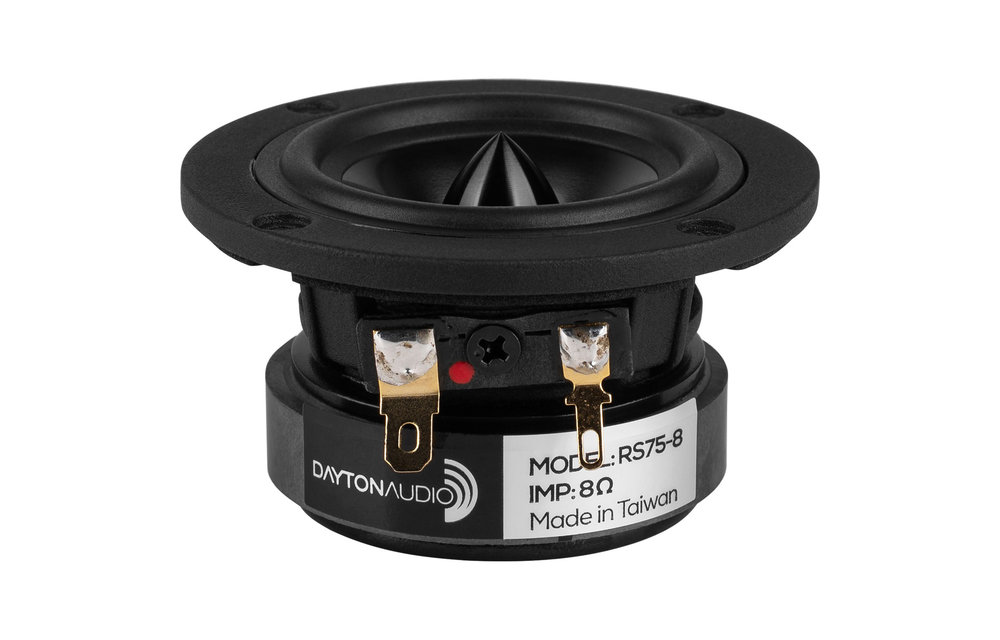

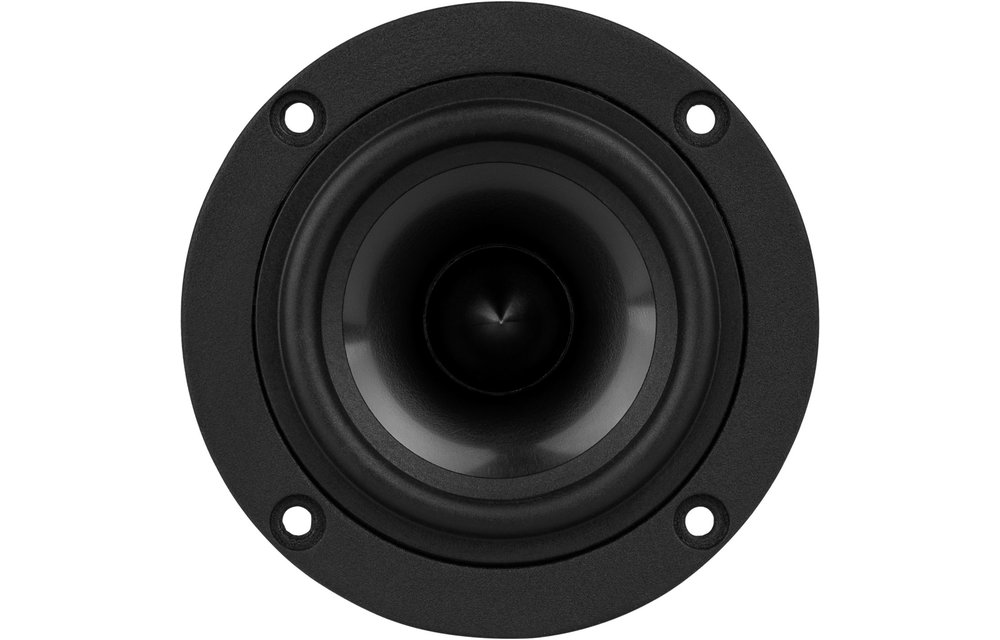

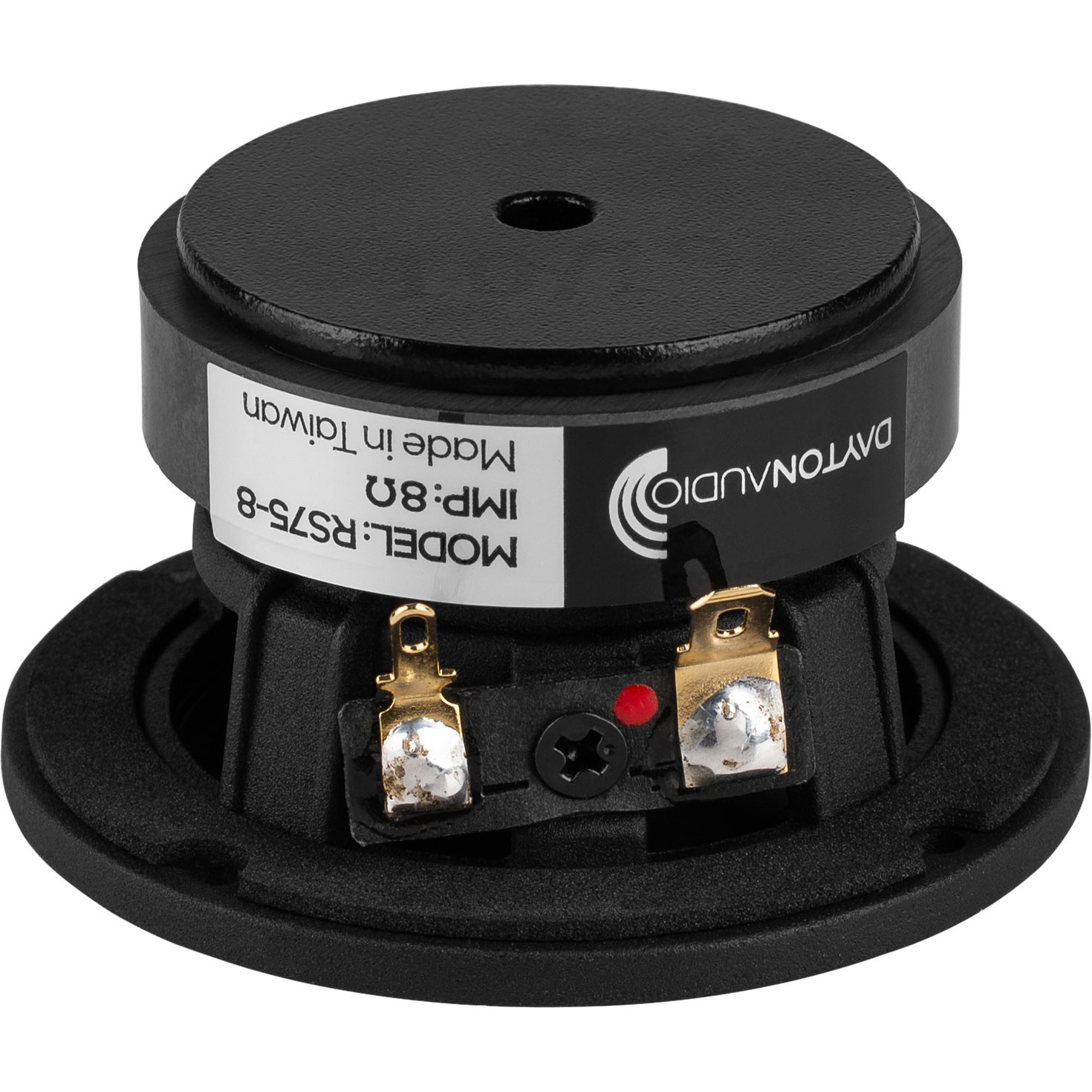

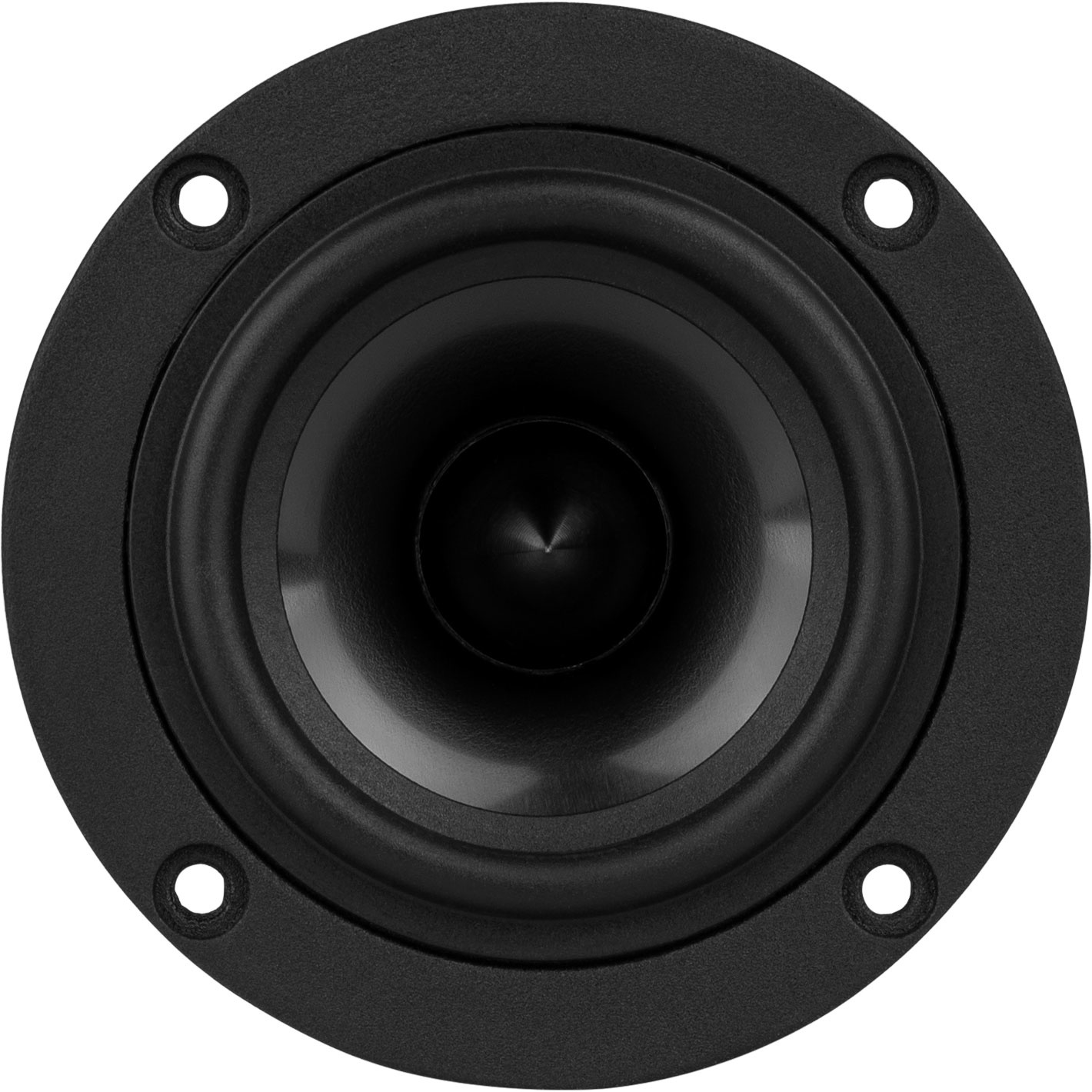

      Dayton Audio RS75-8 3" Reference Full-Range Driver 8 Ohm



      The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-8 can outperform "boutique" drivers that cost several times the price. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.

      Specifications

      Article number
      RS75-8
      Woofer Series
      Reference Series
      Woofer Type
      Full-Range
      Nominal Diameter
      3"
      Power Handling (RMS)
      15 Watts
      Power Handling (max)
      30 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      80.5 dB 2.83V/1m
      Frequency Response
      160 to 20,000 Hz
      Voice Coil Diameter
      0.60"
      DC Resistance (Re)
      6.2 ohms
      Voice Coil Inductance (Le)
      0.32 mH
      Resonant Frequency (Fs)
      185 Hz
      Mechanical Q (Qms)
      5.12
      Electromagnetic Q (Qes)
      1.35
      Total Q (Qts)
      1.07
      Diaphragm Mass Inc. Airload (Mms)
      1.23g
      Mechanical Compliance of Suspension (Cms)
      0.60 mm/N
      Surface Area of Cone (Sd)
      12 cm²
      BL Product (BL)
      2.55 Tm
      Compliance Equivalent Volume (Vas)
      0.004 ft.³
      Maximum Linear Excursion (Xmax)
      1.3 mm
      Cone / Diaphragm Material
      Aluminum
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      2.83"
      Overall Depth
      1.52"
      Baffle Cutout Diameter
      2.13"
      Bolt Circle Diameter
      2.52"
      # Mounting Holes
      4
      Sealed Volume
      0.017 ft.³
      Sealed F3
      170 Hz
      Vented Volume
      0.029 ft.³
      Vented F3
      0.029 ft.³

      Show more
