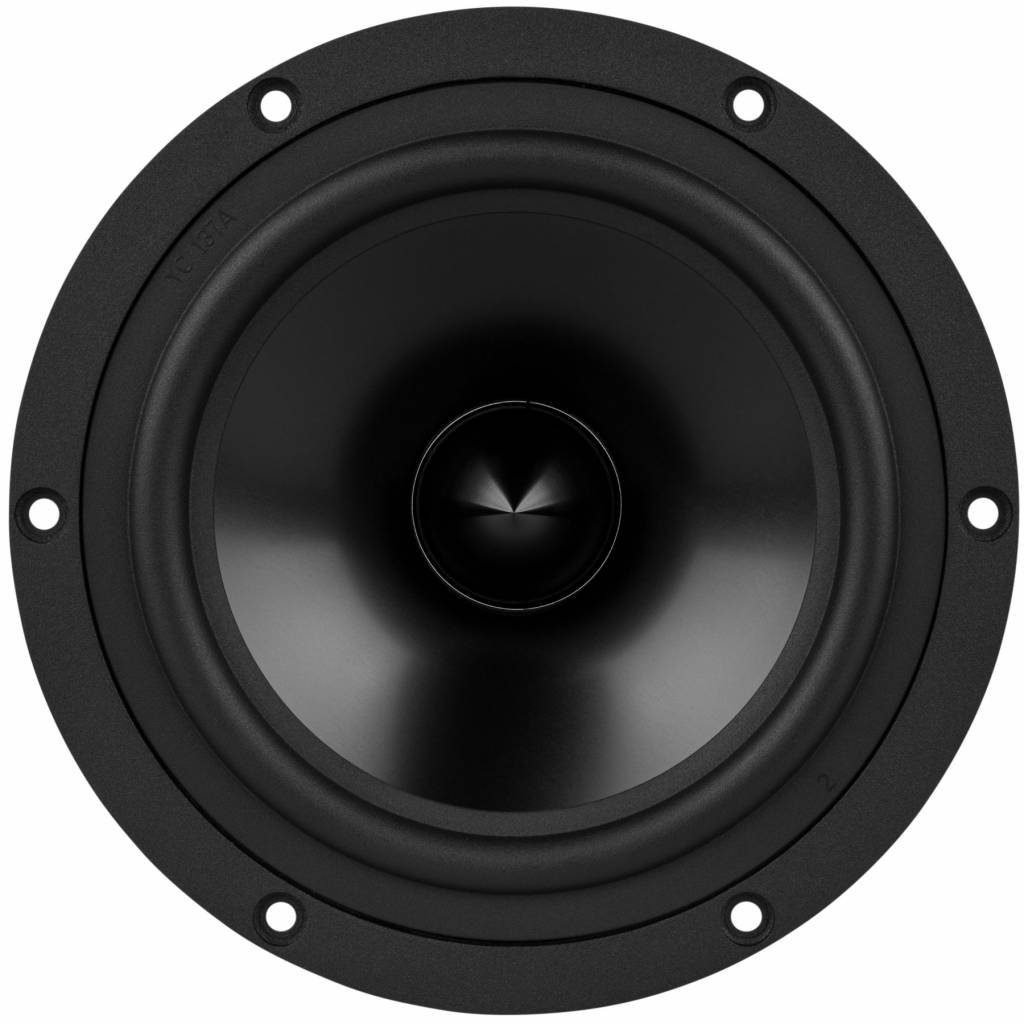

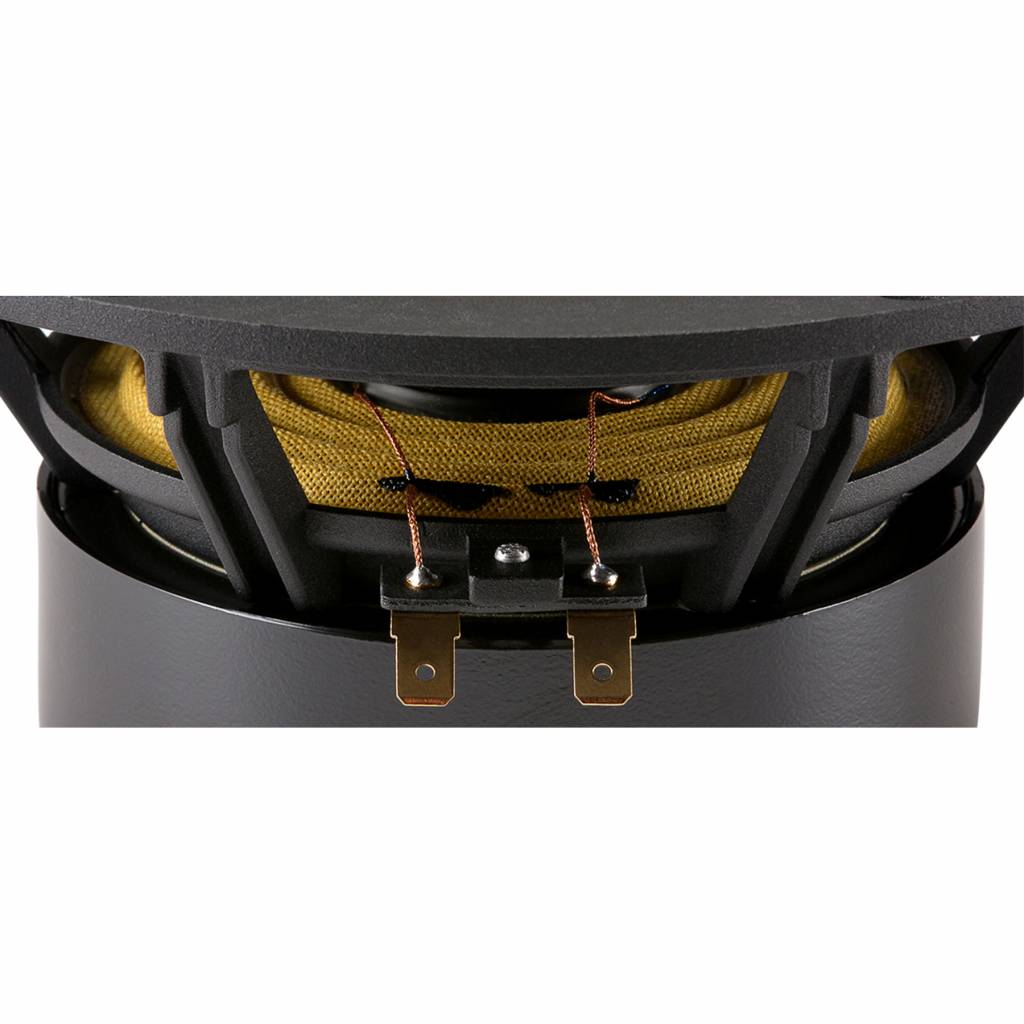

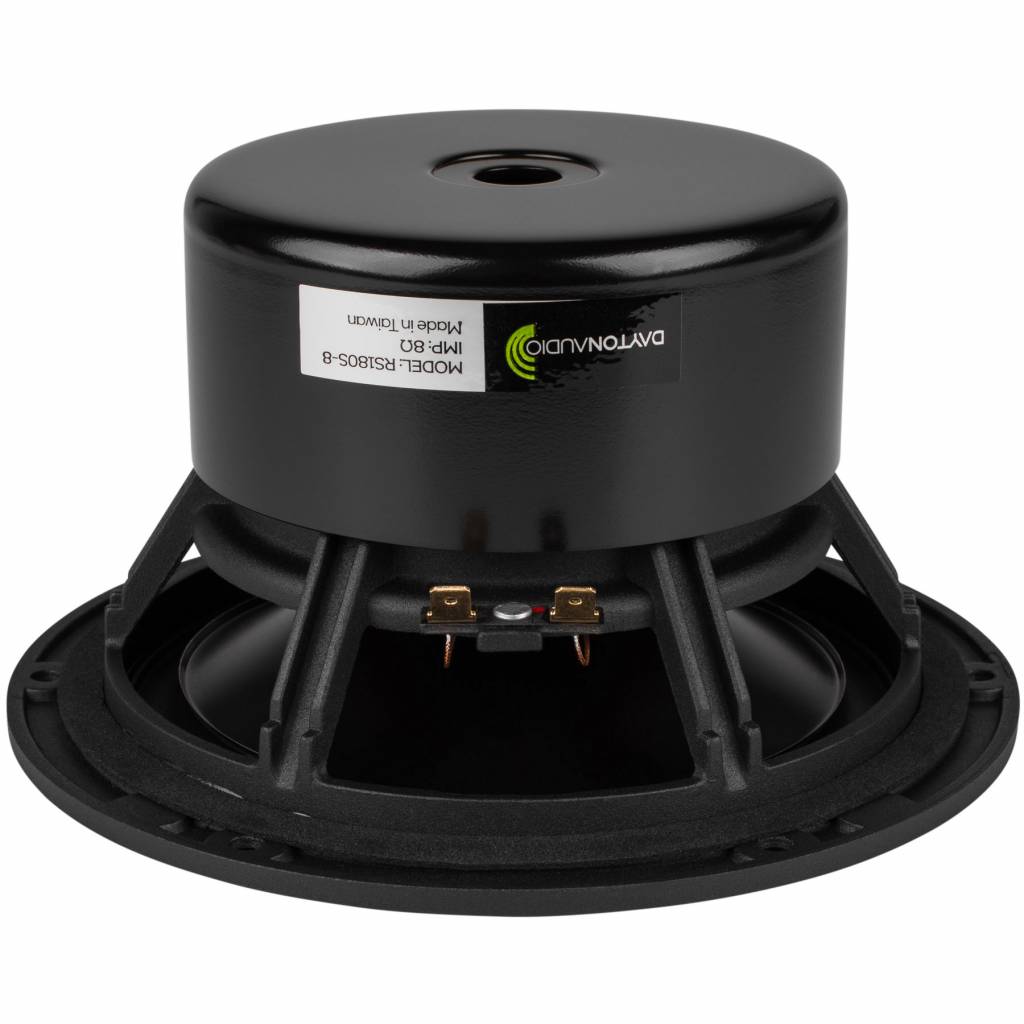

Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm

Name: Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm
Brand: Dayton Audio
SKU: RS180S-8
Price: 83.95 EUR
Availability: InStock
Rating: 4.5 (2 reviews)

2 reviews

Brand: Dayton Audio

Show all Bass-mid woofer

Compare

7" | 8 Ω

RS180S-8 7" Reference Shielded Woofer 8 Ohm

€ 69,38€ 83,95 10+ In stock

24h express shipping available
Ordered now, shipped on Monday
In-house technical support
45-day cooling-off period to return

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.

Highlights

Long-excursion motor and suspension for strong bass performance
Subtle yet high-tech look makes a bold cosmetic statement
Ultra-low stray magnetic field allows extremely close proximity to CRT's
Designed and engineered in the U.S.A.

Product details

Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofers feature a shielded motor system, black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.

Specifications

Article number: RS180S-8
Woofer Series: Reference Series
Woofer Type: Midwoofer
Nominal Diameter: 7"
Power Handling (RMS): 60 watts
Power Handling (max): 120 watts
Impedance (Z): 8 ohms
Sensitivity: 86.9 dB @ 2.83V/1m
Frequency Response: 41 - 3,600 Hz
Voice Coil Diameter: 25 mm
DC Resistance (Re): 6.4 ohms
Voice Coil Inductance (Le): 0.79 mH @ 1 kHz
Resonant Frequency (Fs): 37.7 Hz
Mechanical Q (Qms): 1.45
Electromagnetic Q (Qes): 0.49
Total Q (Qts): 0.36
Diaphragm Mass Inc. Airload (Mms): 17g
Mechanical Compliance of Suspension (Cms): 1.05 mm/N
Surface Area of Cone (Sd): 124.7 cm²
Volume of Displacement (Vd): 74.8 cm³
BL Product (BL): 7.28 Tm
Compliance Equivalent Volume (Vas): 23 liters
Maximum Linear Excursion (Xmax): 6.0 mm
Cone / Diaphragm Material: Black Anodized Aluminum Cone
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Shielded: Yes
Overall Outside Diameter: 180.5 mm
Overall Depth: 98 mm
Baffle Cutout Diameter: 146 mm
# Mounting Holes: 6
Sealed Volume: 0.17 ft.³
Sealed F3: 99 Hz
Vented Volume: 0.49 ft.³
Vented F3: 56 Hz

Reviews

2 reviews

5 from 5Based on 2 reviews

Review this product

5 of 5

Excellent midrange drivers. Been using them for 6 months (DIY build; ported speakers with these mid/low range drivers and RST28F-4 Dome tweeters. Works like a charm.

By Subhasish on 2 May 2020

4 of 5

Prima product, prima levering!!

By bert r. on 15 October 2019
