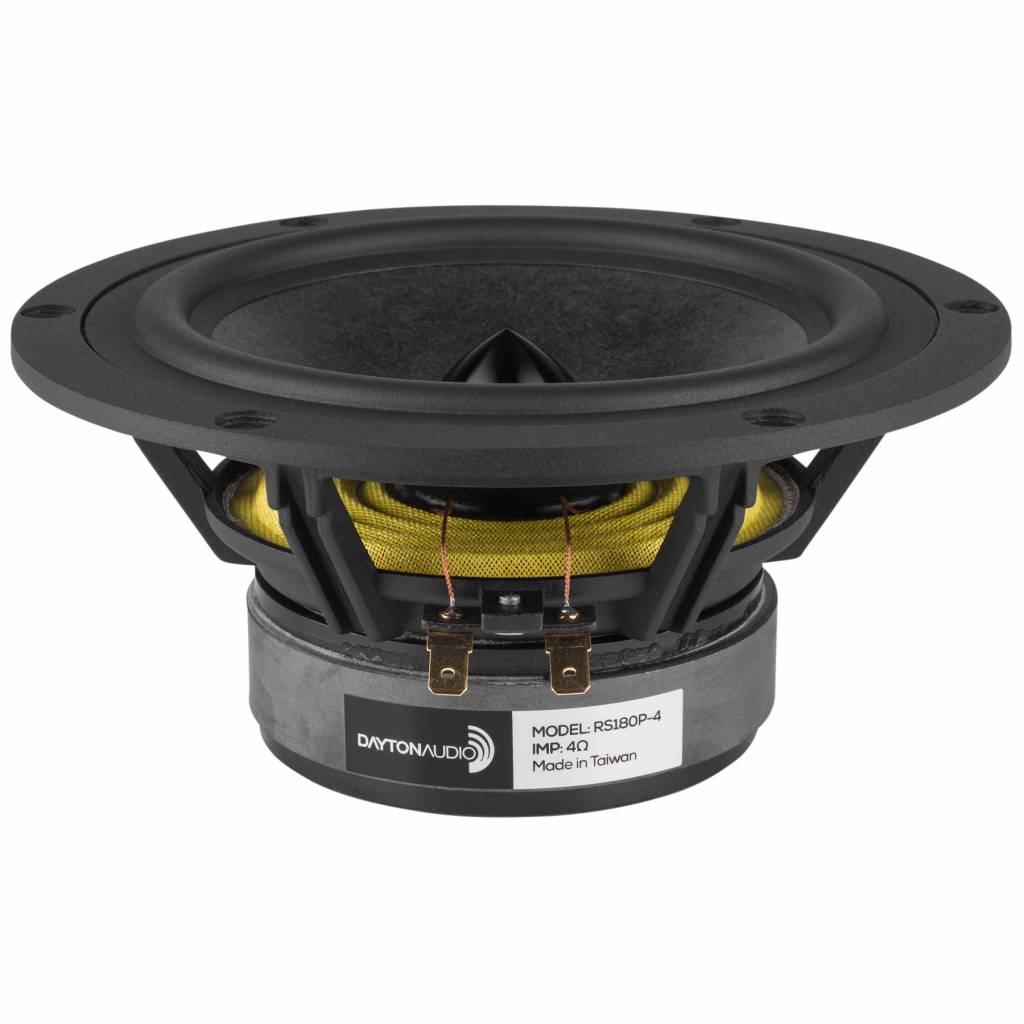

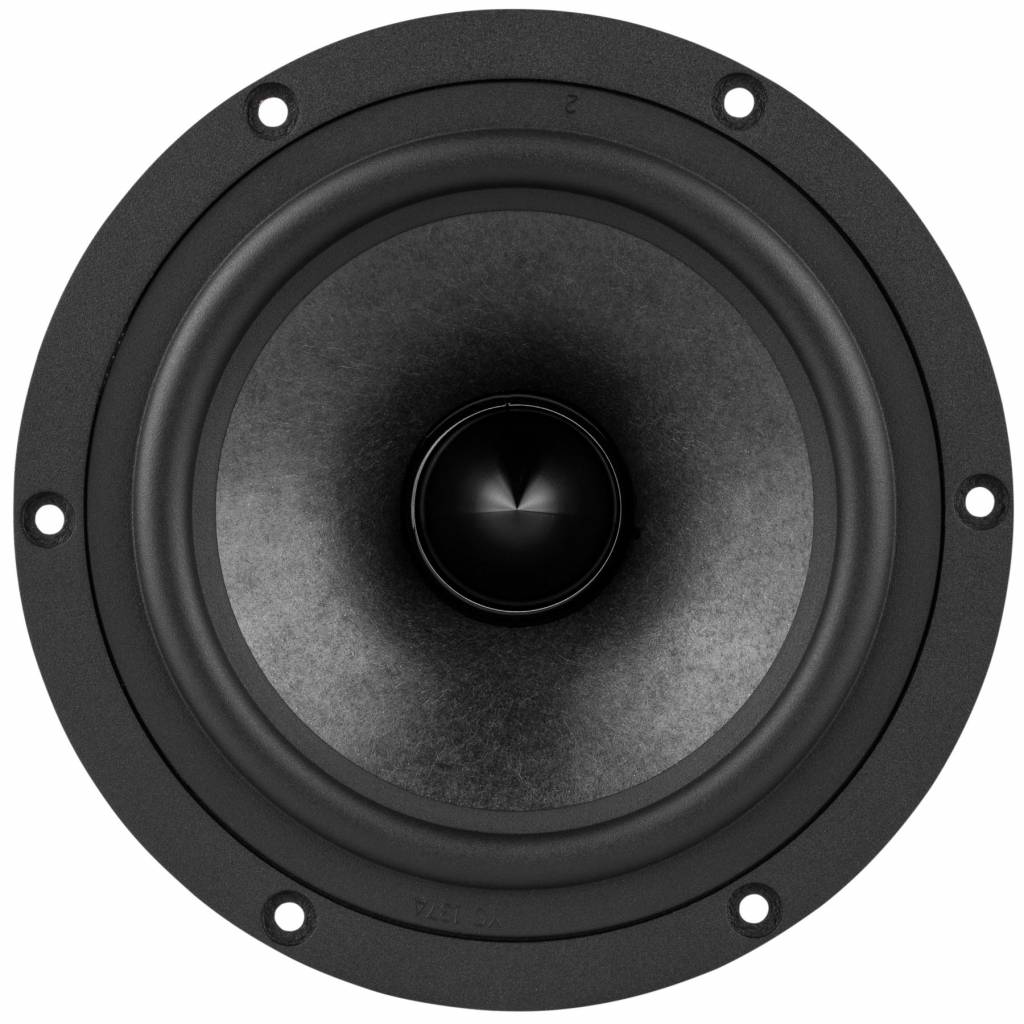

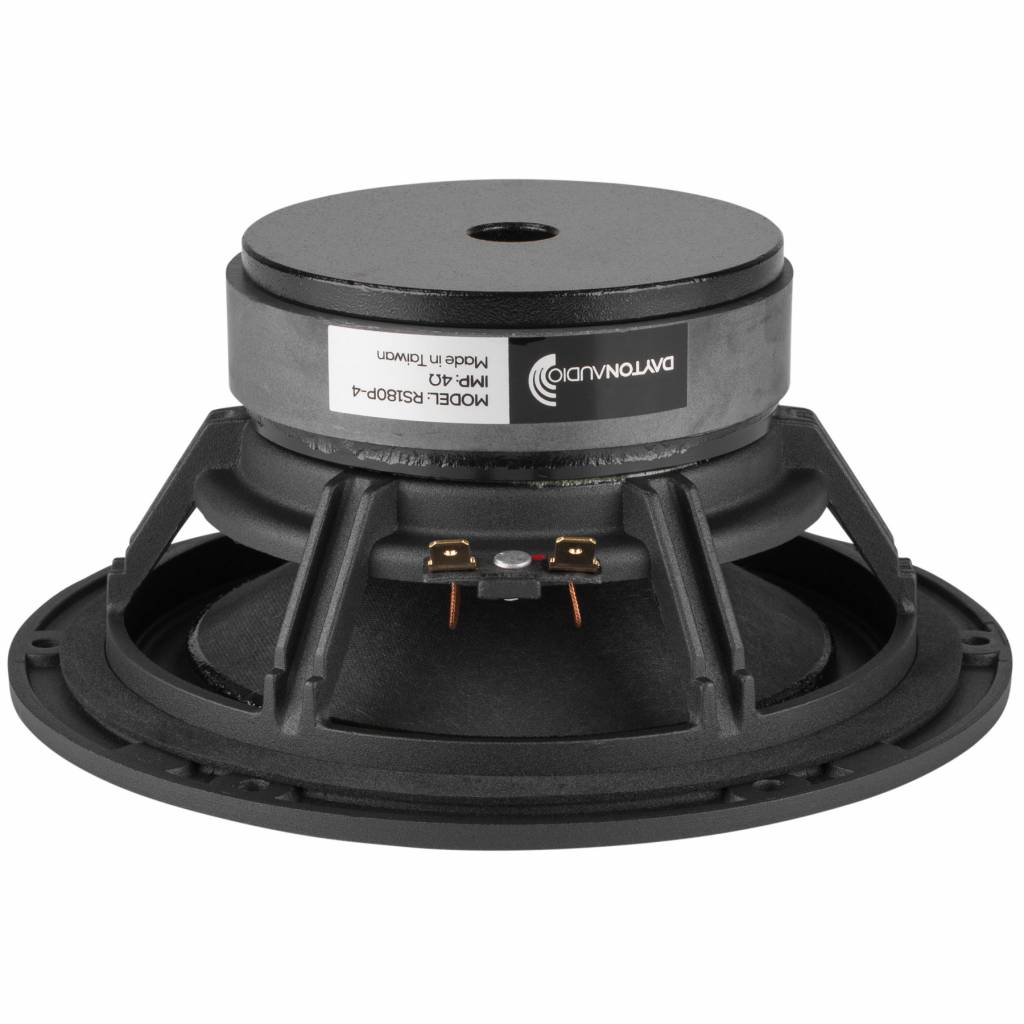

Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm

5 reviews

Brand: Dayton Audio

Show all Bass-mid woofer

Compare

7" | 4 Ω

RS180P-4 7" Reference Paper Woofer 4 Ohm

€ 67,73€ 81,95 10+ In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.

Highlights

Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
Perfect as a woofer, midwoofer, or dedicated midrange driver
Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
6 mm of Xmax and 88.2 dB sensitivity

Product details

Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Specifications

Article number: RS180P-4
Woofer Series: Reference Series
Woofer Type: Midwoofer
Nominal Diameter: 7"
Power Handling (RMS): 60 watts
Power Handling (max): 90 watts
Impedance (Z): 4 ohms
Sensitivity: 90.8 dB @ 2.83V/1m
Frequency Response: 35 - 8,000 Hz
Voice Coil Diameter: 38.5 mm
DC Resistance (Re): 3.1 ohms
Voice Coil Inductance (Le): 0.47 mH @ 1 kHz
Resonant Frequency (Fs): 37.7 Hz
Mechanical Q (Qms): 1.98
Electromagnetic Q (Qes): 0.48
Total Q (Qts): 0.39
Diaphragm Mass Inc. Airload (Mms): 14.8g
Mechanical Compliance of Suspension (Cms): 1.21 mm/N
Surface Area of Cone (Sd): 126.7 cm²
Volume of Displacement (Vd): 76.02 cm³
BL Product (BL): 4.67 Tm
Compliance Equivalent Volume (Vas): 27.3 liters
Maximum Linear Excursion (Xmax): 6 mm
Cone / Diaphragm Material: Paper / Kevlar Cone
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 180.5 mm
Overall Depth: 81 mm
Baffle Cutout Diameter: 146 mm
# Mounting Holes: 6
Sealed Volume: 0.27 ft.³
Sealed F3: 78 Hz
Vented Volume: 0.64 ft.³
Vented F3: 42 Hz

Data sheet

Reviews

5 reviews

5 from 5Based on 5 reviews

Review this product

5 of 5

I have bought four RS180p 4ohm (paper) for my system, It is a 5 ways-system with separate amplifier for each range. The earth of the system is a couple of Spica Tc 50 (1991) in which I use only the original 6” woofer for midrange frequencies between 400-4000 Hz. Beyond that ranges I use for the high three Emit Infinity, while in the very deep bass, 20-50 Hz, there is a couple of Mirage subwoofers with 12” unit. For each channel I use 2 Dayton's for further reduce distorsion and further increase dynamic answer on mid-low bass (drum, piano, bass). Result: superior body, air and sense of reality to the whole 3D stage. Each Dayton RS180p is put in a Wharfedale Diamond 8.2 box in place of the original 6" mid-woofer. Therefore is driven by a separate amplifier (60 watt) having kept away also the original tweeter. Dimensions of the box are almost ok (10 litres bass reflex) and then the 2 Dayton's give 60+60 for each channel. The result is a very, very low distorsion and a superior readiness to transients with a deeper liquid scene 3D, natural sound, especially with vocals, classic orchestra and country west coast as well.

By Ugo Gaetano S. on 27 February 2021
