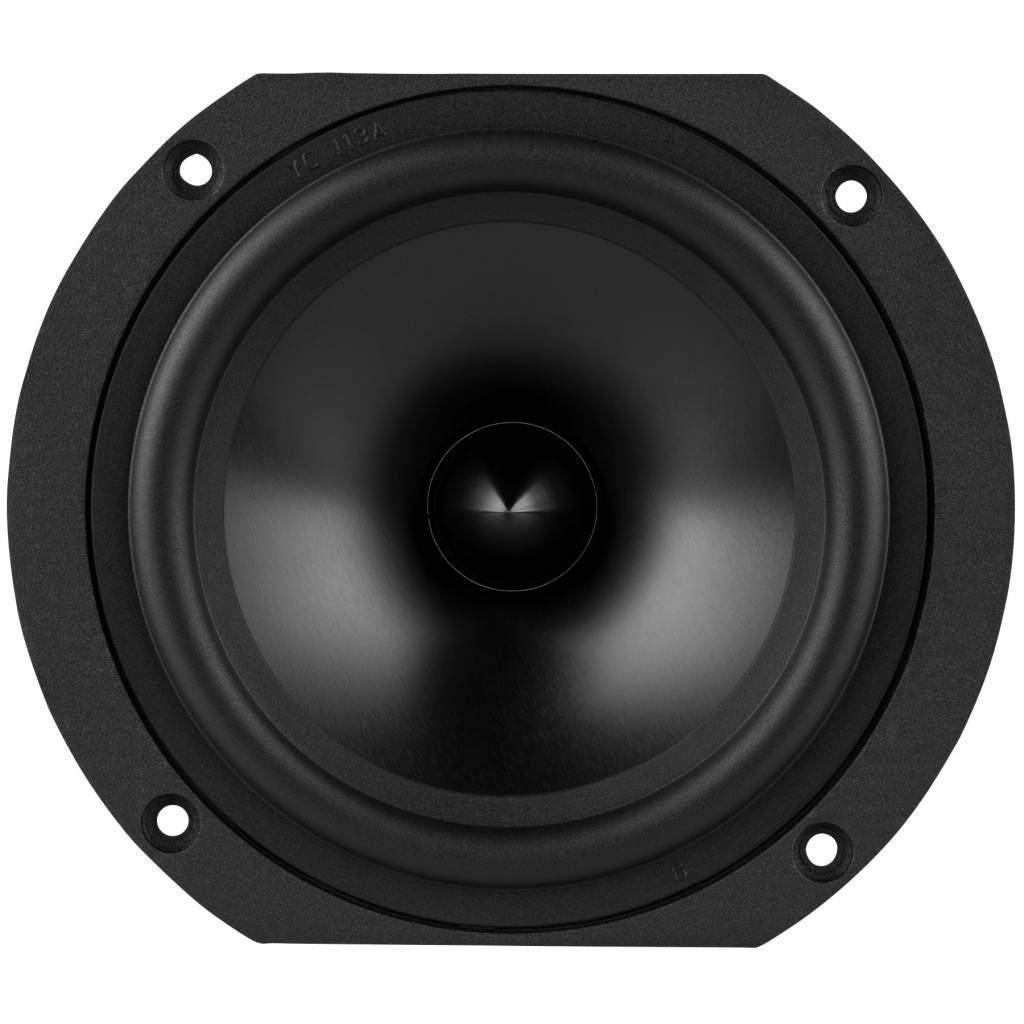

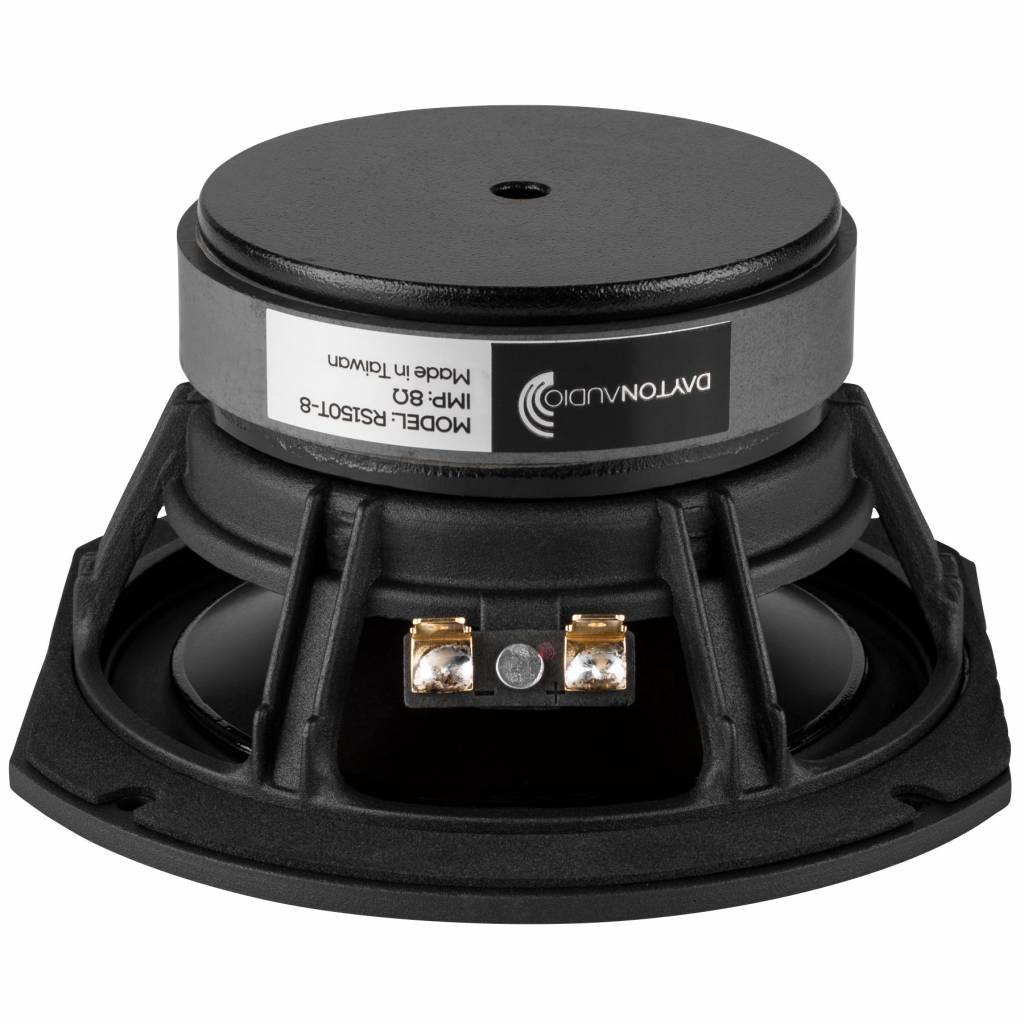

    Dayton Audio RS150T-8 6" Reference Woofer Truncated Frame

    € 49,95 >10 In stock: delivery time 1-4 business days
    Dayton Audio Reference Series RS150T-8 6" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €47,45 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Dayton Audio Reference Series RS150T-8 6" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.



    Highlights

    • Truncated cast frame - great for line arrays and MTM speaker designs
    • Long-excursion motor and suspension for strong bass performance
    • Advanced low-distortion motor design
    • Lightweight black anodized aluminum cone



    Product details

    Dayton Audio RS150T-8 6" Reference Woofer Truncated Frame

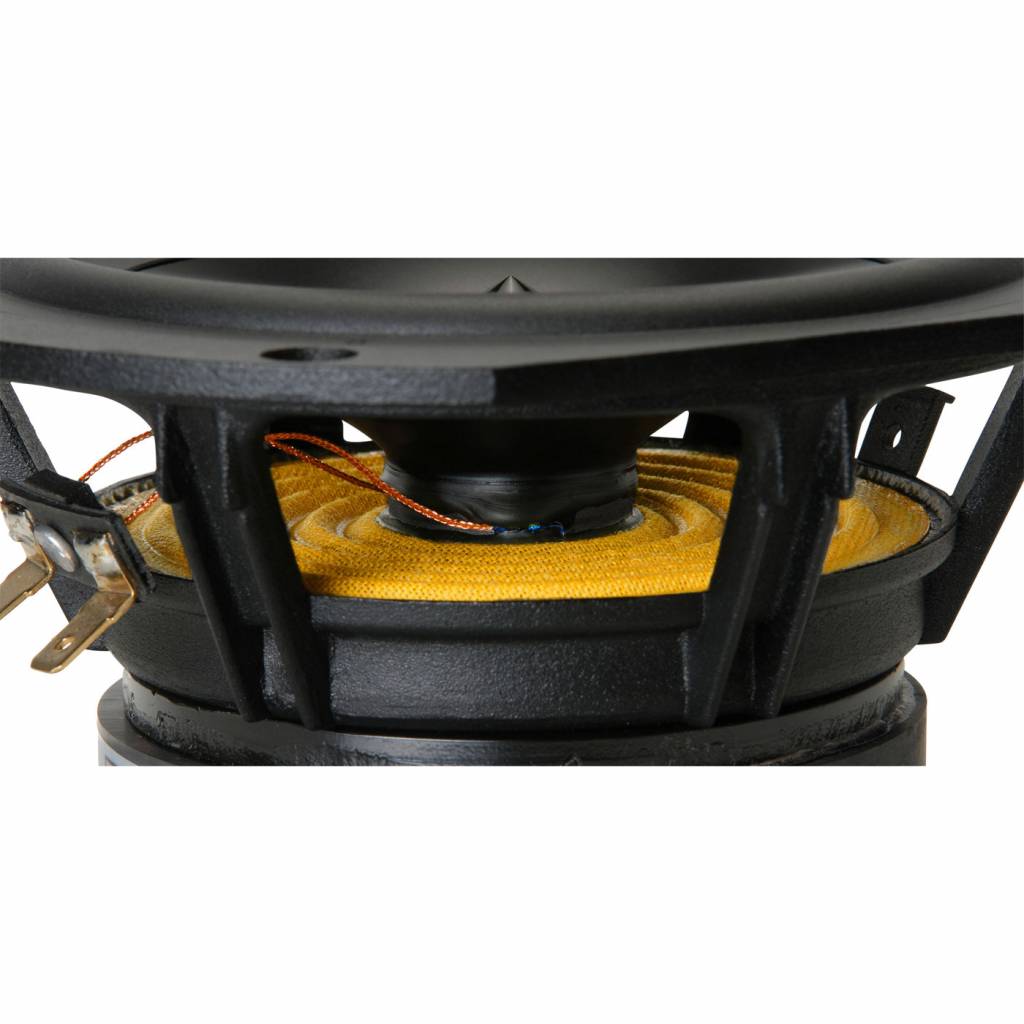

    The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, rubber magnet boot, and gold terminals.

    Specifications

    Article number
    RS150T-8
    Woofer Series
    Reference Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6"
    Power Handling (RMS)
    40 watts
    Power Handling (max)
    80 watts
    Impedance
    8 ohms
    Sensitivity
    87.9 dB @ 2.83V/1m
    Frequency Response
    47 - 4,200 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    6.2 ohms
    Voice Coil Inductance (Le)
    0.61 mH @ 1 kHz
    Resonant Frequency (Fs)
    46.4 Hz
    Mechanical Q (Qms)
    1.67
    Electromagnetic Q (Qes)
    0.47
    Total Q (Qts)
    0.37
    Diaphragm Mass Inc. Airload (Mms)
    8.3g
    Mechanical Compliance of Suspension (Cms)
    1.42 mm/N
    Surface Area of Cone (Sd)
    85 cm²
    Volume of Displacement (Vd)
    34.0 cm³
    BL Product (BL)
    5.7 Tm
    Compliance Equivalent Volume (Vas)
    14.4 liters
    Maximum Linear Excursion (Xmax)
    4.0 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    150 mm
    Overall Depth
    70.5 mm
    Baffle Cutout Diameter
    121.5 mm
    # Mounting Holes
    4
    Sealed Volume
    0.18 ft.³
    Sealed F3
    103 Hz
    Vented Volume
    0.55 ft.³
    Vented F3
    51 Hz
