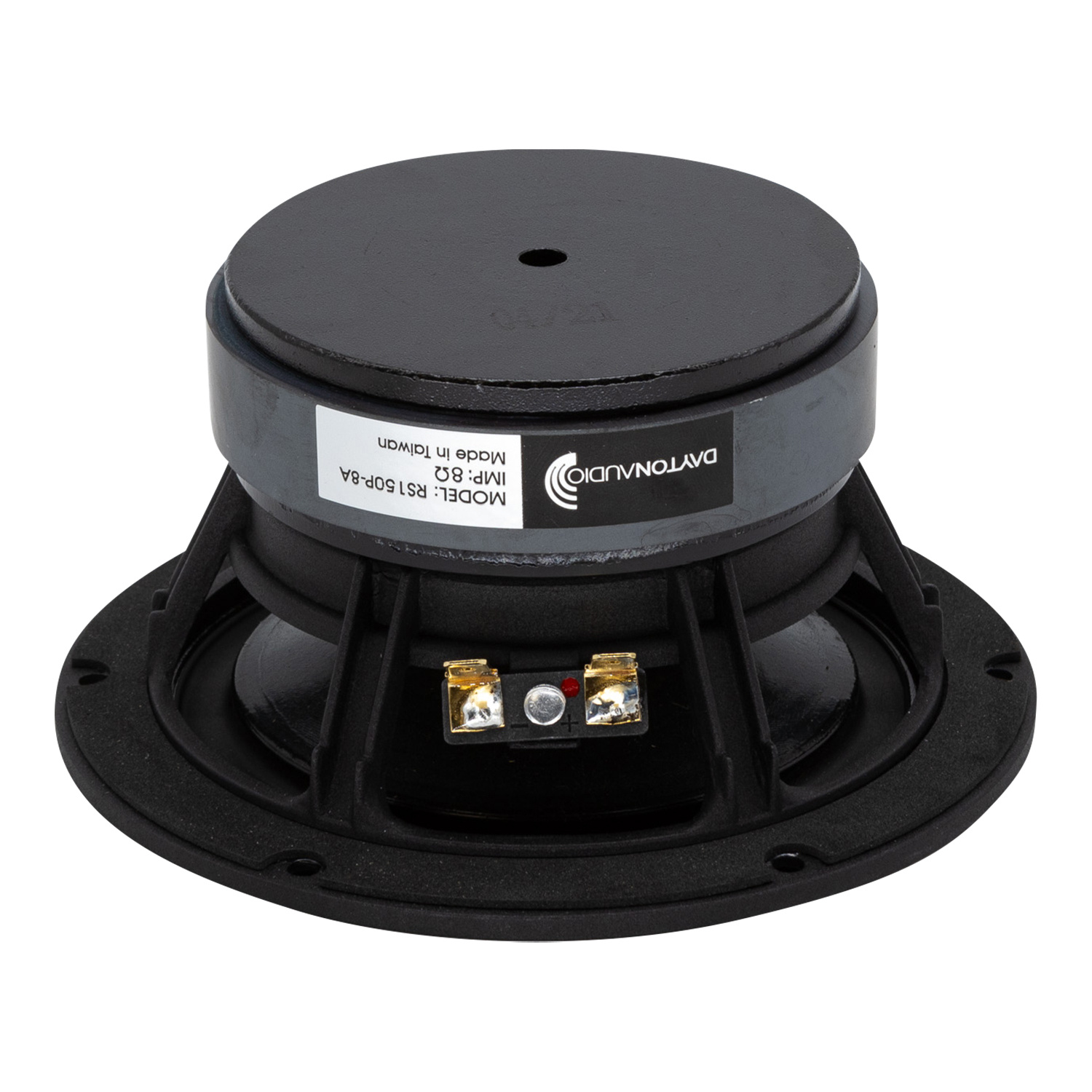

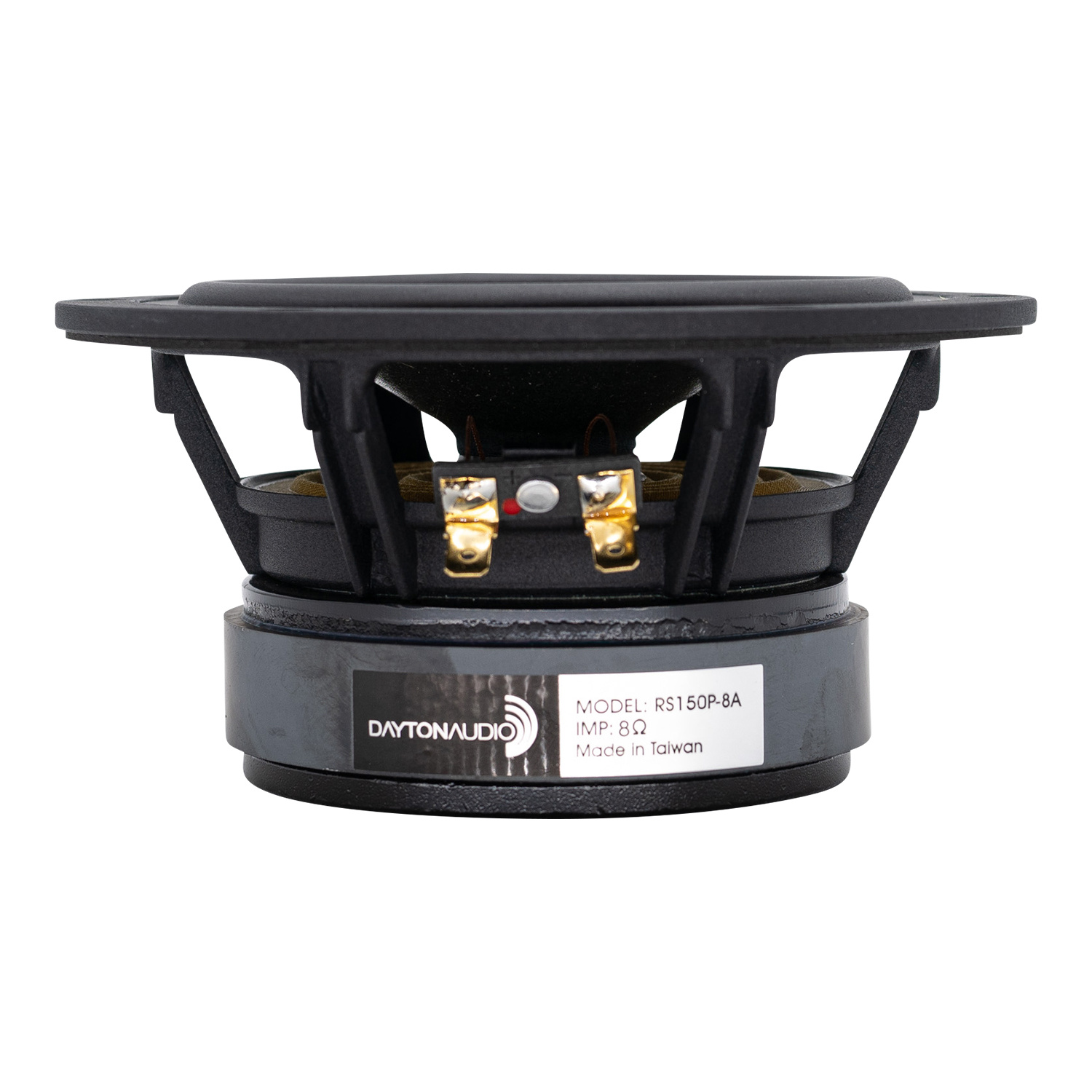

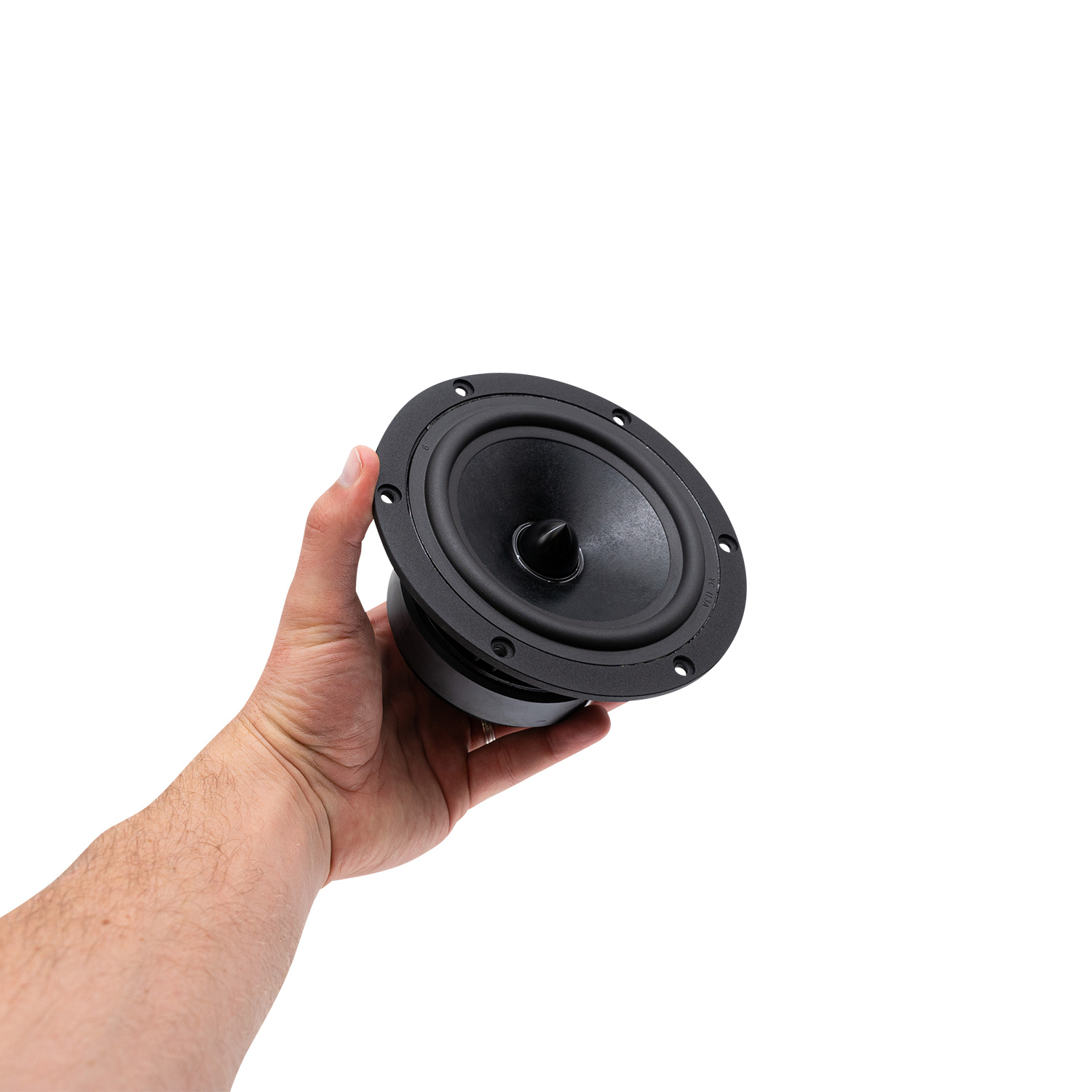

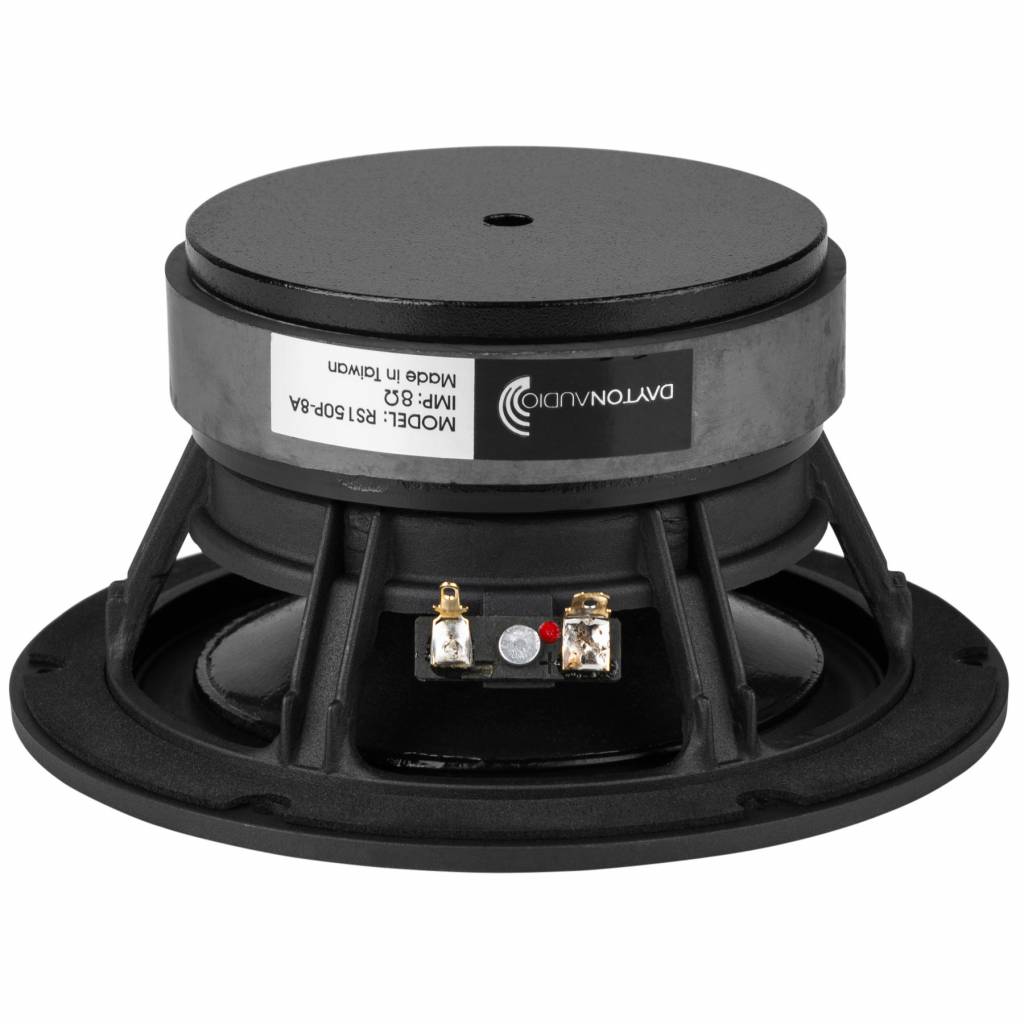

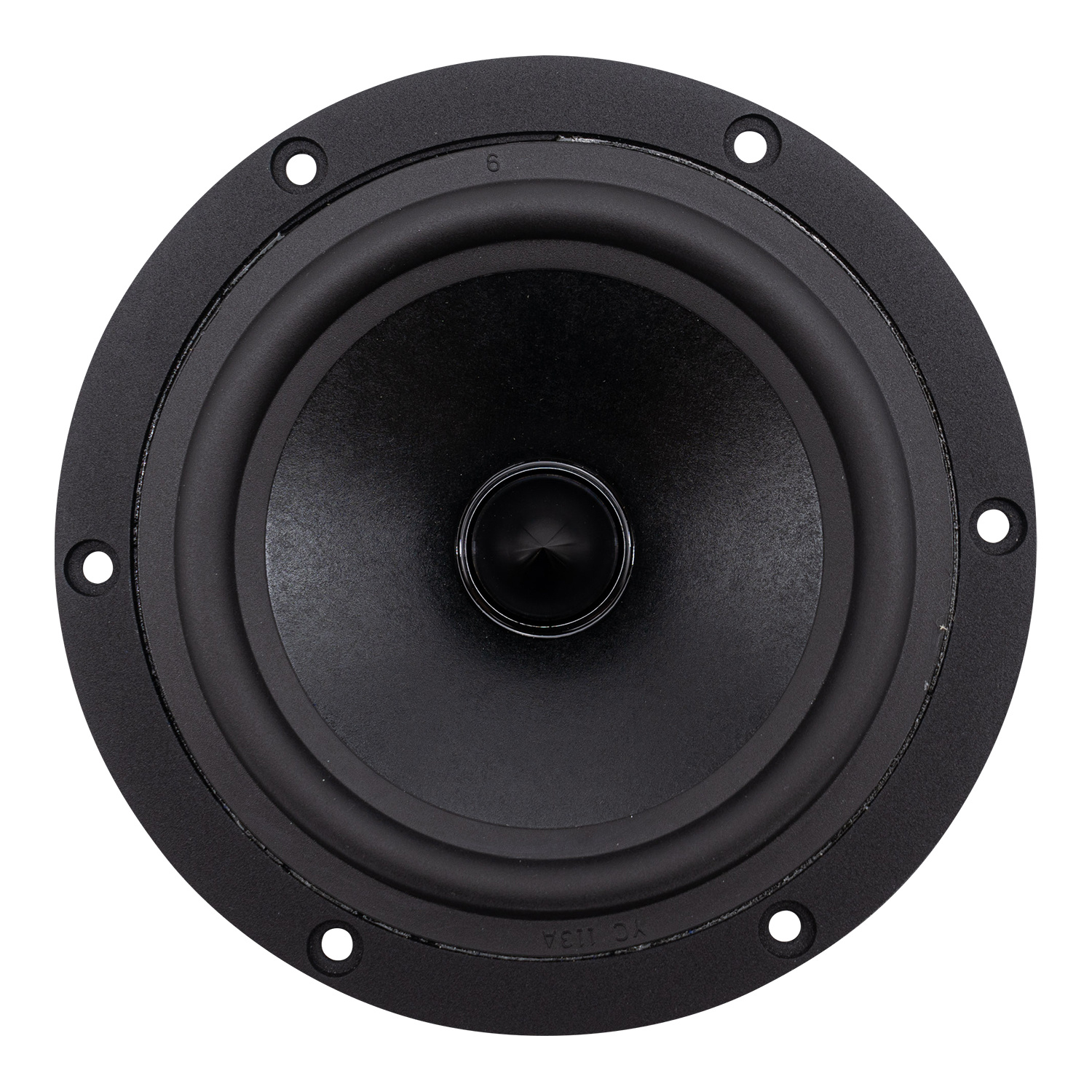

      Dayton Audio RS150P-8A 6" Reference Paper Woofer 8 Ohm

      € 56,16€ 67,95 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 64,55 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.



      Highlights

      • Now with improved frequency response for easier crossover integration
      • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
      • Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
      • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
      • 88.7 dB sensitivity and 4 mm of excursion



      Product details

      Dayton Audio RS150P-8A 6" Reference Paper Woofer 8 Ohm



      The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

      Specifications

      Article number
      RS150P-8A
      Woofer Series
      Reference Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      6"
      Power Handling (RMS)
      40 watts
      Power Handling (max)
      65 watts
      Impedance (Z)
      8 ohms
      Sensitivity
      88.7 dB 2.83V/1m
      Frequency Response
      49 - 10,000 Hz
      Voice Coil Diameter
      25 mm
      DC Resistance (Re)
      6.7 ohms
      Voice Coil Inductance (Le)
      0.65 mH @ 1 kHz
      Resonant Frequency (Fs)
      47.1 Hz
      Mechanical Q (Qms)
      1.66
      Electromagnetic Q (Qes)
      0.43
      Total Q (Qts)
      0.34
      Diaphragm Mass Inc. Airload (Mms)
      6.9g
      Mechanical Compliance of Suspension (Cms)
      1.65 mm/N
      Surface Area of Cone (Sd)
      85.0 cm²
      Volume of Displacement (Vd)
      34.0 cm³
      BL Product (BL)
      5.6 Tm
      Compliance Equivalent Volume (Vas)
      16.7 liters
      Maximum Linear Excursion (Xmax)
      4 mm
      Cone / Diaphragm Material
      Paper / Kevlar Cone
      Surround Material
      Rubber
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      150 mm
      Overall Depth
      73.5 mm
      Baffle Cutout Diameter
      121.5 mm
      # Mounting Holes
      6
      Sealed Volume
      0.37 ft.³
      Sealed F3
      85 Hz
      Vented Volume
      1.02 ft.³
      Vented F3
      49 Hz

      Show more

      Reviews

      5 from 5Based on 6 reviews
      Review this product
      5 of 5
      Sound is not as alive as the Danish drivers but the stage is brilliant (deep and well balanced). For this price, it is a real surprise.
      By Zoltan Pal on 13 April 2021
      5 of 5
      Ein wirklich wohl klingender Woofer. Ich benutze ihn in einem 2-Wege-System zusammen mit einem SB29RDNC-C000-4. Eine gute Kombination. Der Crossoverpunkt liegt bei etwa 2500hz. Ich empfehle, den Punkt nicht über 3000hz zu legen. Basstechnisch liefert er im Reflex-Design etwa einen F3 von knapp 50Hz in einem 12L großen Gehäuse. Ich empfehle für den Heimkino-Bereich dann doch einen Subwoofer oder Tieftöner dann. Insgesamt ein gutes Produkt mit ausgeglichenem Klang! This woofer sounds very balanced. I use it in a 2-Way system in combination with a SB29RDNC-C000-4. Its a good combination of drivers. The crossover point is located at about 2500hz. I don't recommend to go above 3000hz with this woofer. In a bass-reflex design it can go down to around 50hz in a 12l enclosure. I recommend a subwoofer or bassdriver for home theater applications. All in all this is a good product and I do recommend it!
      By Leif Reuter on 20 March 2021
