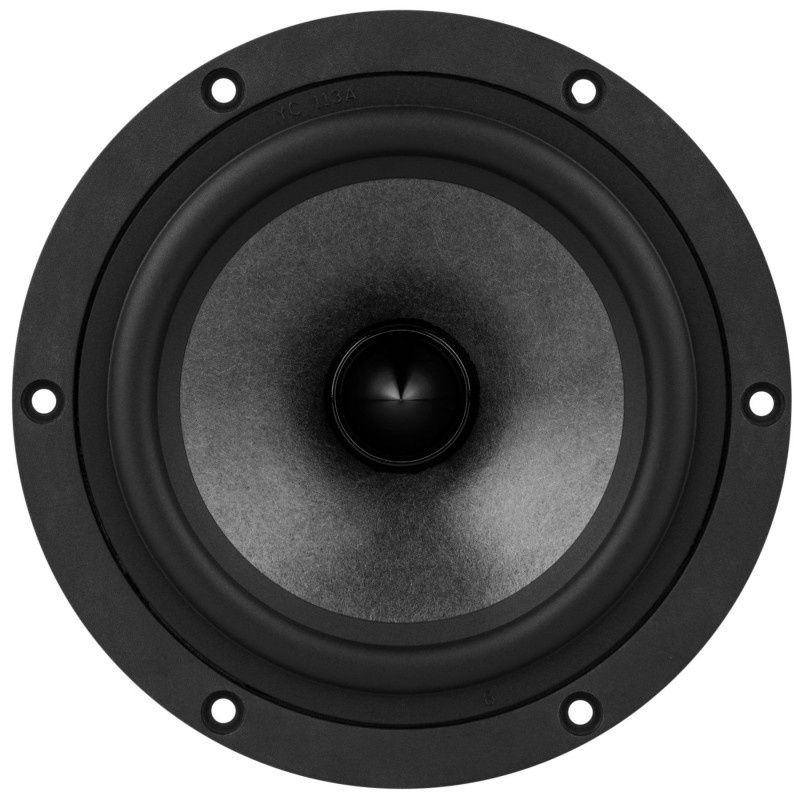

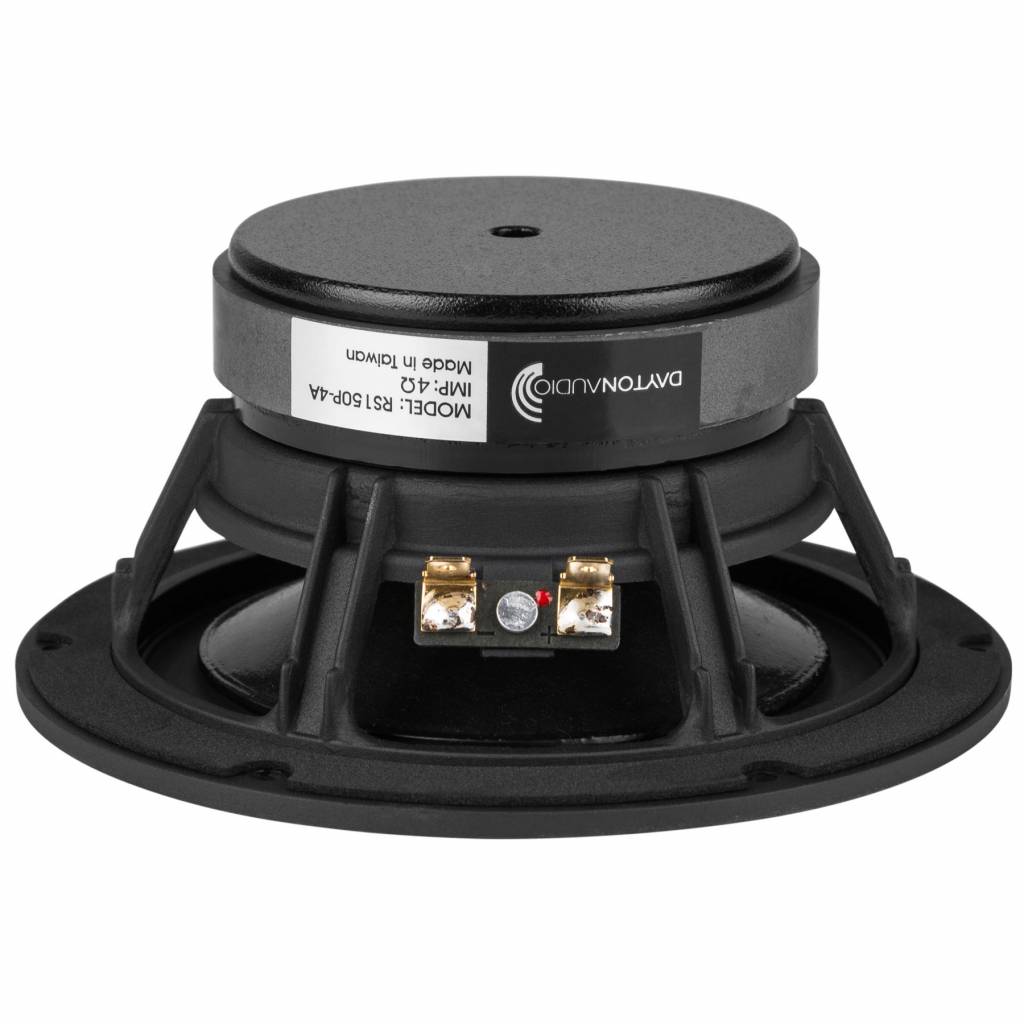

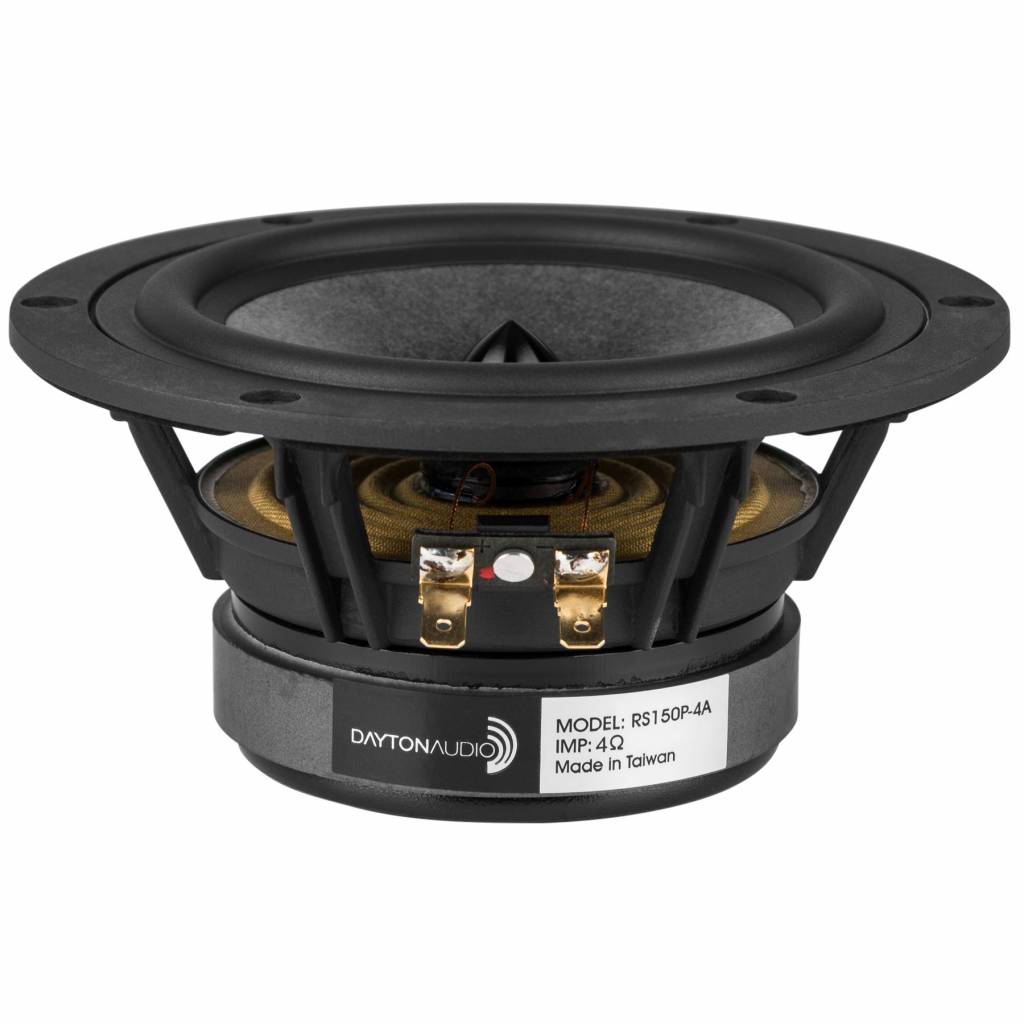

      Dayton Audio RS150P-4A 6" Reference Paper Woofer 4 Ohm

      € 53,68€ 64,95 6 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €61,70 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.



      Highlights

      • Now with improved frequency response for easier crossover integration
      • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
      • Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
      • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
      • 90.3 dB sensitivity and 4.4 mm of excursion



      Product details

      Dayton Audio RS150P-4A 6" Reference Paper Woofer 4 Ohm



      Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.



      The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

      Specifications

      Article number
      RS150P-4A
      Woofer Series
      Reference Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      6"
      Power Handling (RMS)
      40 watts
      Power Handling (max)
      65 watts
      Impedance (Z)
      4 ohms
      Sensitivity
      90.3 dB @ 2.83V/1m
      Frequency Response
      45 - 10,000 Hz
      Voice Coil Diameter
      25 mm
      DC Resistance (Re)
      3.5 ohms
      Voice Coil Inductance (Le)
      0.39 mH @ 1 kHz
      Resonant Frequency (Fs)
      43.7 Hz
      Mechanical Q (Qms)
      1.85
      Electromagnetic Q (Qes)
      0.42
      Total Q (Qts)
      0.34
      Diaphragm Mass Inc. Airload (Mms)
      8.6g
      Mechanical Compliance of Suspension (Cms)
      1.54 mm/N
      Surface Area of Cone (Sd)
      85.0 cm²
      Volume of Displacement (Vd)
      37.4 cm³
      BL Product (BL)
      4.4 Tm
      Compliance Equivalent Volume (Vas)
      15.7 liters
      Maximum Linear Excursion (Xmax)
      4.4 mm
      Cone / Diaphragm Material
      Paper / Kevlar Cone
      Surround Material
      Rubber
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      150 mm
      Overall Depth
      73.5 mm
      Baffle Cutout Diameter
      121.5 mm
      # Mounting Holes
      6
      Sealed Volume
      0.09 ft.³
      Sealed F3
      137 Hz
      Vented Volume
      0.19 ft.³
      Vented F3
      81 Hz
