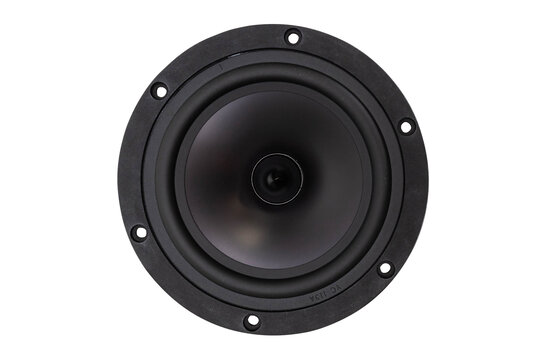

- Article number
- RS150-8
- Woofer Series
- Reference Series
- Woofer Type
- Midwoofer
- Nominal Diameter
- 6"
- Power Handling (RMS)
- 40 watts
- Power Handling (max)
- 80 watts
- Impedance
- 8 ohms
- Sensitivity
- 88.7 dB @ 2.83V/1m
- Frequency Response
- 47 - 4,200 Hz
- Voice Coil Diameter
- 25 mm
- DC Resistance (Re)
- 6.3 ohms
- Voice Coil Inductance (Le)
- 0.55 mH @ 1 kHz
- Resonant Frequency (Fs)
- 47.8 Hz
- Mechanical Q (Qms)
- 1.66
- Electromagnetic Q (Qes)
- 0.43
- Total Q (Qts)
- 0.34
- Diaphragm Mass Inc. Airload (Mms)
- 7.4g
- Mechanical Compliance of Suspension (Cms)
- 1.63 mm/N
- Surface Area of Cone (Sd)
- 85 cm²
- Volume of Displacement (Vd)
- 34.0 cm³
- BL Product (BL)
- 5.59 Tm
- Compliance Equivalent Volume (Vas)
- 16.6 liters
- Maximum Linear Excursion (Xmax)
- 4.0 mm
- Cone / Diaphragm Material
- Black Anodized Aluminum Cone
- Surround Material
- Rubber
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Cast Aluminum
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 150 mm
- Overall Depth
- 73.5 mm
- Baffle Cutout Diameter
- 121.5 mm
- # Mounting Holes
- 6
- Sealed Volume
- 0.14 ft.³
- Sealed F3
- 102 Hz
- Vented Volume
- 0.41 ft.³
- Vented F3
- 56 Hz
