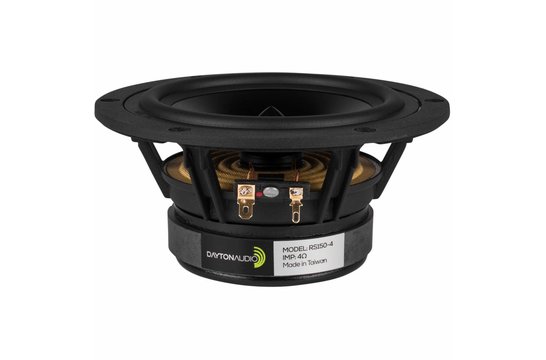

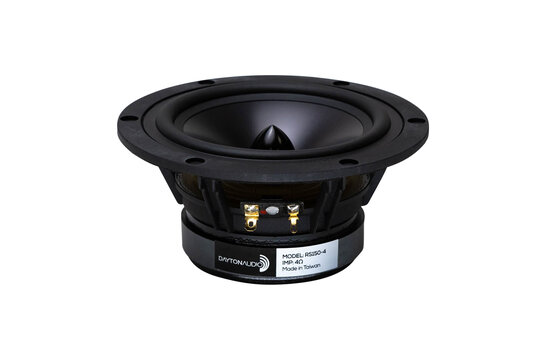

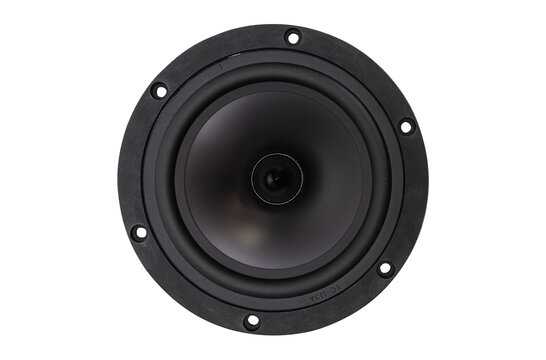

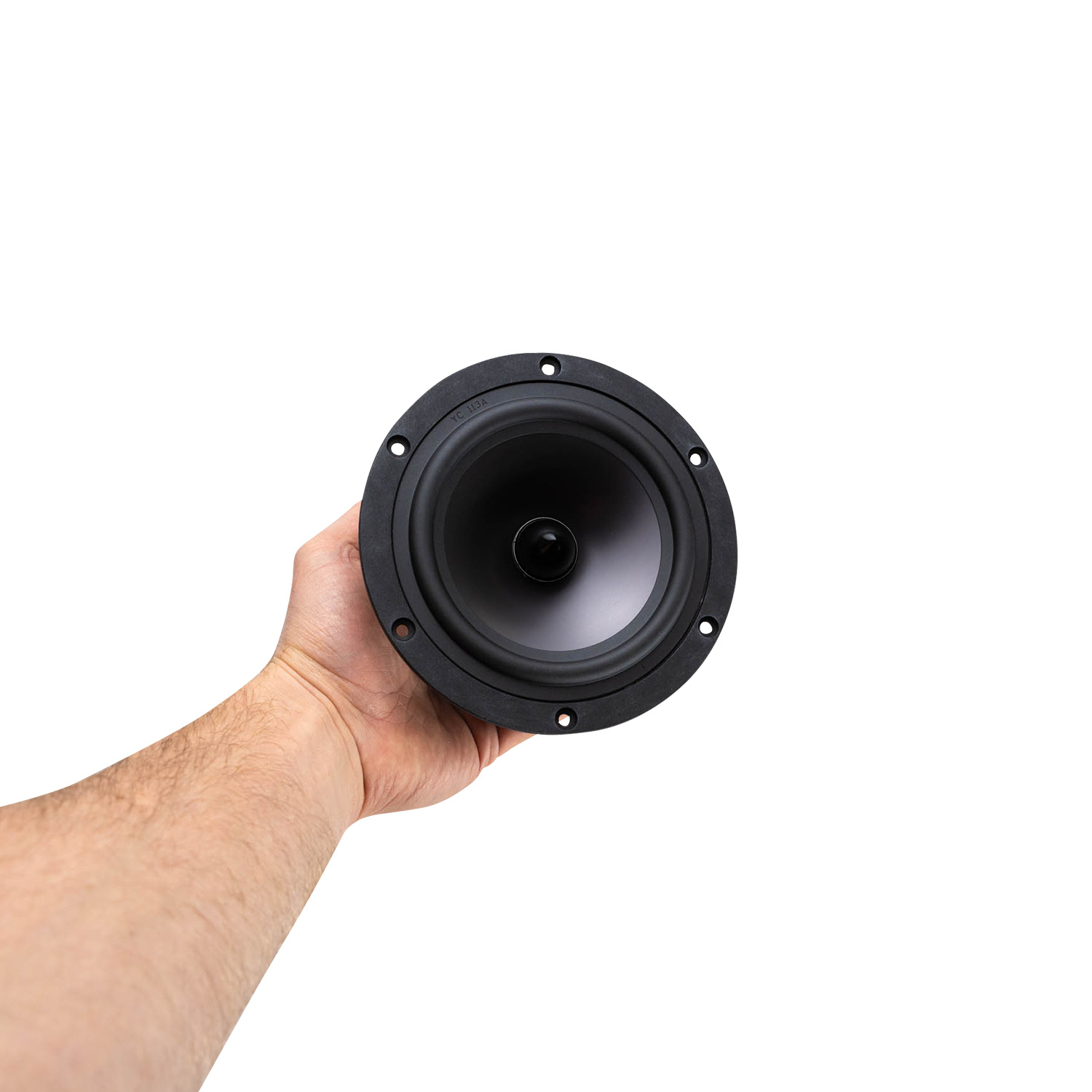

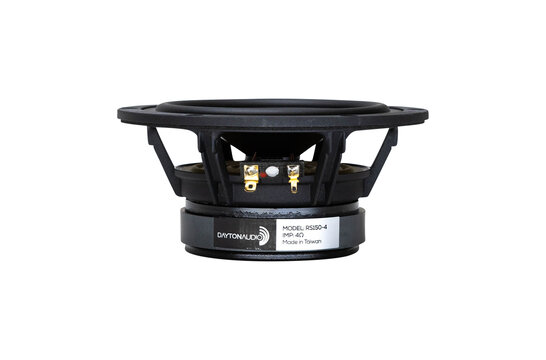

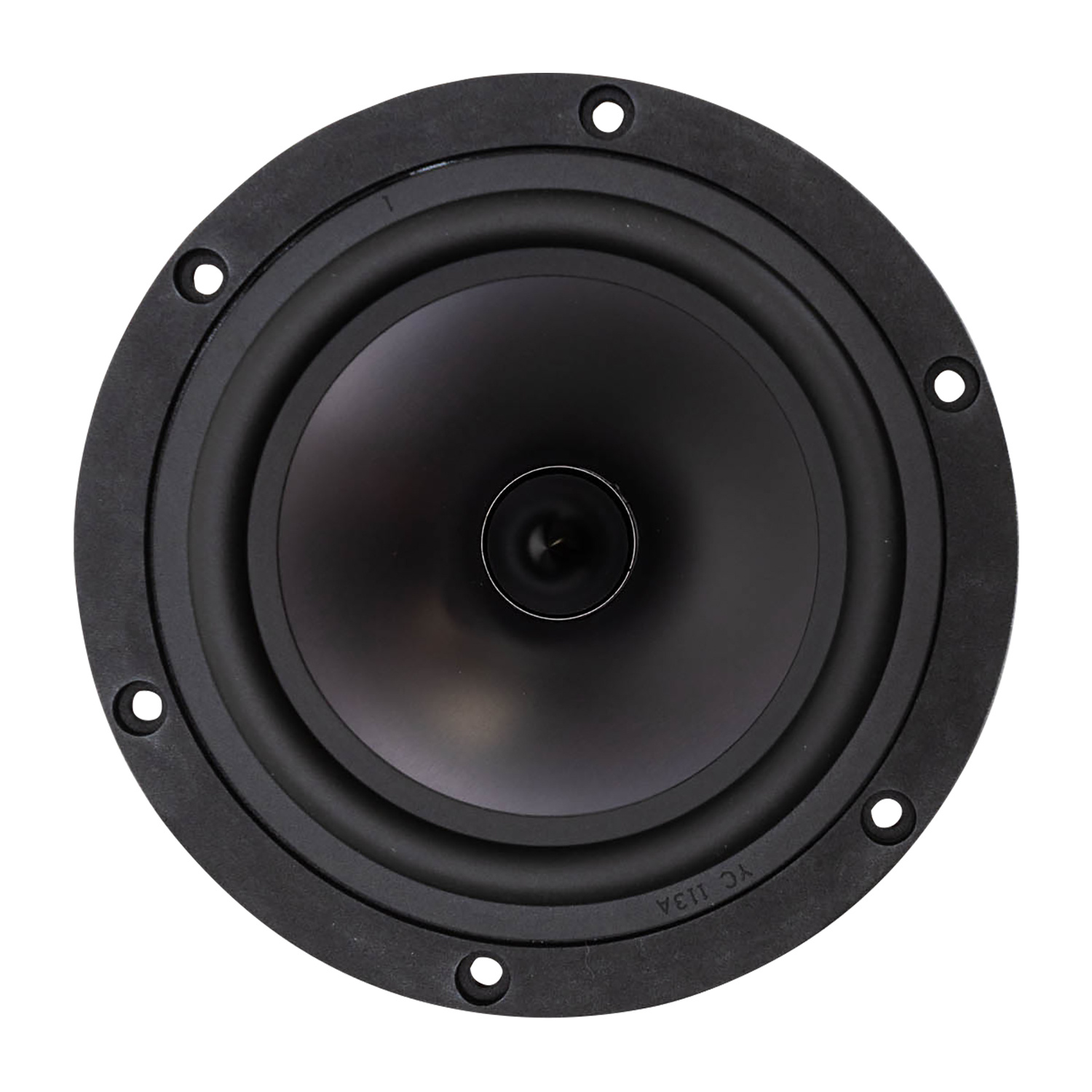

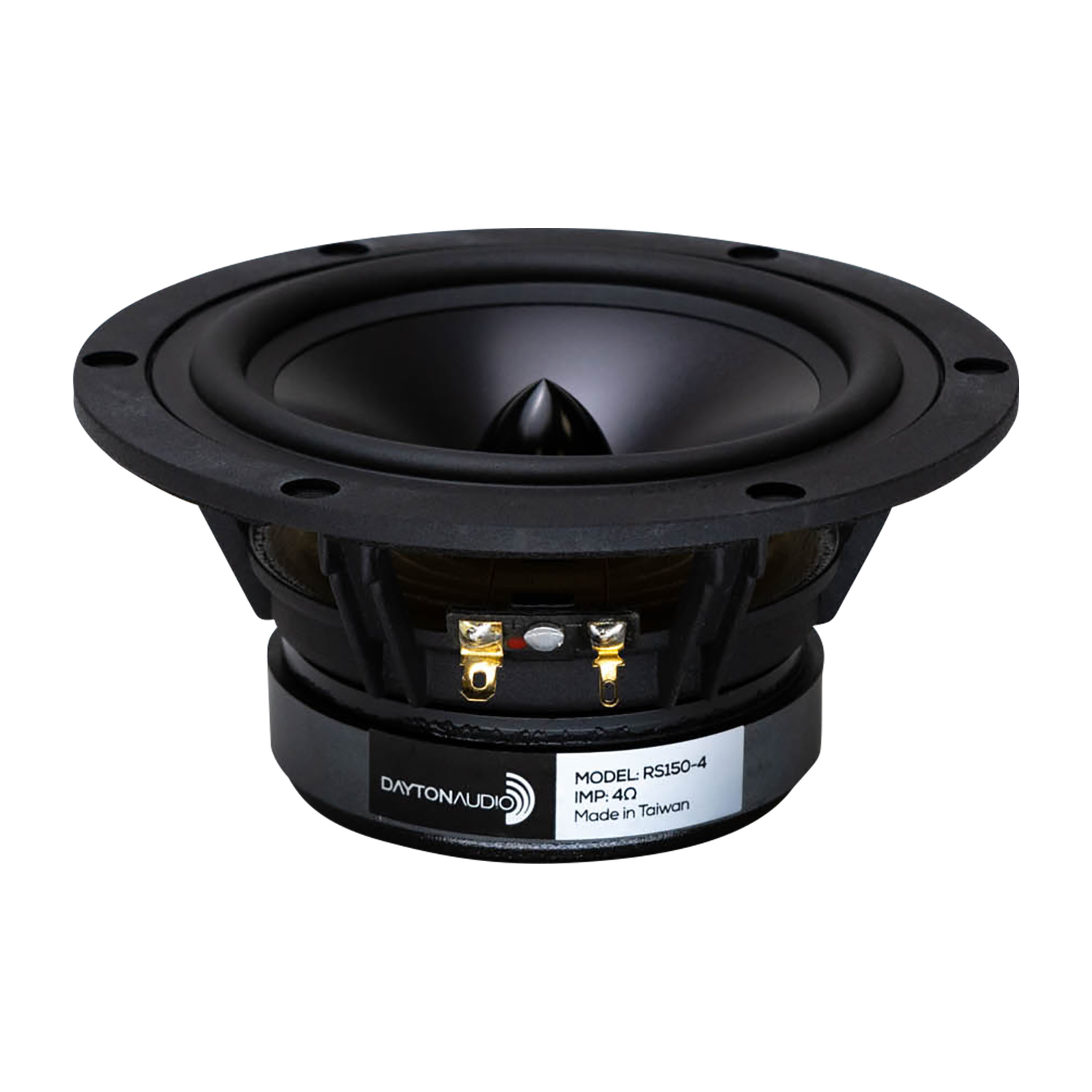

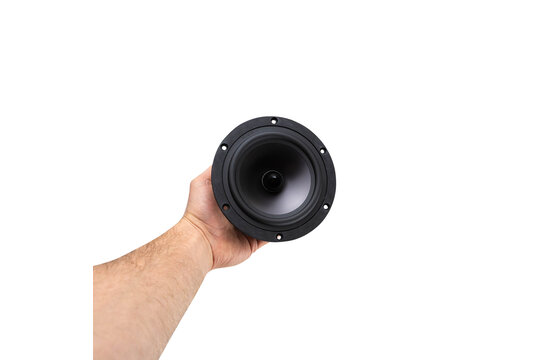

Dayton Audio RS150-4 6" Reference Woofer 4 Ohm

2 reviews

Brand: Dayton Audio

Show all Bass-mid woofer

Compare

6" | 4 Ω

€ 48,72€ 58,95 5 In stock10+ expected on 10-02-2023

24h express shipping available
Ordered now, shipped on Monday
In-house techniscal support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.

Highlights

4 ohm impedance is perfect for series pairs in MTMs and center channel speakers
Excellent car audio midrange/midbass
High-end low-distortion motor with two shorting paths to reduce inductance

Product details

Dayton Audio RS150-4 6" Reference Woofer 4 Ohm

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.

Specifications

Article number: RS150-4
Woofer Series: Reference Series
Woofer Type: Midwoofer
Nominal Diameter: 6"
Power Handling (RMS): 40 watts
Power Handling (max): 80 watts
Impedance (Z): 4 ohms
Sensitivity: 91.8 dB @ 2.83V/1m
Frequency Response: 48 - 4,000 Hz
Voice Coil Diameter: 25 mm
DC Resistance (Re): 3.1 ohms
Voice Coil Inductance (Le): 0.34 mH @ 1 kHz
Resonant Frequency (Fs): 45.1 Hz
Mechanical Q (Qms): 1.96
Electromagnetic Q (Qes): 0.40
Total Q (Qts): 0.33
Diaphragm Mass Inc. Airload (Mms): 7.7g
Mechanical Compliance of Suspension (Cms): 1.62 mm/N
Surface Area of Cone (Sd): 85 cm²
Volume of Displacement (Vd): 37.4 cm³
BL Product (BL): 4.1 Tm
Compliance Equivalent Volume (Vas): 16.4 liters
Maximum Linear Excursion (Xmax): 4.4 mm
Cone / Diaphragm Material: Black Anodized Aluminum Cone
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 150 mm
Overall Depth: 70 mm
Baffle Cutout Diameter: 121.5 mm
# Mounting Holes: 6
Sealed Volume: 0.11 ft.³
Sealed F3: 111 Hz
Vented Volume: 0.32 ft.³
Vented F3: 61 Hz

Reviews

2 reviews

5 from 5Based on 2 reviews

Review this product

5 of 5

Hammer Lautsprecher !! Wunderschöne mitten und mit richtig angestimmten Bassreflexrohr spielt er bis 40Hz. Perfekt.

By Wim H. on 26 November 2020

5 of 5

Deze driver ingezet als vervanger voor de midrange polydome driver bij een infinity kappa 7.1. Resultaat is zeer goed. Klinkt heel natuurlijk. Mijns inziens beter dan de originele driver.

By Cyriel H. on 28 December 2018
