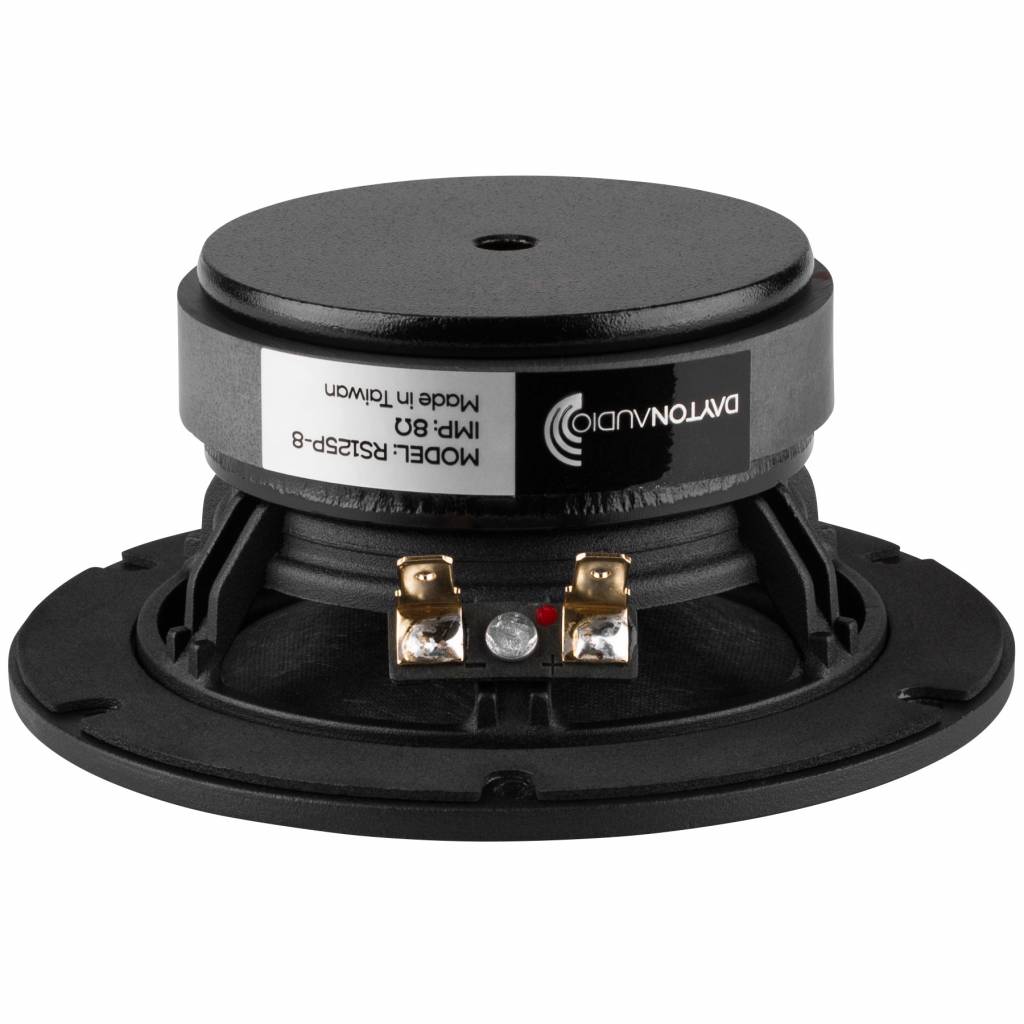

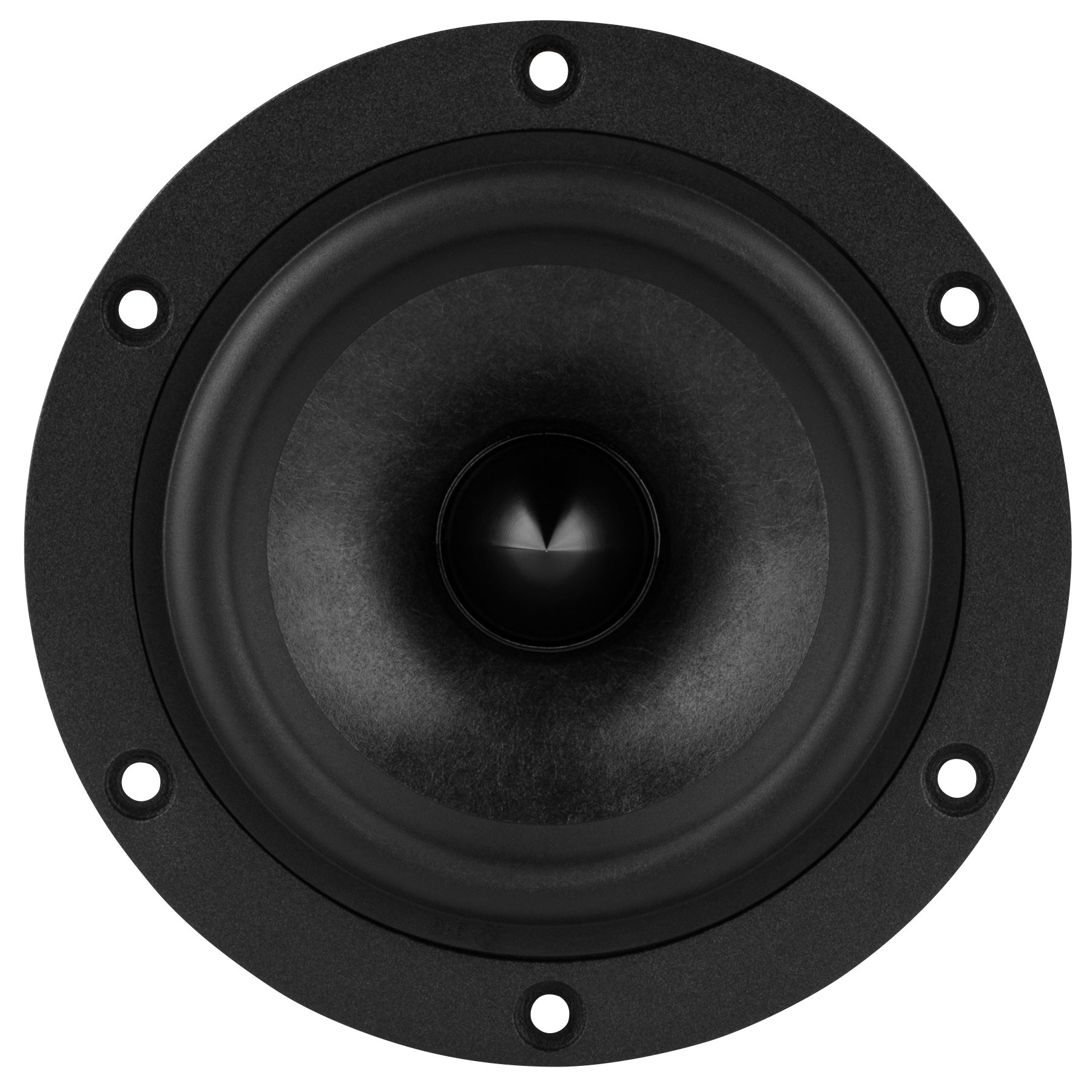

      Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm

      € 43,35€ 52,45 8 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 49,83 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.



      Highlights

      • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
      • Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
      • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
      • 4 mm of Xmax and 85.8 dB sensitivity



      Product details

      Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm



      The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

      Specifications

      Article number
      RS125P-8
      Woofer Series
      Reference Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      5"
      Power Handling (RMS)
      30 watts
      Power Handling (max)
      45 watts
      Impedance (Z)
      8 ohms
      Sensitivity
      87.1 dB @ 2.83V/1m
      Frequency Response
      70 - 10,000 Hz
      Voice Coil Diameter
      25 mm
      DC Resistance (Re)
      6.2 ohms
      Voice Coil Inductance (Le)
      0.62 mH @ 1 kHz
      Resonant Frequency (Fs)
      70 Hz
      Mechanical Q (Qms)
      2.56
      Electromagnetic Q (Qes)
      0.53
      Total Q (Qts)
      0.44
      Diaphragm Mass Inc. Airload (Mms)
      5.1g
      Mechanical Compliance of Suspension (Cms)
      1.02 mm/N
      Surface Area of Cone (Sd)
      52.8 cm²
      Volume of Displacement (Vd)
      21.1 cm³
      BL Product (BL)
      5.08 Tm
      Compliance Equivalent Volume (Vas)
      3.98 liters
      Maximum Linear Excursion (Xmax)
      4 mm
      Cone / Diaphragm Material
      Paper / Kevlar Cone
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      125.5 mm
      Overall Depth
      55 mm
      Baffle Cutout Diameter
      94 mm
      # Mounting Holes
      6
      Sealed Volume
      0.05 ft.³
      Sealed F3
      146 Hz
      Vented Volume
      0.13 ft.³
      Vented F3
      77 Hz
