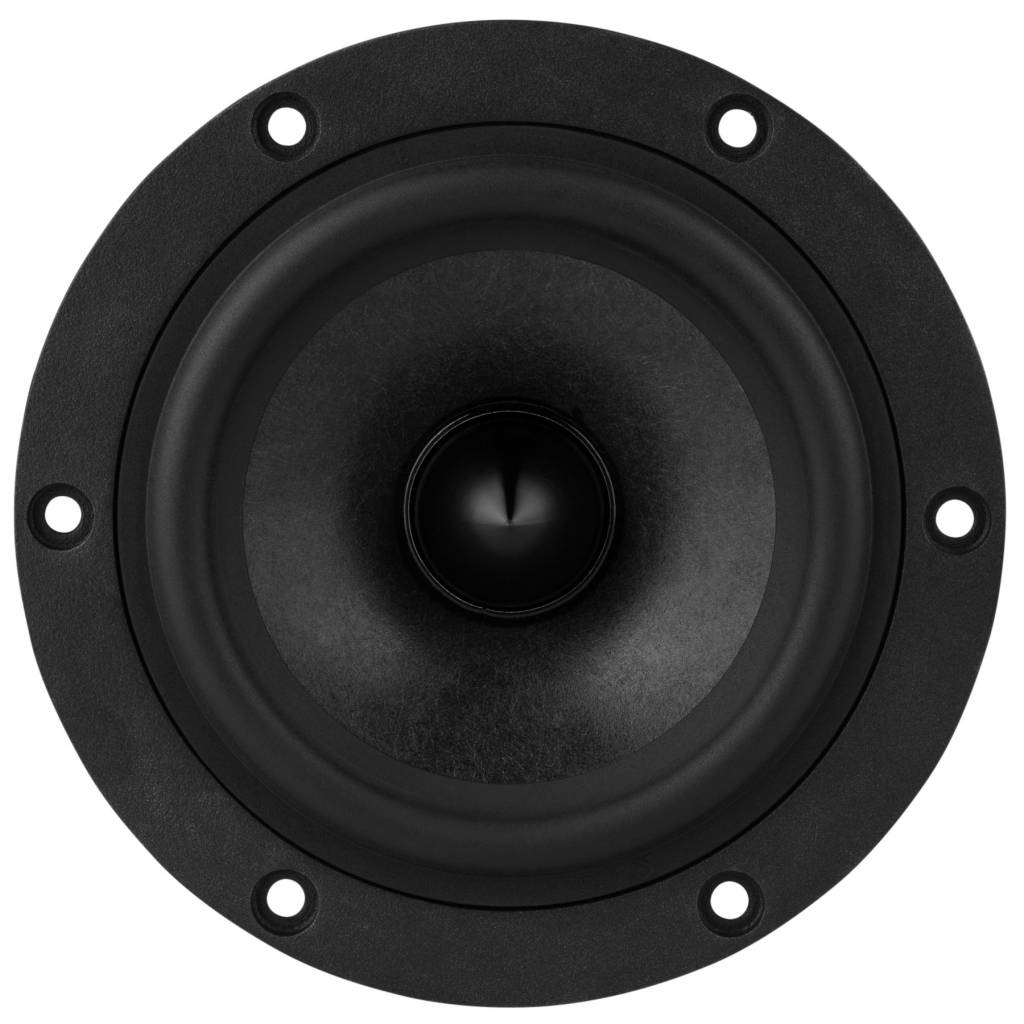

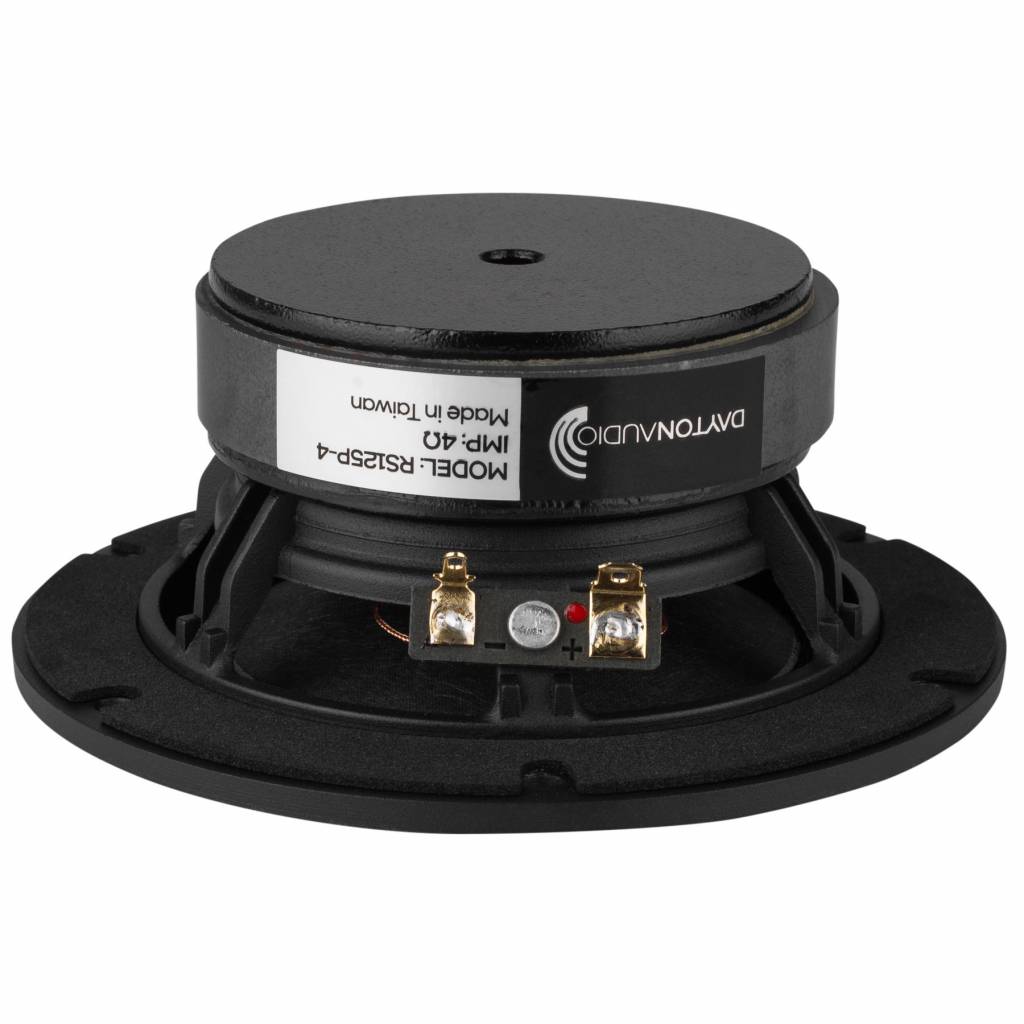

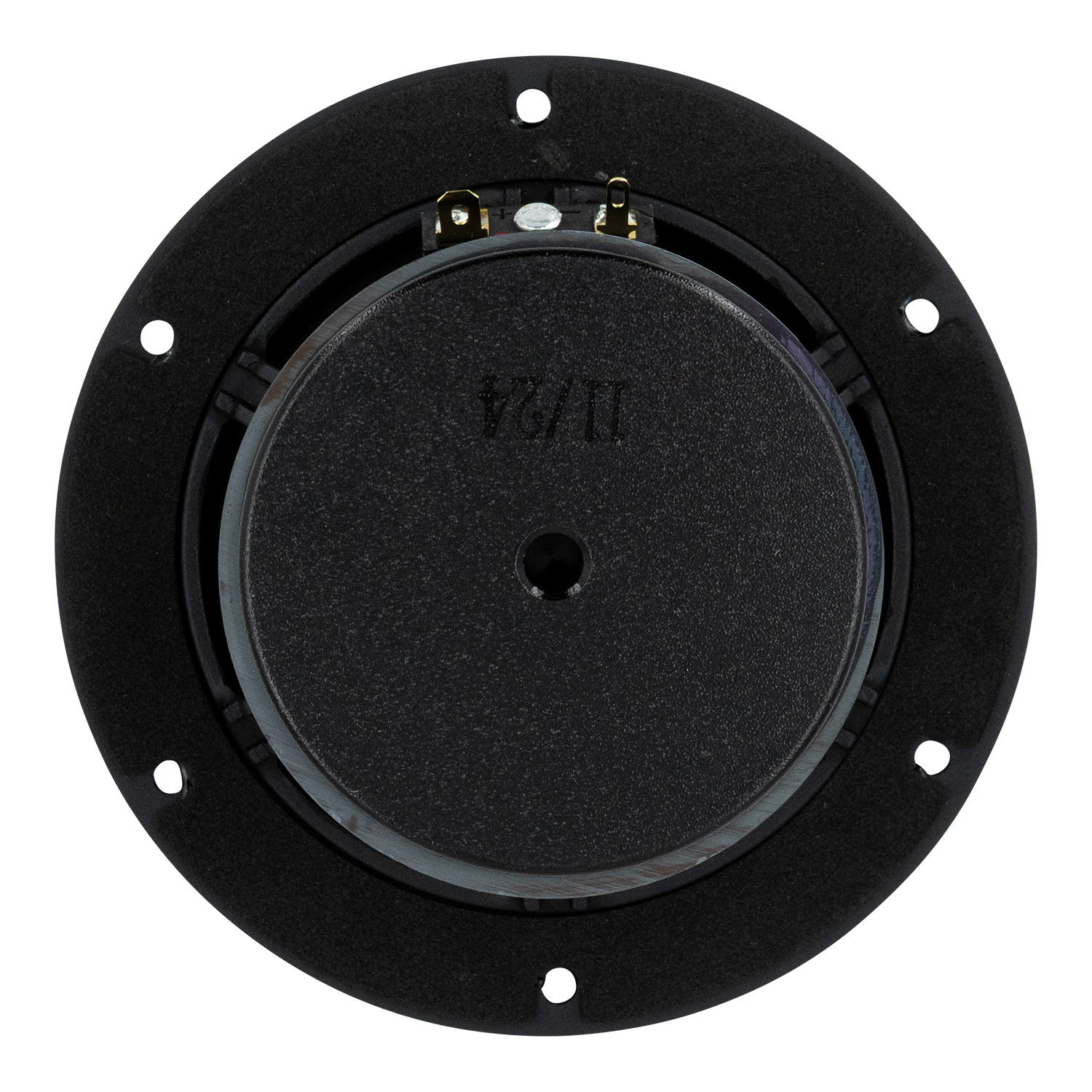

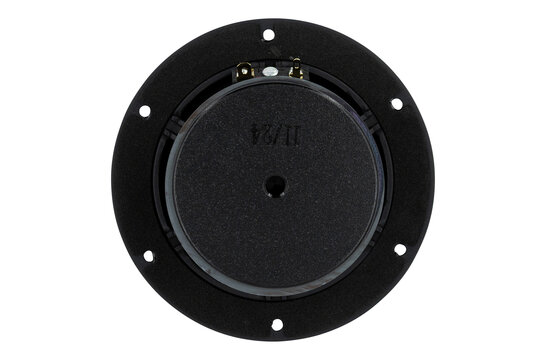

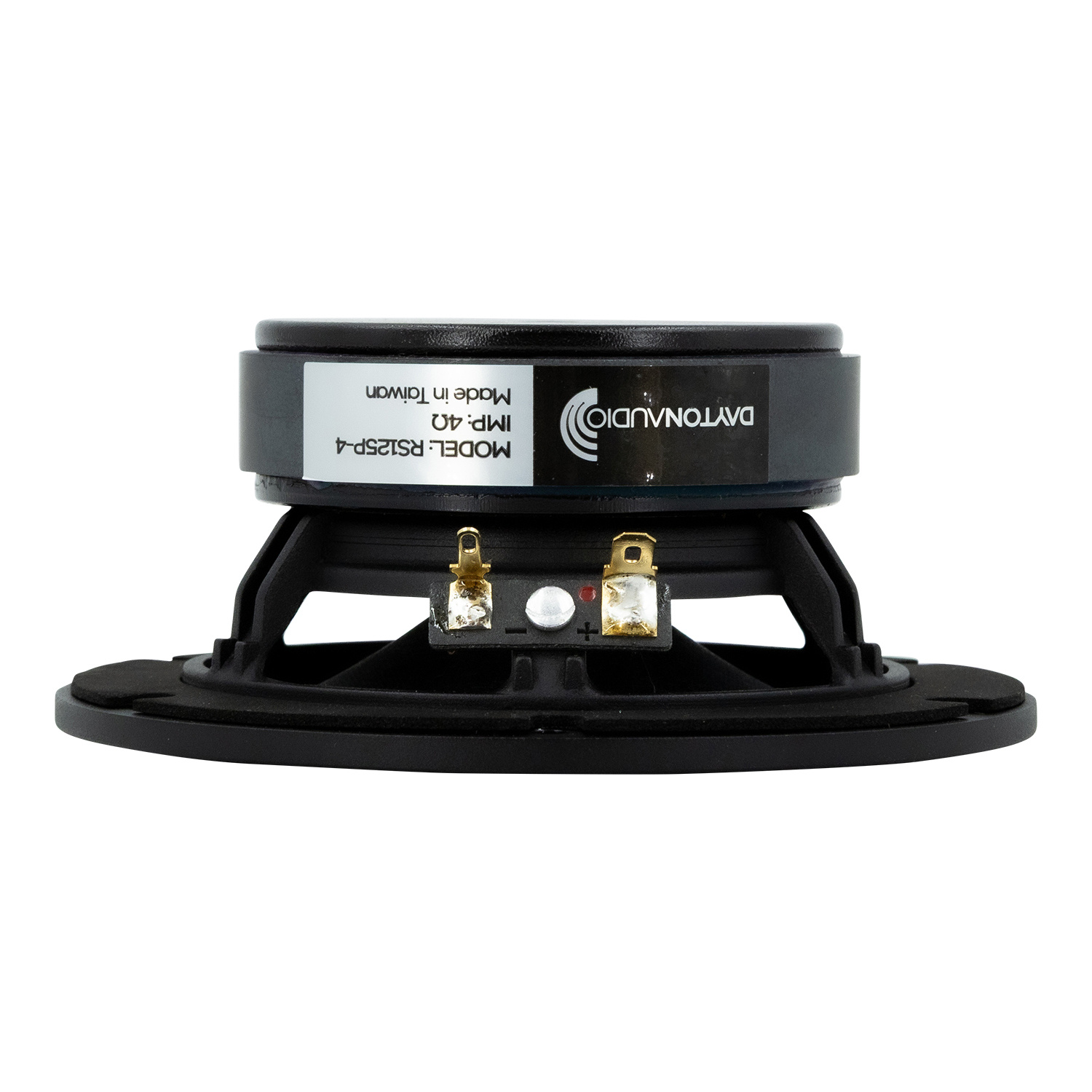

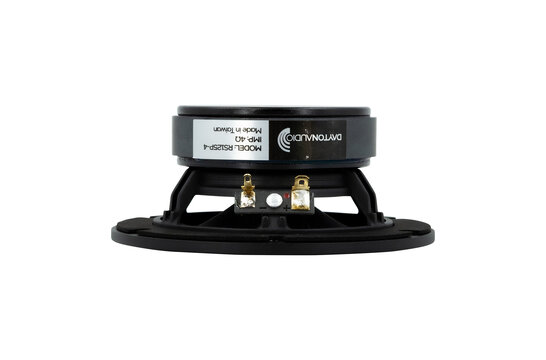

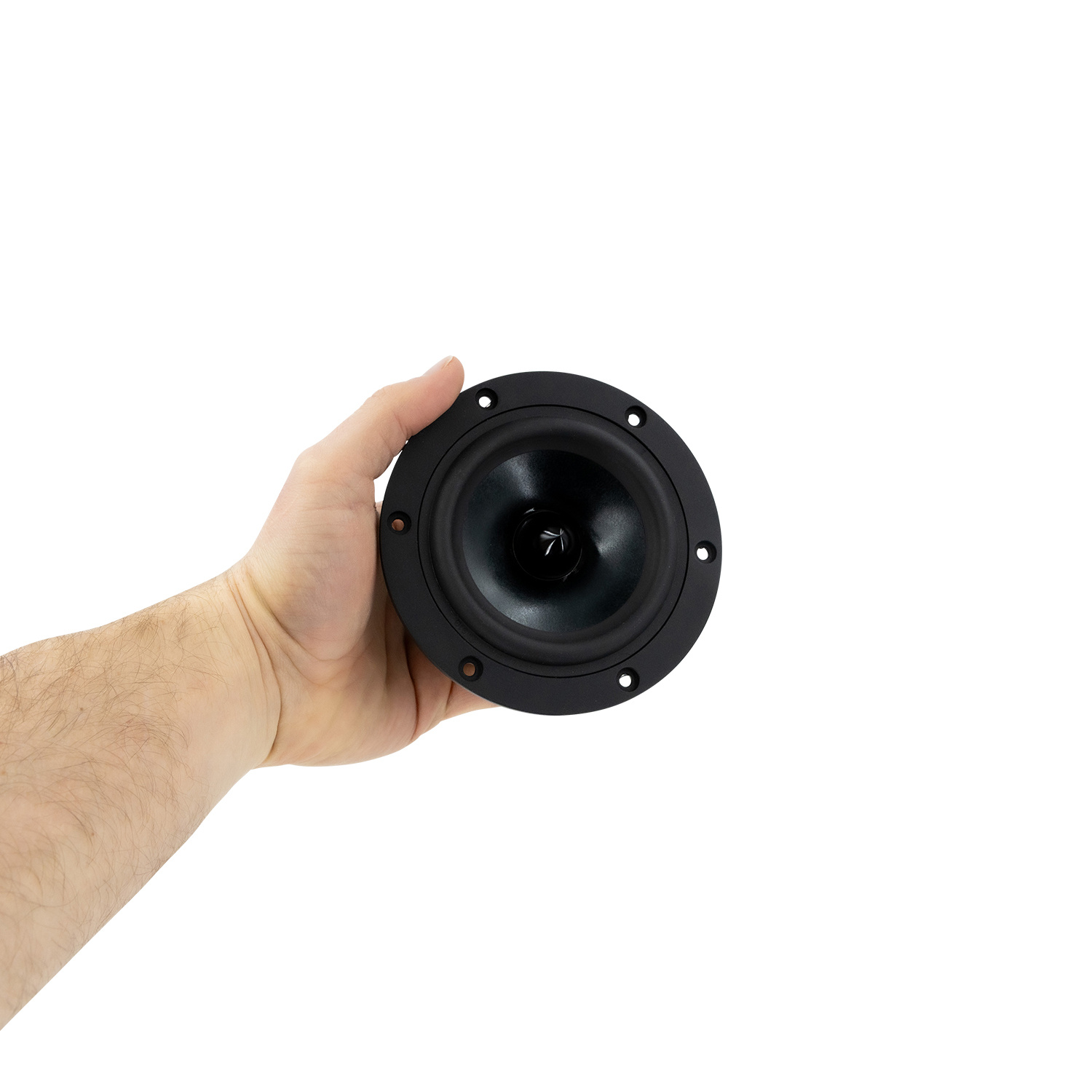

      Dayton Audio RS125P-4 5" Reference Paper Woofer 4 Ohm

      € 43,35€ 52,45 10+ In stock
      • -5% Order 4 for only € 49,83 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped today
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.



      Highlights

      • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
      • Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
      • Perfect for use as a woofer, midwoofer, or dedicated midrange driver



      Product details

      Dayton Audio RS125P-4 5" Reference Paper Woofer 4 Ohm



      The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

      Show more

      Specifications

      Article number
      RS125P-4
      Woofer Series
      Reference Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      5"
      Power Handling (RMS)
      30 watts
      Power Handling (max)
      45 watts
      Impedance (Z)
      4 ohms
      Sensitivity
      90 dB @ 2.83V/1m
      Frequency Response
      70 - 12,000 Hz
      Voice Coil Diameter
      25 mm
      DC Resistance (Re)
      3.1 ohms
      Voice Coil Inductance (Le)
      0.32 mH @ 1 kHz
      Resonant Frequency (Fs)
      70 Hz
      Mechanical Q (Qms)
      3.19
      Electromagnetic Q (Qes)
      0.57
      Total Q (Qts)
      0.48
      Diaphragm Mass Inc. Airload (Mms)
      5.1g
      Mechanical Compliance of Suspension (Cms)
      1.02 mm/N
      Surface Area of Cone (Sd)
      52.8 cm²
      Volume of Displacement (Vd)
      21.1 cm³
      BL Product (BL)
      5.08 Tm
      Compliance Equivalent Volume (Vas)
      3.98 liters
      Maximum Linear Excursion (Xmax)
      4 mm
      Cone / Diaphragm Material
      Paper / Kevlar Cone
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      125.5 mm
      Overall Depth
      55 mm
      Baffle Cutout Diameter
      94 mm
      # Mounting Holes
      6
      Sealed Volume
      0.05 ft.³
      Sealed F3
      146 Hz
      Vented Volume
      0.13 ft.³
      Vented F3
      77 Hz

      Show more

      Reviews

      4 from 5Based on 3 reviews
      Review this product
      5 of 5
      Deze gebruikt voor mijn JBL Control/Universe surroundboxen. Wauw.. wat een waanzinnige verbetering, ze klinken als volwaardige 2-weg boxen, met veel meer laag dan ze oorspronkelijk hadden. Het is een vreemd gezicht om deze mini's te zien en tegelijk een veel groter geluid te horen.
      By PeterV on 28 March 2020
      2 of 5
      The woofer sounds good, but has no dust cover for the voice coil. Only suitable for downfire Boxes. Therefore only two stars.
      By Erhard M. on 29 March 2019
